PYLE PLSQ12BS Single Subwoofer Box System

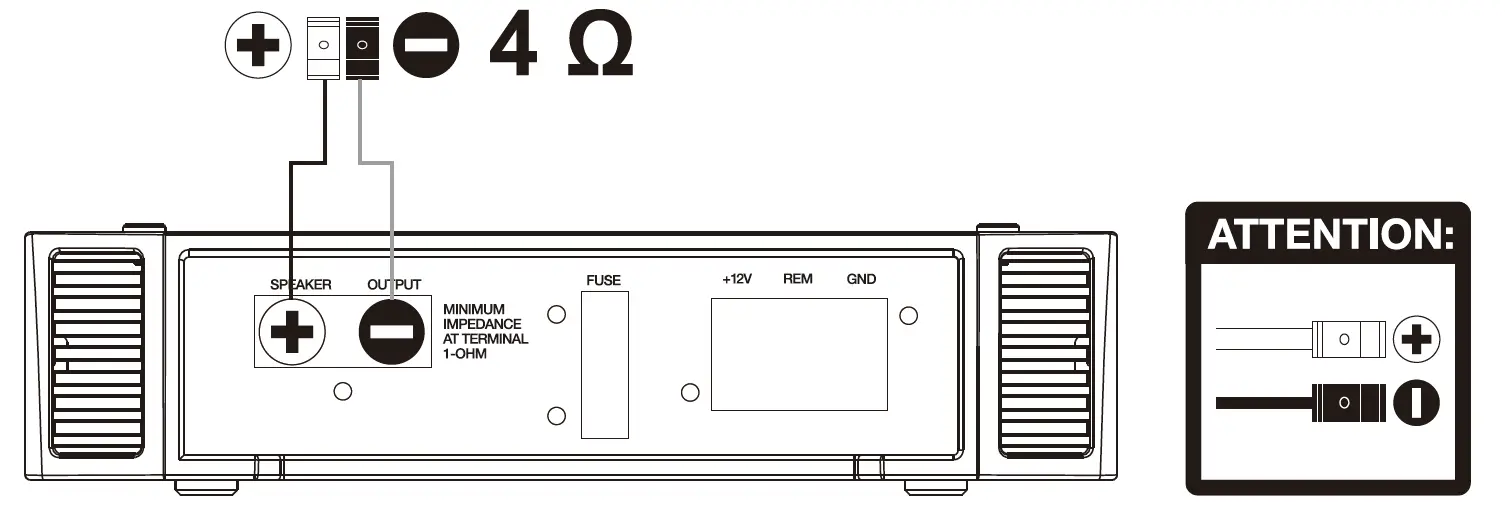

WIRING CONNECTION
Power amplifier for schematic diagram Connect the power amplifier to the positive and negative terminals accordingly as shown.
Features
- Rear Vented Design
- High Powered 12-inch Woofers with a Non-Pressed Paper Cone
- Santoprene Surround
- Smooth Carpet Finish
- Smooth Carpet Finish
- 4 Layer Dual Voice Coil
- Binding Post Connectors
- Perfect for Truck and Behind the Seat
- High-Quality Construction
What’s in the Box

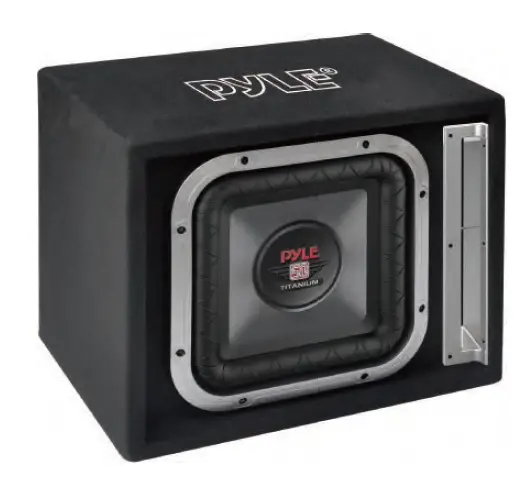

Subwoofer Box
10” Single Series Vented Subwoofer Enclosure
Rear Vented Design with Santoprene Surround
Technical Specs
- Construction Materials: 15mm Particle Board + Multilayer Board
- Power Rating: 800 Watts Max Power
- Voice Coil: 2.5”
- Impedance: 4 Ohms
- Magnet: 40+40 Oz
- Sensitivity: 90 dB
- Frequency Response: 30-200 Hz
- Product Dimensions (L x W x H): 16.5” x 11.8” x 13.4” -inches
12” Single Series Vented Subwoofer Enclosure
Rear Vented Design with Santoprene Surround
Technical Specs
- Construction Materials: 15mm Particle Board + Multilayer Board
- Power Rating: 1200 Watts Max Power
- Voice Coil: 3.0”
- Impedance: 4 Ohms
- Magnet: 50+50 Oz
- Sensitivity: 91 dB
- Frequency Response: 25-150 Hz
- Product Dimensions (L x W x H): 18.5” x 13.8” x 15.3” -inches
California Prop 65 Warning
WARNING:
This product confains Nickel carbonate which is known to thestate of California to cause cancer birth defects and other reproductive harm. Do not ingest. For more info go to: www.P65warnings.ca.gov
