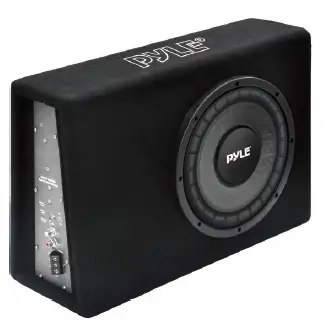

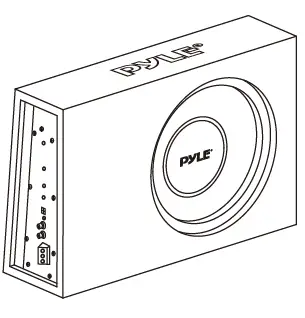

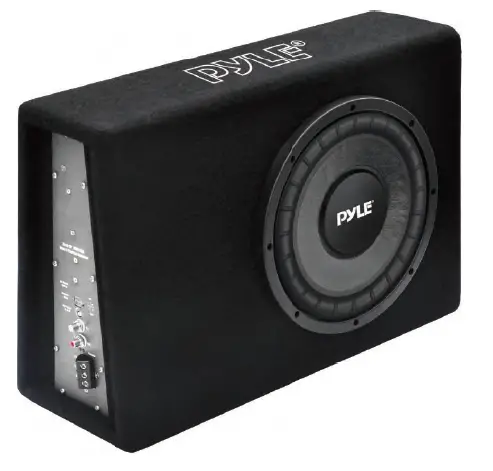

PYLE PSABASS12 Active Slim Bass Subwoofer Box System

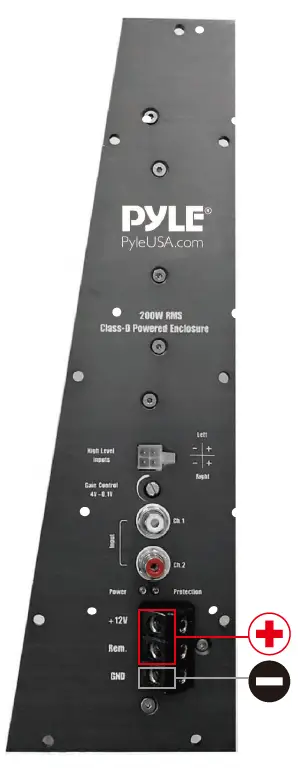

WIRING CONNECTION
Power amplifier for schematic diagram.
- Positive pole: Connect +12V and Rem. in parallel
- Negative pole: Connect to GND
Features
- Class-D Powered Enclosure Amplifier
- Rear Air Tight Seal Design
- High Powered 12-inch Woofers with a Non-Pressed Paper Cone
- Specially Treated Foam Surround
- Smooth Carpet Finish
- 4 Layer Dual Voice Coil
- Binding Post Connectors
- Perfect for Truck and Behind the Seat
- High-Quality Construction
What’s in the Box
- Subwoofer Box
- Output Wire for Amplifier
Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: [email protected]
PSABASS10
10” 500 Watts Powered Slim Bass Subwoofer Box System Mount Car Truck Audio Subwoofer Enclosure
Technical Specs
- Construction Materials: 15mm Particle Board + Multilayer Board
- Power Rating: 500 Watts Max Power
- Voice Coil: 2.0”
- Impedance: 4 Ohms
- Magnet: 40 Oz
- Sensitivity: 90 dB
- Frequency Response: 35-300Hz
- Product Dimensions (L x W x H): 19.7” x 6.0” x 13.6” -inches
- Construction Materials: 15mm Particle Board + Multilayer Board
- Power Rating: 600 Watts Max Power
- Voice Coil: 2.5”
- Impedance: 4 Ohms
- Magnet: 50 Oz
- Sensitivity: 91 dB
- Frequency Response: 28-200Hz
- Product Dimensions (L x W x H): 19.7” x 7.1” x 15.0” -inches
WARNING:
This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest. For more info go to: www.P65warnings.ca.gov
