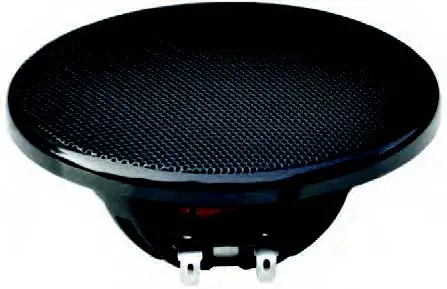

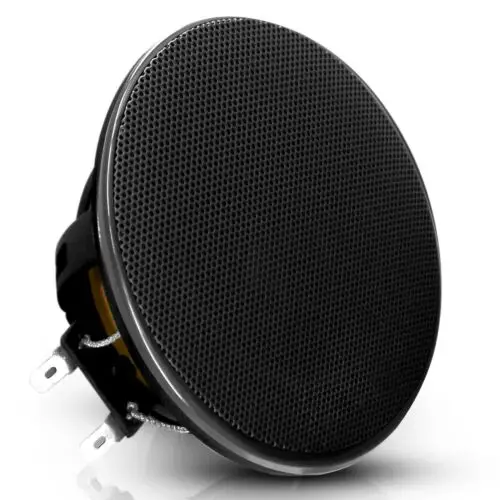

PYLE PLMW36 3.5 Inch Single Voice Coil Car Subwoofer

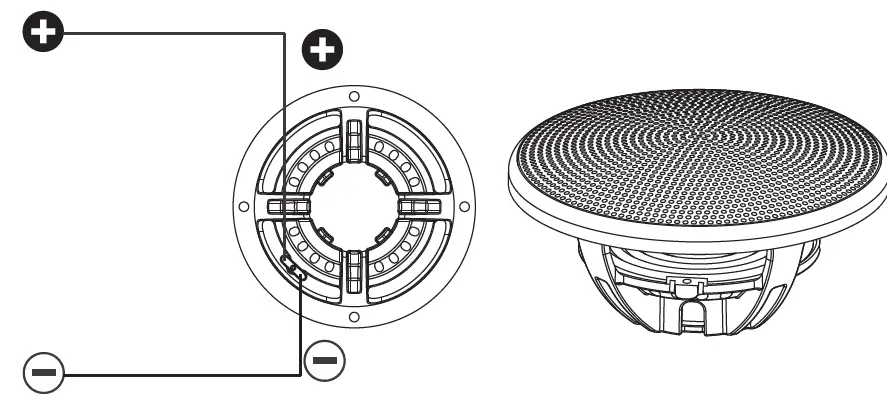

WIRING CONNECTION
Connect the power amplifier to the positive and negative terminals accordingly as shown.
Features:
- PP Cone with Rubber Edge
- High-Powered Car Subwoofer
- Lab Tested Pro Audio Woofer Performance
- SVC: Single Voice Coil Sub Speaker Design
- Massive Butyl Rubber Surround
- High Strength Engineering Plastic Basket
- Quick Connect Speaker Terminal Plate
- Compatible with Sealed Enclosure Speaker Box Audio Setup
- Impressive Bass Response, Low-Resonance Frequency Output
- Designed for Custom Audio Car, Truck, Mobile Vehicle Applications
What’s in the Box:

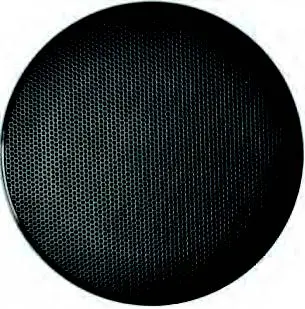

- SVC Subwoofer with Grill
Technical Specs:
- onstruction Materials: Engineered ABS
- Power Handing: 20 Watts MAX, 10 Watts RMS
- Impedance: 4 Ohm
- Voice Coil: 1.0” -in
- Voice Coil Type: High-Temp Aluminum
- Magnet Size: 25*6mm
- Magnet Type: NdFeb Magnet
- Frequency Response: 110Hz-156kHz
- Sensitivity: 85 dB (1w/1m)

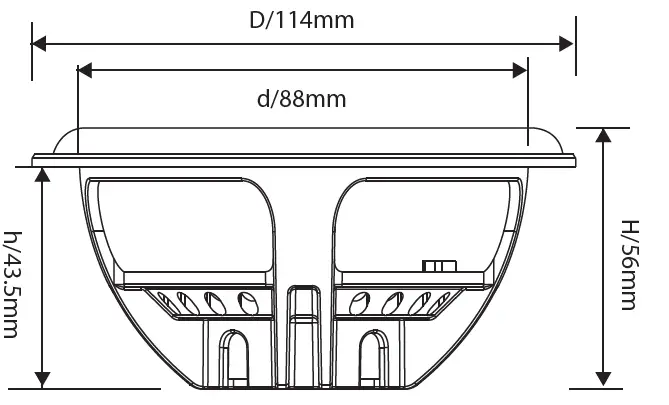

- Product Dimensions: 4.5 ” x 4.5” x 2.2” –inches
- Cutout Size: 3.46” –inche
