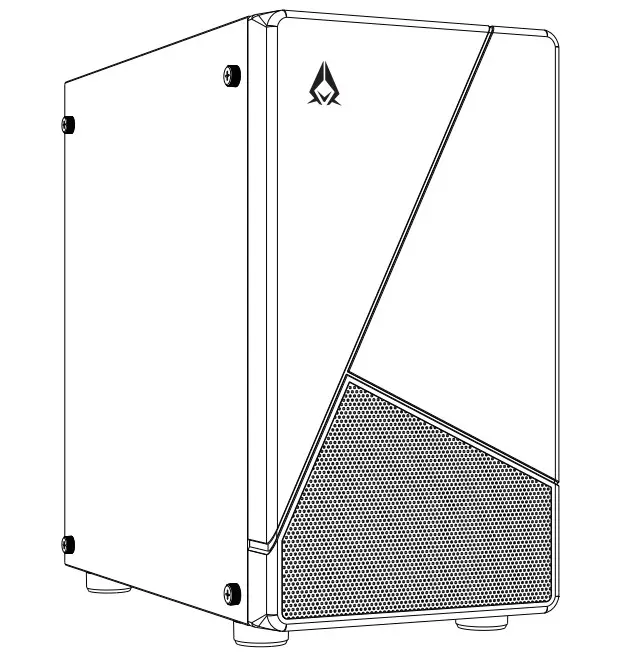

CSAZ-130 NOIR Micro-ATX Case
User Manual
Specification
| Model | |
| Model Name: | NOIR |
| Model Number | CSAZ-130M |
| Specifications | |
| Type: | Micro ATX Mid Tower |
| Color: | Black(exterior)/black(interior) |
| Side Panel Window: | Left side panel: tempered glass with rubber mounts |
| Max CPU Cooler Height: | UP to 165mm |
| Max GPU Length | Up to 300mm long video card |
| Power Supply Support: | Bottom-mounted ATX Power Supply |
| Motherboard Compatibility: | Micro ATX |
| Expansion | |
| External 5.25″ Drive Bays: | 0 |
| Internal 2.5″ Drive Bays: | Up to 6 |
| Internal 3.5″ Drive Bays: | Up to 2 |
| Expansion Slots: | 4 |
| Top Ports: | The power button, LED button, HD Audio, USB 3.0 x2, US82.0 xi |
| Physical Specifications | |
| Case Dimension (HxWxD) | 397x215x404mm/15.6×8.5×16 inches |
| Weight: | 4 3kg /9.51bs |
| Features | |
| Outer Appearance: | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects: | All ARGB light sync. devices connected to the Spin ARGB control hub, allowing the LEO button to directly control the ARGB lighting or switch to the motherboard sync. software to control. |
| Available Fan Ports: | 3x120mm fan ports in the front (1 x 120mm ARGB fan included) 2x120mm fan ports on the top lx120mm fan port in the rear (1 x 120mm ARGB fan included) |
| Water Cooling: | Supports radiators up to 240mm in the front |
| Dust Filters: | Removable (magnetic) dustproof net on the top, iron net on the bottom of chassis. |
| Power Supply Support: | Bottom-mounted ATX Power Supply. |

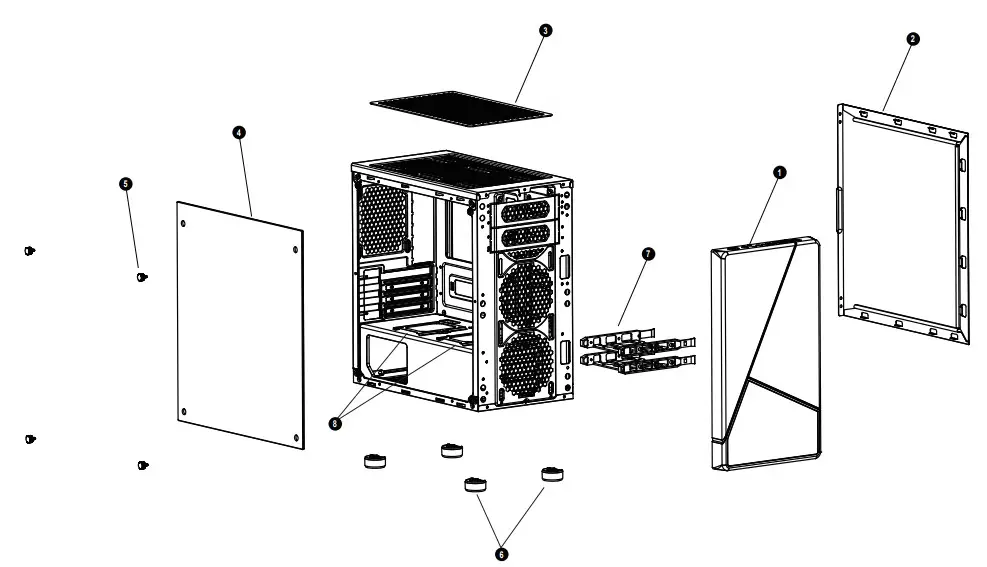

Chassis Parts
| 1 | Front panel |
| 2 | Right side panel |
| 3 | Removable (magnetic) dustproof net |
| 4 | Left side tempered glass panel |
| 5 | Screws for side glass panel |
| 6 | Case feet |
| 7 | 3.5″HDD brackets X2 |
| 8 | 2.5″SSD brackets X2 |

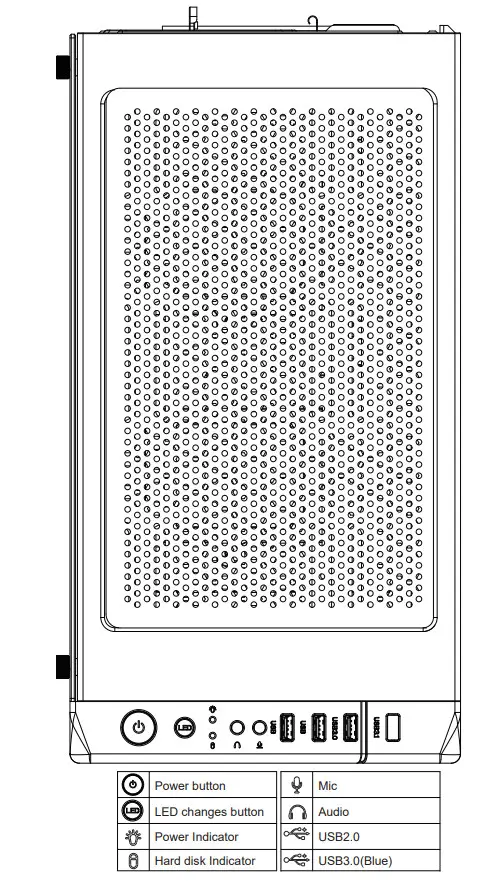

Control Panel Functions

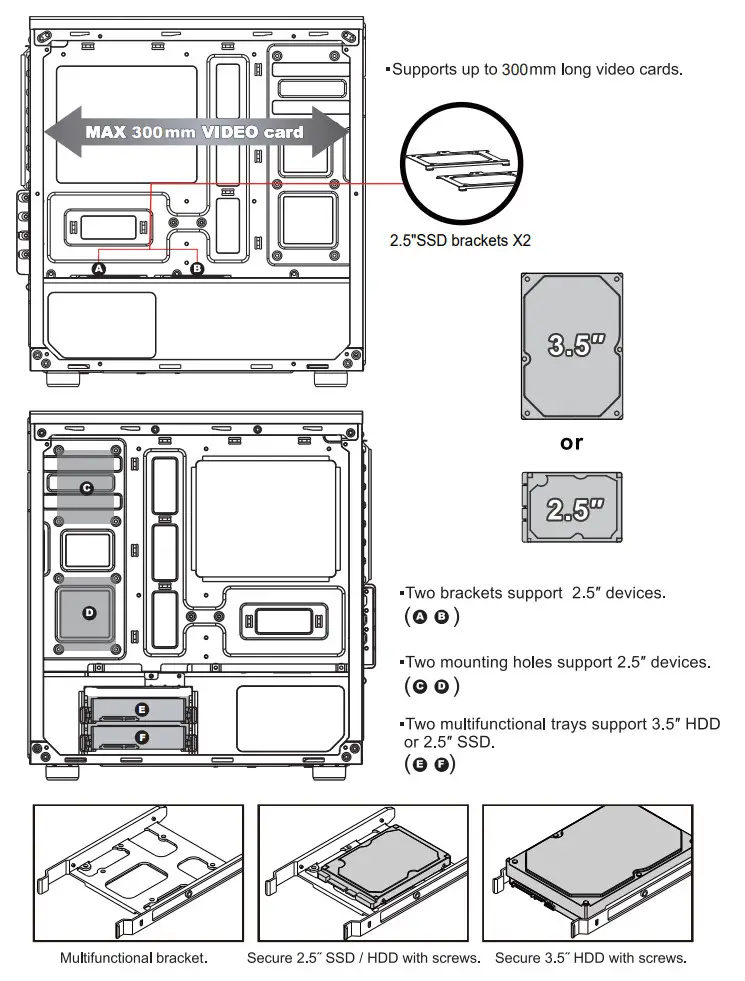

3.5″HDD/ 2.5″ SSD Installation

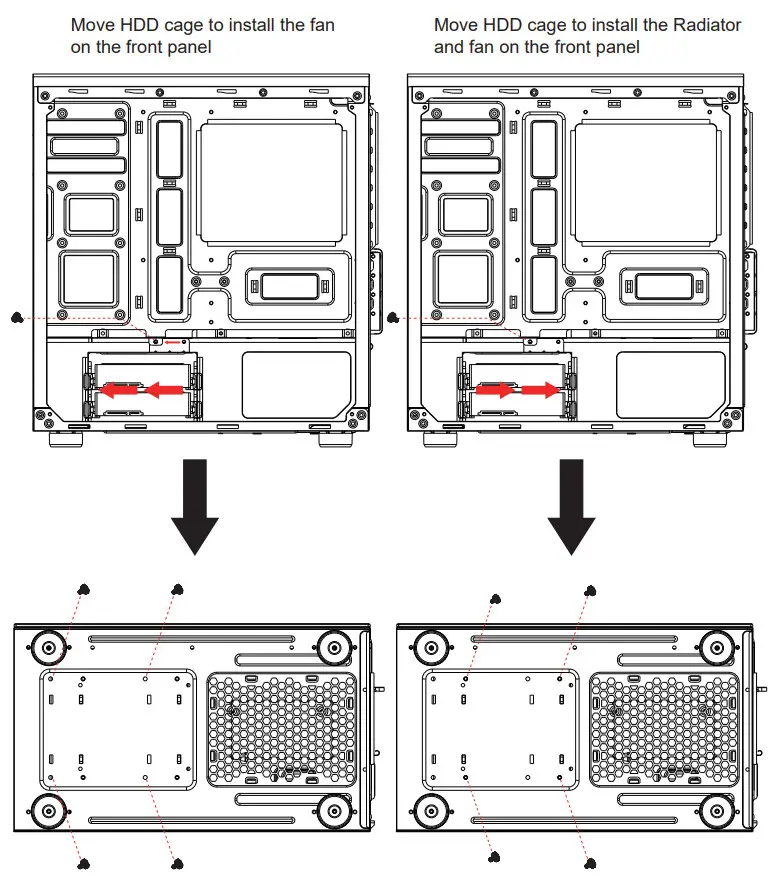

Cooling System Installation
Front

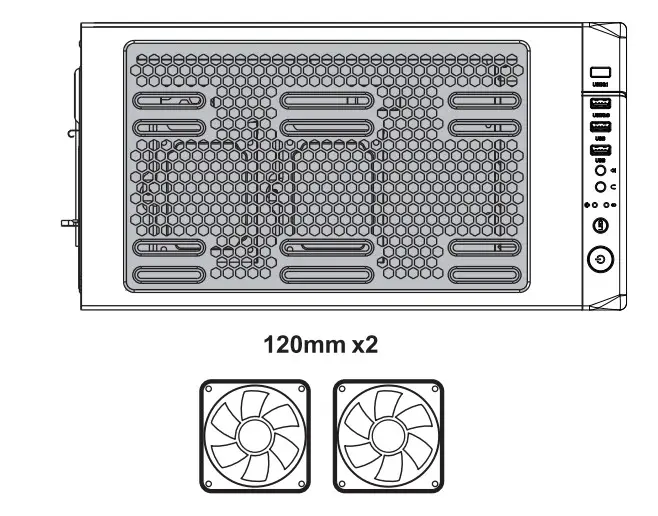

Top

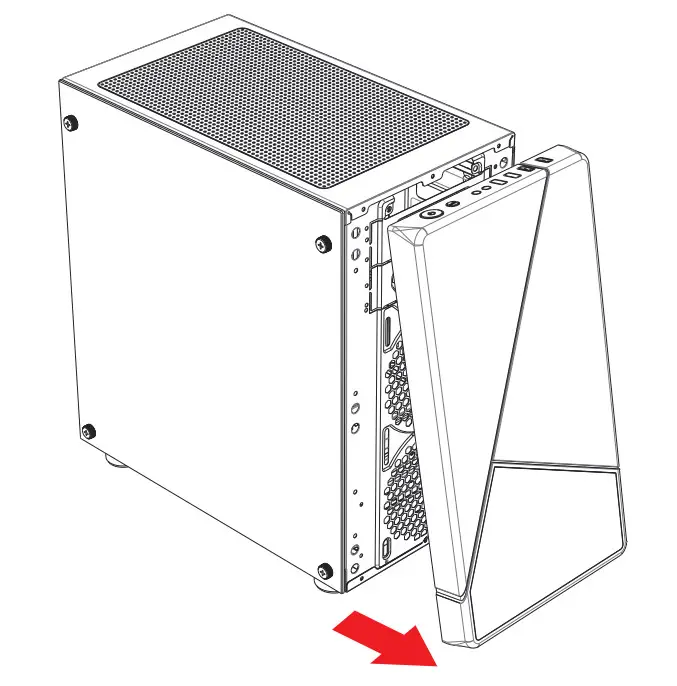

Remove the Front Panel Instructions

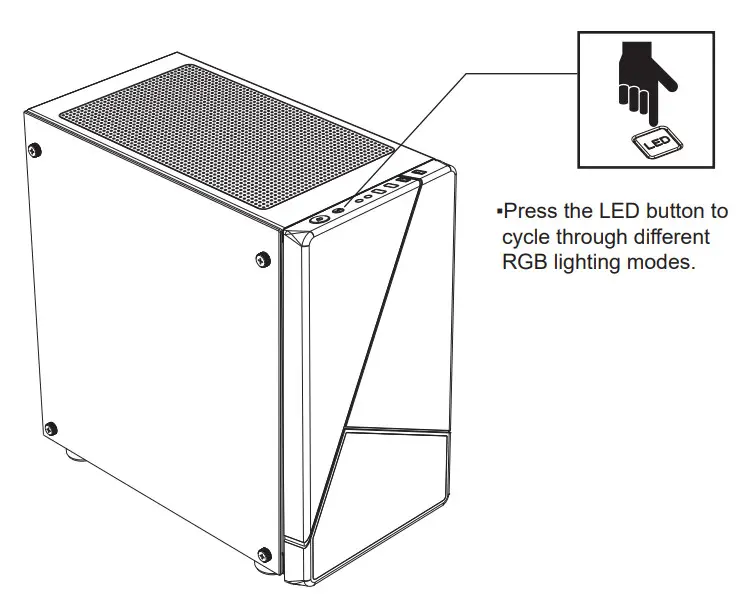

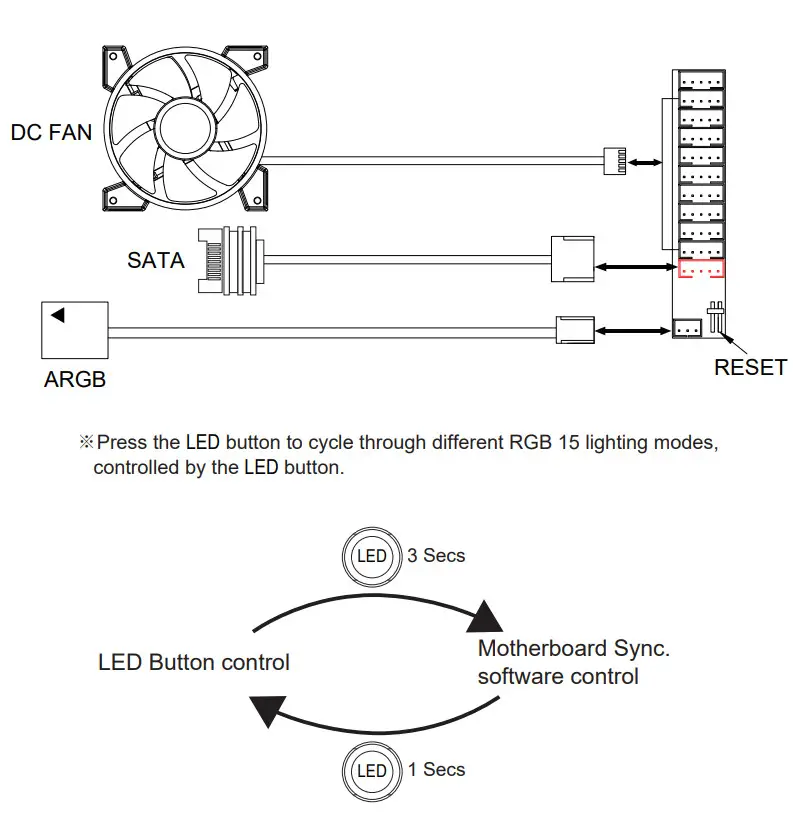

RGB lighting Switching
Fan Installation
