DEEPCOOL MATREXX 40 Micro-ATX Case User Manual

Case Features

Case Specifications

• Length : 400mm
• Width: 215mm
• Height: 431mm
• Maximum GPU length : 320mm
• Maximum PSU length : 160mm
• Maximum CPU cooler height: 165mm
• Radiator compatibility: Fan locations:
• Front: 120/140/240/280mm
• Top: 120/140/240/280mm
• Rear: 120mm
•  Front: 3×120/2x140mm
• Top: 2×120/2x140mm
• Rear: lx120mm

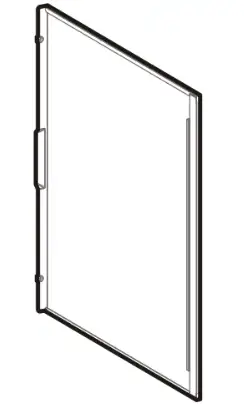

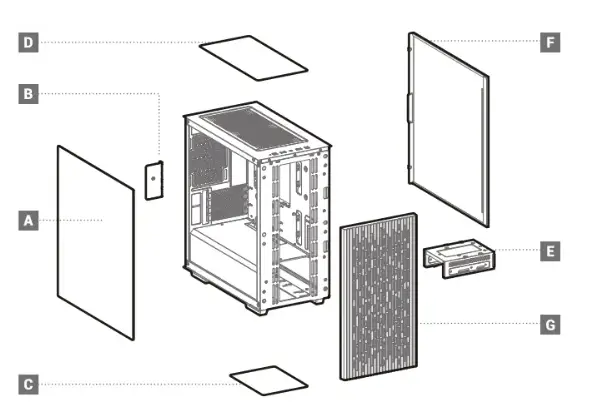

1. (A) Tempered Glass Side Panel

2. (B) PCI-E Back Cover

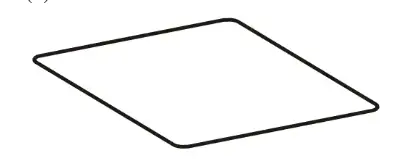

3. (C) PSU Dust Filter

4. (D) Top Dust Fiber

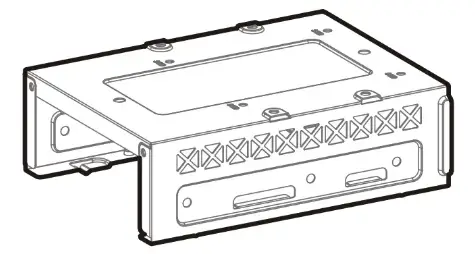

5. (E) HDD Mount

6. (F) Right Side Panel

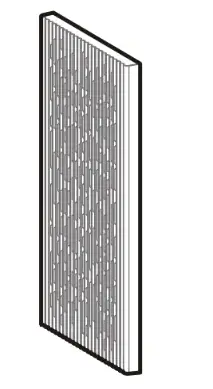

7. (G) Front Panel

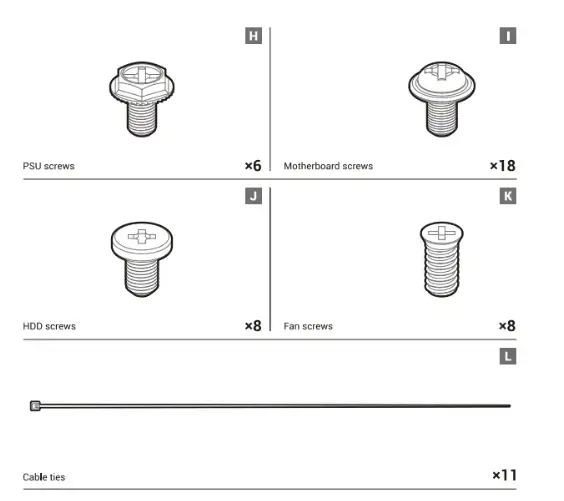

Accessory Kit Contents

Specifications

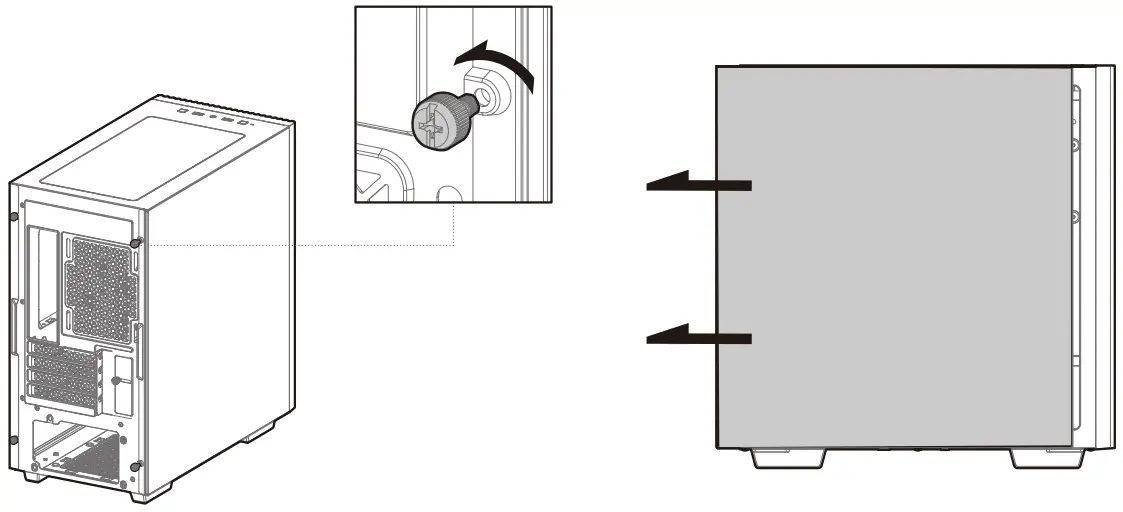

Removing the Tempered Glass Side Panel

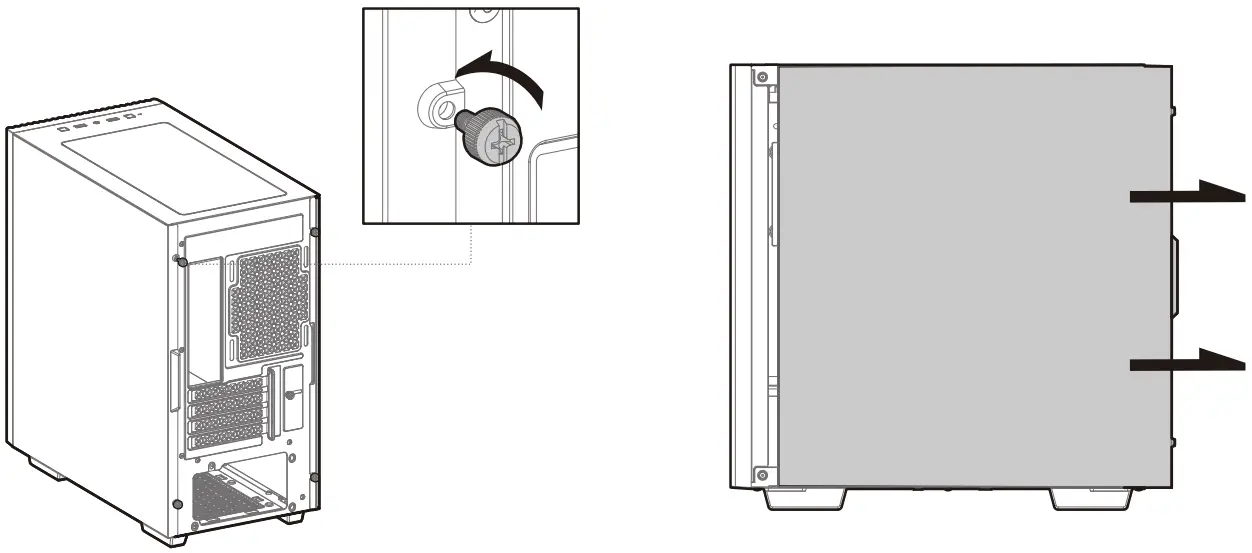

Removing the Metal Side Panel

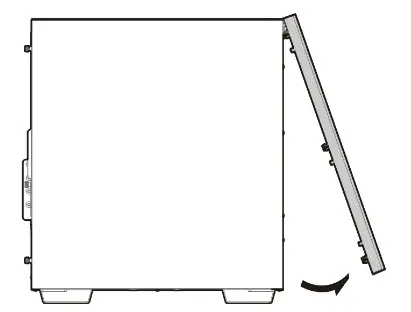

Removing the Front Panel

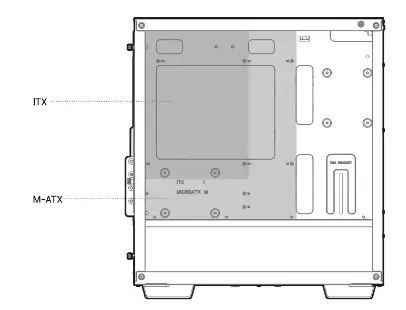

Installing the Motherboard

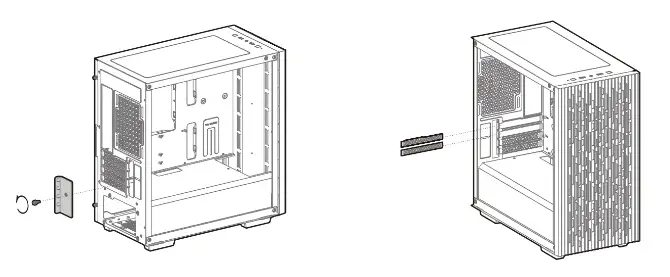

Installing the GPU

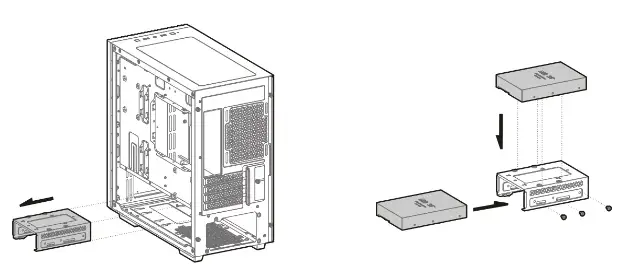

Installing HDDs

Installing SSDs

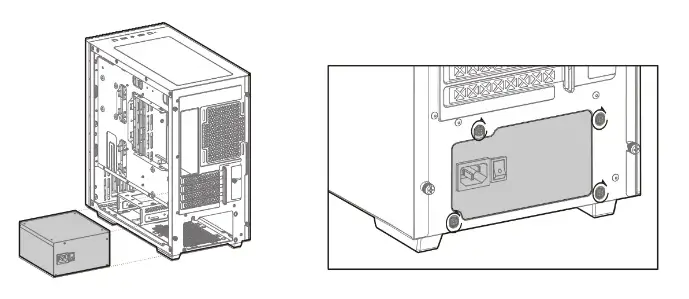

Installing the Power Supply

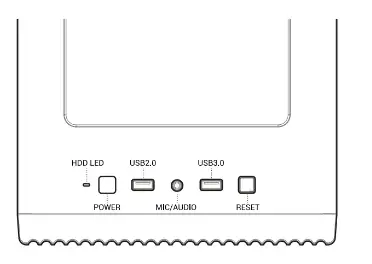

I/O Panel Introduction

For reference only. please refer to the real product.

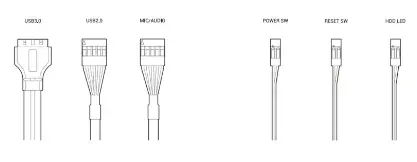

Installing the front I/O Connectors

Manual RGB Wiring

For reference only. please refer to the real product.

Motherboard RGB Synchronization

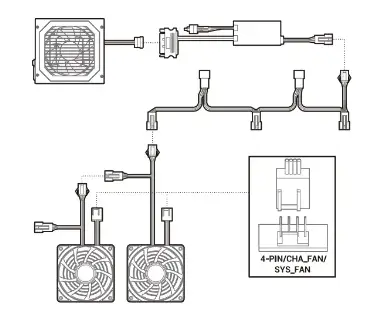

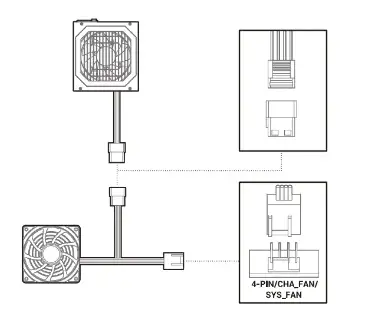

Fan Power Line Wiring

For more information , please check our website at : www.deepcool.com

.

Read More About This Manual & Download PDF:
