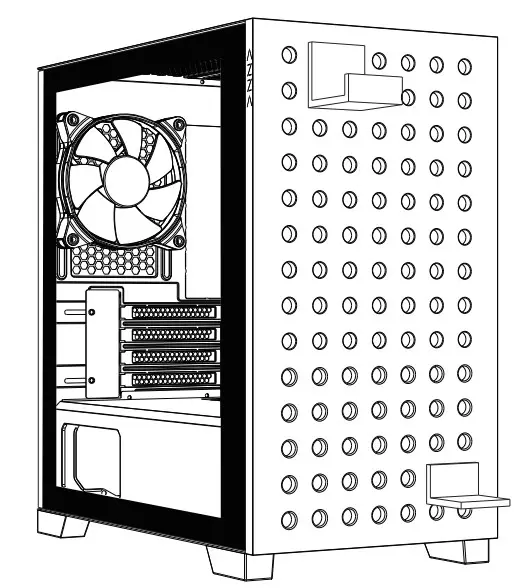

CSAZ-140 ELISE Micro-ATX Case
User Manual
Specification
| Model | |
| Model Name: | Elise |
| Model Number: | CSAZ-140M |
| Specifications | |
| Type: | Micro ATX Mid Tower |
| Color: | Black/Black(Interior) |
| Side Panel Window: | Left side panel: slidable tempered glass panel |
| Max CPU Cooler Height: | UP to 175mm |
| Max Video Card Length: | Up to 340mm long video card |
| Power Supply: | Not included |
| Motherboard Compatibility: | Micro ATX – ITX |
| Expansion | |
| External 5.25″ Drive Bays: | 0 |
| Internal 2.5″ Drive Bays: | Up to 4 |
| Internal 3.5″ Drive Bays: | Up to 2 |
| Expansion Slots: | 4 |
| Top Ports: | The power button, LED button, HD Audio, USB 3.0 x 2 |
| Physical Specifications | 410x220x381 / 16.1×8.7×15 inches |
| Weight: | 5.1kg/11.3 lbs |
| Features | |
| Tempered Glass Sides Window: | High-quality tempered glass side window allows for clear visuals to inner components |

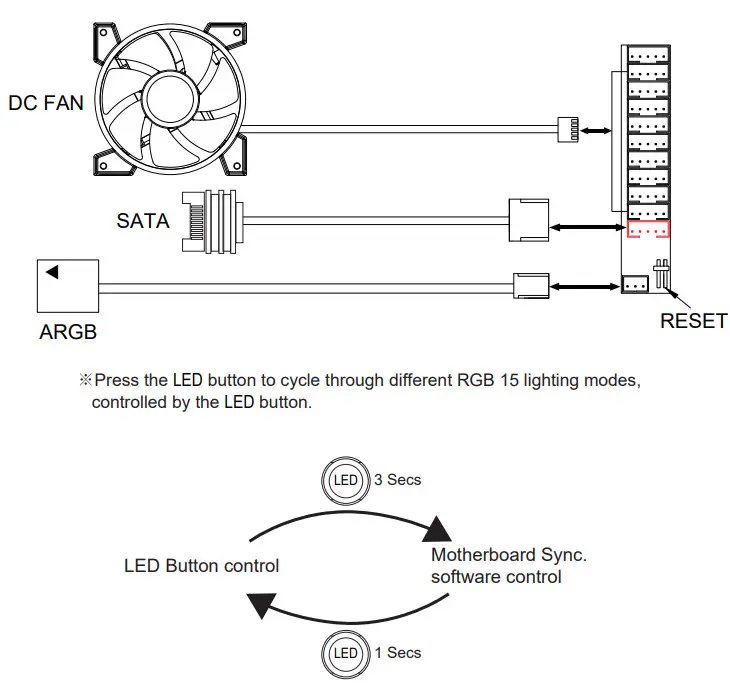

| Addressable RGB Light Effects: | All ARGB light sync. devices connected to the Spin ARGB control hub, allowing the LED button to directly control the ARGB lighting or switch to the motherboard sync. software to control. |
| Available Fan Ports: | 3x120mm or 2x140mm Fan ports in the front (3xARGB Fan included) 3x120mm or 2x140mm Fan ports on the top lx120mm Fan port in the rear (1xARGB Fan included) |
| Water Cooling: | Supports radiators up to 240/280mm on the top Supports radiators up to 240/280mm in the front |
| Dust Filters: | Removable (magnetic) dustproof net on the top and front, dust filter on the bottom of chassis. |
| Power Supply Support: | Bottom-mounted ATX Power Supply |
| Accessories | Earphone holder xl Display stand xl |

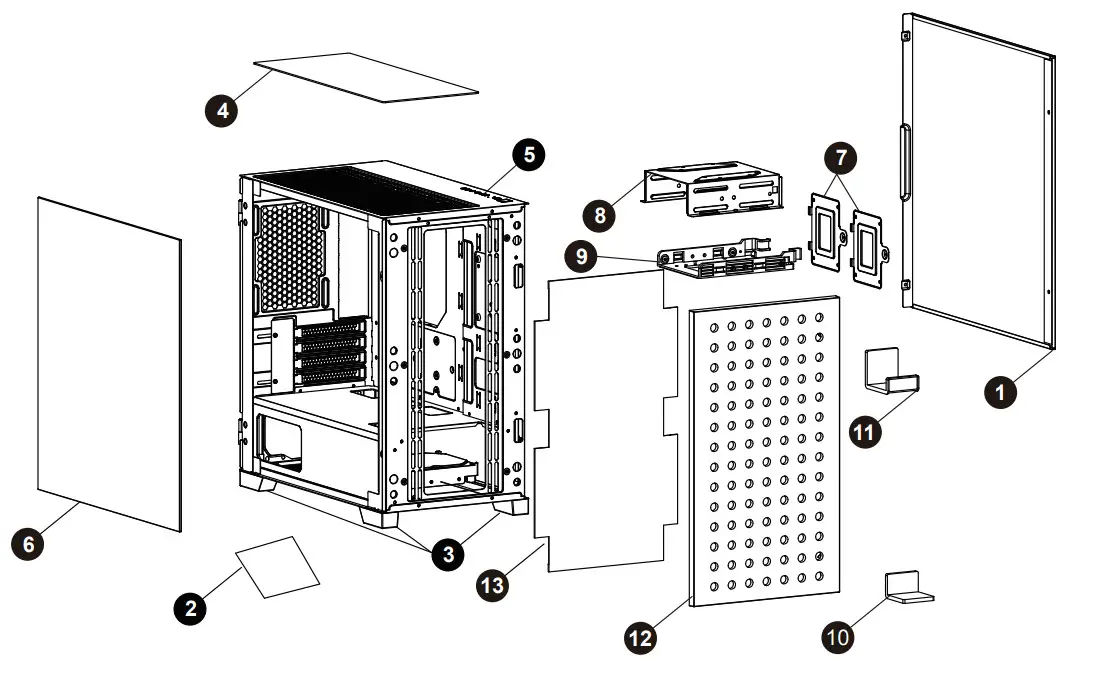

Chassis Parts
| 1 | Front panel |
| 2 | Right side panel |
| 3 | Removable (magnetic) dustproof net |
| 4 | The left side tempered glass panel |
| 5 | Screws for side glass panel |
| 6 | Case feet |
| 7 | 3.5″HDD brackets X2 |
| 8 | 2.5″SSD brackets X2 |

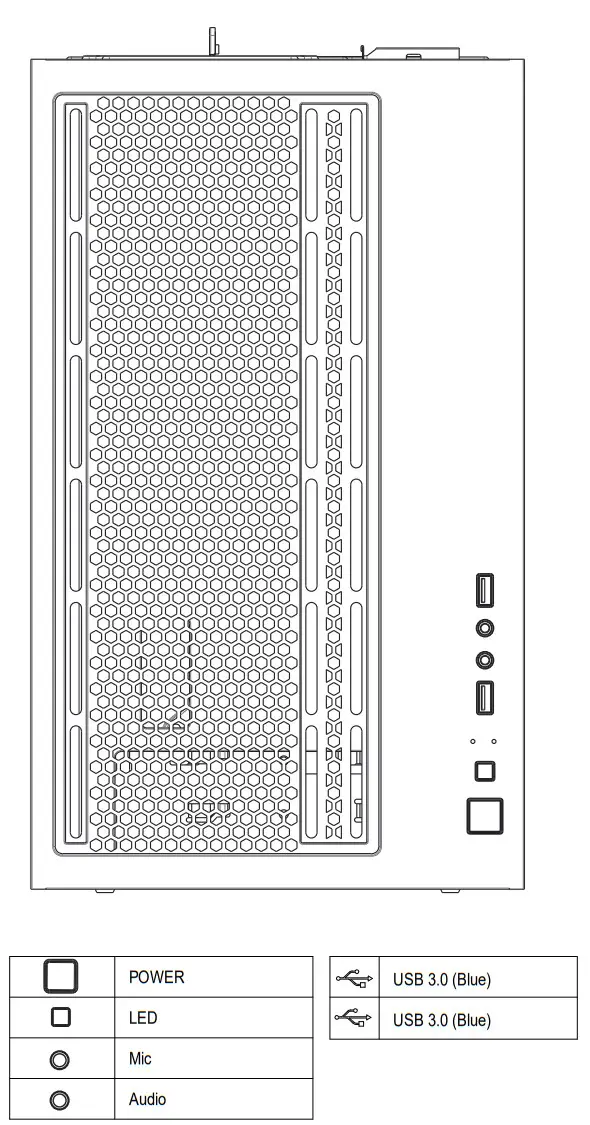

Control Panel Functions

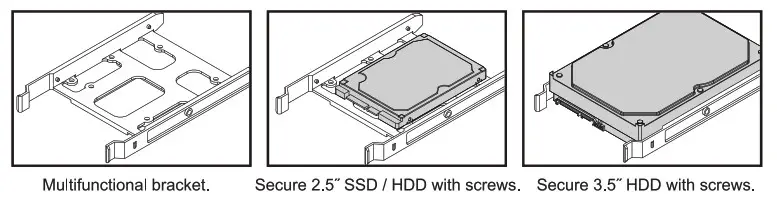

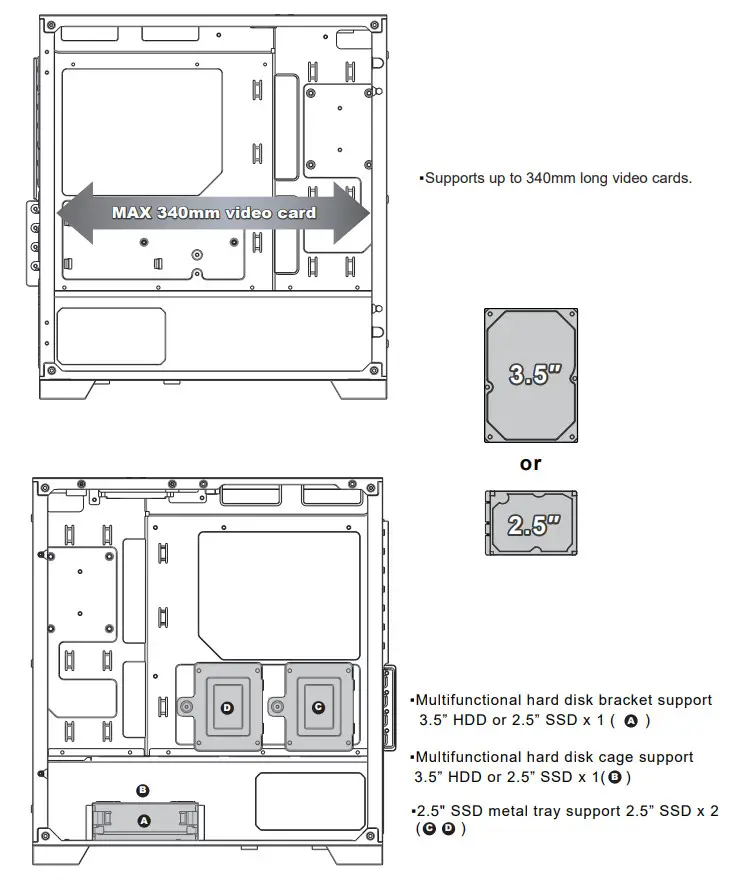

3.5″HDD/ 2.5″ SSD Installation
Cooling System Installation

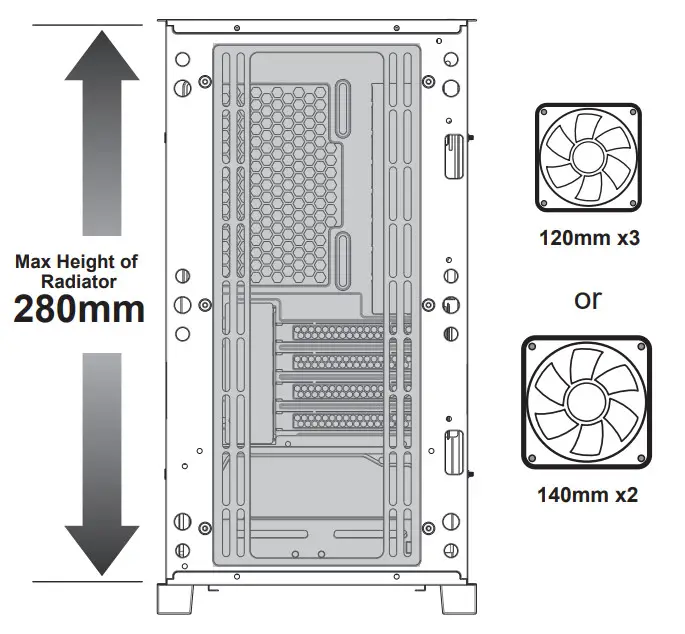

Front

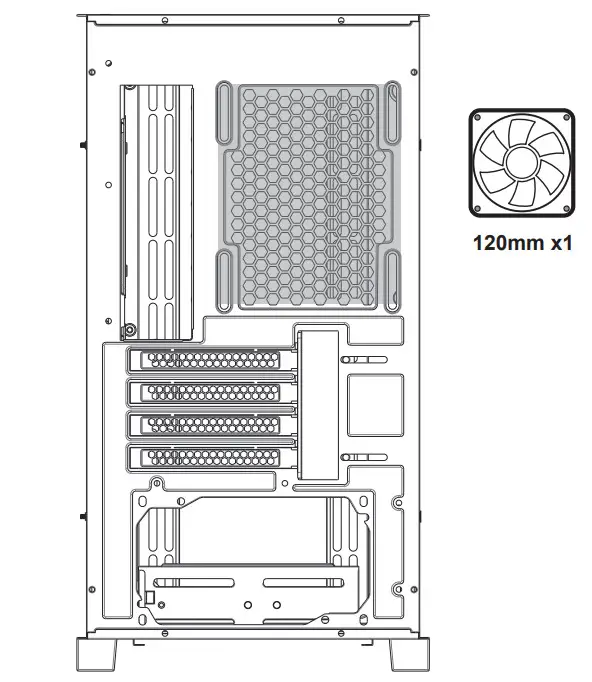

Rear
Cooling System Installation

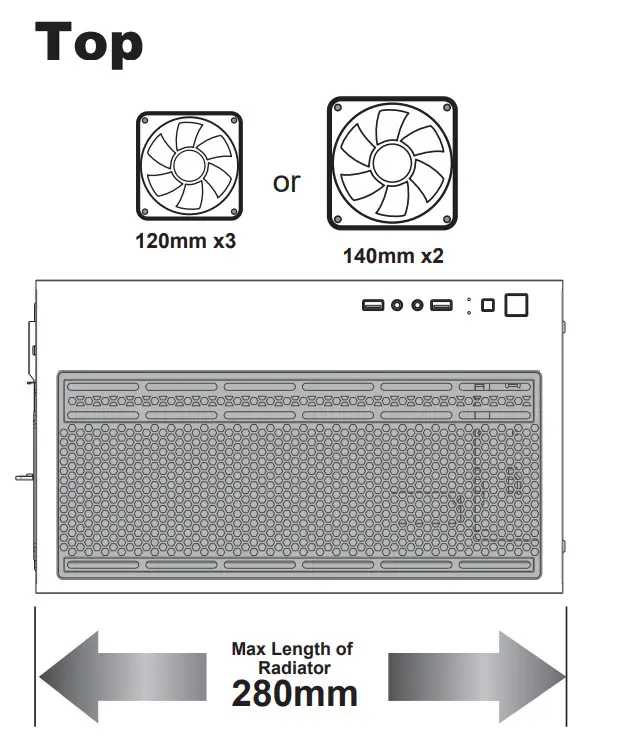

Top
Fan Installation

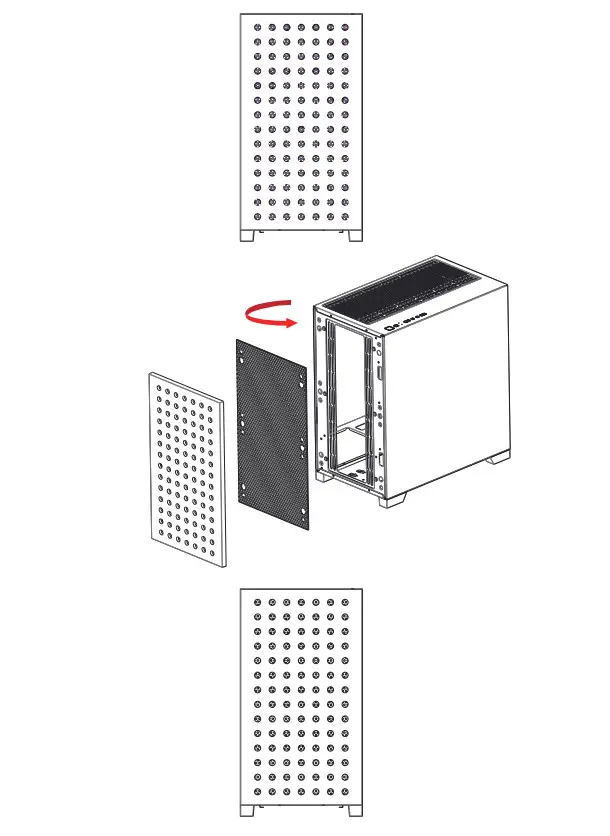

Front Mesh Color Change
The front mesh is reversible with options of white & pink
