ECLIPSE 440
USER MANUAL
Installation Instructions
Specifications
Model | |
| Model Name: | ECLIPSE 440 |
| Model Number: | CSAZ-440 |
Specifications | |
| Type: | ATX Mid Tower |
| Color: | Black/Black(interior) |
| Side Panel Window: | Left side panel: tempered glass with rubber mounts |
| Max CPU Cooler Height: | UP to 165mm |
| Max Video Card Length: | Up to 360mm long video card |
| Power Supply: | Not included |
| Motherboard Compatibility: | <270mm E-ATX – ATX – Micro ATX – ITX |
Expansion | |
| External 5.25″ Drive Bays: | 0 |
| Internal 2.5″ Drive Bays: | Up to 4 |
| Internal 3.5″ Drive Bays: | Up to 2 |
| Expansion Slots: | 7 |
| Top Ports: | Power button, reset button,Led button, HD Audio, USB 3.0 x 1, USB2.0x2 |
Physical Specifications | |
| Case Dimension (HxWxD) | 470x215x450/18.5×8.5×17.7 inches |
| Weight: | 6.3k: /13.9lbs |
Features | |
| Tempered Glass Sides Window: | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects: | All ARGB light sync. devices connected to the ARGB control board, allowing the LED button to directly contrl the ARGB lighting. |
| Available Fan Ports: |
|
| Water Cooling: | Supports radiators up to 280/360mm in the Front Supports radiators up to 240mm in the Top |
| Dust Filters: | Removable (magnetic) mesh net on the top, Steel dust filter on the bottom of chassis. |
| Power Supply Support: | Bottom mounted ATX Power Supply |
| Accessories: | ARGB Controller Board |
Chassis Parts
| 1 | Chassis |
| 2 | Metal side panel |
| 3 | Sliding tempered glass panel |
| 4 | 2.5” SSD tray x 2 |
| 5 | Hard disk cage |
| 6 | 3.5” HDD/ 2.5” SSD brackets |
| 7 | Front panel |
| 8 | Light guide panel |
| 9 | Removable magnetic mesh |
| 10 | Steel dust filter |

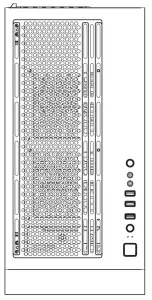

Control Panel Functions
 | POWER |
 | RESET |
 | LED |
 | Audio |
 | USB 3.0 (Blue) |
| USB 2.0 (Black) |
 | Mic |

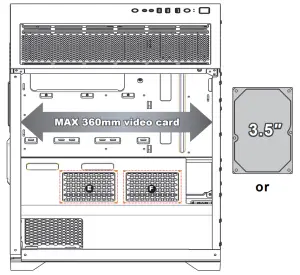

3.5″/2.5″HDD/SSD Installation
- Supports up to 360mm long video cards.
- Supports up to 120mm fan x2 (E F )
- Multifunctional hard disk cage support 3.5” HDD or 2.5” SSD x 1(A )
- Multifunctional hard disk bracket support 3.5” HDD or 2.5” SSD x 1 ( B)

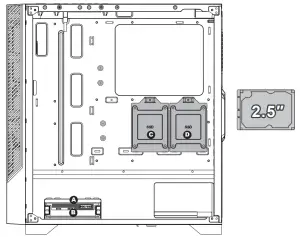

- 2.5″ SSD metal tray support 2.5” SSD x 2 ( C D)
Cooling System Installation

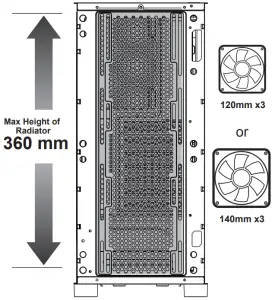

Front

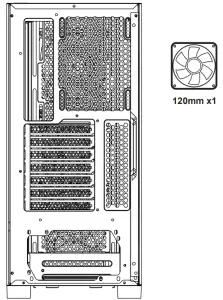

Rear

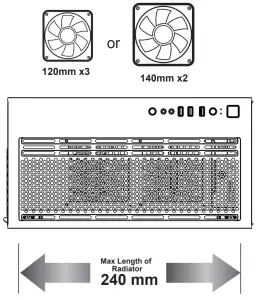

Top

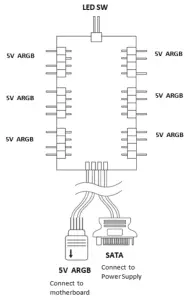

ARGB Control Board

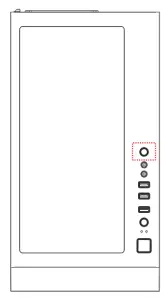

ARGB Control Modes Switching
- Press the LED button to cycle through different RGB lighting modes, controlled by the LED button through the ARGB control board.
- Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and the LED button.
