AZZA CSAZ-480 AERO PC Gaming Case
Installation Instructions
- Specifications
- Chassis Parts

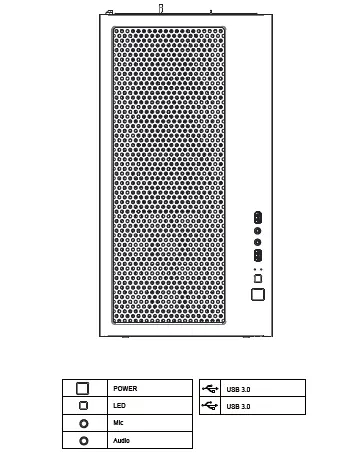

- Control Panel Functions
- 3.5”/2.5” HDD/SSD Installation
- Remove the Front Panel Instructions
- Cooling System Installation
- Master Fan & Sub-fan Installation
- PSU Fans Installation
- Fan Installation
- RGB Lighting Switching
Specifications
| Model | |
| Model Name: | Aero |
| Model Number: | CSAZ-480 |
| Specifications | |
| Type: | ATX Mid Tower |
| Color: | Black/Black(interior) |
| Side Panel Window: | Left side panel: slidable iron mesh side panel |
| Max CPU Cooler Height: | UP to 170mm |

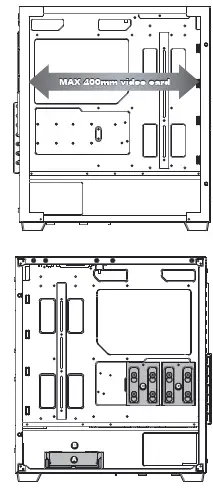

| Max Video Card Length: | Up to 400 mm long video card |
| Power Supply: | Not included |
| Motherboard Compatibility: | E-ATX、ATX、Micro ATX、ITX |
| Expansion | |
| External 5.25″ Drive Bays: | 0 |
| Internal 2.5″ Drive Bays: | Up to 4 |
| Internal 3.5″ Drive Bays: | Up to 2 |
| Expansion Slots: | 7 |
| Top Ports: | Power button, LED button, HD Audio, USB 3.0 x 2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 483x220x445mm/19×8.7×17.5 inches |
| Weight: | 6.1Kg /13.5lbs |
| Features | |
| Mesh side panel: | The full mesh side windows allow for clear visuals to inner components and increased air intake, having maximum airflow performance. |
| Addressable RGB Light Effects: | ARGB fans are controlled using the LED button. All addressable RGB devices can sync with the motherboard,allowing the motherboard software to control lighting directly. |
| Available Fan Ports: | 3x120mm or 3x140mm fan ports in the front (3x120mm LFO-3812D addressable ARGB fan included) 3x120mm or 2x140mm fan ports on the top 1x120mm fan port in the rear (1x120mm LFO-3812D addressable ARGB PWM fan included) 2x120mm fan ports on the Power Supply Shroud |
| Water Cooling: | Supports radiators up to280/360mm in the Front Supports radiators up to280/360mm in the Top |
| Dust Filters: | Removable (magnetic) dustproof net on the top, dust filter on bottom of chassis. |
| Power Supply Support: | Bottom mounted ATX Power Supply |

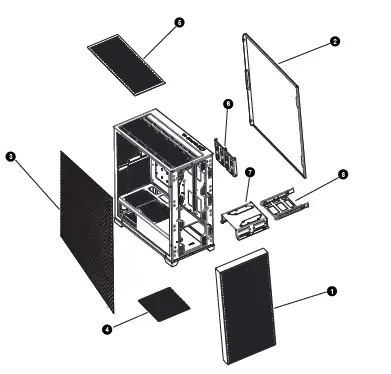

Chassis Parts
- Multifunctional hard disk bracket support 3.5” HDD or 2.5” SSD x 1 ( )
- Multifunctional hard disk bracket support 2.5” SSD x 2 ( C )
- Multifunctional hard disk cage support 3.5” HDD or 2.5” SSD x 1( )

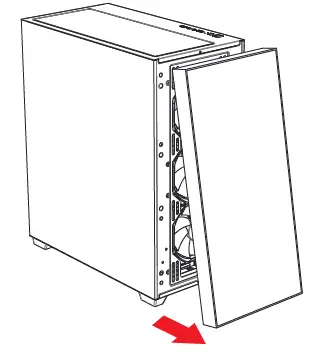

Remove the Front Panel Instructions
Cooling System Installation

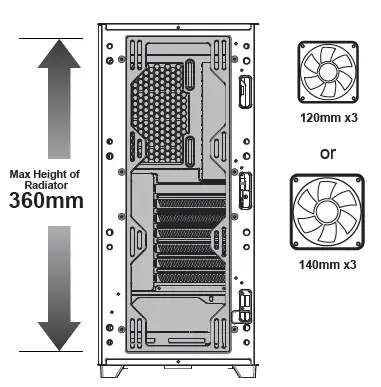

Front

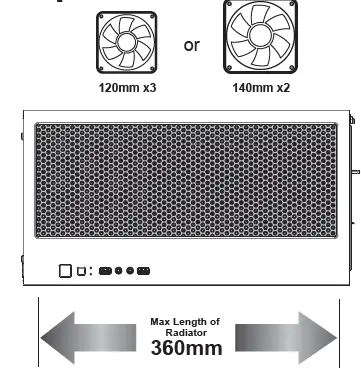

Top

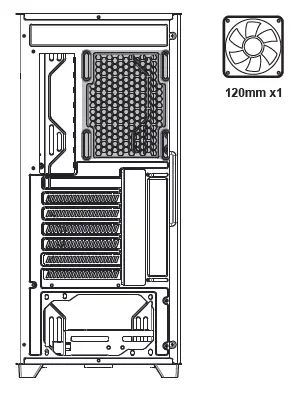

Rear

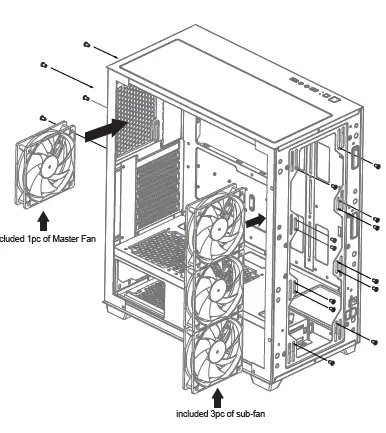

Master Fan & Sub-fan Installation

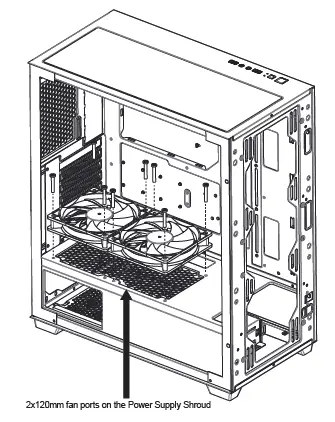

PSU Fans Installation

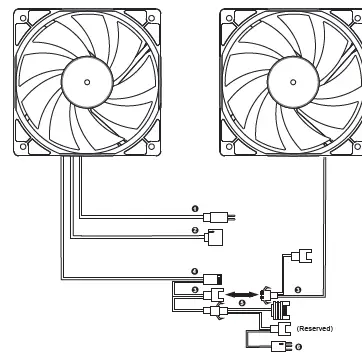

Fan Installation
※Before the fan starts,please make sure the PWM connector ④ and SATA connector ⑤ each are connected.
※Press the LED button to cycle through different RGB lighting modes, all ARGB devices are controlled by the LED button. (make sure the other 3pin ARGB devices are connected with ⑥ )
※Ensure ② insert the motherboard, hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.

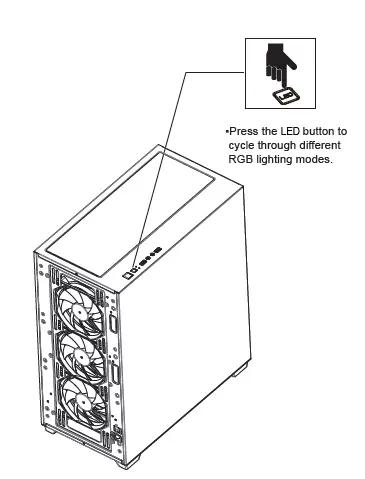

RGB Lighting Switching
