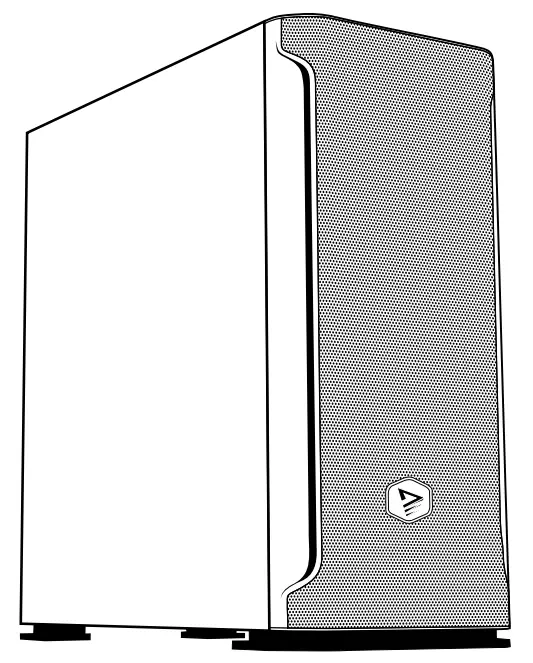

SHADOW X1 professional gaming pc case
User Manual

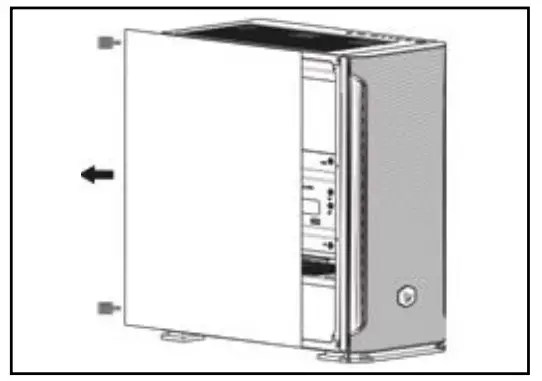

- Remove 4 screws from both sides of the panels.
- Slide two panels 2cm backward and put them away from the case.

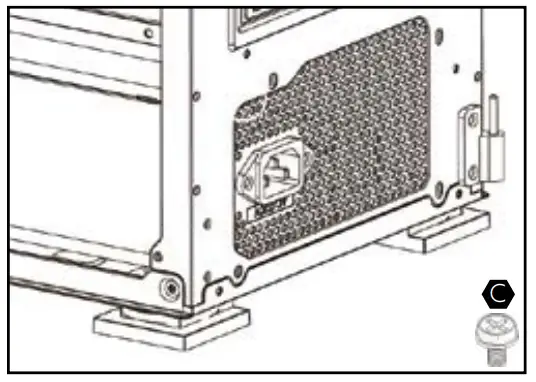

Place the power supply incorrect location, then secure it with screws. Pay attention to the PSU fan should be facing towards down.

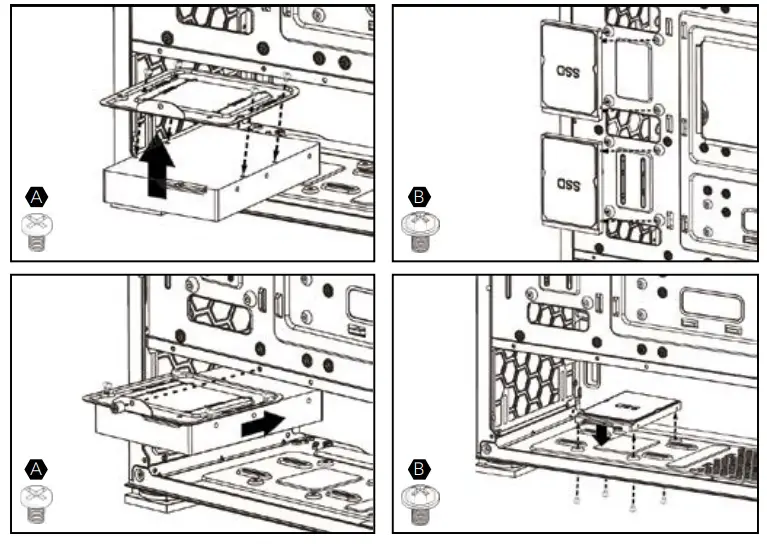

Insert the SSD or HDD discs in the right places (presented in the pictures) and secure them with screws.

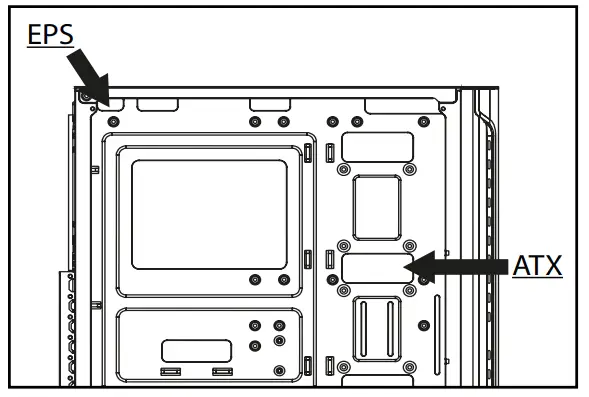

Reload ATX/EPS cable through proper holes in a PC case.

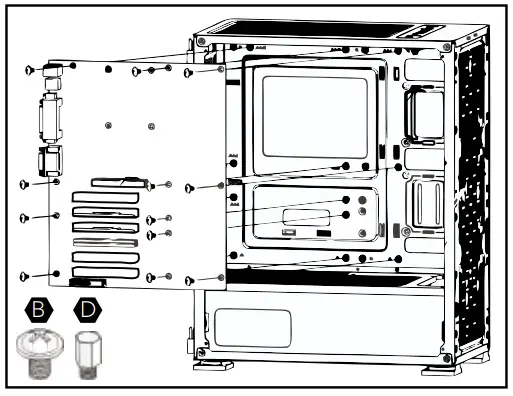

In case of having an ATX motherboard, you need to assembly additional M / B standoff in proper places in PC case.
- Place the motherboard cover in the PC case.
- Place the motherboard in the standoff.
- Secure the motherboard by screw.
- Plug the EPS and ATX cables in the proper socket into the motherboard.

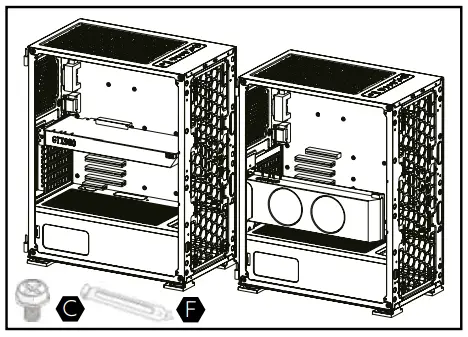

- Uninstall the expansion card cover.
- If it is necessary remove some PCI-E slot cover.
- Insert GPU card into the PCI-E slot.
- Secure the GPU card with screws.
- Plug the PSU connector into the GPU socket
- Install the expansion card cover.
I/O panel is equipped with USB ports, audio and microphone for these parts proper work connect the cable
incorrect place on the motherboard.
- The screws for additional fans are not included in the mounting set.
- The VGA holder is not included in the mounting set.
- Do not cover vent holes that are located into the top, rear, front, and bottom of the PC case.
LET’S PLAY 2GETHER
Thank you for choosing our product!
If our product meets your expectations, share your opinion with other people on the portal ceneo.
pl, on social media or on the website of the store where you made the purchase.
If you want to show off our device on Savio.net.pl FanPage on Facebook, we will be very pleased.
If there is something that we could improve on our products, please write to us at [email protected]
Thanks to your feedback, we will be able to better adapt the product to your expectations.
Warranty:
The warranty covers a period of 24 months. Independent repairs and modifications result in automatic loss of the warranty.
The warranty card is also available for download on our website: www.savio.net.pl/en/service
