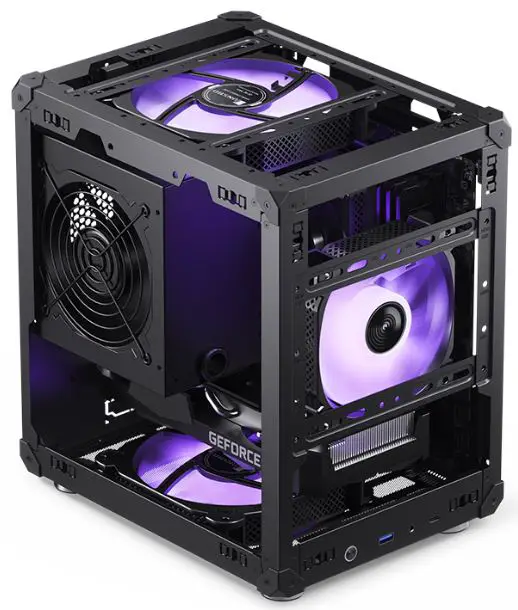

jONSBO C6 PC Case
Package Content

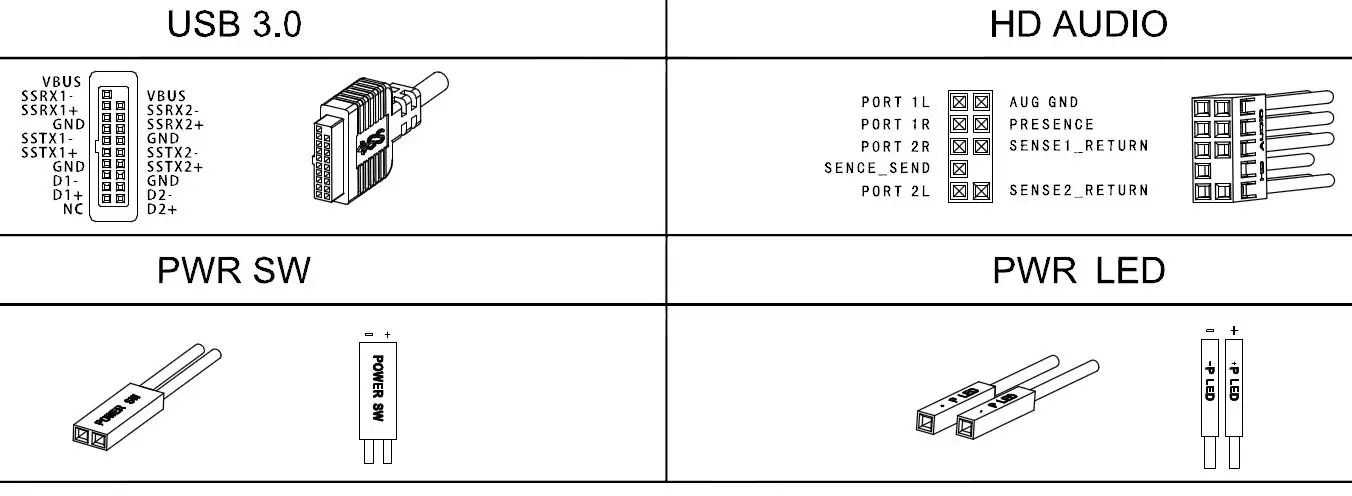

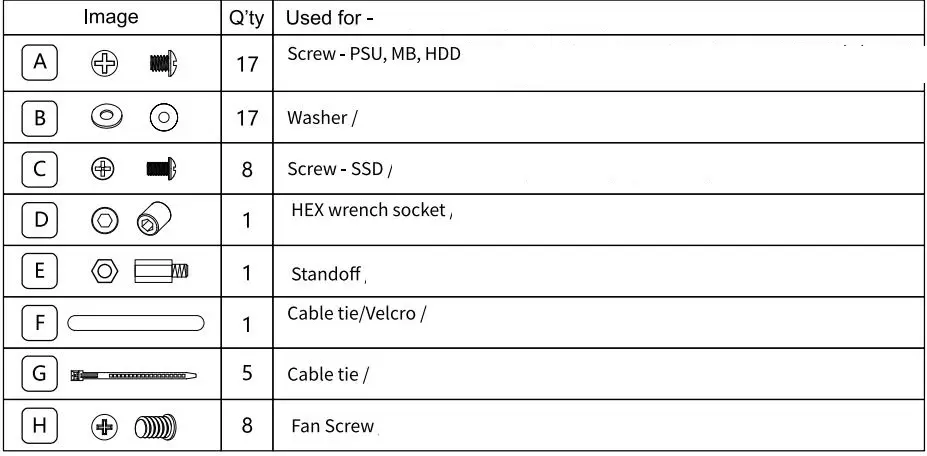

Connectors
Parts Diagram

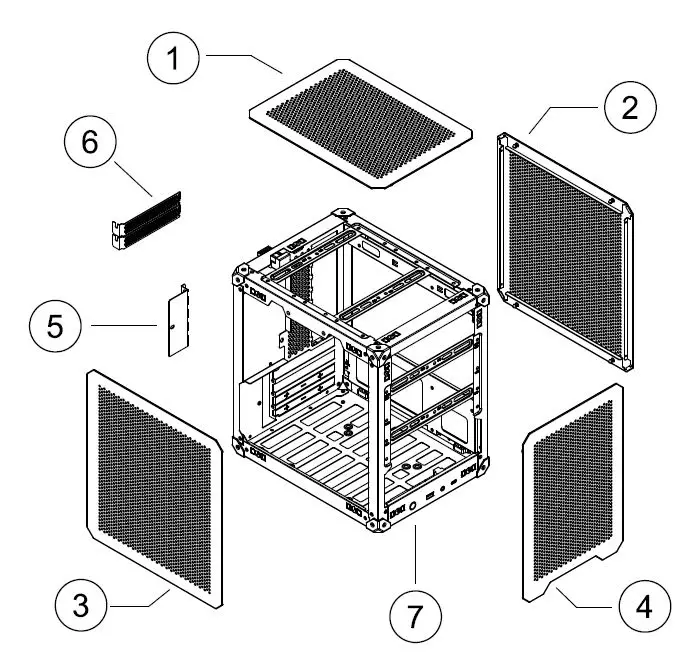

Parts
- Top Mesh Panel
- Right Mesh Panel
- Left Mesh Panel
- Front Mesh Panel
- PCI slot Cover
- PCI slot bracket
- Main Chassis
PSU installation

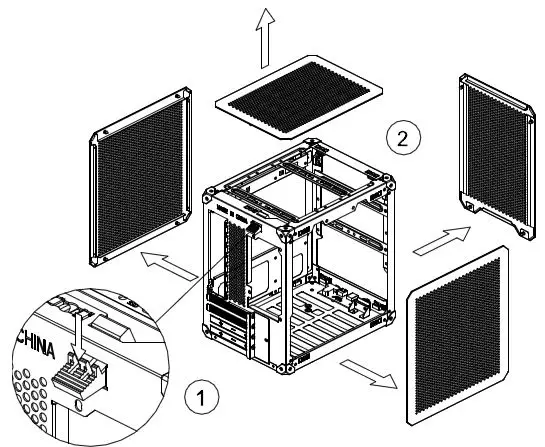

- Press the button on the rear panel of the chassis to open the top panel.
- push the side panel and front panel out of the inside of the case.
Before installation, please also remove all

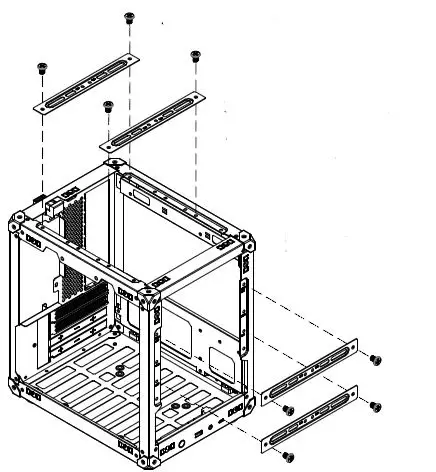

- Remove the multi-functional brackets

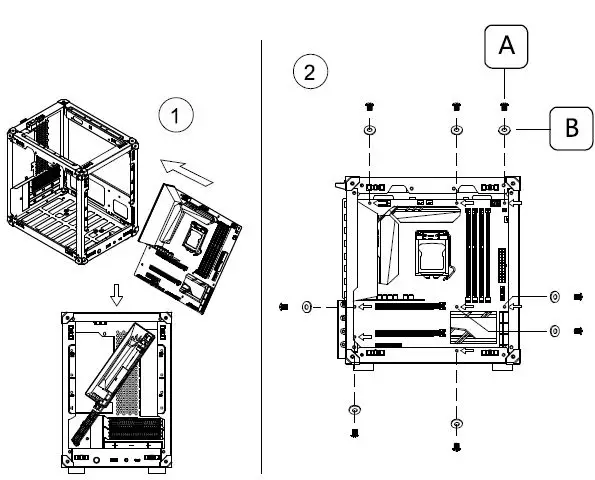

Motherboard Installation
Insert the MB diagonally through the front case into the case, secure with screws
Motherboard Installation

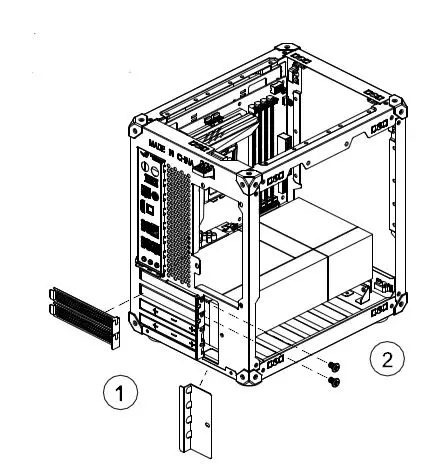

- Remove PCI slot cover, and PCI slot brackets
- Insert the graphics card to MB slot, secure with screw

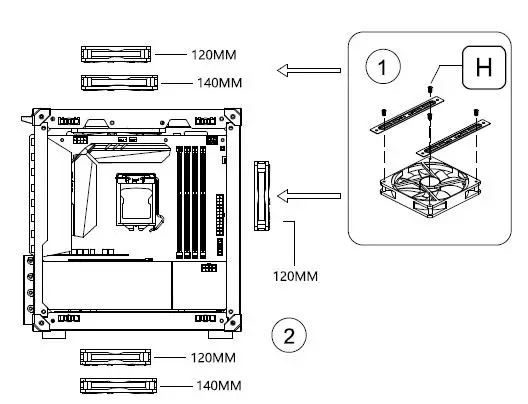

Fan bracket installation
- Install the fan brackets to the fan
- Insert the fan assembly into the chassis, and secure.

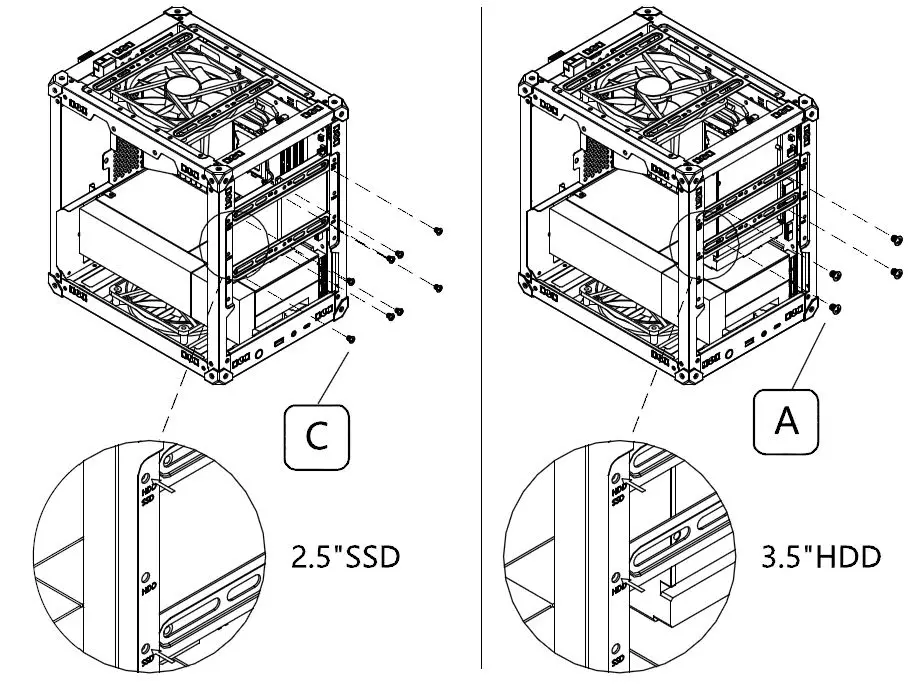

Storage device installation
2.5″ SSD or 3.5″ HDD install on the multi-functional brackets, and than mount on the corresponding mounting points
PSU installation

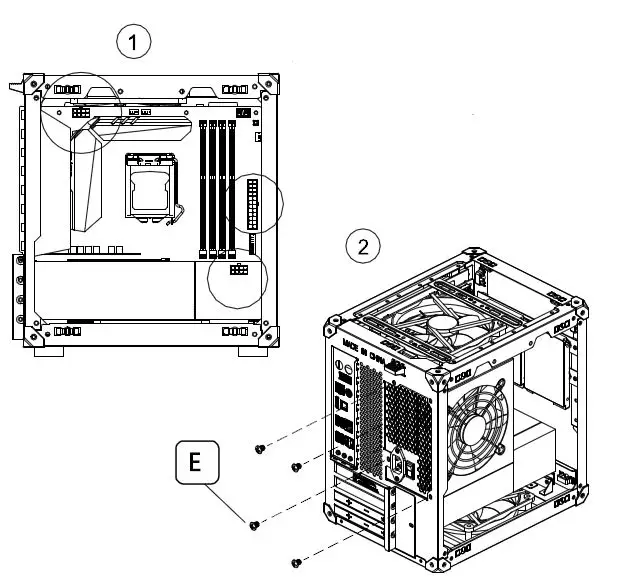

- Connect all the cables before mounting the PSU into the case
- Put the PSU on the mounting area and fix it with screws

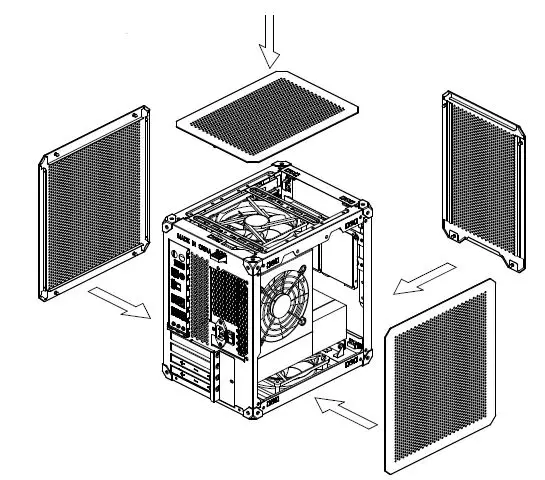

Mesh panel installation
- Install the mesh panels
