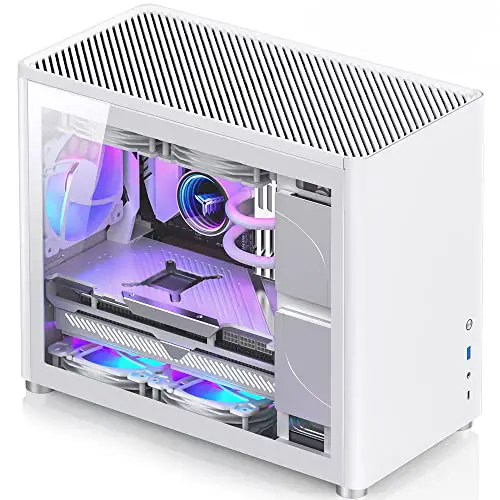

JONSBO D30 PC User Manual

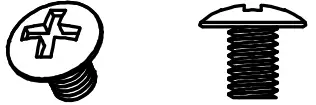

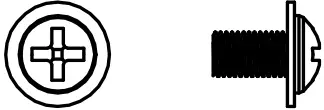

Package Content
| Image | Qty | |
| A |  | 13 |
| B |  | 13 |
| C |  | 8 |
| D |  | 4 |
| E |  | 6 |
| F |  | 4 |
| G |  | 4 |
| H |  | 1 |
| I |  | 1 |
| J |  | 5 |
| K |  | 1 |
Connectors

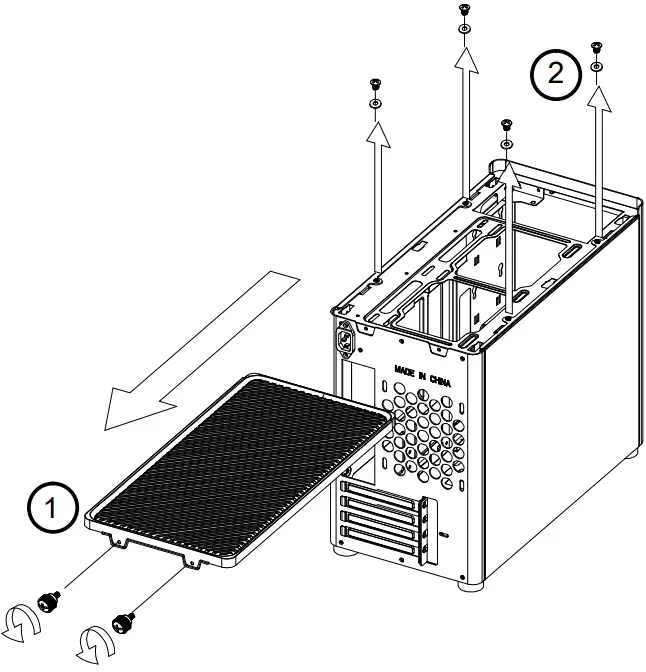

Exploded View
Installation Guide
- Remove the PCI bracket

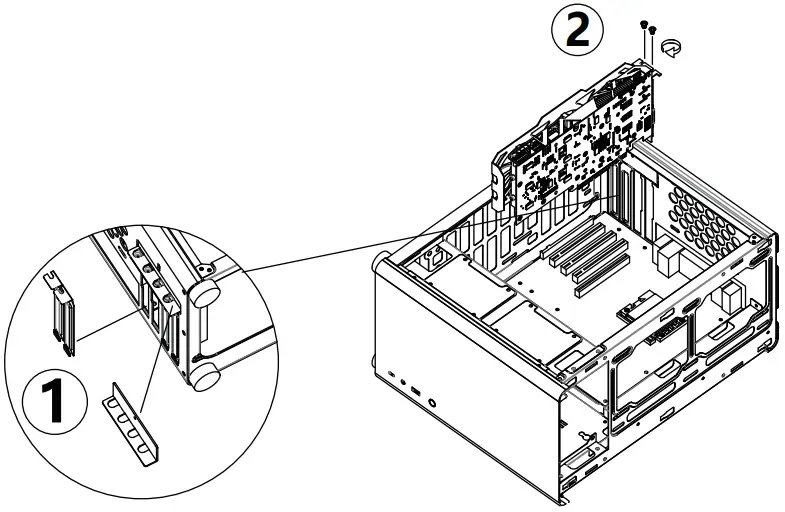

- Install the GPU/PCI add-on card

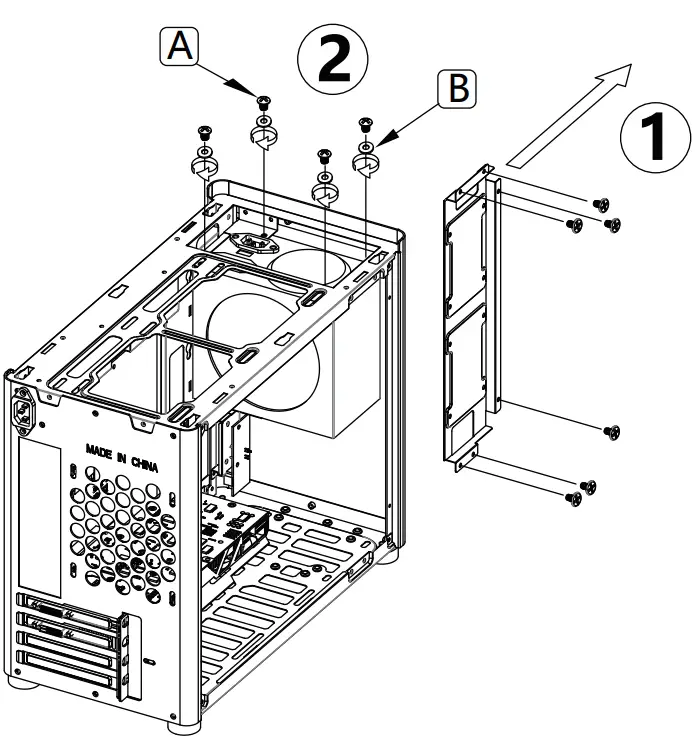

- Remove SSD bracket
- Place the PSU on the corresponding position and secure with screws

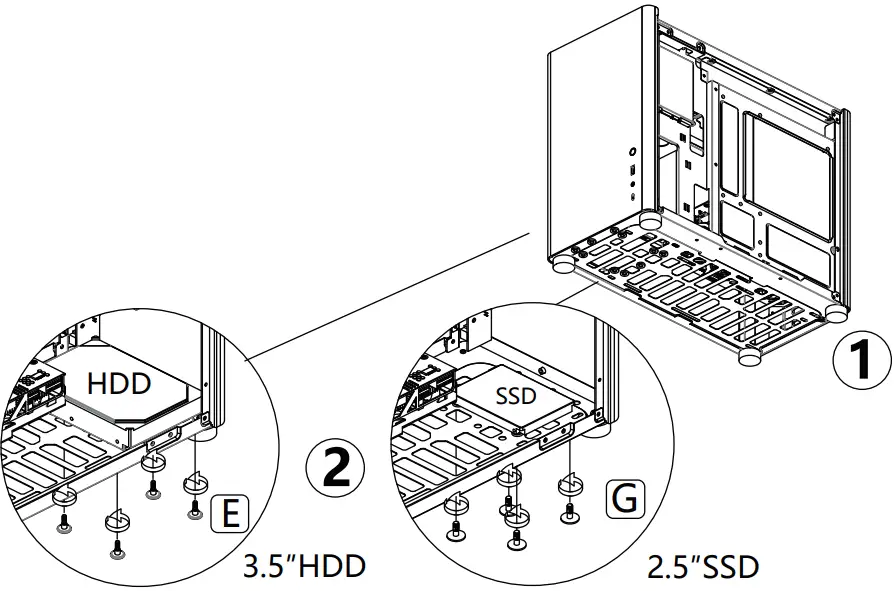

3.5″ HDD hard drive mounting position compatible with 2.5″ SSD

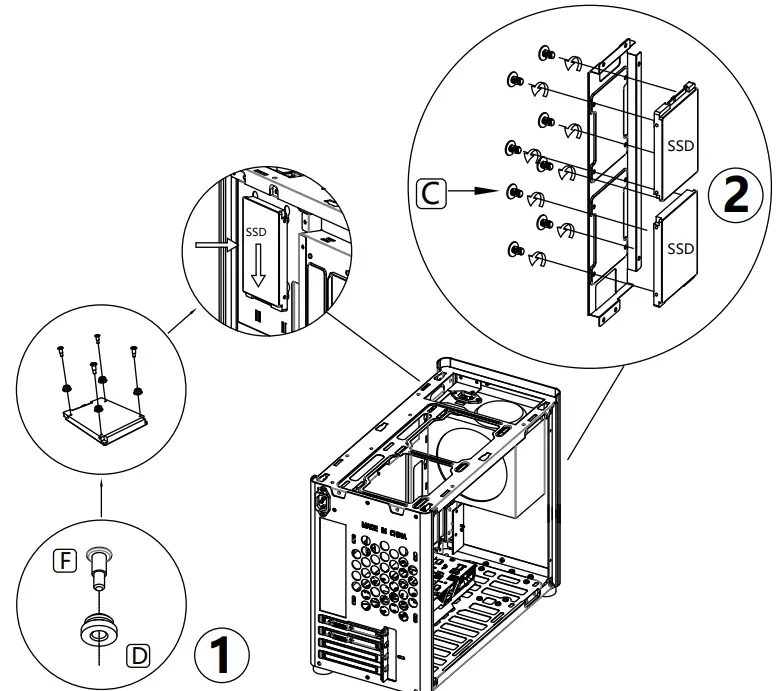

Pre-mount rubber grommet with screw to 2.5″ SSD, and then insert it into SSD bracket slot

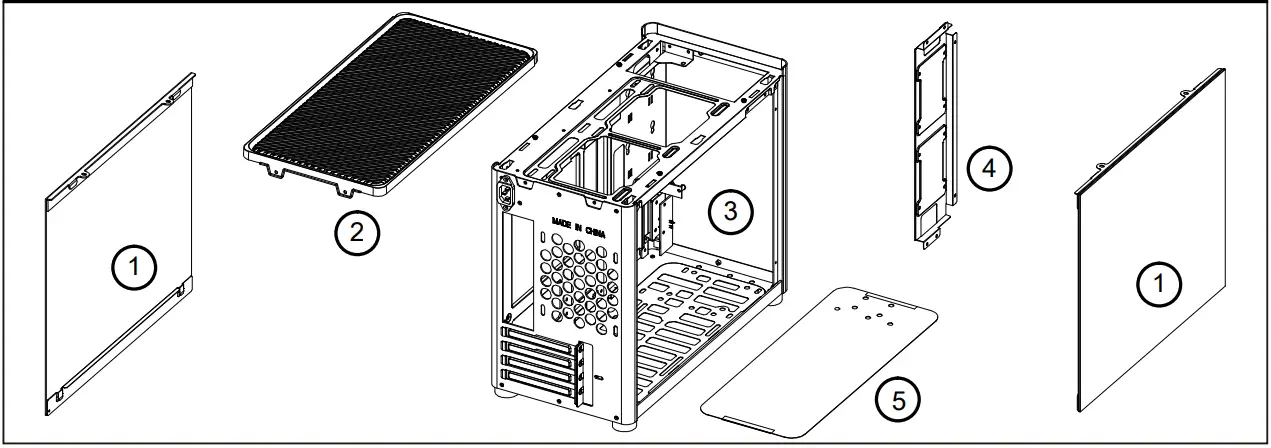

Parts
- Side Panel
- Top Cover
- Chassis
- SSD Bracket
- Air Filter
Installation Guide
- Loosen the screws, and then pull the top cover back to loosen it
- Loosen the side panel screws, and then lift the side panel

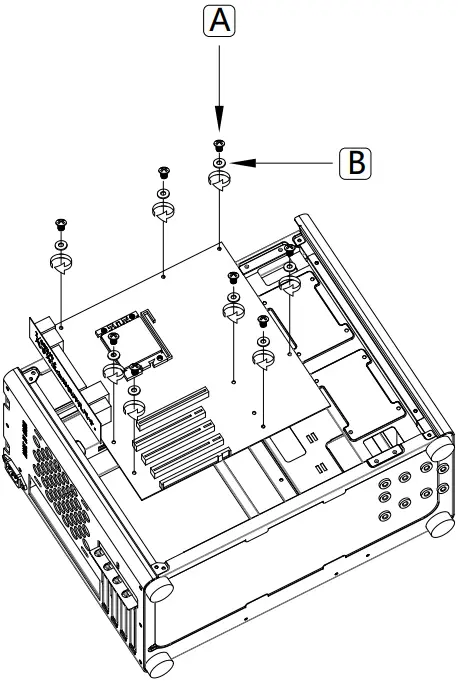

Insert the MB 10 Shield, and then place the motherboard on the corresponding position and secure with screws

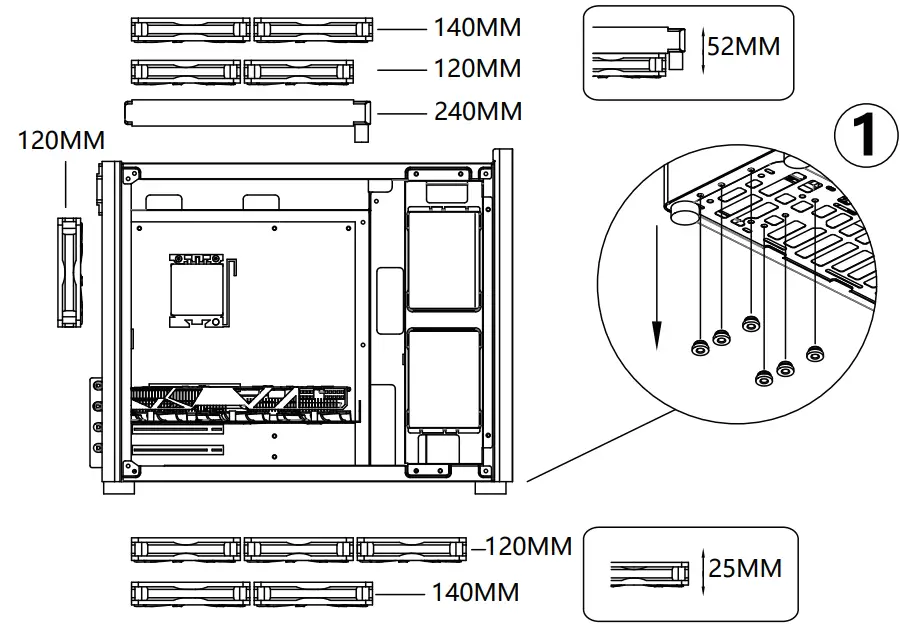

Remove the bottom rubber grommets before installing case fan
