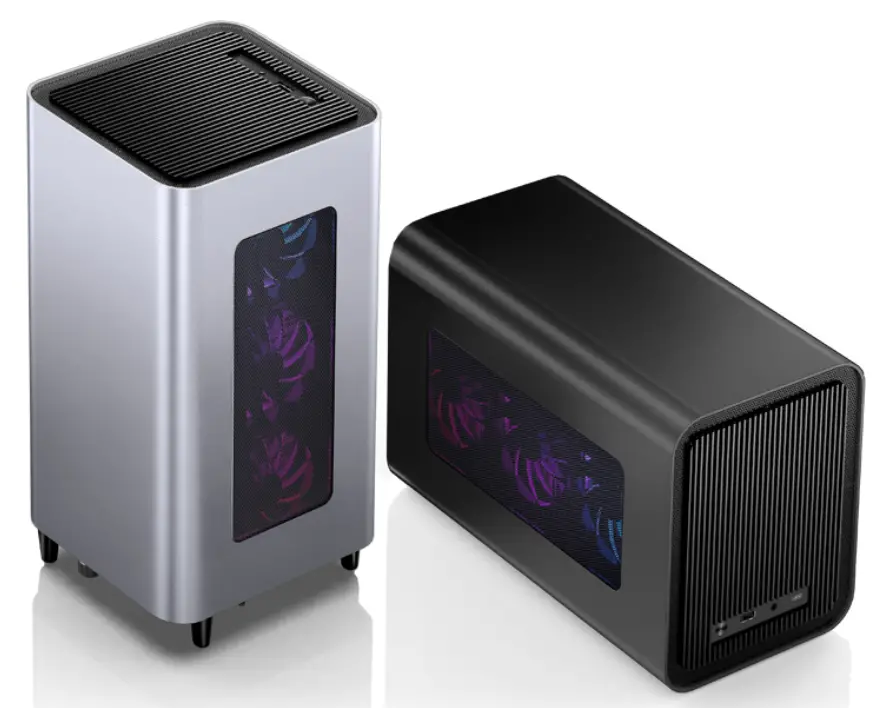

Jonsbo V11 Mini- Itx Tower Computer User Manual

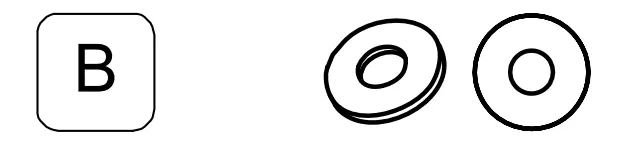

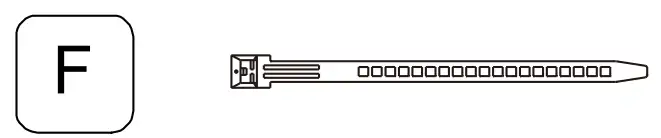

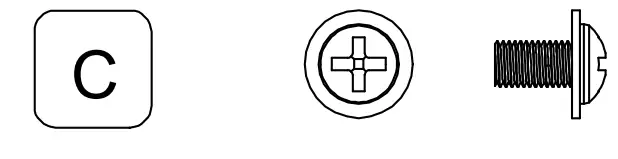

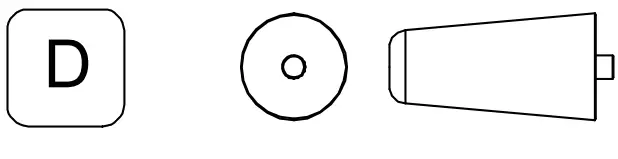

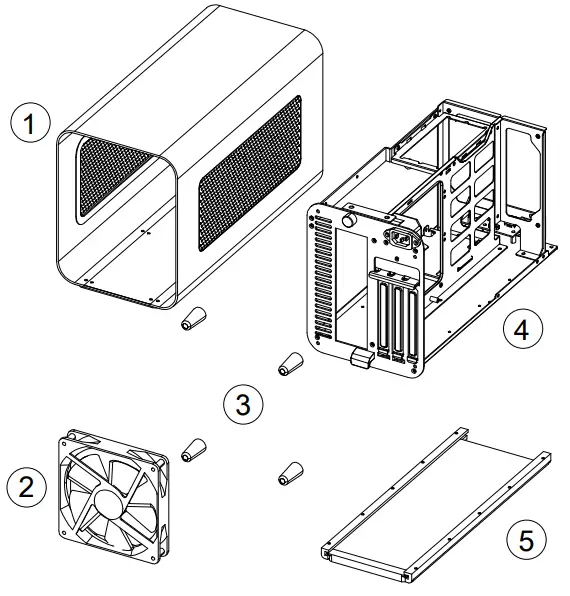

13

13

)=!;-

8

4

1

5

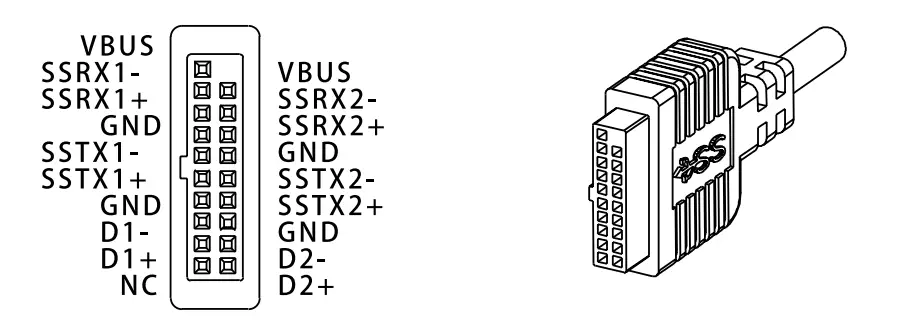

USB 3.0

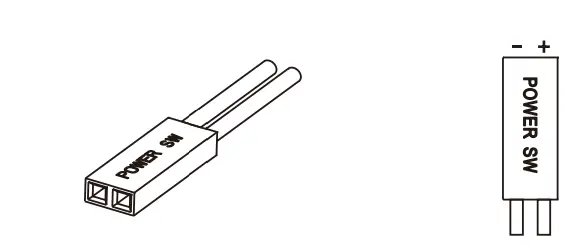

PWRSW

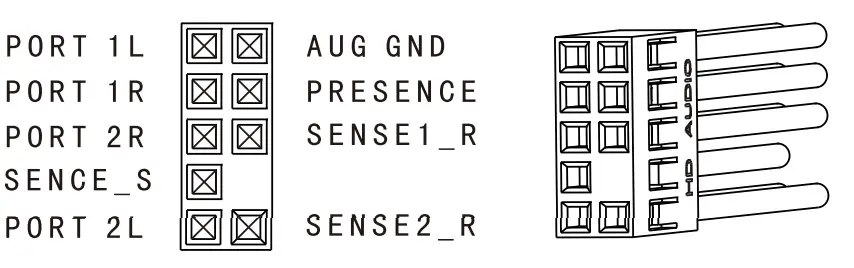

HD AUDIO

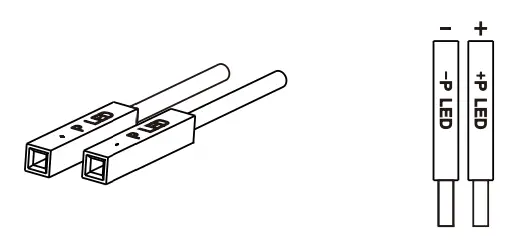

PWR LED

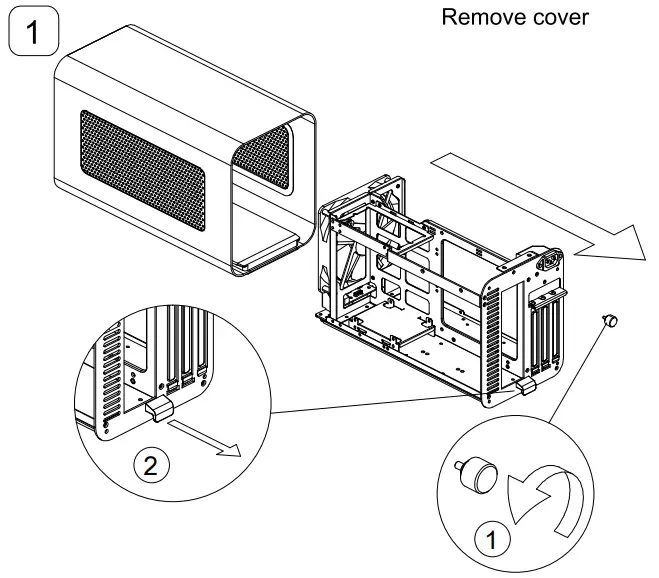

1. Release the rear screw
2. Pull the handle to release the steel chassis

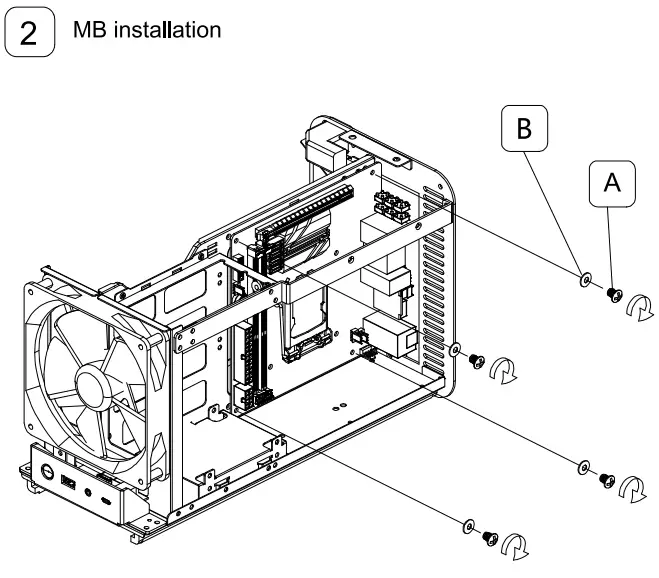

1. Place 10 shield to rear panel opening
2. Secure the MB with screws

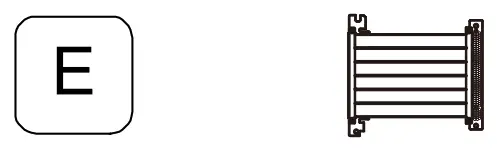

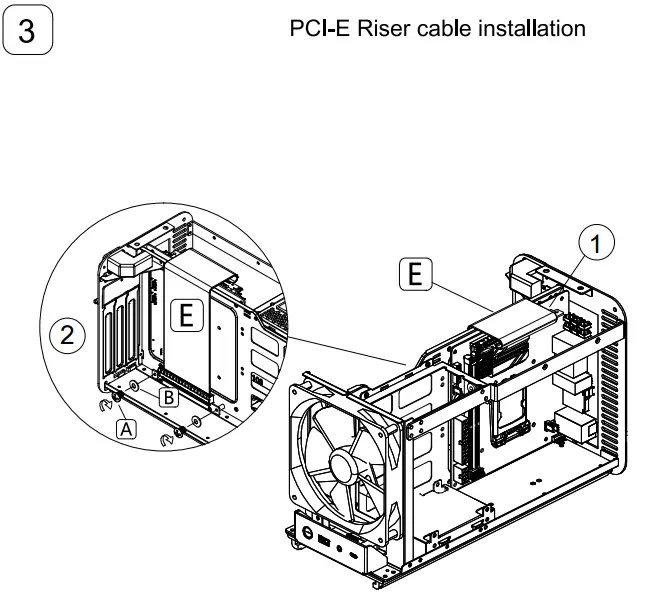

1. Insert the board end of the riser cable to the PCI-E slot on MB
2. Secure the PCI-E slot end of the riser cable to the case with screws

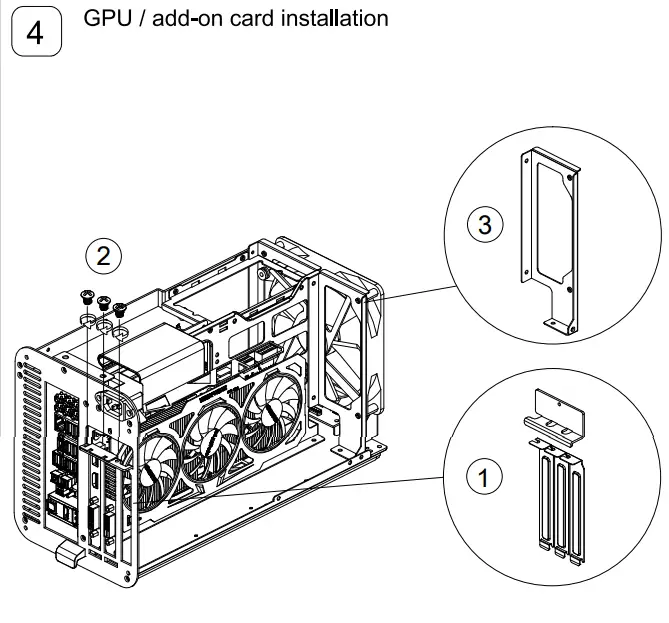

1. Remove PCI slot brackets
2. Insert the GPU to PCI-E Slot on Riser cable, secure with screw
3. Remove Front fan and bracket for max GPU length 10330mm

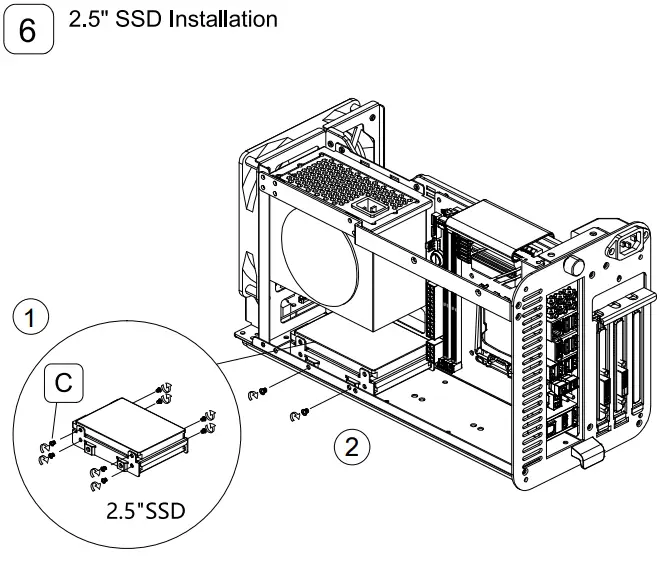

1. Remove the 2.5″ device cage first, secure 2.5″ SSD  with screws
2. Place the 2.5″ cage back to chassis, secure it with screws

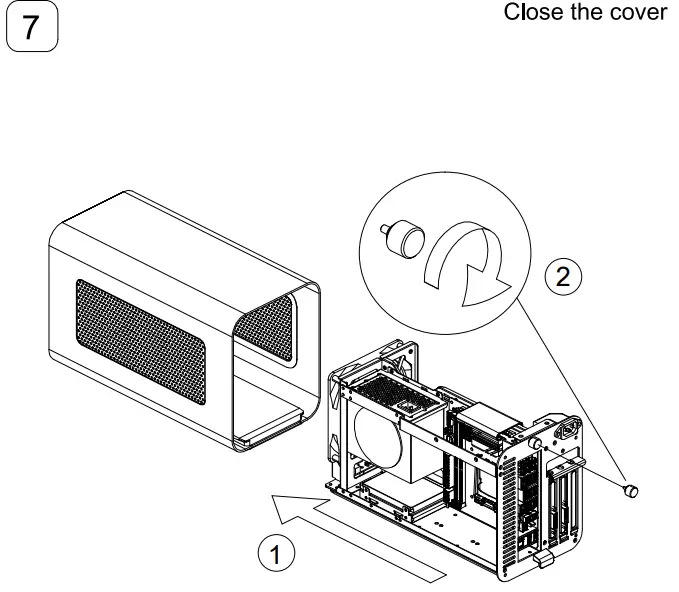

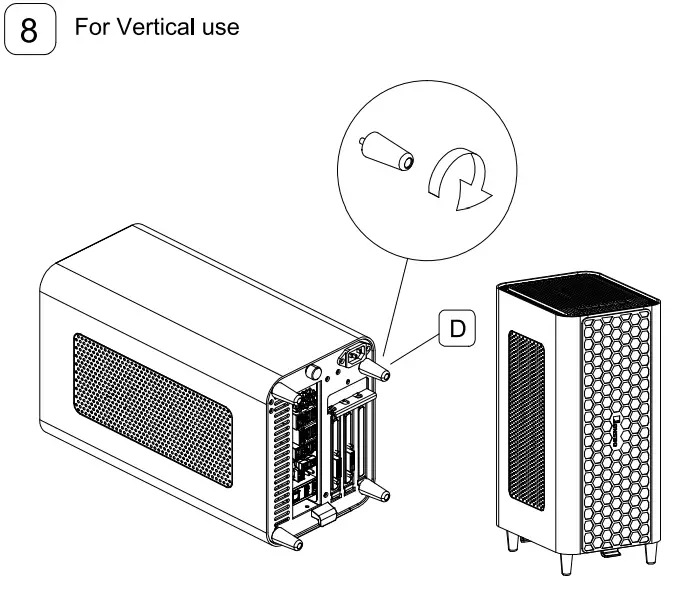

1. After the hardware installation, slide the chassis into the external cover
2. Secure it with thumb screw
