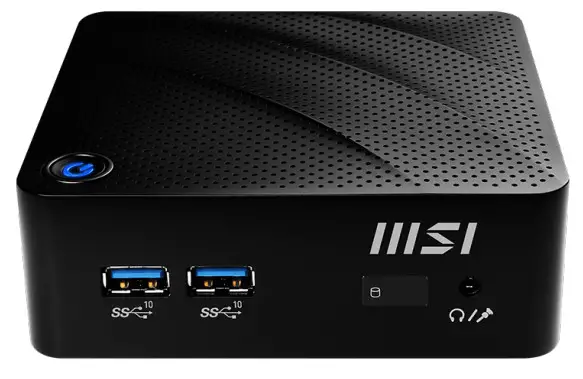

Cubi N JSL Business Mini PC
Owner’s Manual
SPECIFICATIONS
| Operating System | Windows 10 Home – MSI recommends Windows 10 Pro for business |
| CPU | Inter® Celeron®N4500 Inter® Pentium® N6000 |
| Chipset | Inter® SoC |
| Graphics | Intel® UHD Graphics |
| Storage | lx 2.5″HDD/SSD or lx M.2 SSD combo (NVMe PCIe Gen3x2) (either one) |
| System Memory | 2x DDR4 2933MHz SO-DIMMs, Up to 16 GB |
| Sound | REALTEK ALC233 |
| I/O (Front) | 2x USB 3.2 Gent Type A lx Mic-in/Headphone-out |
| I/O (Rear) | 2x USB 3.2 Genl Type A lx HDMI out lx VGA out lx RJ45 lx DC Jack |
| Wireless LAN | Intel Wireless AC 9462 Intel Wireless AX201 |
| LAN | Realtek 8111H |
| Cooling System | TDP (6W) |
| AC Adapter / PSU | 45W |
| Dimension (WxDxH) | 116 x 112 x 50.47 mm (4.57 x 4.40 x 1.99 inch) |
| WEIGHT (N.W./ G.W.) | 0.5kg (1.10bs) / 1.25kg (2.76Ibs) |
| Bluetooth | 5.1 (with Intel 9462 AC) / 5.2 (with Intel AX201) |
| VESA Mount | Support 100 x 100 mm |
| Volume | 0.45L / 0.95 pt |
| Accessories | lx User Manual (Optional) lx Quick Guide (Optional) lx Warranty Card & Warranty Book lx VESA Mount Kit (Optional) lx Power Cord |
| Software | Drivers & MSI Utilities Super charger |
FEATURES
Compact Size
The same performance as a big gaming rig but in a powerful small sized chassis so you can take it anywhere.
4K UHD Resolution
Experience the incredibly sharp and crisp images, movies and gameplay etc., to meet your sensory needs.
WiFi 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
VESA Mountable
To be mounted on the wall of your office & home with a VESA standard design which can make it completely invisible on a desk.
TPM Support
FW TPM design secures your confidential data with encryption keys.
Easy To Upgrade Easy To Upgrade
Easy to upgrade
Easy to access and upgrade components to keep the system up to date with the latest hardware.
Low Noise
With an excellent thermal design and low noise fan, resulting in a low noise level as quiet as a forest.

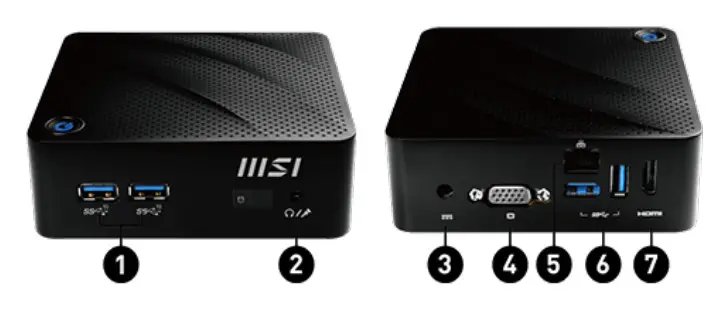

CONNECTIONS
| 1. 2x USB 3.2 Gen2 Type A 3. 1x DC Jack 5. 1x LAN 7. 1x HDMI (1.4) | 2. 1x Mic-in/ Headphone-out 4. 1x VGA out 6. 2x USB 3.2 Gen1 Type A |
