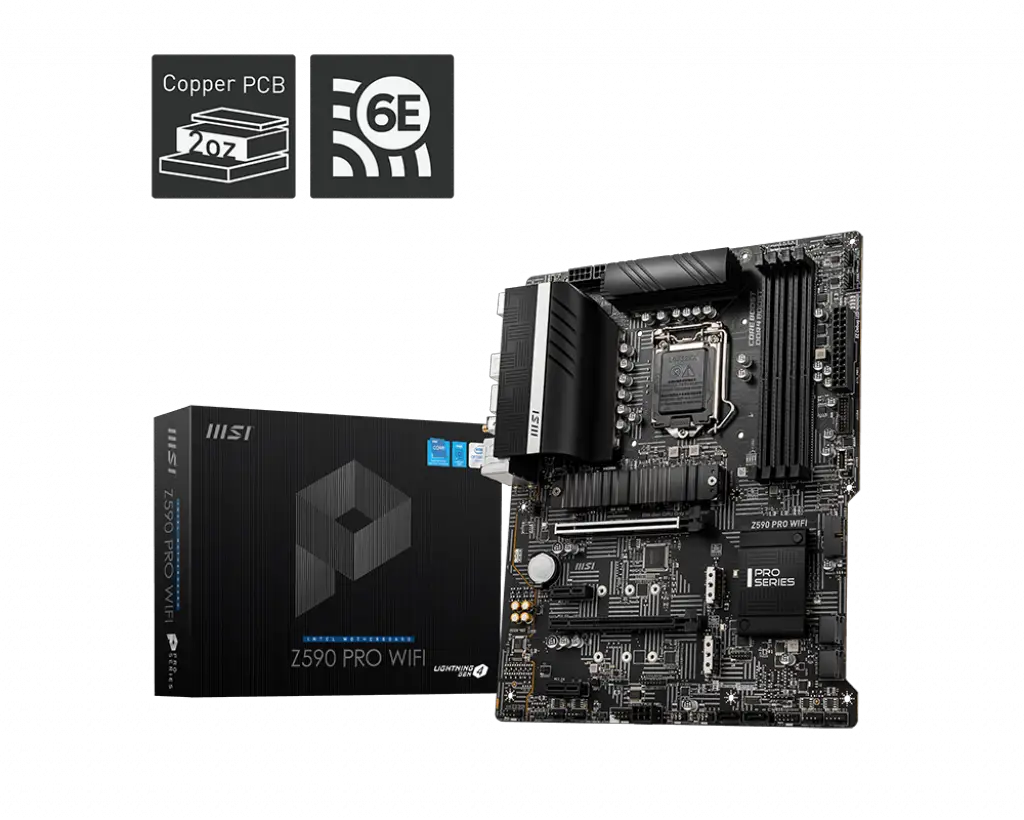

MSI Motherboards Z590 PRO WIFI

SPECIFICATIONS

Model Name: Z590 PRO WIFI
CPU Support: Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel®
Core™ Processors, Pentium® Gold and Celeron® Processors
CPU Socket: LGA 1200
Chipset: Intel® Z590 Chipset
Graphics Interface: 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x16 slot
Display Interface: Support 4K@60Hz as specified in HDMI 2.0b, DisplayPort 1.4
– Requires Processor Graphics
Memory Support: 4 DIMMs, Dual Channel DDR4-5333MHz(OC)
Expansion Slots: 2x PCIe 3.0 x16 slots
Storage: 1x M.2 Gen4 x4 slot
2x M.2 Gen3 x4 slots
6x SATA 6Gb/s ports
USB ports: 1x USB 3.2 Gen 2×2 20Gbps (Type-C)
2x USB 3.2 Gen 2 10Gbps (1 Type-C + 1 Type-A)
6x USB 3.2 Gen 1 5Gbps(6 Type-A)
8x USB 2.0
LAN: Intel® I225-V 2.5G LAN
Wireless/Bluetooth: Intel® Wi-Fi 6E AX210, Bluetooth 5.2
Audio: 8-Channel (7.1) HD Audio with Audio Boost

FEATURES

Extended Heatsink DesignMSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield FROZRStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

8+4 Pin power supplyBy providing 8+4 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance.

Core BoostWith premium layout and fully digital power design to support more cores and provide better performance.

DDR4 BoostAdvanced technology to deliver pure data signals for the best gaming performance and stability.

EZ Debug LEDEasiest way to troubleshoot.

Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.

CONNECTIONS

1. Keyboard / Mouse
2. DisplayPort
3. USB 2.0
4. LAN port
5. WIFI / Bluetooth
6. Audio connector
7. Flash BIOS Button
8. USB 2.0
9. HDMI
10. USB 3.2 Gen 1 5Gbps Type-A
11. USB 3.2 Gen 2×2 20Gbps Type-C
12. USB 3.2 Gen 2 10Gbps Type-A
