CSAZ-480 Aero Gaming Computer Case
User Manual
Specifications
| Model | |
| Model Name: | Aero |
| Model Number | CSAZ-480 |
| Specifications | |
| Type: | ATX Mid Tower |
| Color. | Black/Black(interior) |
| Side Panel Window: | Left side panel: slidable iron mesh side panel |
| Max CPU Cooler Height: | UP to 170mm |
| Max Video Card Length: | Up to 400 mrn long video card |
| Power Supply: | Not included |
| Motherboard Compatibility: | E-ATX • ATX • Micro ATX • ITX |
| Expansion | |
| External 5.25″ Drive Bays: | 0 |
| Internal 2.5′ Drive Bays: | Up to 4 |
| Internal 3.5′ Drive Bays: | Up to 2 |
| Expansion Slots: | 7 |
| Top Pods: | Power button, LED button, HD Audio, USB 3.0 x 2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 483x220x445mm/19×8.7×17.5 inches |
| Weight: | 6.1Kg /13.5Ibs |
| Features | |
| Mesh side panel: | The full mesh side windows allow for clear visuals to inner components and increased air intake, having maximum airflow performance. |
| Addressable RGB Light Effects: | ARGB fans are controlled using the LED button. All addressable RGB devices can sync with the motherboard,allowing the motherboard software to control lighting directly. |
| Available Fan Ports: | 3x120mm or 3x140mm fan ports in the front (3x120mm LFO-3812D addressable ARGB fan included) 3x120mm or 2x140mm fan ports on the top 1x120mrn fan port in the rear (1x120mm LFO-3812D addressable ARGB PWM fan included) 2x120mm fan ports on the Power Supply Shroud |
| Water Cooling: | Supports radiators up to280/360mm in the Front Supports radiators up to280/360mm in the Top |
| Dust Filters: | Removable (magnetic) dustproof net on the top, dust fitter on bottom of chassis. |
| Power Supply Support: | Bottom mounted ATX Power Supply |

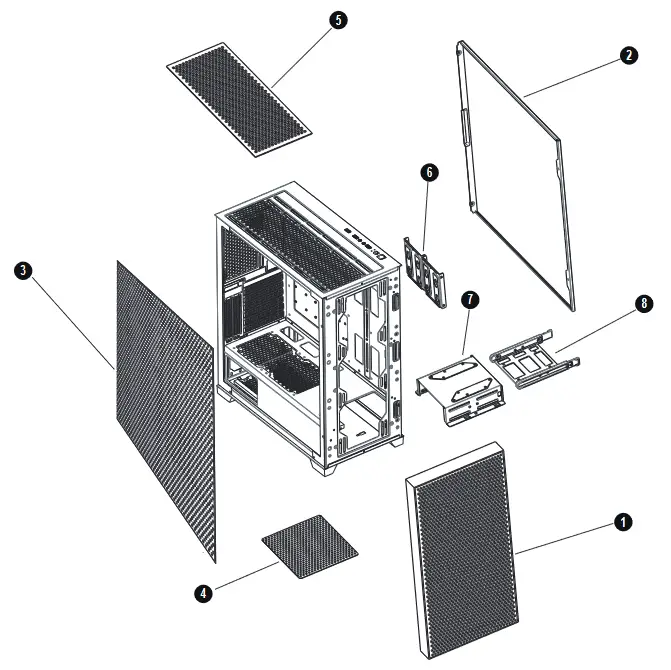

Chassis Parts
| 1 | Front panel |
| 2 | Metal side panel |
| 3 | Mesh side panel |
| 4 | Removable dust filter |
| 5 | Removable magnetic mesh |
| 6 | 2.5” SSD tray x 2 |
| 7 | Hard disk cage |
| 8 | 3.5” HDD/ 2.5” SSD brackets |

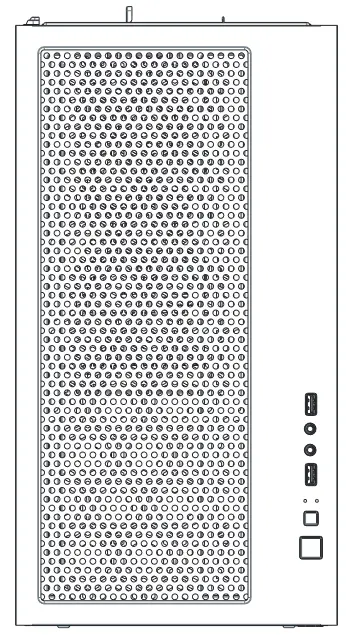

Control Panel Functions
 | POWER |
| LED |
 | Mic |
| Audio |
 | USB 3.0 |
| USB 3.0 |

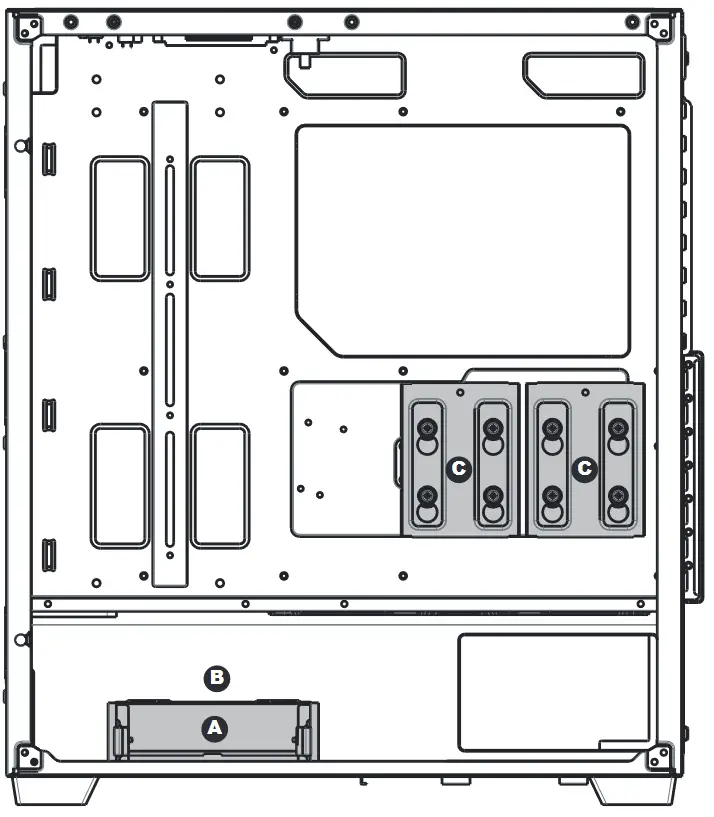

3.5 ˝/ 2.5˝ HDD/SSD Installation

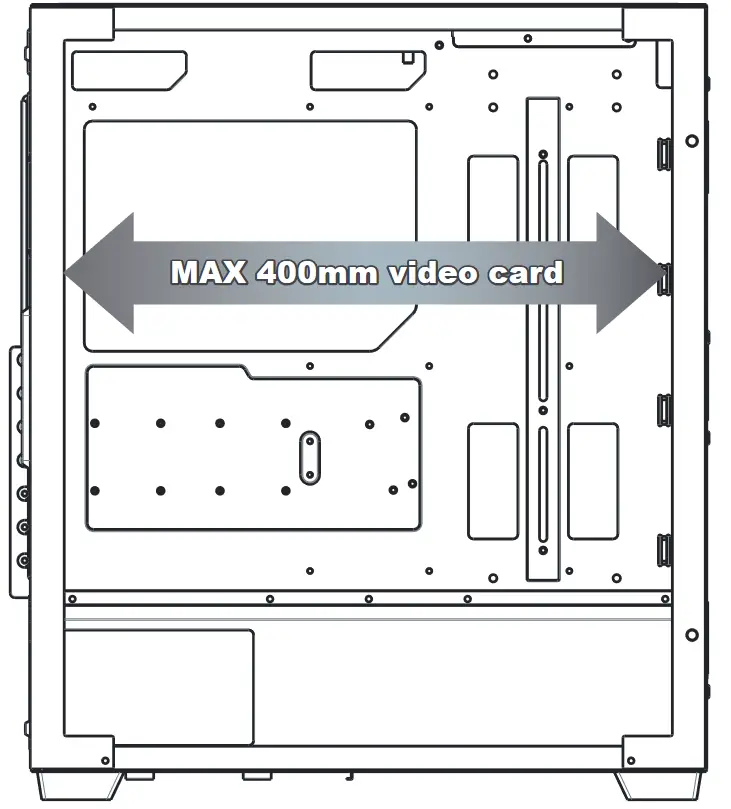

▪ Supports up to 400mm long video cards.

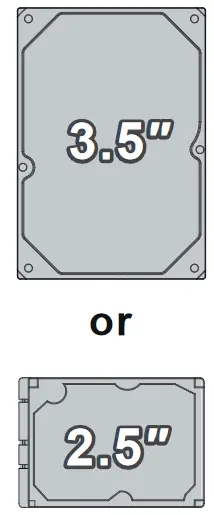

▪ Multi functional hard disk bracket support 3.5” HDD or 2.5” SSD x 1 ( A)
▪ Multi functional hard disk bracket support 2.5” SSD x 2 (C)
▪ Multi functional hard disk cage support 3.5” HDD or 2.5” SSD x 1(B)

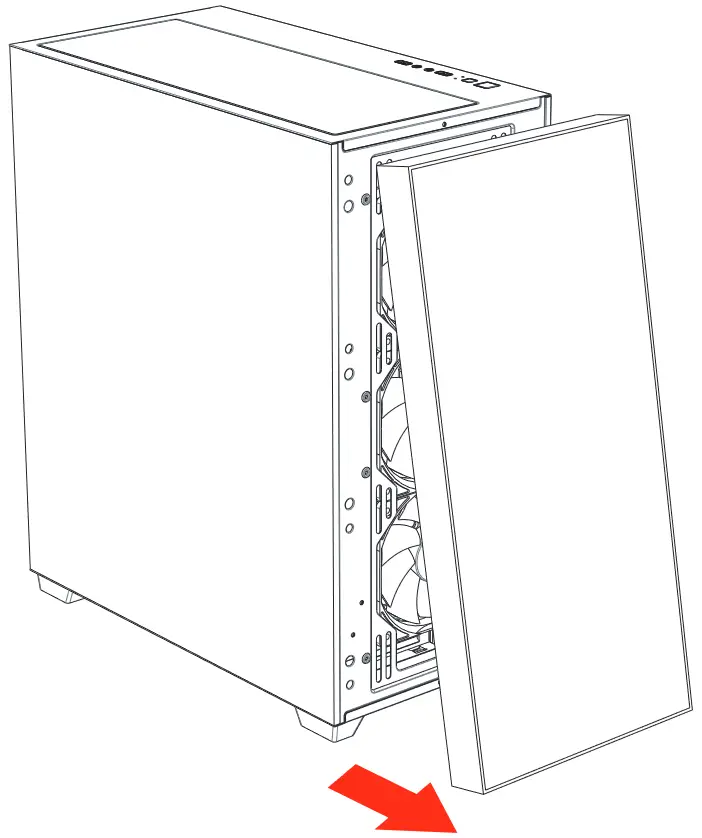

Remove the Front Panel Instructions

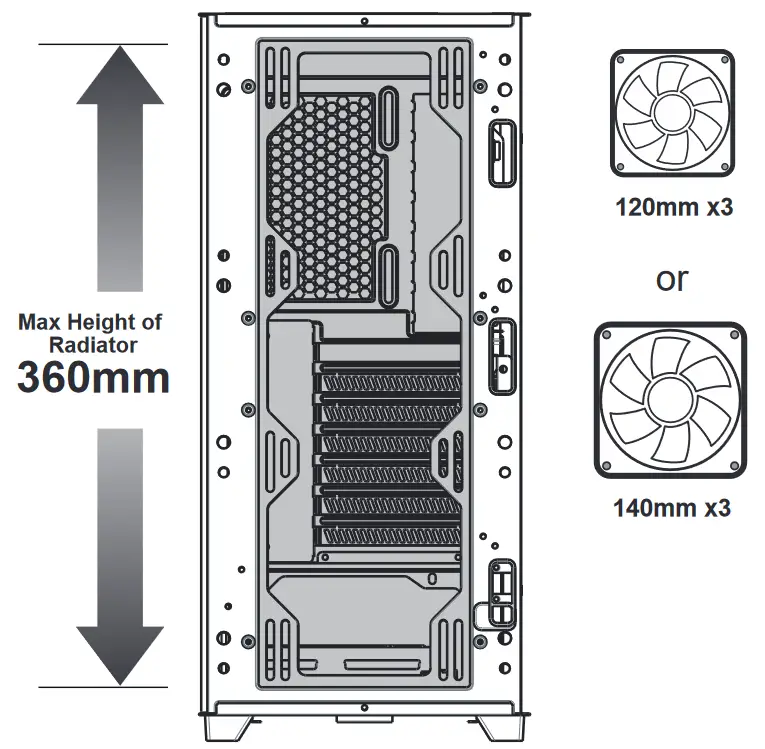

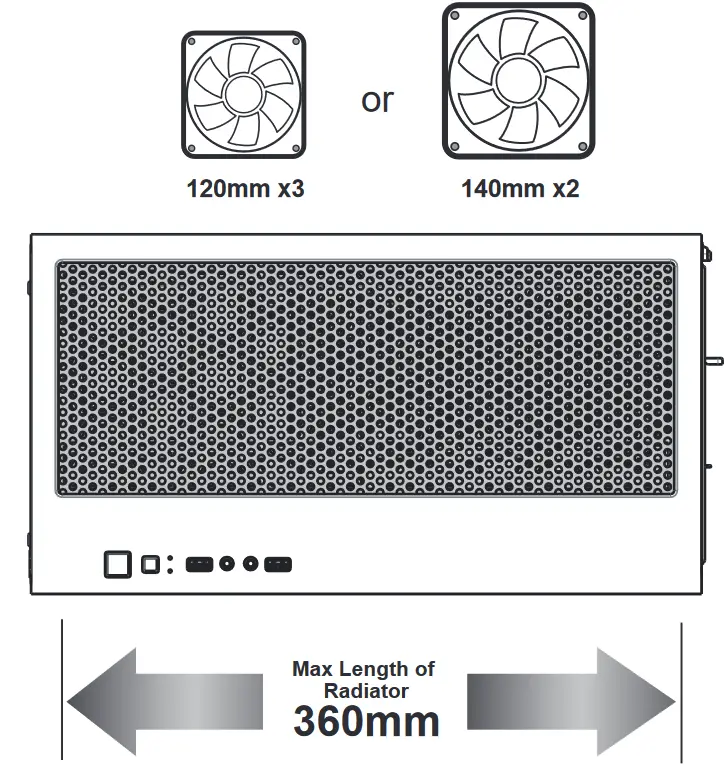

Cooling System Installation
Front
Top

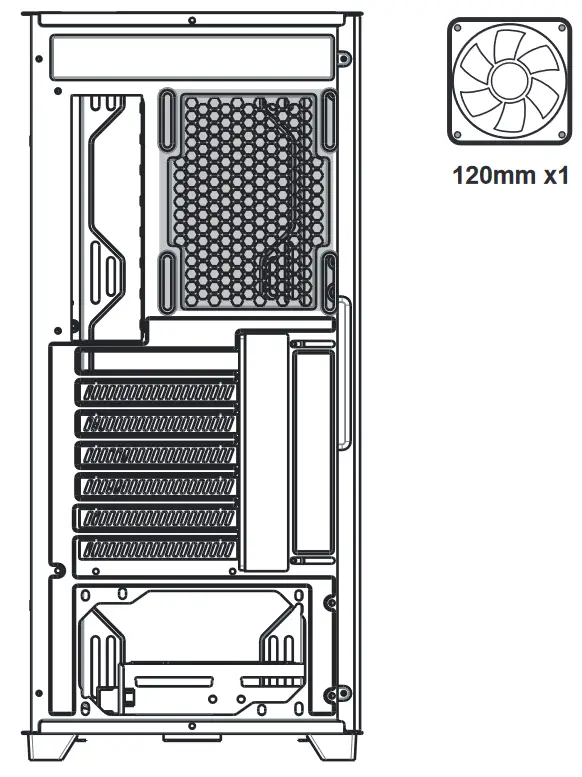

Rear

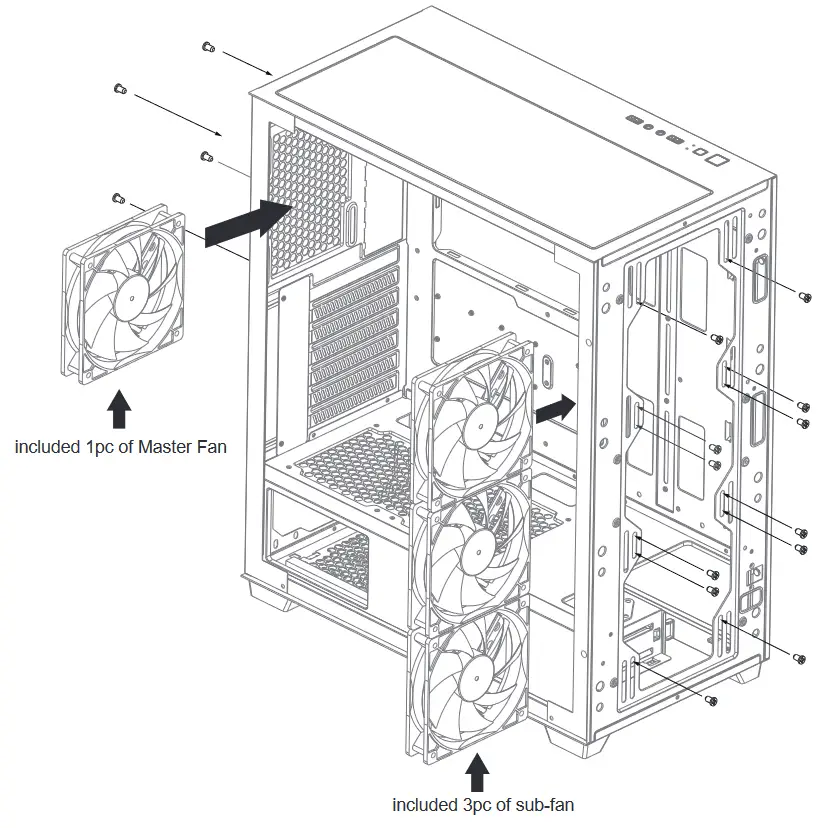

Master Fan & Sub-fan Installation

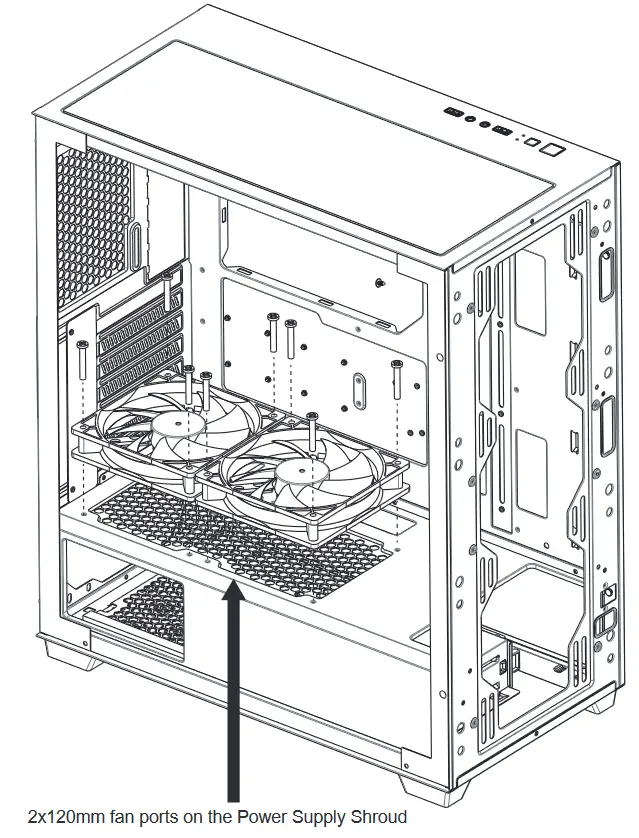

PSU Fans Installation

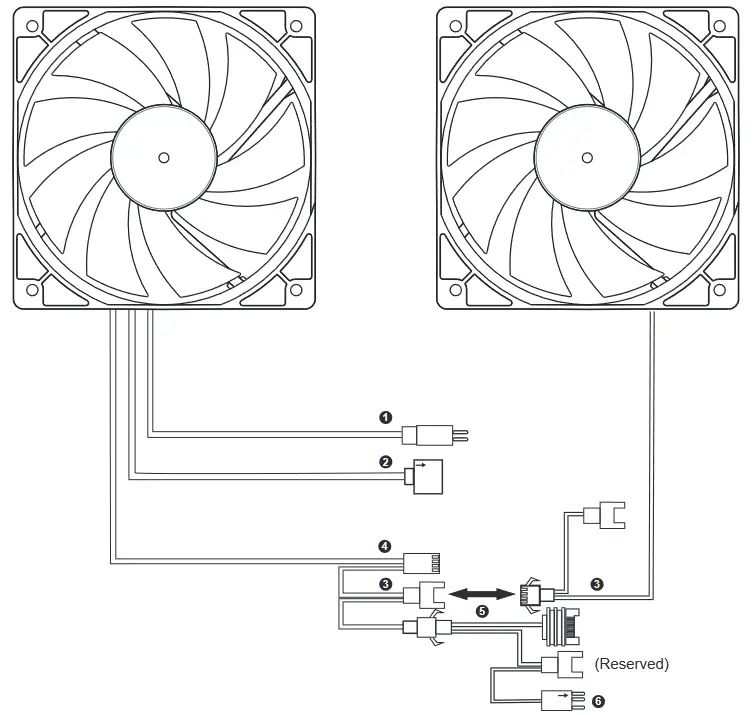

Fan Installation Version 1
| CONNECTOR | CONNECTION | |
| ① | ARGB LED 5V (3pin) female connector | LED Button |
| ② | Reset (LED) S/W (2pin) | The 5V/3pin ARGB socket of the motherboard |
| ③ | ARGB LED 5V (3pin) male connector | The master Fan connect to the sub-fan |
| ④ | Fan Connector | CHA_FANx socket of the motherboard |
| ⑤ | Fan Connector PWM (4pin) | Power Supply |
| ⑥ | SATA | Other 5V/3pin ARGB devices |
※Before the fan starts,please make sure the PWM connector ④ and SATA connector ⑤ each are connected.
※Press the LED button to cycle through different RGB lighting modes, all ARGB devices are controlled by the LED button. (make sure the other 3pin ARGB devices are connected with ⑥ )
※Ensure ② insert the motherboard, hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.

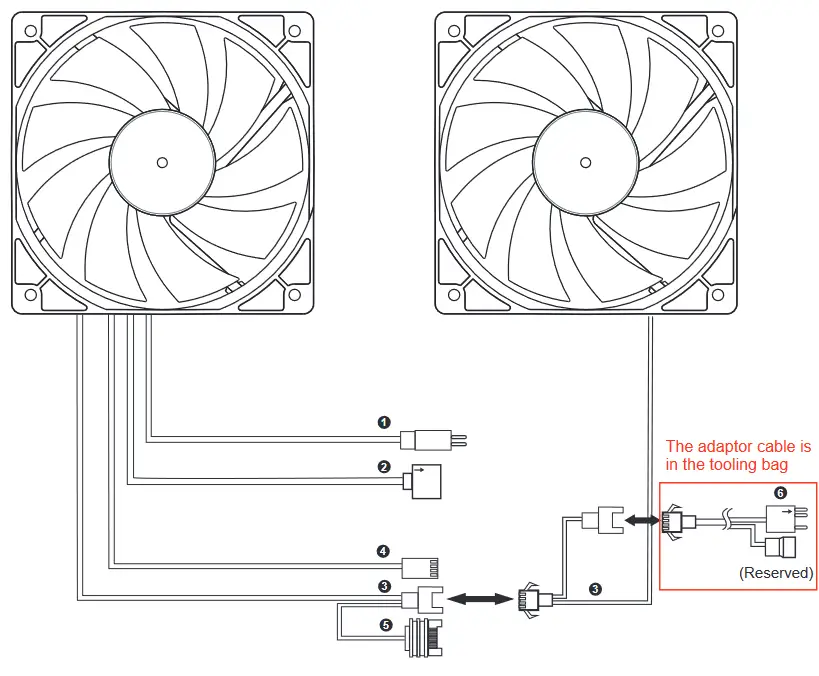

Fan Installation Version 2
| CONNECTOR | CONNECTION | |
| ① | ARGB LED 5V (3pin) female connector | LED Button |
| ② | Reset (LED) S/W (2pin) | The 5V/3pin ARGB socket of the motherboard |
| ③ | ARGB LED 5V (3pin) male connector | The master Fan connect to the sub-fan |
| ④ | Fan Connector | CHA_FANx socket of the motherboard |
| ⑤ | Fan Connector PWM (4pin) | Power Supply |
| ⑥ | SATA | Other 5V/3pin ARGB devices |
※Before the fan starts,please make sure the PWM connector ④ and SATA connector ⑤ each are connected.
※Press the LED button to cycle through different RGB lighting modes, all ARGB devices are controlled by the LED button. (make sure the other 3pin ARGB devices are connected with ⑥ )
※Ensure ② insert the motherboard, hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.

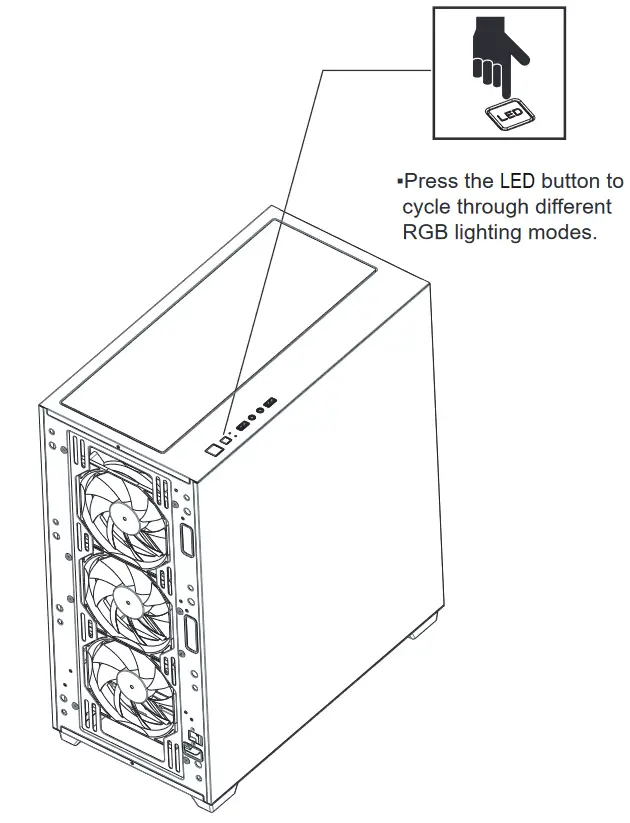

RGB Lighting Switching
