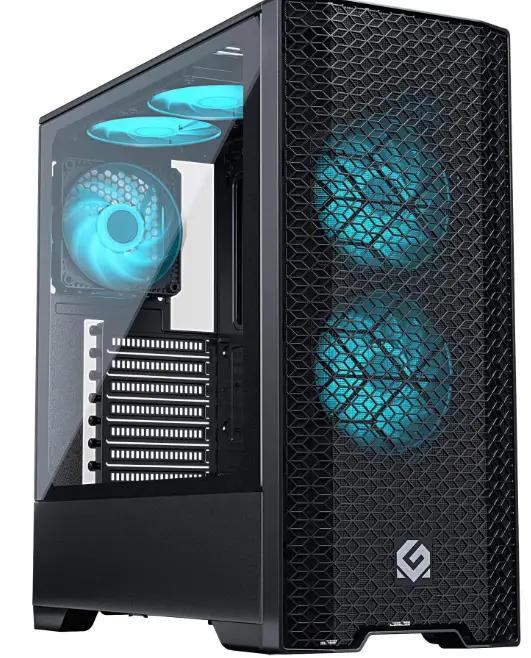

PHANTEKS MG-NE520A MetallicGear Neo Air Black Gaming Case
Thank you for choosing the MG NEO chassis. Please check your model type (NEO-G/Air / Silent) and take your time reading this manual before installing your system. Check www.metallicgear.com for the latest information and manual version.
FRONT RADIATOR:
- 240rad: max 124×320 mm
- 280rad: max 144×320 mm

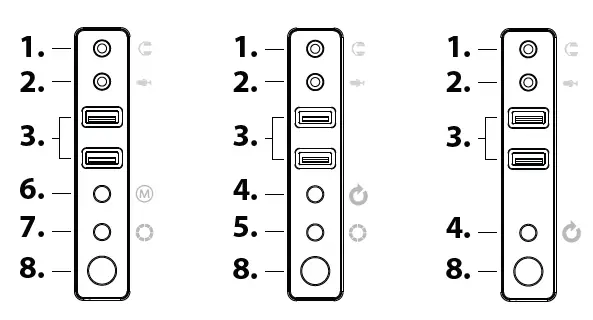

FRONT I/0:
- Headphone
- Microphone
- 2x USB 3.0
- Reset Button
- RGB Color/Mode
- D-RGB Mode
- D-RGB Color
- Power Button
ACCESSORIES
- 21x Motherboard/SSD screws
- 4x PSU 6-32 screws
- 8x Fans screws
- 1x Motherboard M4 stand-off
- 2x Long Thumb 6-32 screws
- 6x Zip ties
CLEARANCES
- CPU Cooler height: 170 mm
- GPU length: 400 mm
- PSU length: 250 mm
- ATX Motherboard width: 280 mm
- Vertical GPU ready: yes

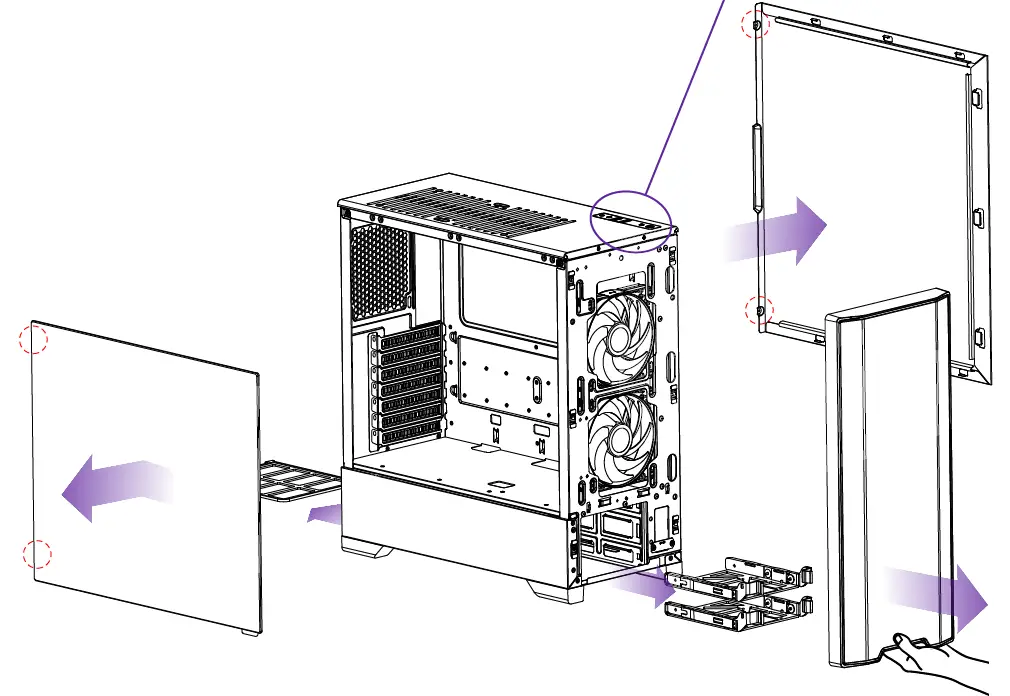

HARDWARE INSTALLATION

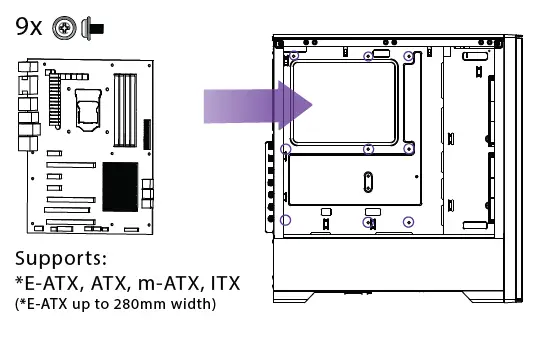

MOTHERBOARD

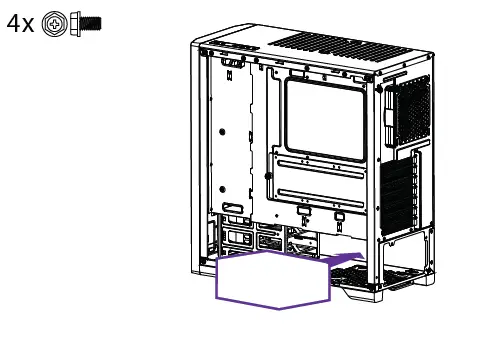

POWER SUPPLY

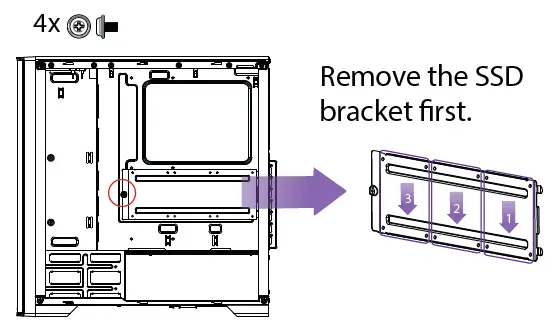

SSD

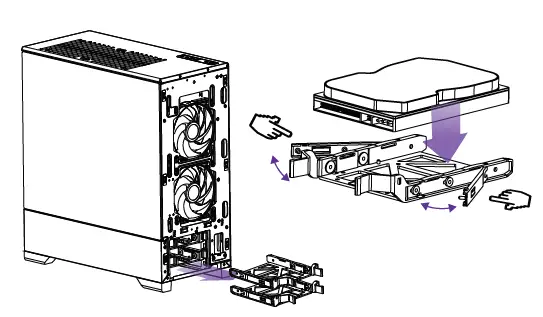

HDD

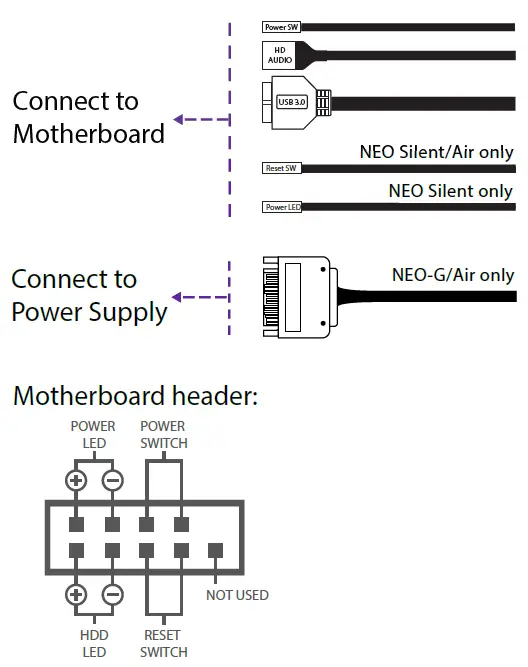

FRONT I/O C ABLES

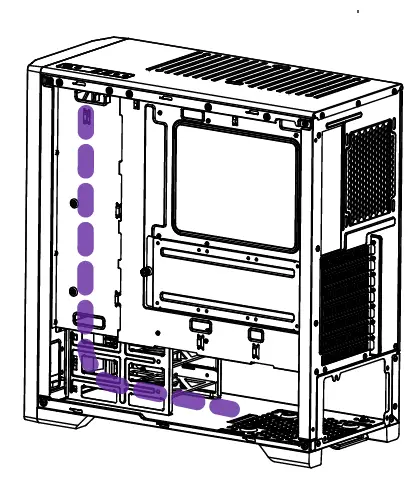

CABLE MANAGEMENT
Use the velcro straps and zip ties to tighten the cables.
LIGHTING CONTROLS

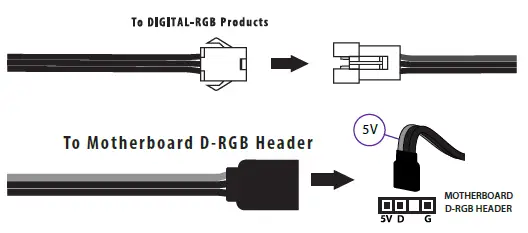

D -RGB CABLES

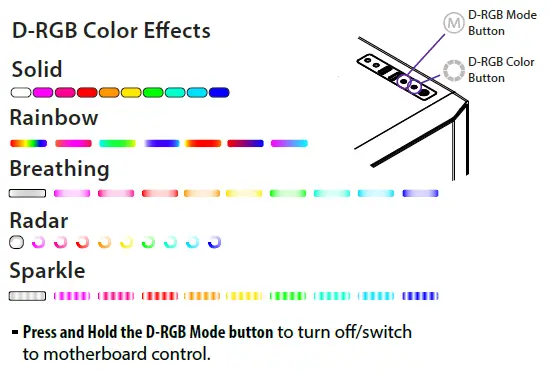

D -RGB CONTROL
RGB CABLES

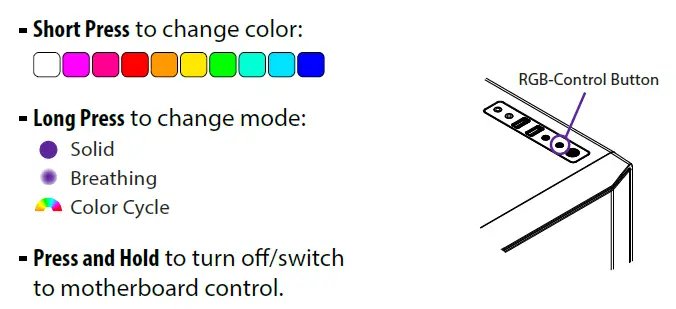

RGB CONTROL
MetallicGear Powered by Phanteks | Metallic Gear
