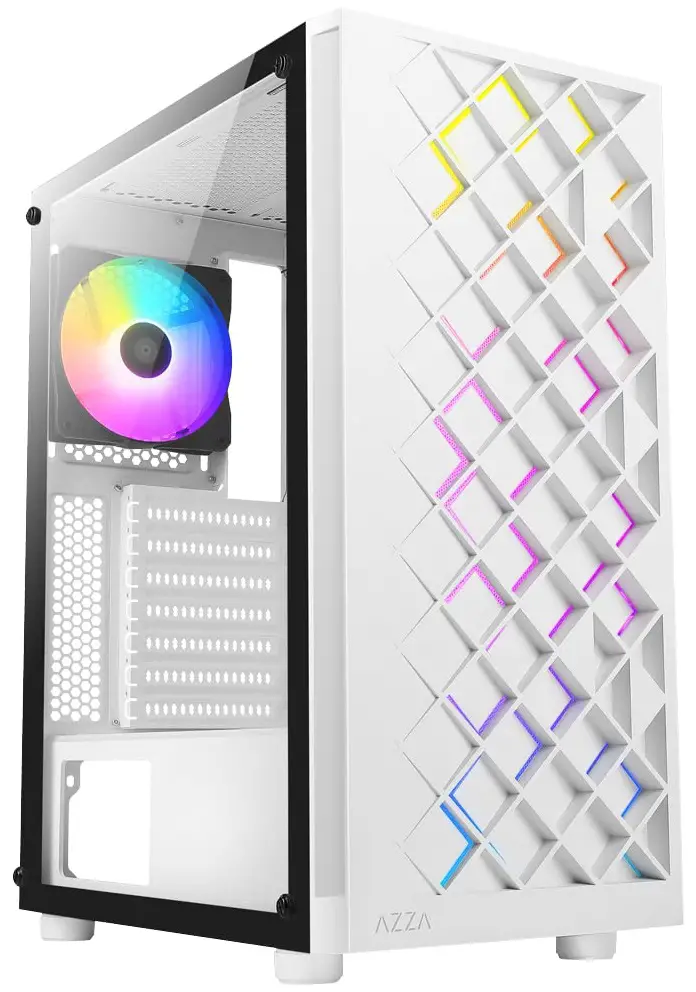

Spectra CSAZ-280B Black ATX Mid Tower Gaming Case
Specifications
| Model | |
| Model Name: | Spectra |
| Model Number: | CSAZ-280B/CSAZ-280W |
| Specifications | |
| Type: | ATX Mid Tower |
| Color: | Black/Black(interior), White/White(interior) |
| Side Panel Window: | Left side panel: Tempered glass with rubber mounts |
| Max CPU Cooler Height: | UP to 170mm |
| Max Video Card Length: | Up to 290mm long video card |
| Power Supply: | Not included |
| Motherboard Compatibility: | ATX、Micro ATX、ITX |
| Expansion | |
| External 5.25″ Drive Bays: | 0 |
| Internal 2.5″ Drive Bays: | Up to 3 |
| Internal 3.5″ Drive Bays: | Up to 2 |
| Expansion Slots: | 7 |
| Top Ports: | Power button, LED button, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 458*200*365mm/18*7.9*14.4 inches |
| Weight: | 4.4kg /9.7lbs |
| Features | |
| Tempered Glass Sides Window: | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects: | Allowing the LED button to cycle through different ARGB lighting modes. |
| Available Fan Ports: | 3x120mm or 2x140mm fan ports in the front 2x120mm fan ports on the top 2x120mm fan ports on the top of PSU shroud 1x120mm fan port in the rear (1x120mm LFO-3612D ARGB fan included) |
| Water Cooling: | Supports radiators up to 240mm in the front |
| Dust Filters: | Removable (magnetic) dustproof net on the top and Front, removable dust filter on the bottom of chassis. |
| Power Supply Support: | Bottom-mounted ATX power supply |

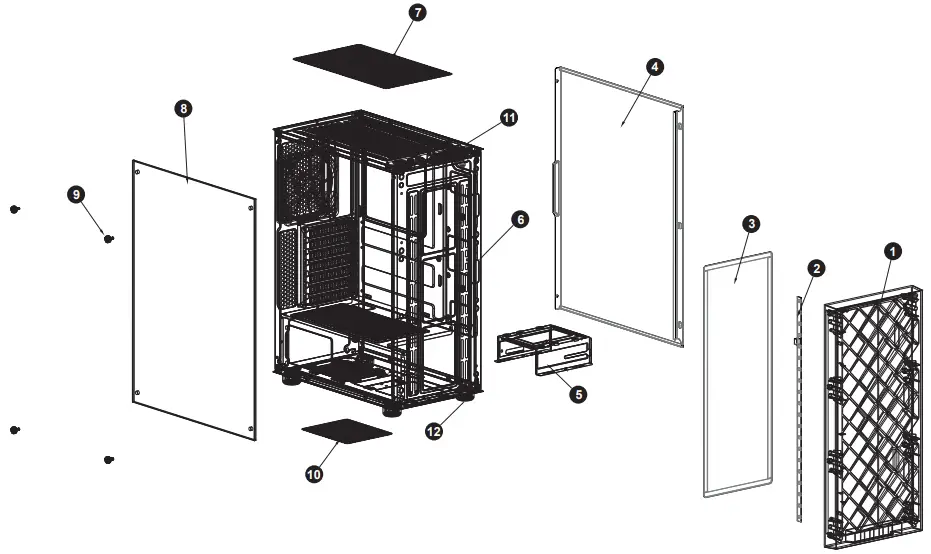

Chassis Parts
| 1 | Front panel |
| 2 | Addressable RGB strip |
| 3 | Removable magnetic mesh |
| 4 | Metal side panel |
| 5 | Hard disk cage |
| 6 | Chassis |
| 7 | Removable magnetic mesh |
| 8 | Tempered glass panel |
| 9 | Glass panel screws |
| 10 | Removable dust filter |
| 11 | Top I/O & buttons |
| 12 | Shock-proof stand |

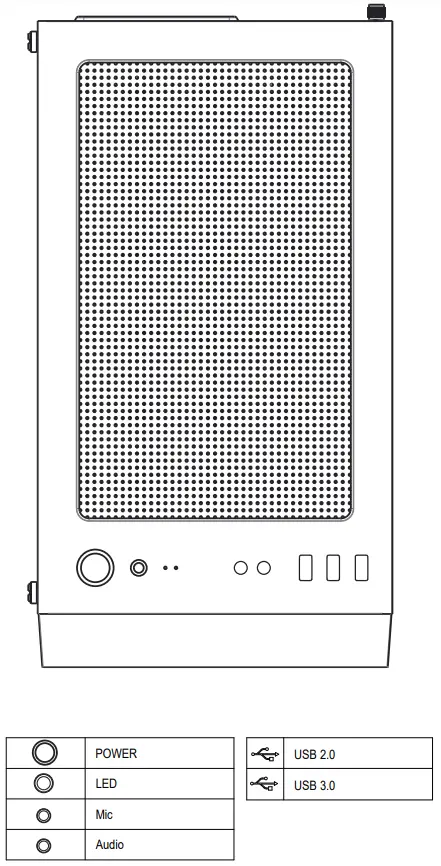

Control Panel Functions
Installation

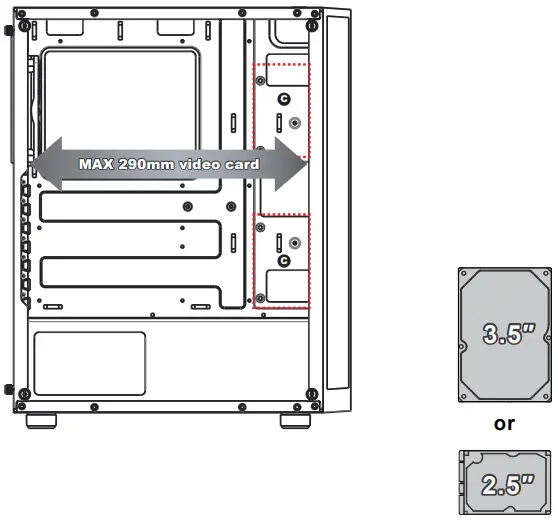

3.5 ˝/2.5˝ HDD/SSD Installation
- Supports up to 290mm long video cards.

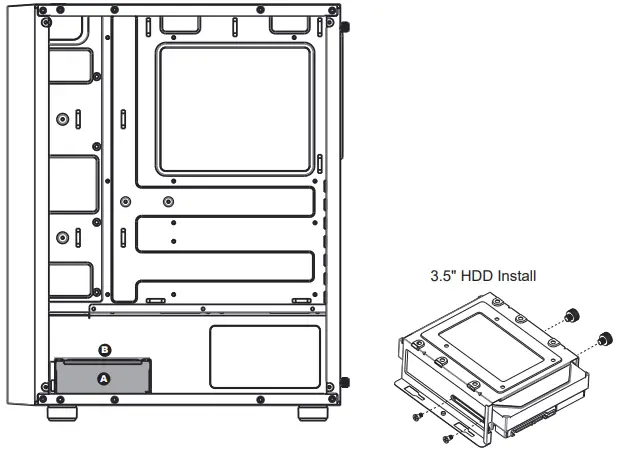

- Multifunctional hard disk bracket support 3.5” HDD x 1 ( A )
- Multifunctional hard disk cage support 3.5” HDD or 2.5” SSD x 1( B )
- Two mounting holes support 2.5” SSD x 2 ( C )
Cooling System Installation

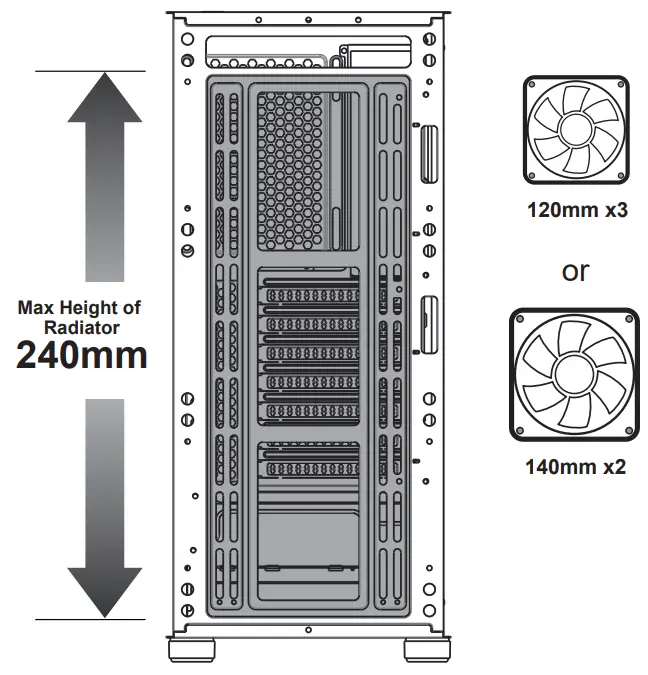

Front

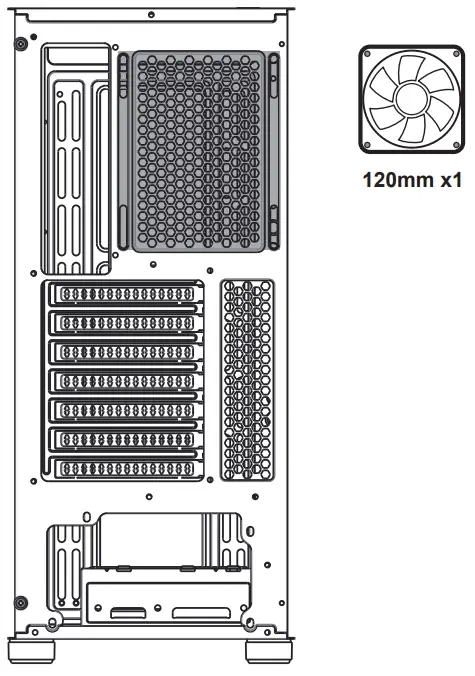

Rear

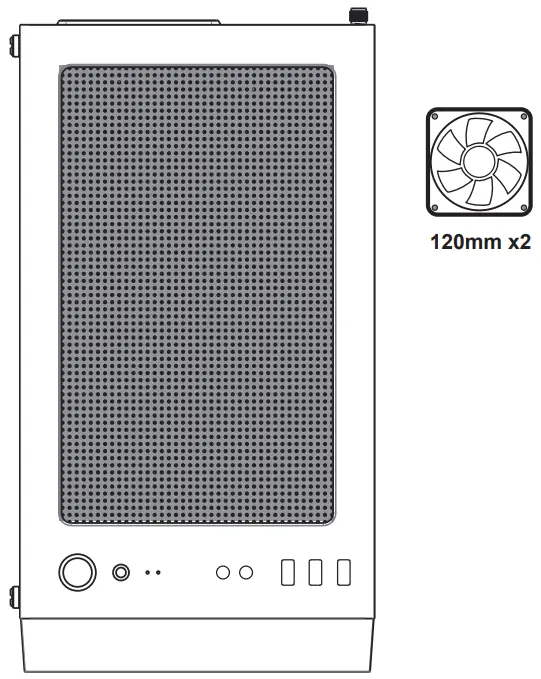

Top

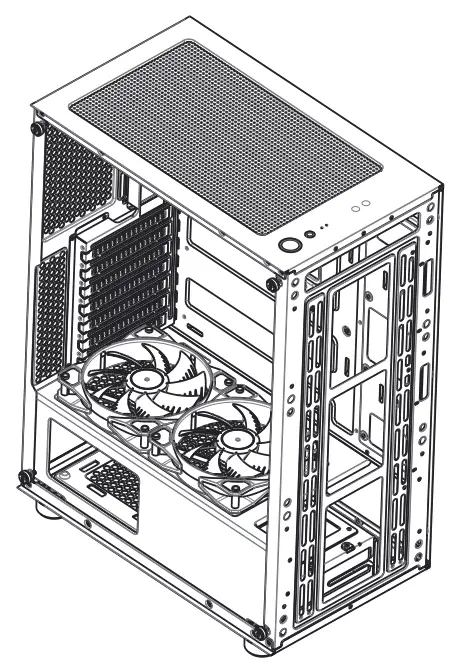

- 2x120mm fan ports on the top of PSU shroud

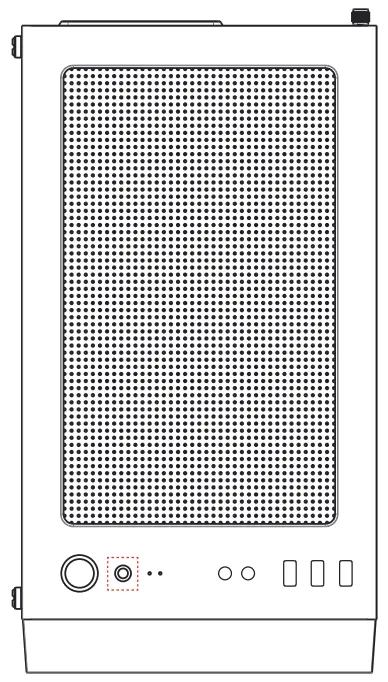

ARGB Control Modes Switching
- Press the LED button to cycle through different ARGB 13 lighting modes.

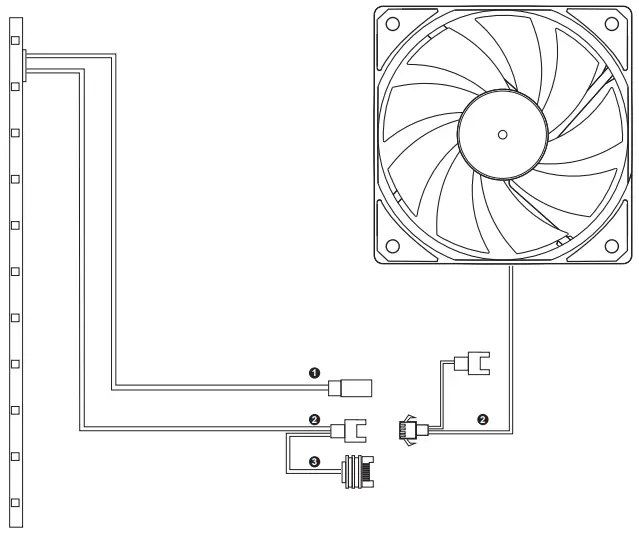

Fan Installation
CONNECTOR | CONNECTION | |
① | Reset S/W (2pin) | LED Button |
② | Fan Connector | The master Fan connects to the sub-fan |
③ | SATA | Power Supply |
Press the LED button to cycle through different RGB lighting modes, controlled by the LED button.
