Deepcool Ch510 Series Mid Tower Atx Case User Manual

CH510 Series
Mid-Tower ATX Case

Case Features

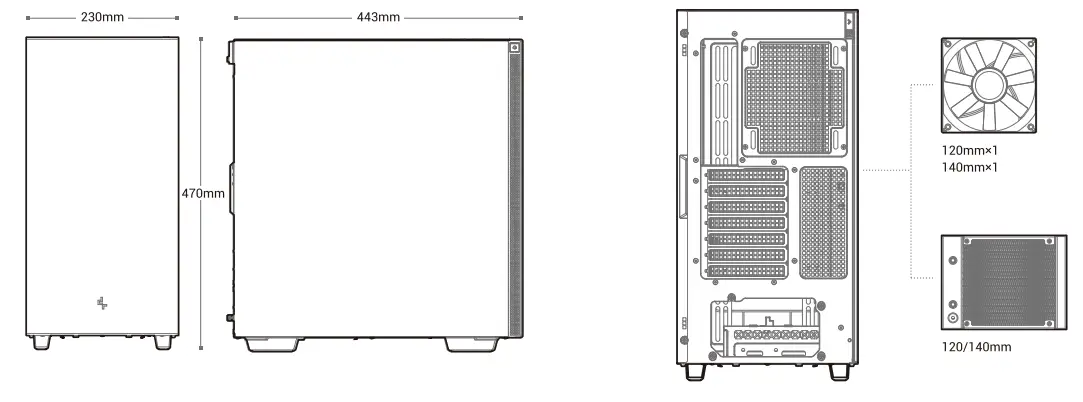

Case Specifications

Length: 443mm
Width: 230mm
Height: 470mm
Maximum GPU length: 380mm
Maximum PSU length: 170mm
Maximum CPU cooler height: 175mm
Radiator Compatibility:
Front: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Rear 120/140mm

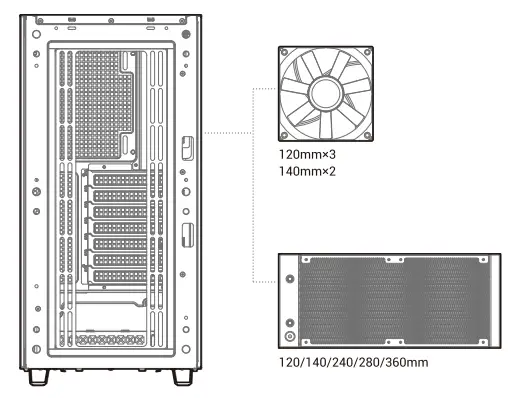

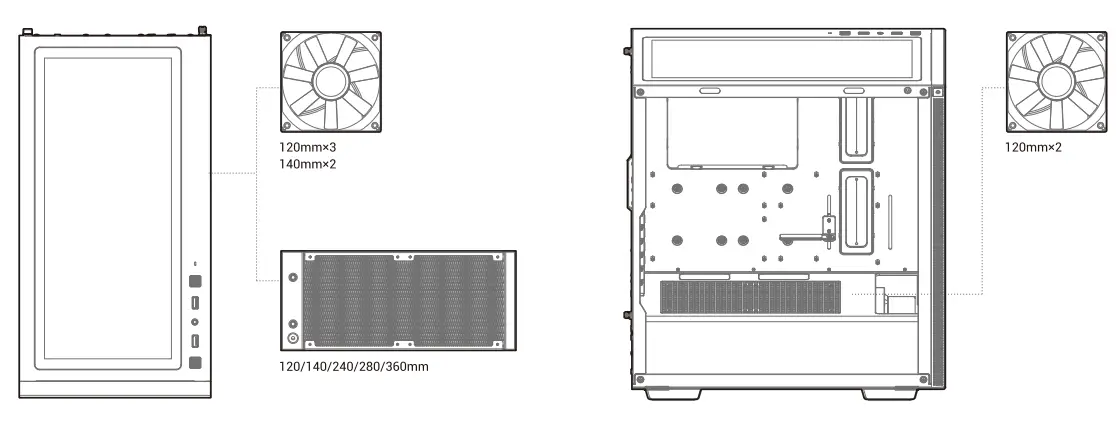

Fan locations:
Front: 3×120/2x140mm
Top: 3×120/2x140mm
Rear 1×120/1×1 40mm
PSU Shrouded: 2x120mm

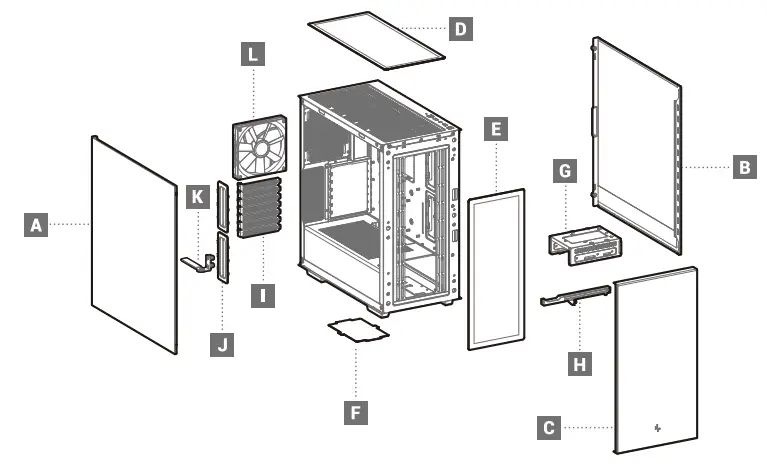

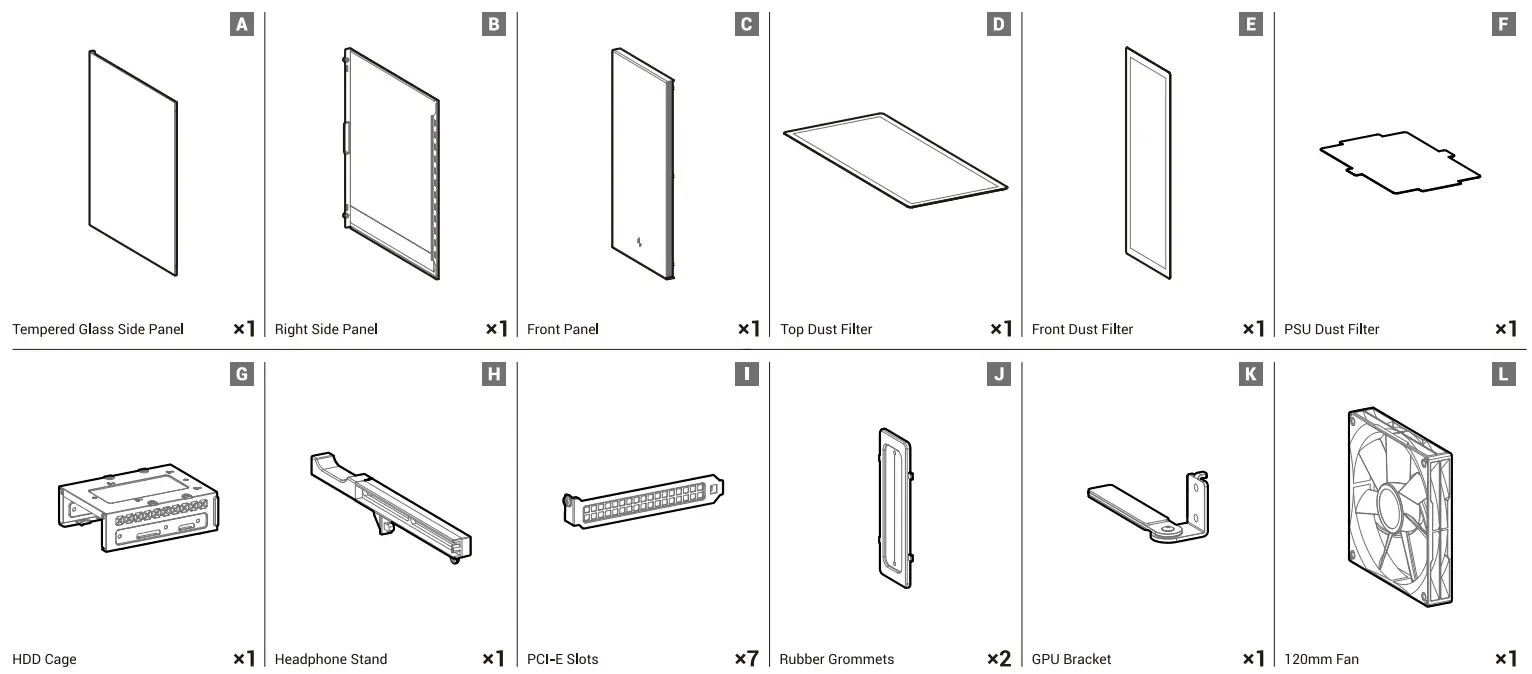

Accessory Kit Contents

Specifications

How to use Headphone Stand

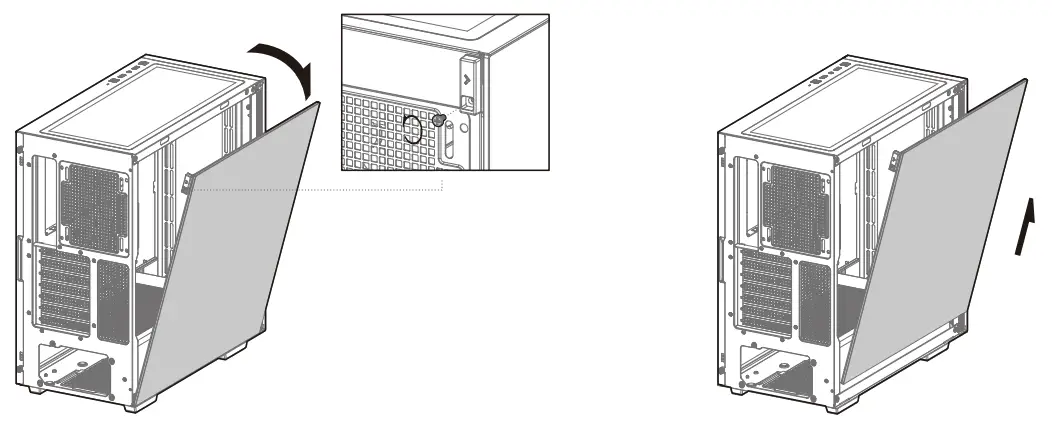

Removing the Tempered Glass Side Panel

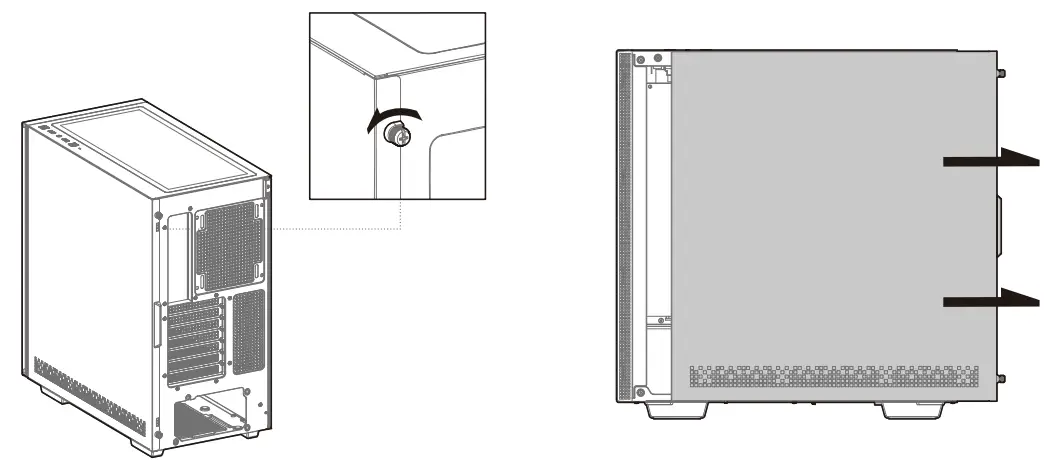

Removing the Metal Side Panel

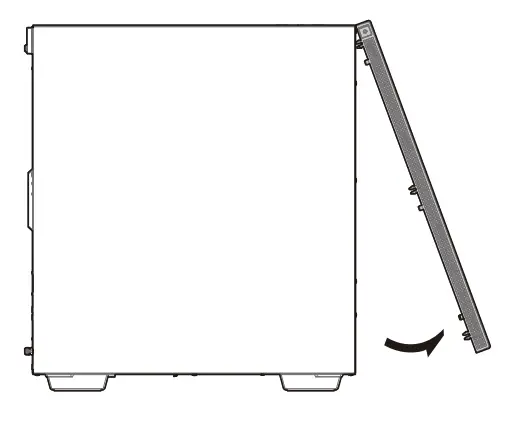

Removing the Front Panel

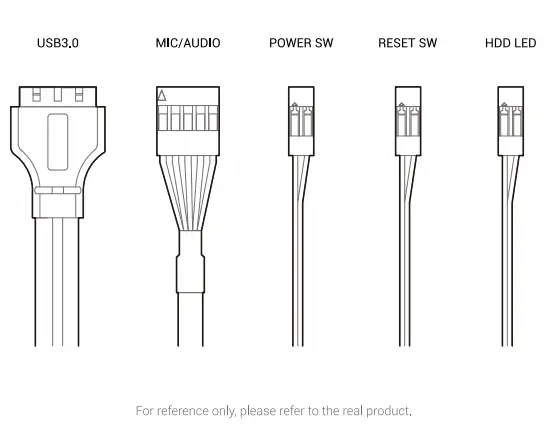

Installing the I/O Connectors

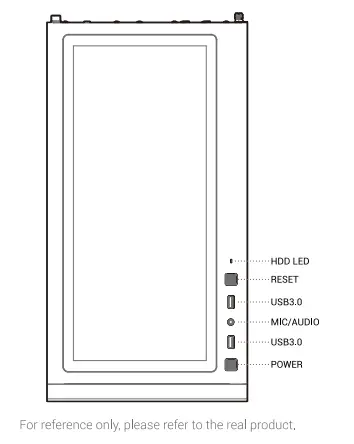

I/O Panel Introduction

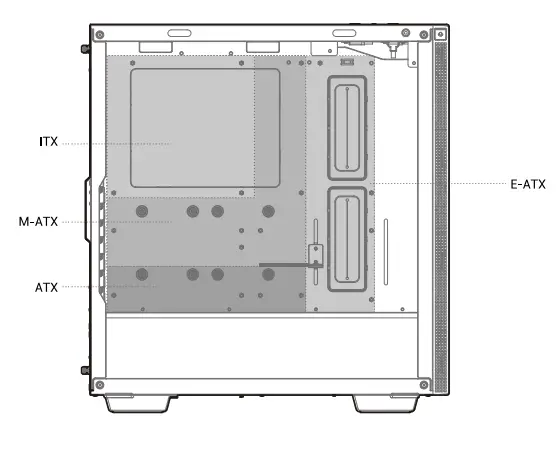

Installing the Motherboard

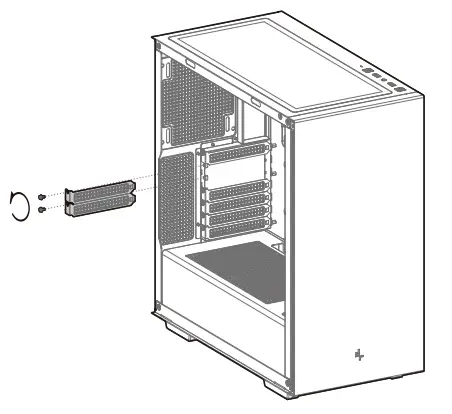

Installing the GPU

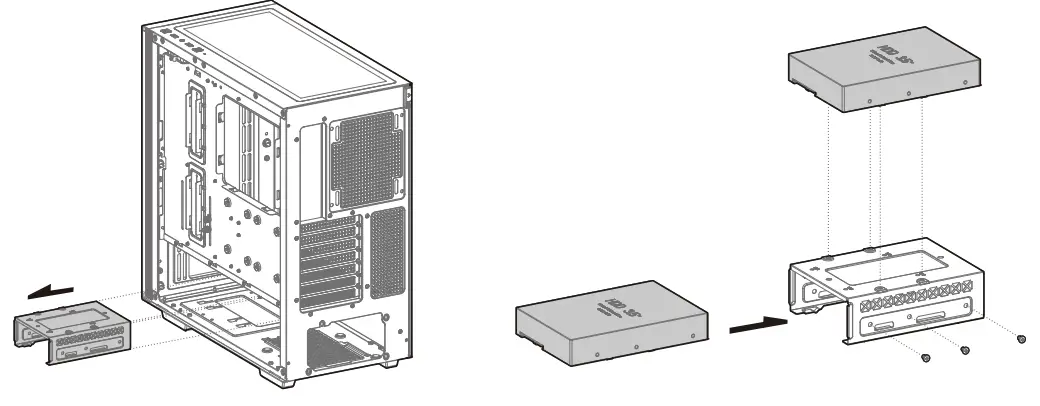

Installing HDDs

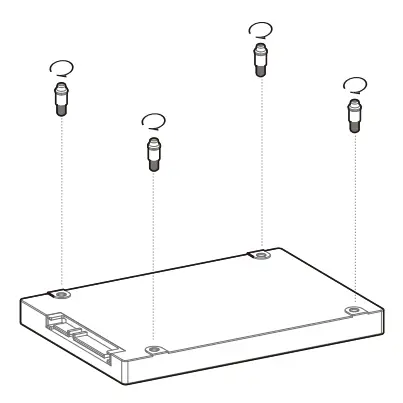

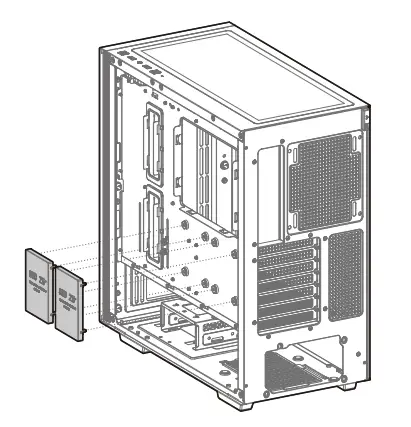

Installing SSDs

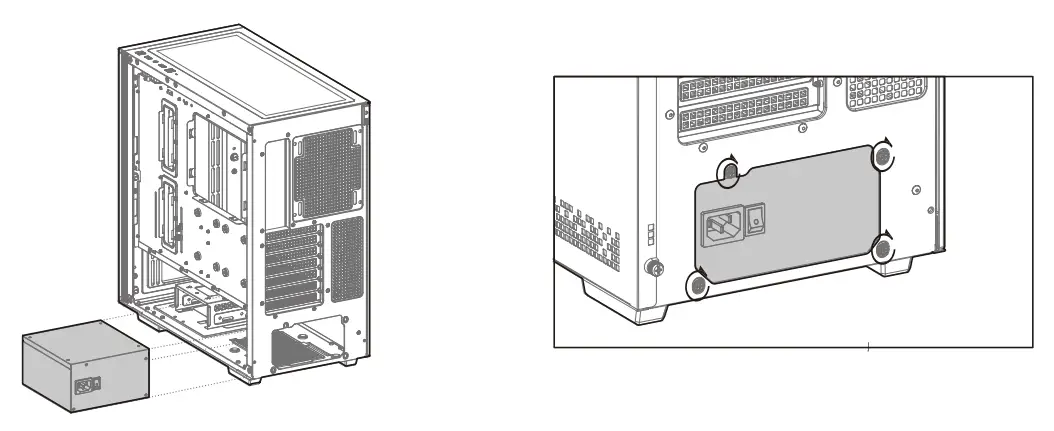

Installing the Power Supply

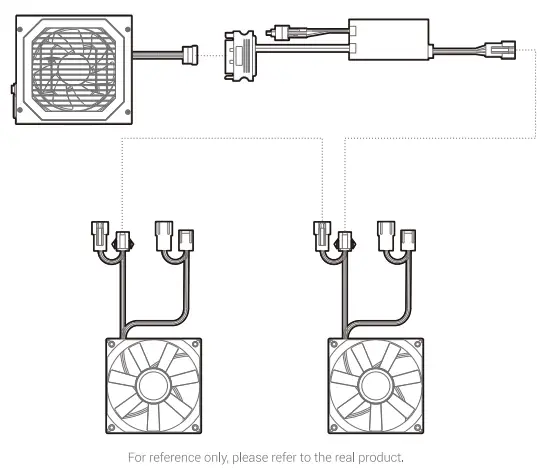

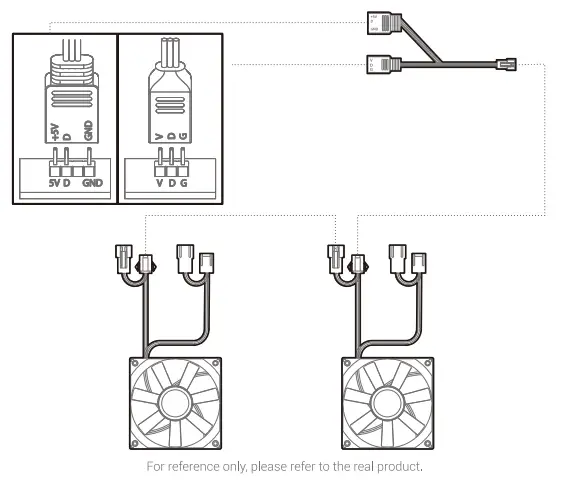

Manual RGB Wiring

Motherboard RGB Synchronization

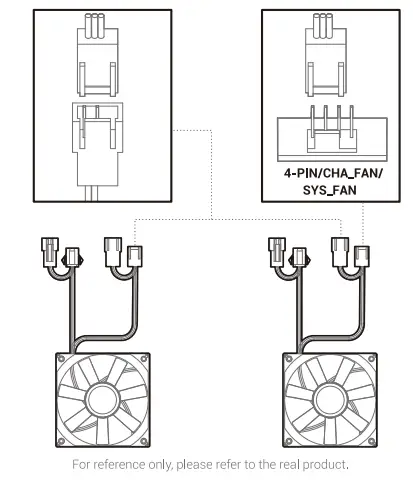

Fan Power Line Wiring

For more information, please check our website at: www.deepcool.com
