Nzxt Premium Compact Mid-tower Atx Case [h510 Elite] User Manual

Nzxt Premium Compact Mid-Tower ATX Case
[H510 Elite] User Manual

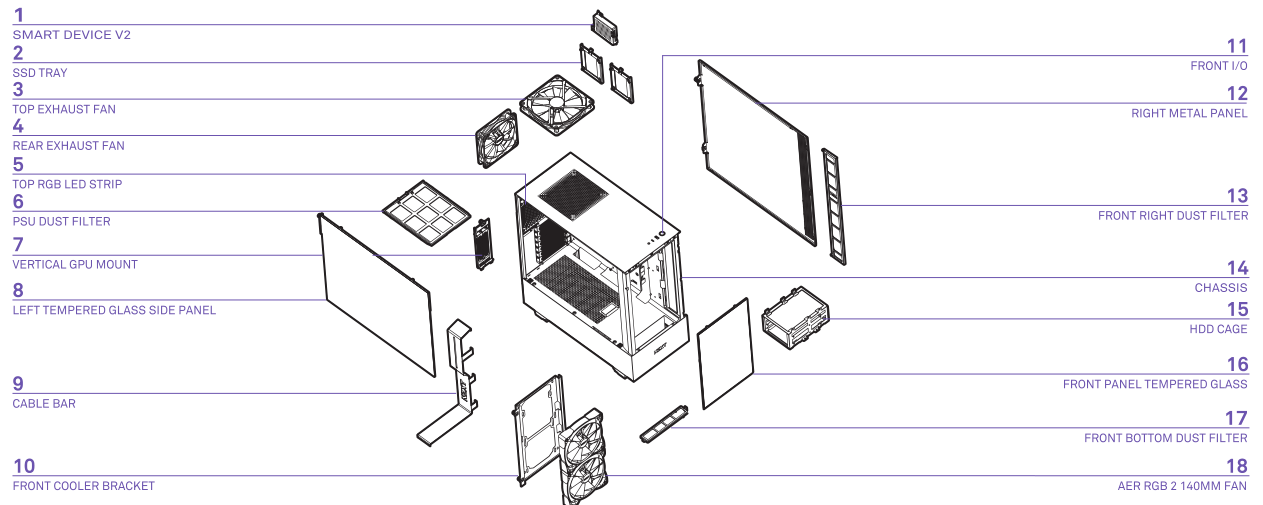

Exploded View

1. Smart Device V2
2. SSD Tray
3. Top Exhaust Fan
4. Rear Exhaust Fan
5. Top RGB LED Strip
6. PSU Dust Filter
7. Vertical GPU Mount
8. Left Tempered Glass Side Panel
9. Cable Bar
10. Front Cooler Bracket
11. Front I/O
12. Right Metal Panel
13. Front Right Dust Filter
14. Chassis
15. HDD Cage
16. Front Panel Tempered Glass
17. Front Bottom Dust Filter
18. AER RGB 2 140mm fan

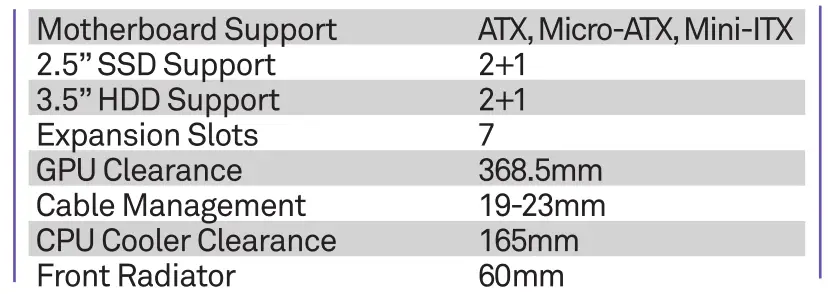

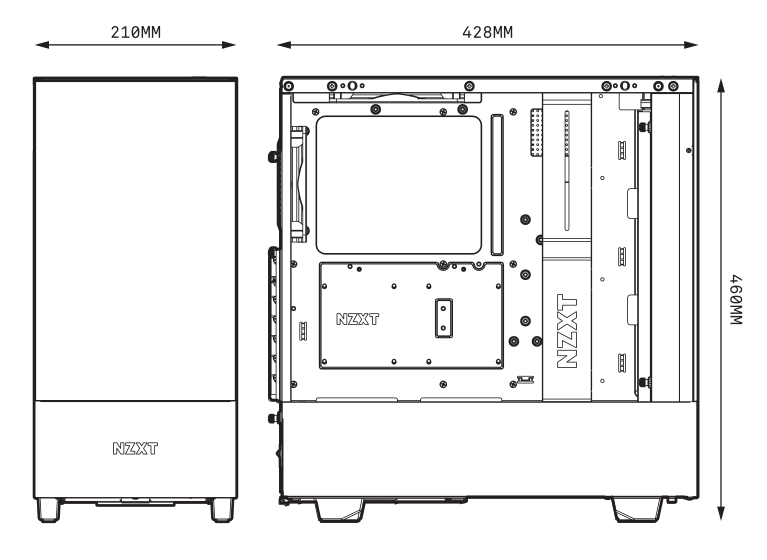

Clearances & Specifications

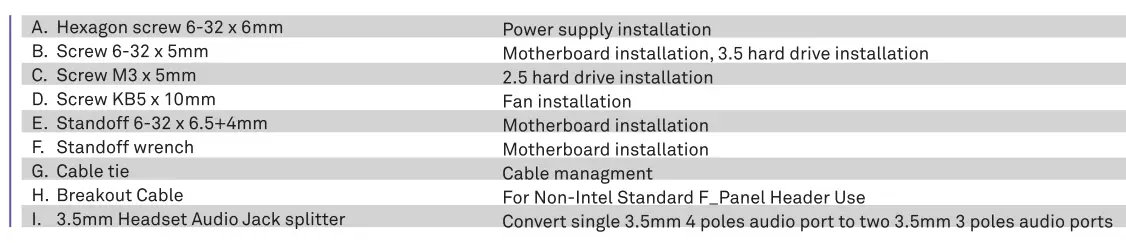

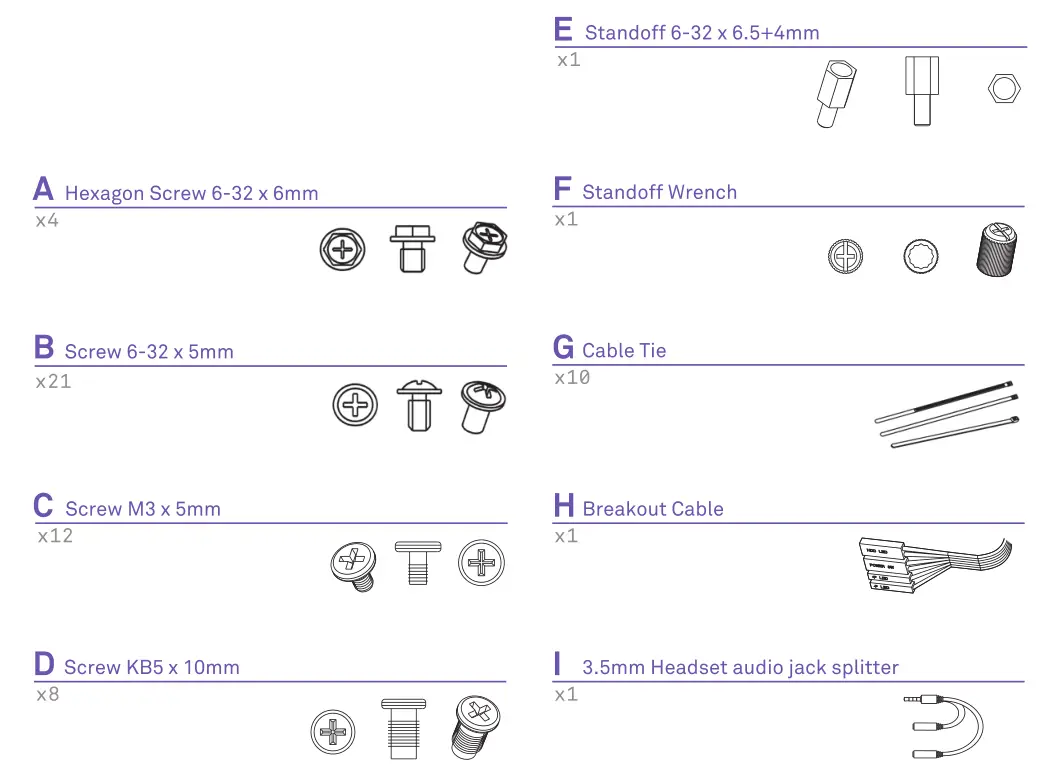

Accessory Box

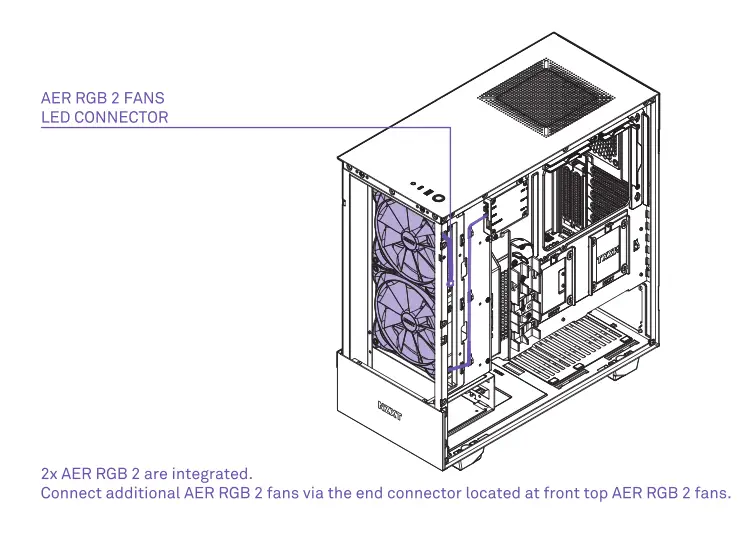

Smart Device V2

The Smart Device connects to your PC via a single internal USB 2.0 connector. To enable control of the Smart Device, download and install NZXT CAM from camwebapp.com.

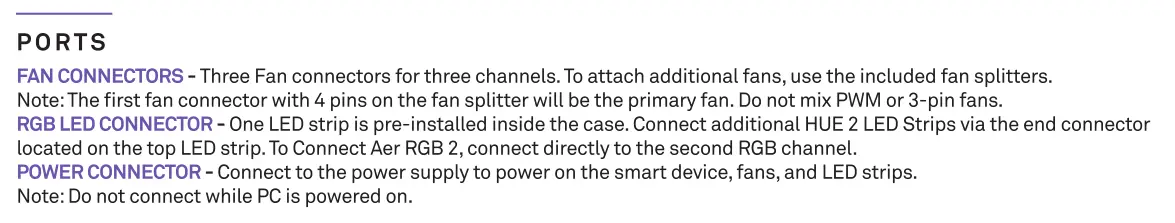

Ports

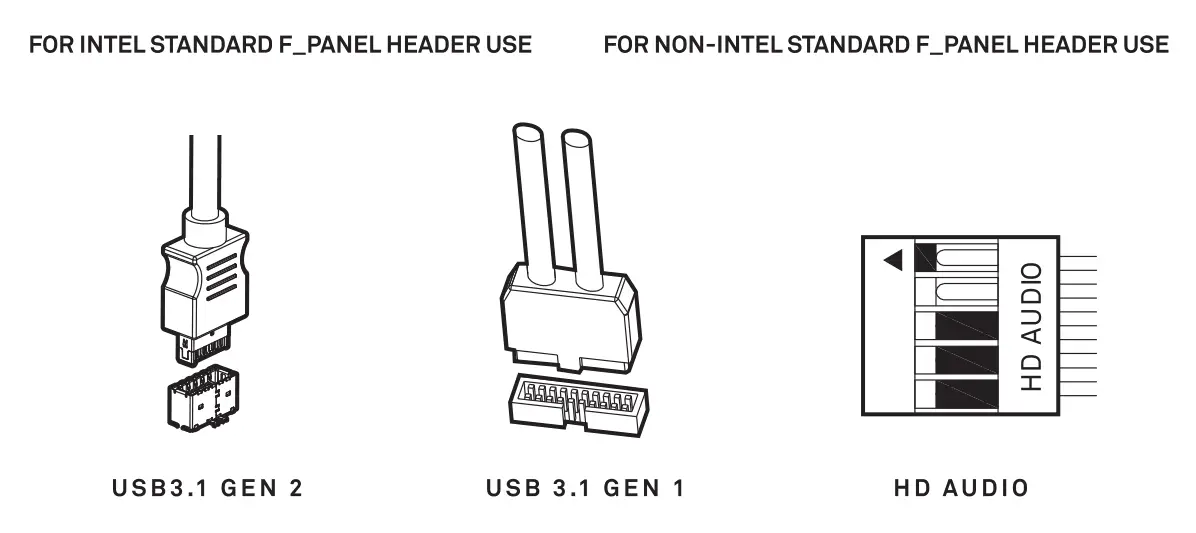

Cable Connections

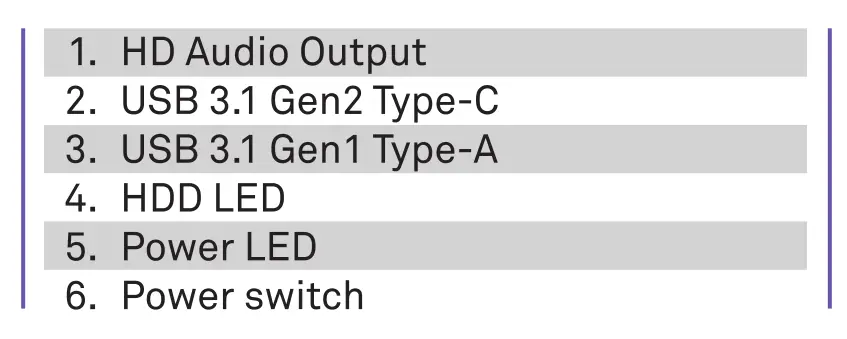

Buttons and I/O

Panel Removal

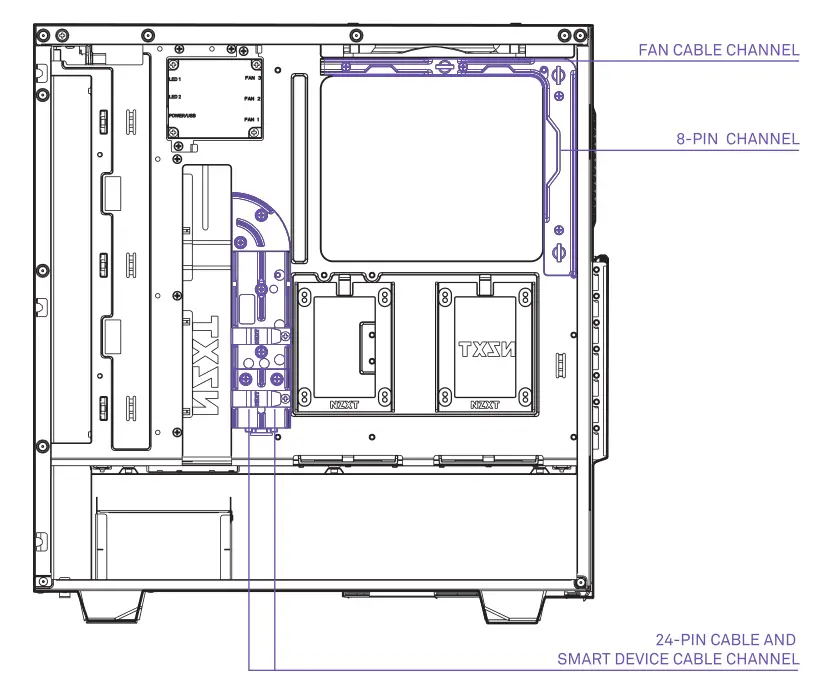

Cable Management System

Motherboard Installation

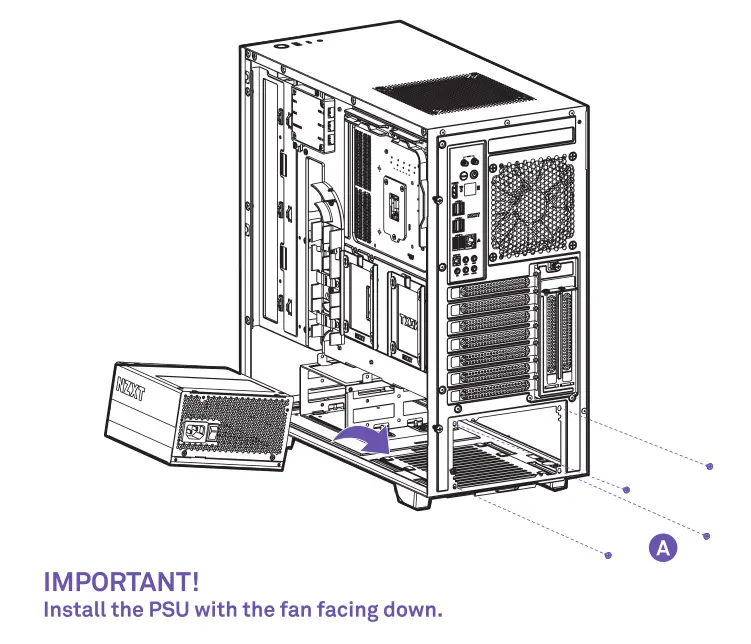

Power Supply Installation

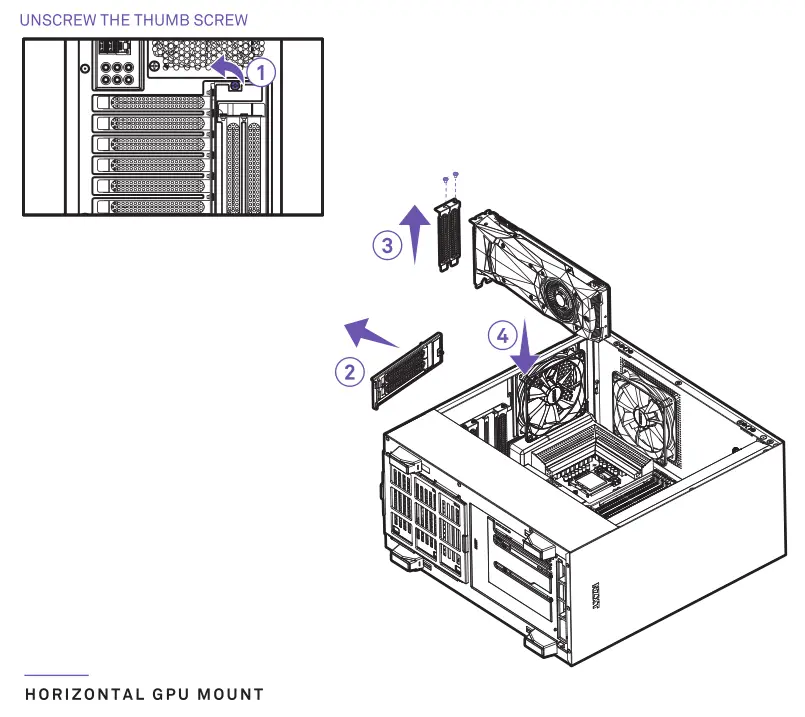

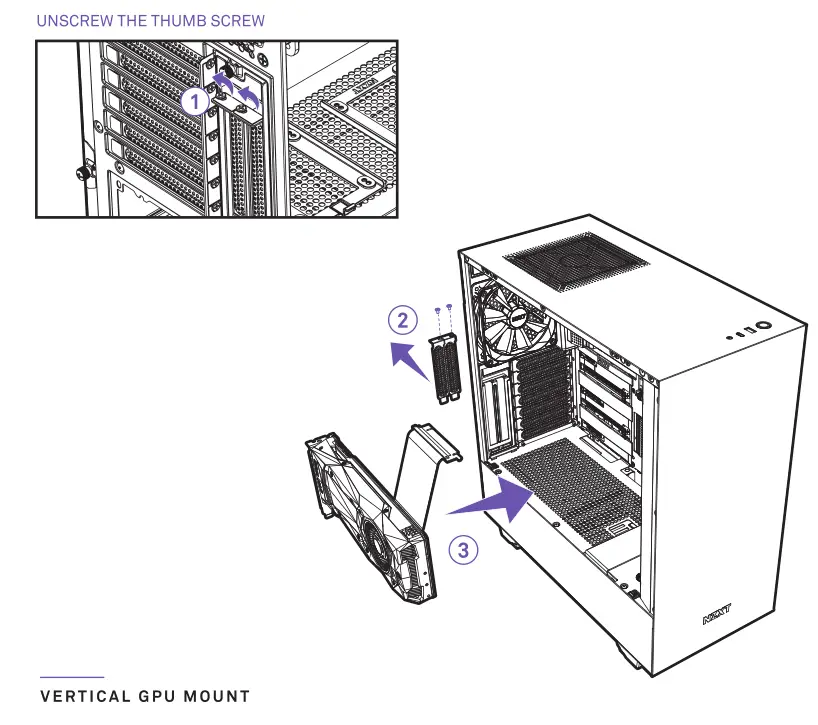

Expansion Card Installation

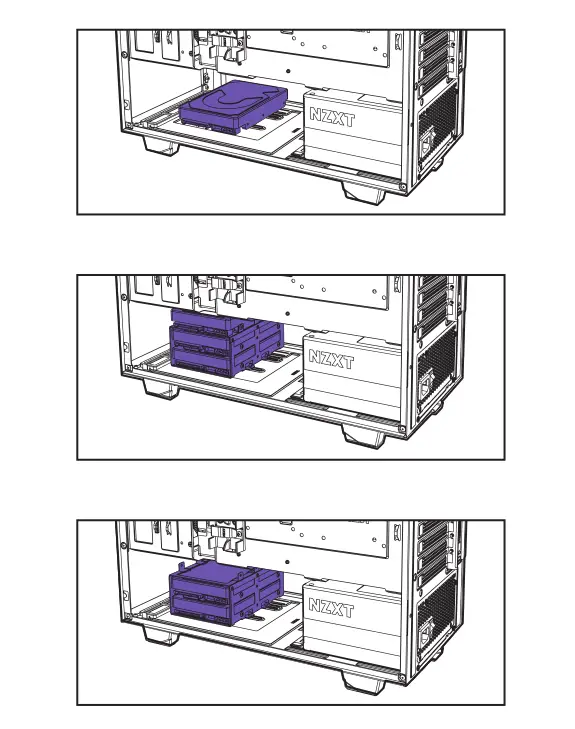

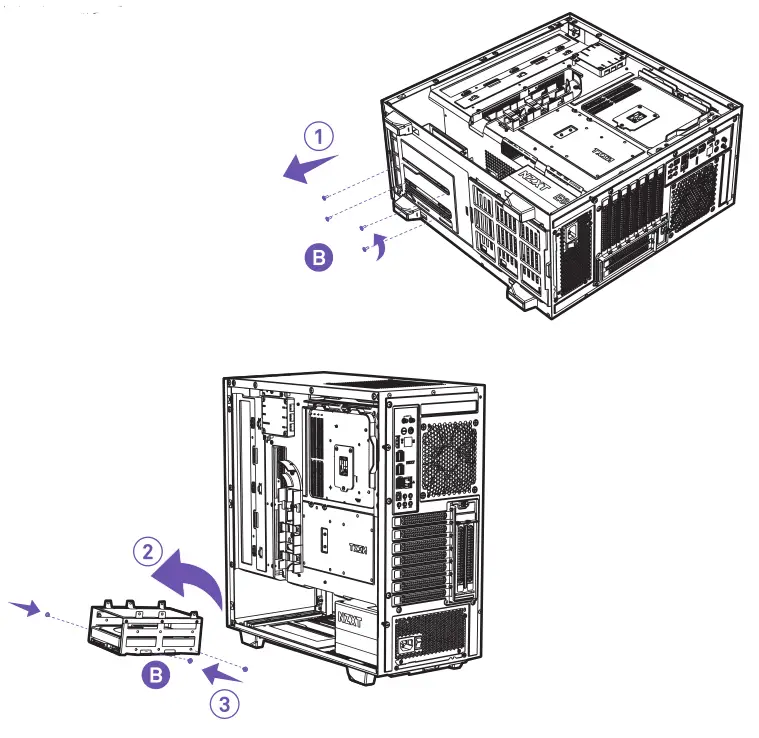

HDD Drive Installation

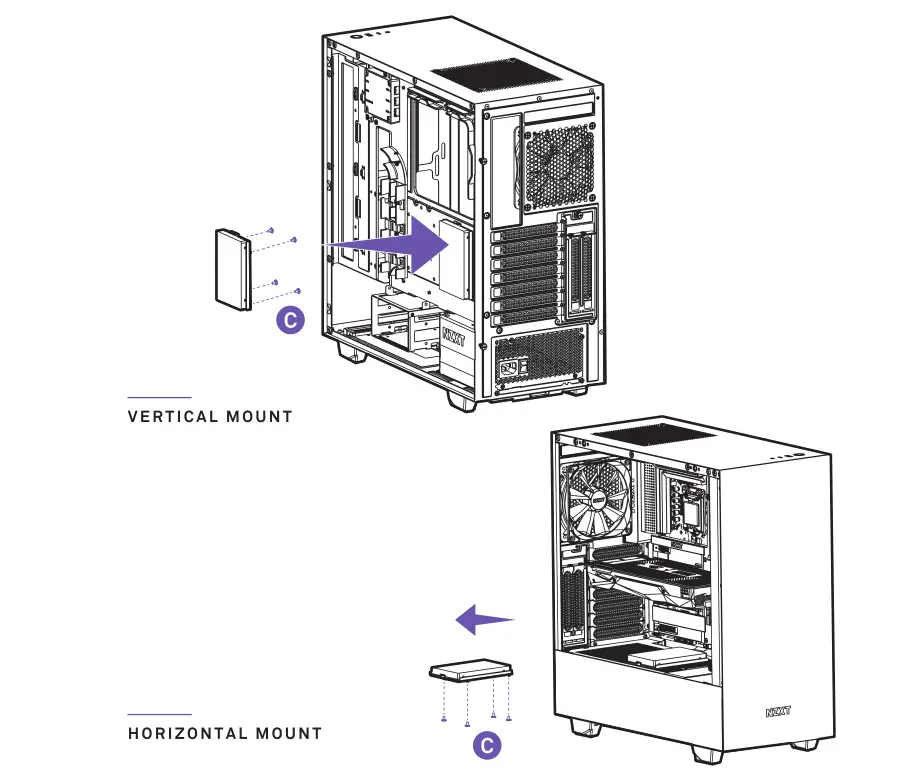

SSD Drive Installation

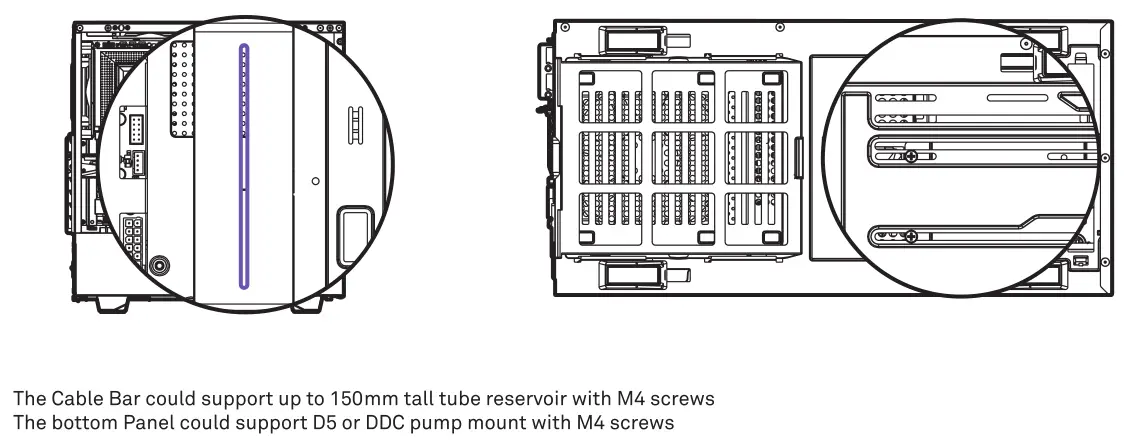

DIY Liquid Cooler Support

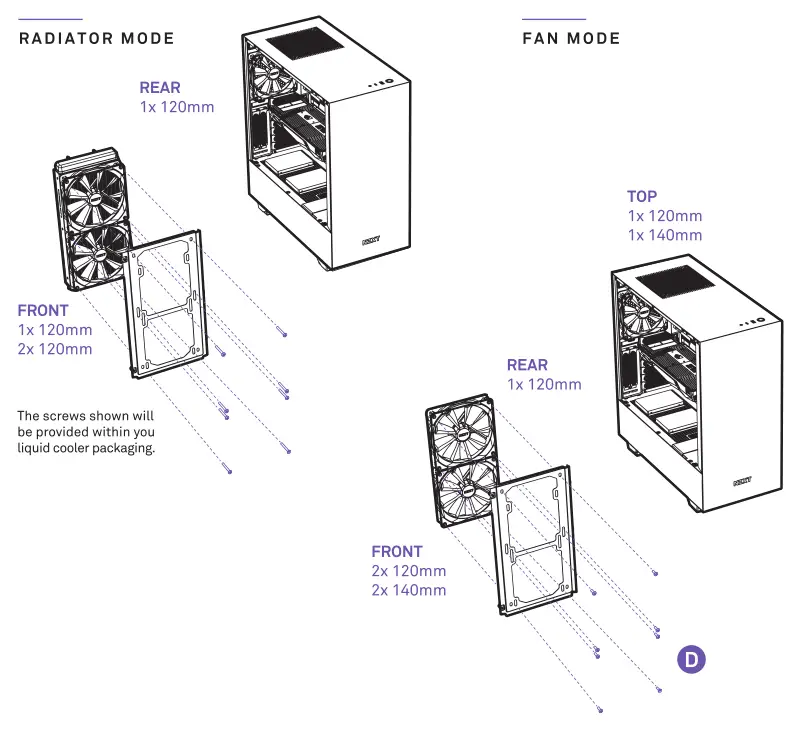

Fan & Radiator Support

Regulations

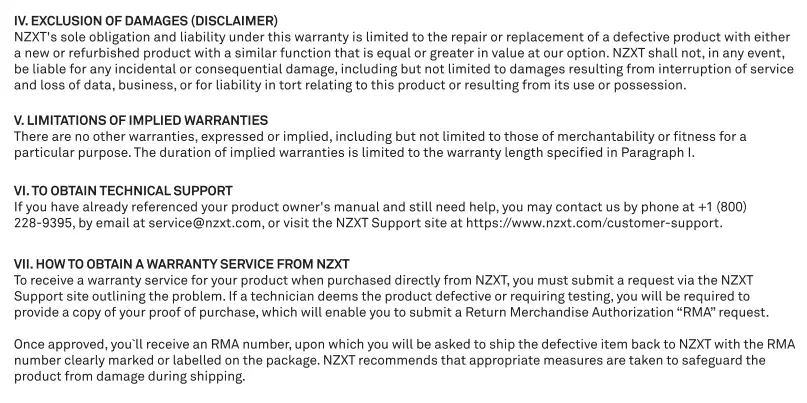

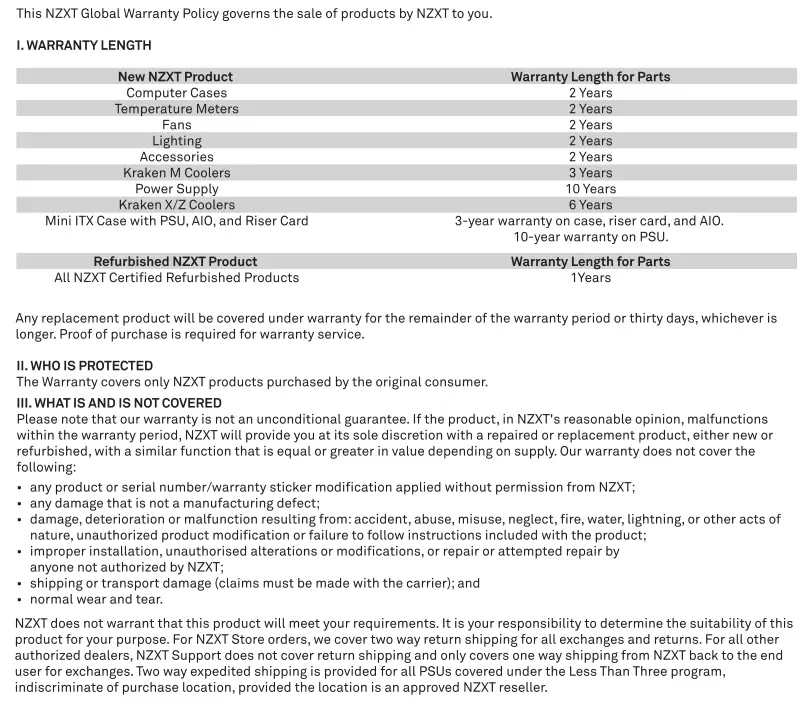

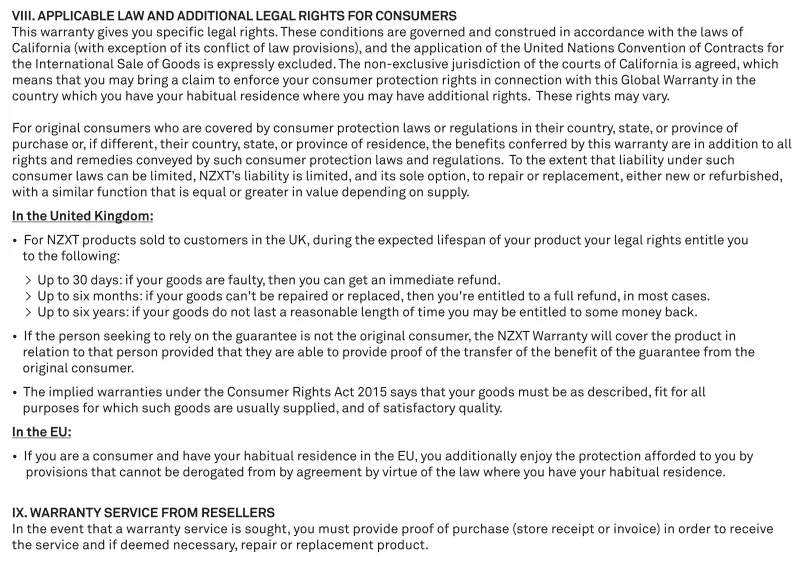

NZXT Global Warranty Policy

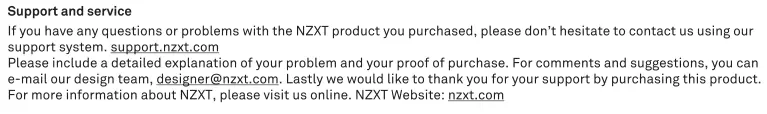

Support and Service
