Nzxt Compact Mid-Tower ATX Case [H510, H510i] User Manual

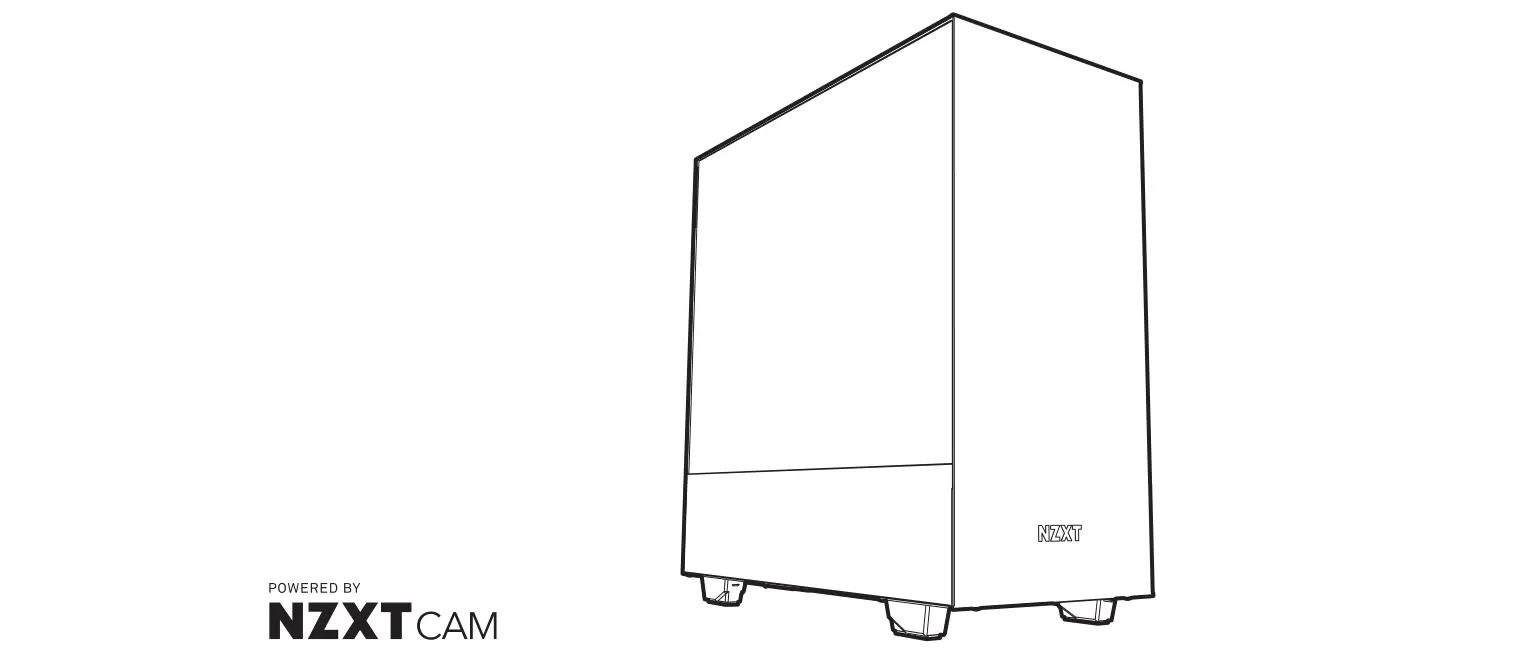

![Nzxt Compact Mid-Tower ATX Case [H510, H510i]](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual.png)
Contents hide

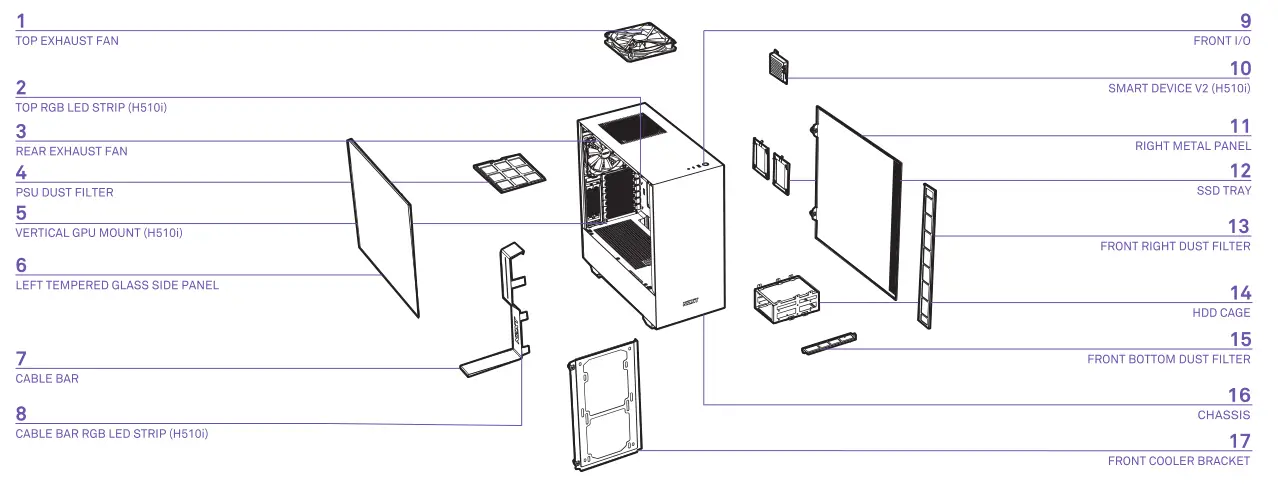

Exploded View
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Exploded View](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-1.png)
- Top Exhaust Fan
- Top RGB LED Strip (H510i)
- Rear Exhaust Fan
- PSU Dust Filter
- Vertical GPU Mount (H510i)
- Left Tempered Glass Side Panel
- Cable Bar
- Cable Bar RGB LED Strip (H510i)
- Front I/O
- Smart Device V2 (H510i)
- Right Metal Panel
- SSD Tray
- Front Right Dust Filter
- HDD Cage
- Front Bottom Dust Filter
- Chassis
- Front Cooler Bracket

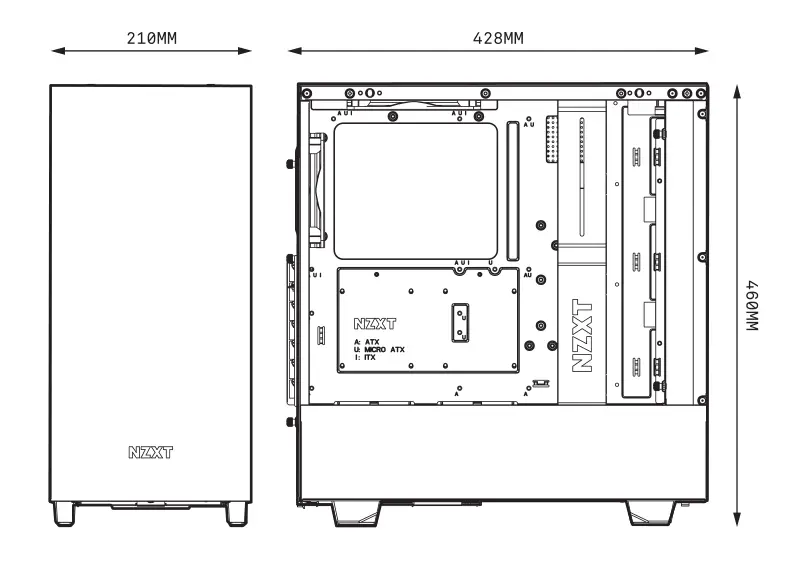

Clearances & Specifications
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Clearances and Specifications](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-2.png)

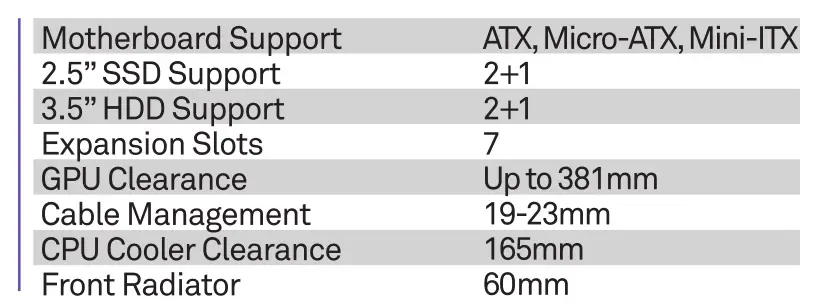

![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Clearances and Specifications Table](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-3.png)

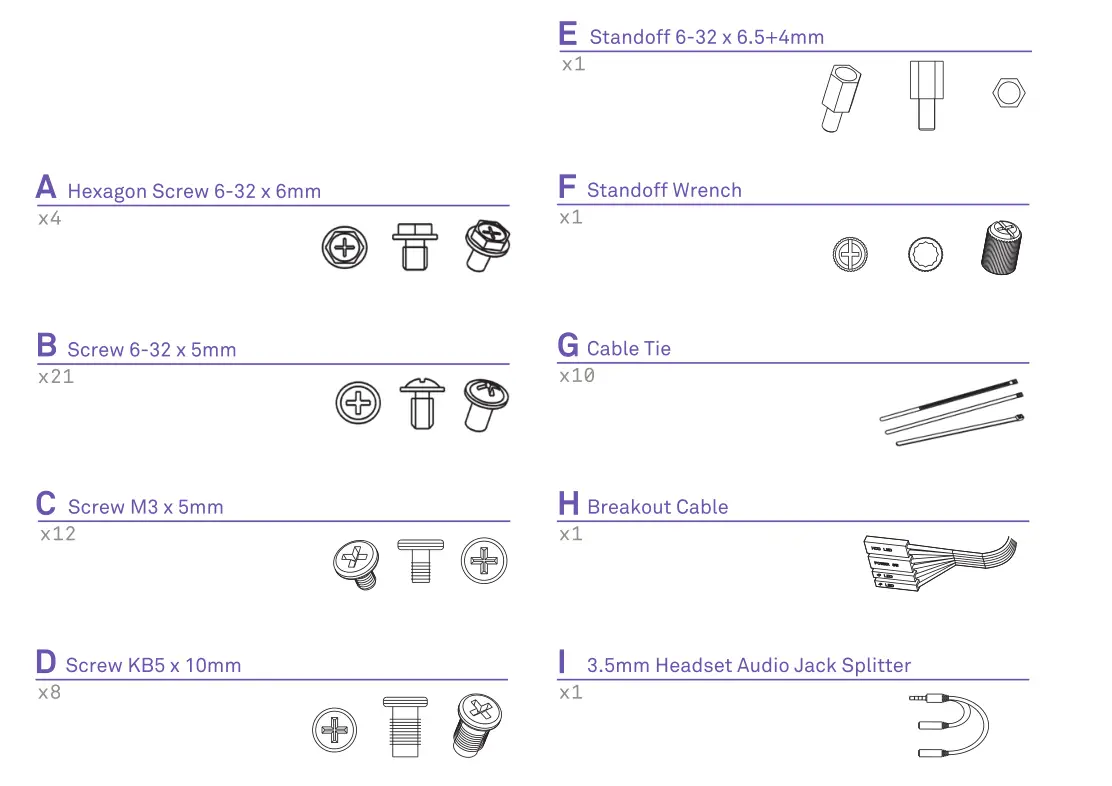

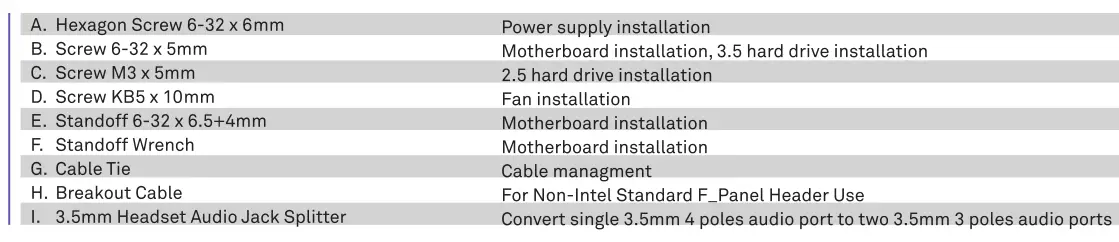

Accessory Box
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Accessories](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-4.png)
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Accessories Table](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-6.png)
Smart Device V2 (H510i)
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] - Smart Device V2 (H510i)](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-7.png)

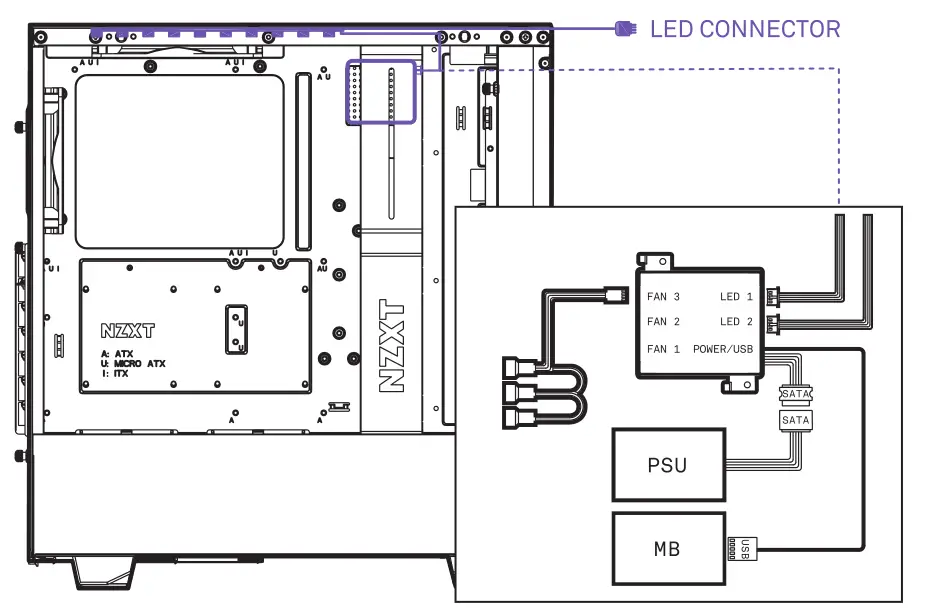

The Smart Device connects to your PC via a single internal USB 2.0 connector. To enable control of the Smart Device, download and install NZXT CAM from camwebapp.com.

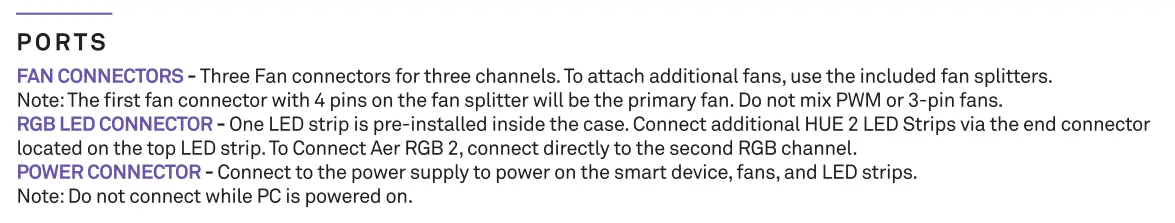

Ports
![Nzxt Mini ITX Case [H510, H510i] Ports](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-7.png)

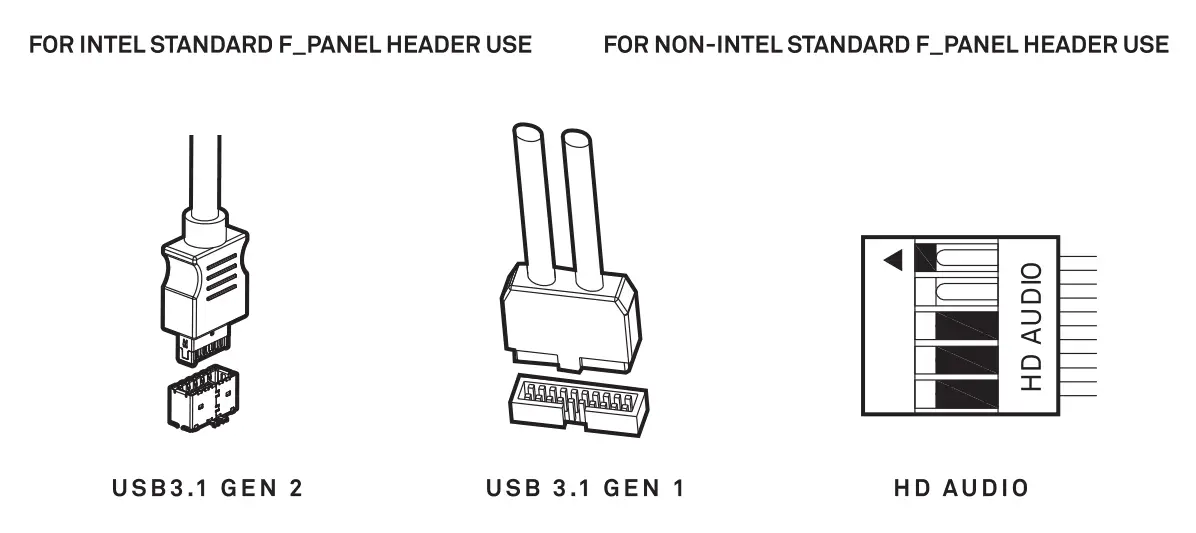

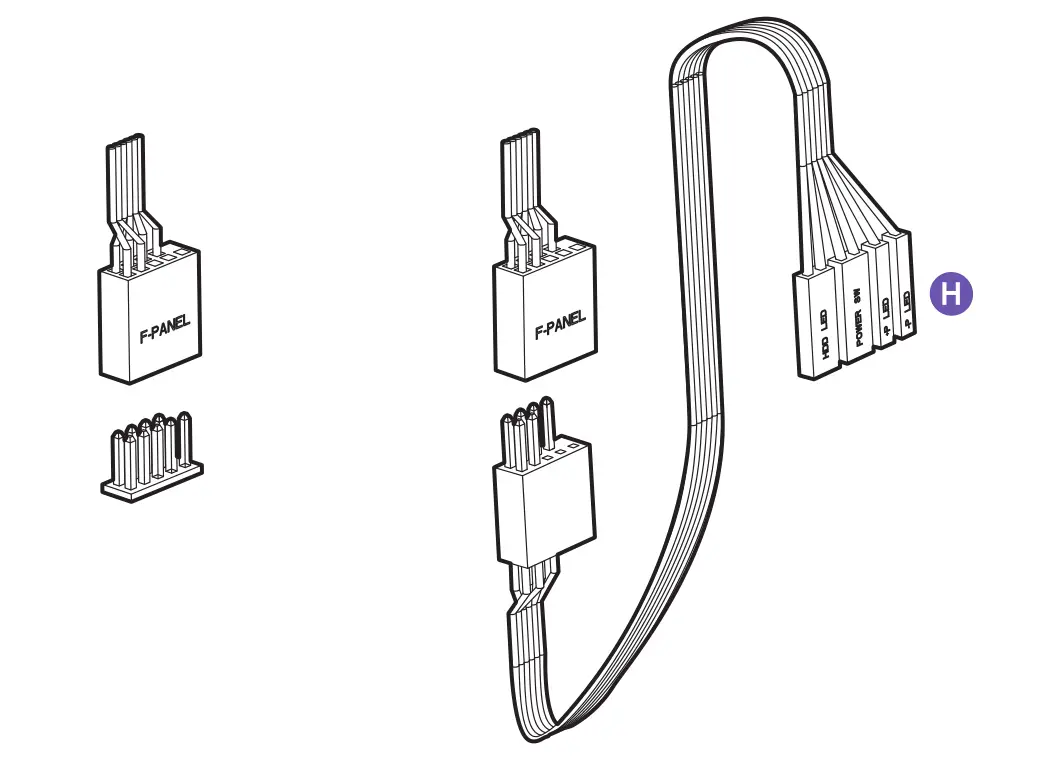

Cable Connections
![Nzxt Mini ITX Case [H510, H510i] Cable Connections figure 1](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-8.png)
![Nzxt Mini ITX Case [H510, H510i] Cable Connections figure 2](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-9.png)

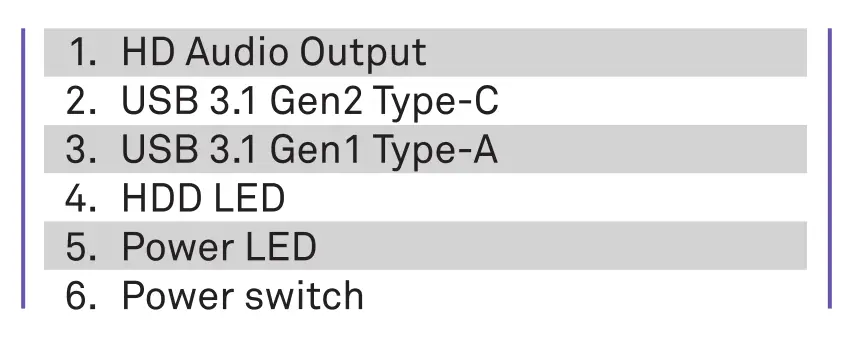

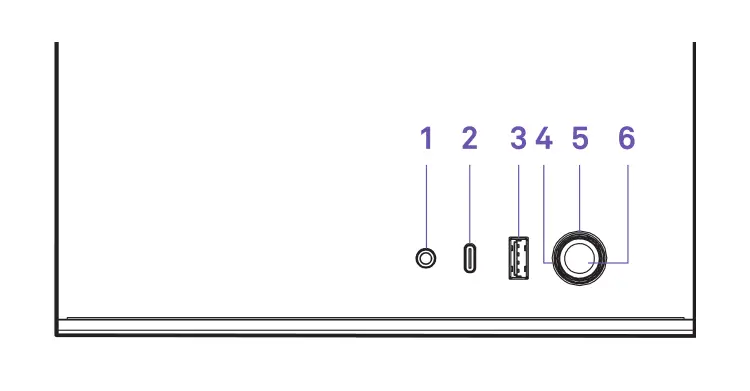

![Nzxt Mini ITX Case [H510, H510i] Buttons and I/O Figure](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-10.png)
![Nzxt Mini ITX Case [H510, H510i] Buttons and I/O Table](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-11.png)

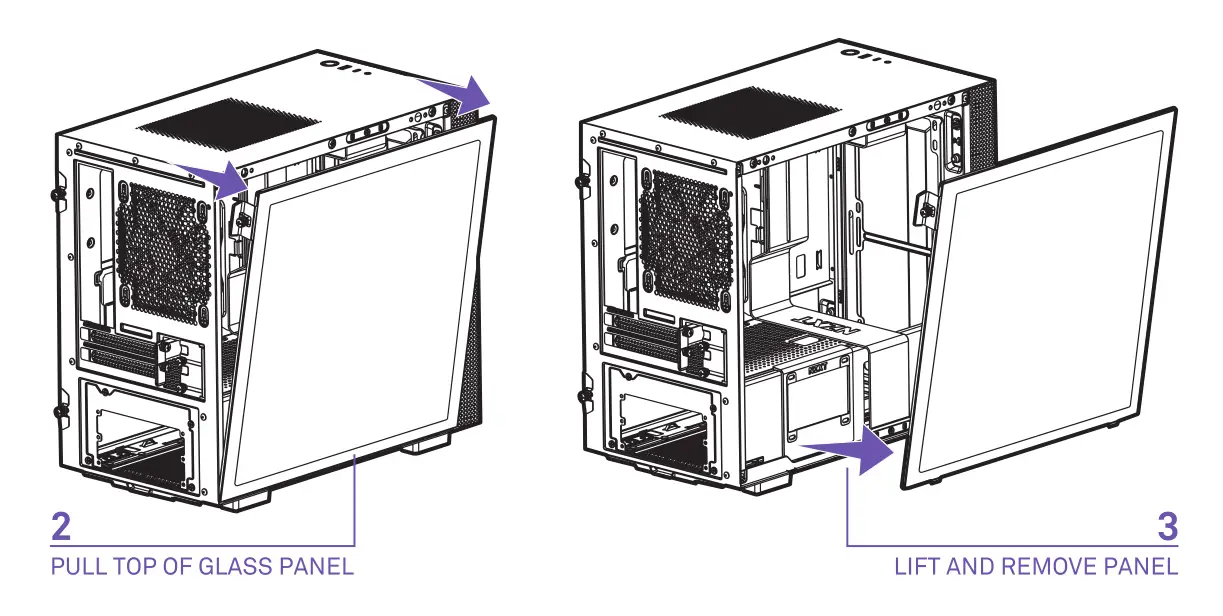

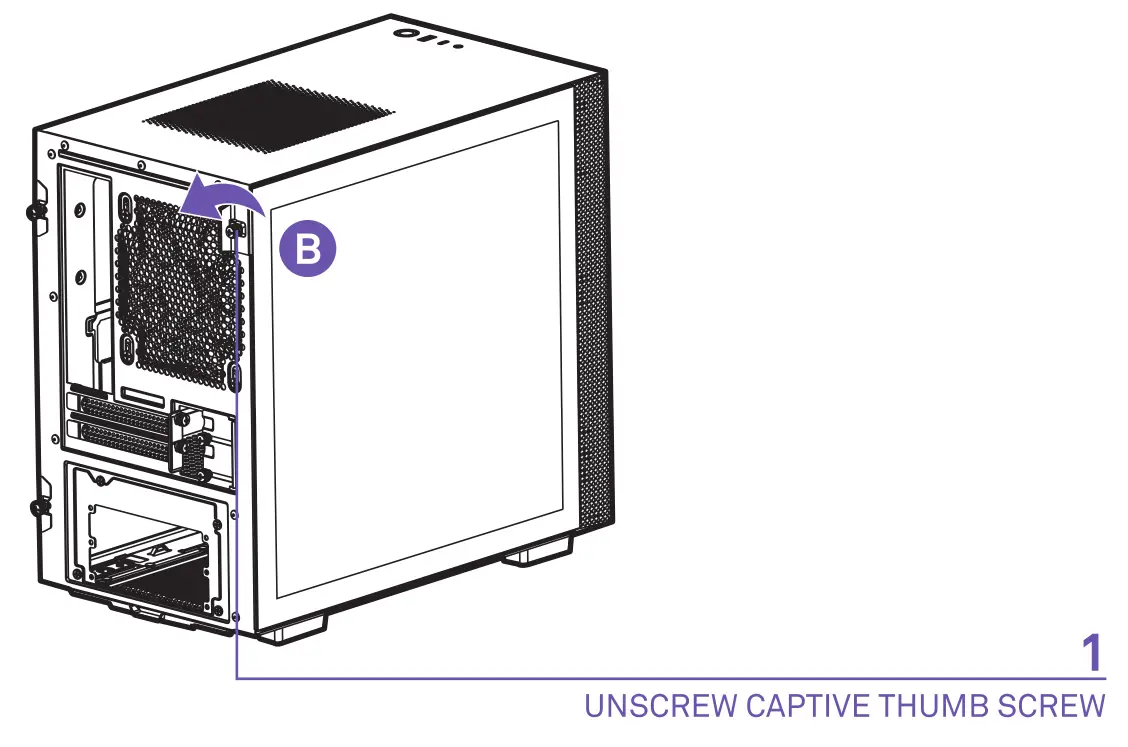

Panel Removal
![Nzxt Mini ITX Case [H510, H510i] Panel Removal Image 1](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-12.png)
![Nzxt Mini ITX Case [H510, H510i] Panel Removal Image 2](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-13.png)

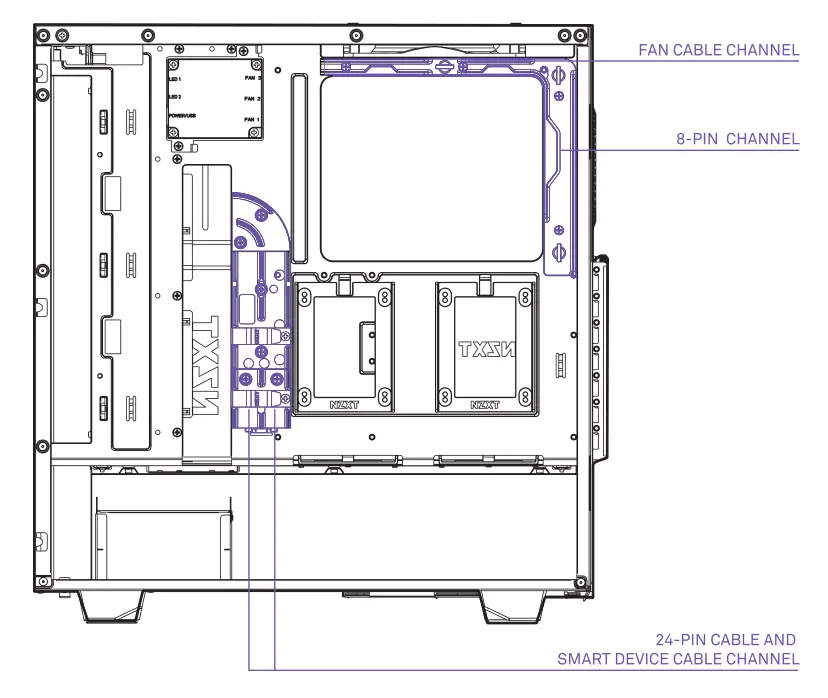

Cable Management System
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Cable Management System](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-8.png)

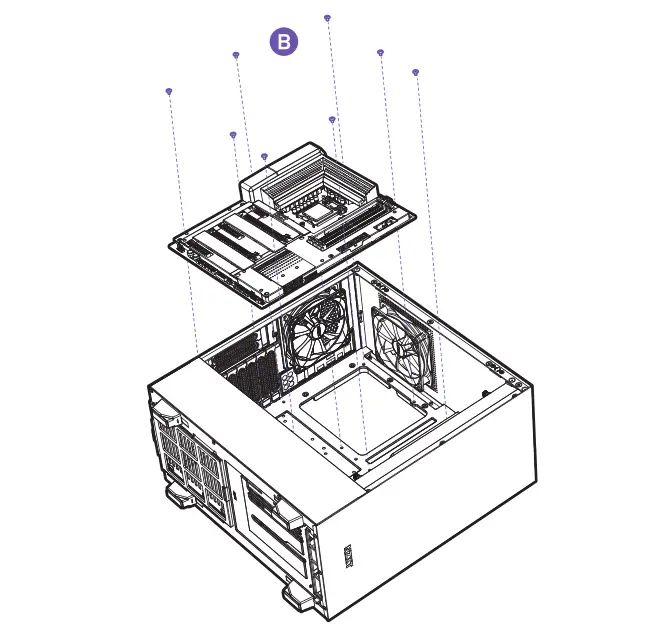

Motherboard Installation
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Motherboard Installation](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-9.png)
Power Supply Installation
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Power Supply Installation](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-10.png)

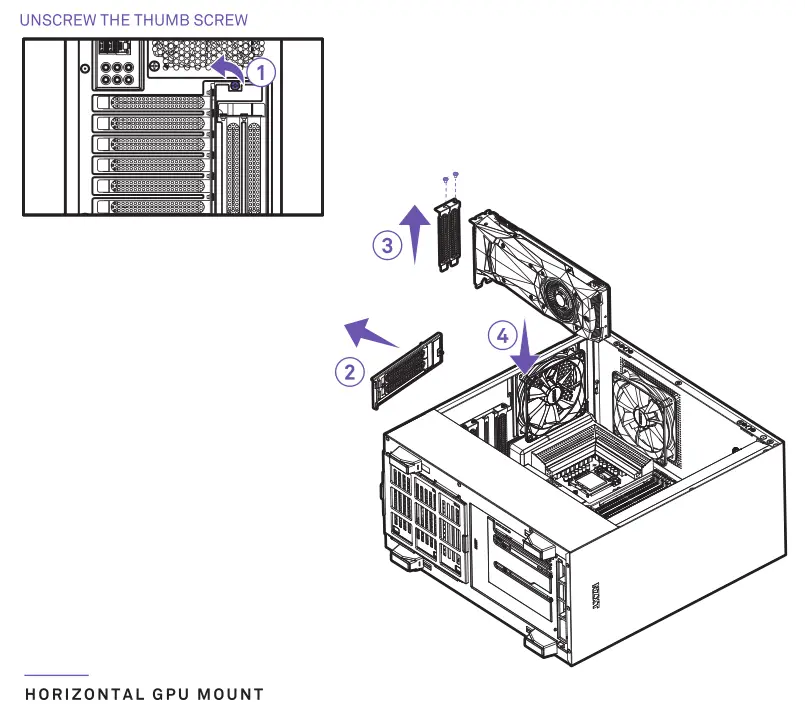

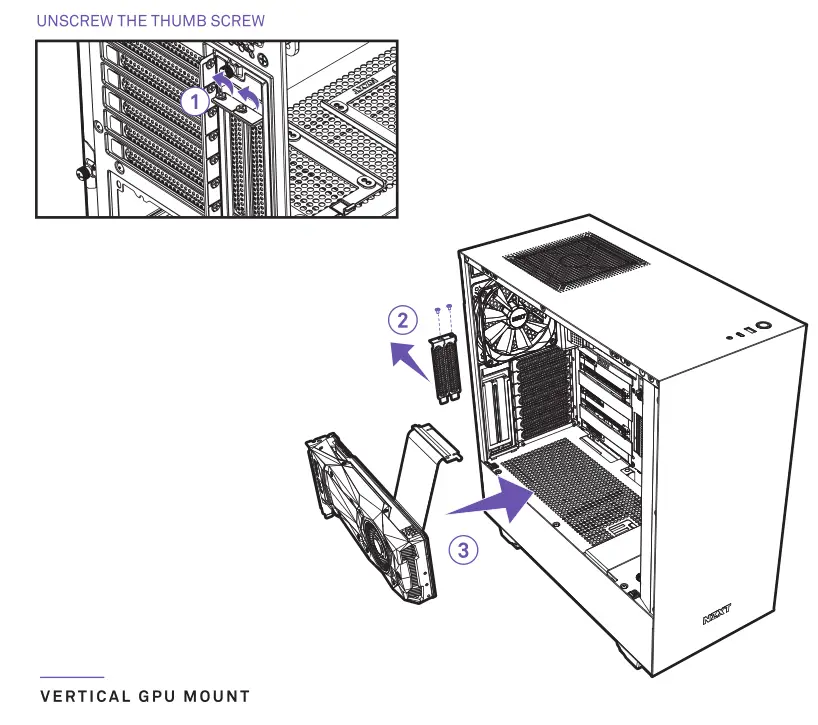

Expansion Card Installation
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Expansion Card Installation (Horizontal GPU Mount)](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-11.png)
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Expansion Card Installation (Vertical GPU Mount)](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-12.png)

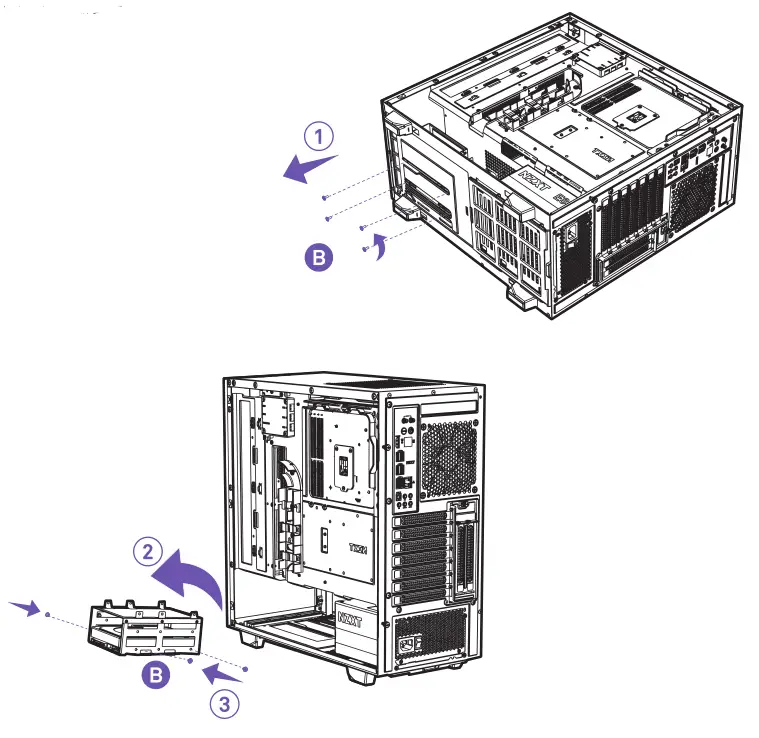

HDD Drive Installation

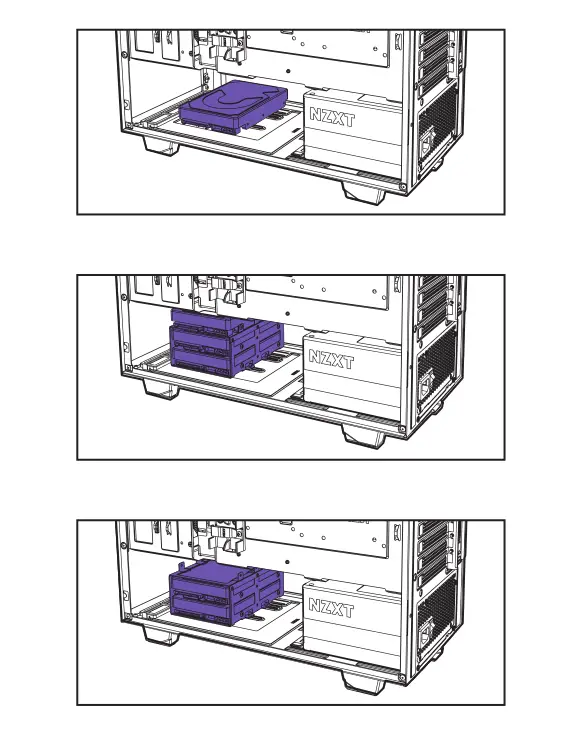

![Nzxt Compact Mid-Tower ATX Case [H510, H510i] HDD Drive Installation 1](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-13.png)
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] HDD Drive Installation 2](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-14.png)

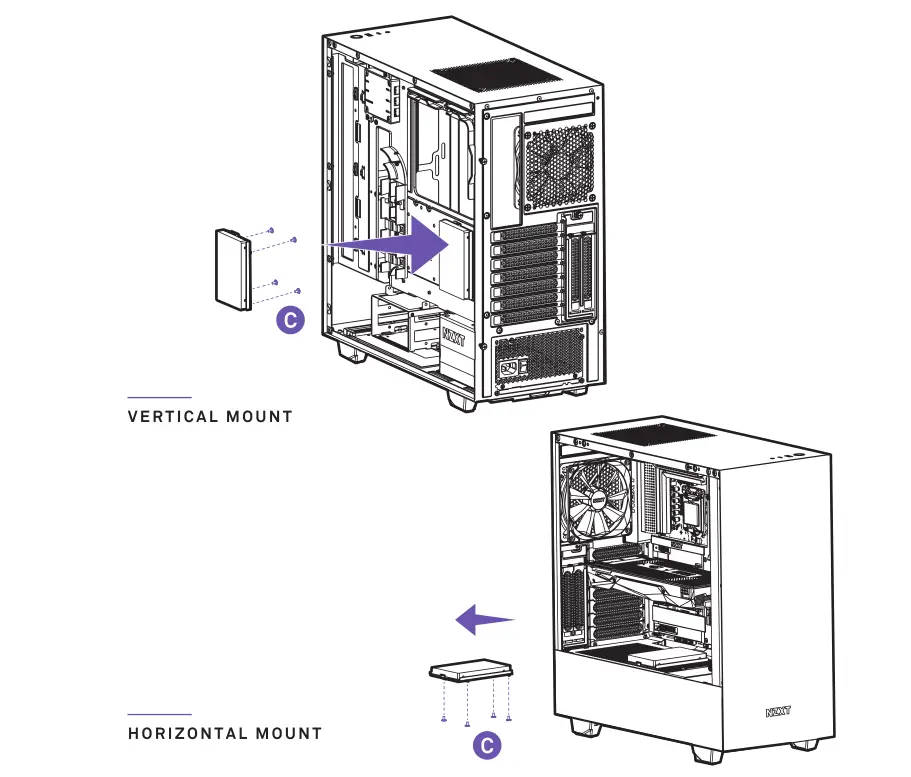

SSD Drive Installation
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] SSD Drive Installation](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-15.png)

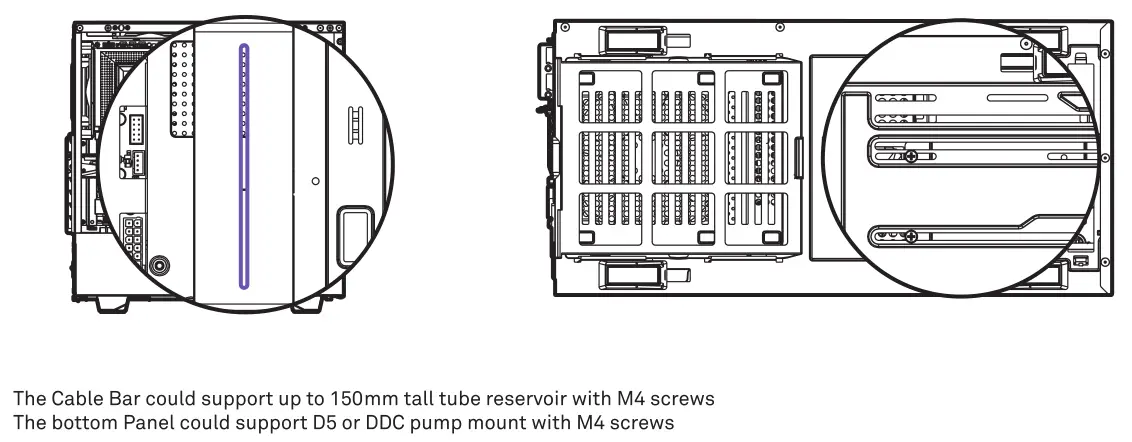

DIY Liquid Cooler Support
![Nzxt Mini ITX Case [H510, H510i] DIY Liquid Cooler Support](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-17.png)

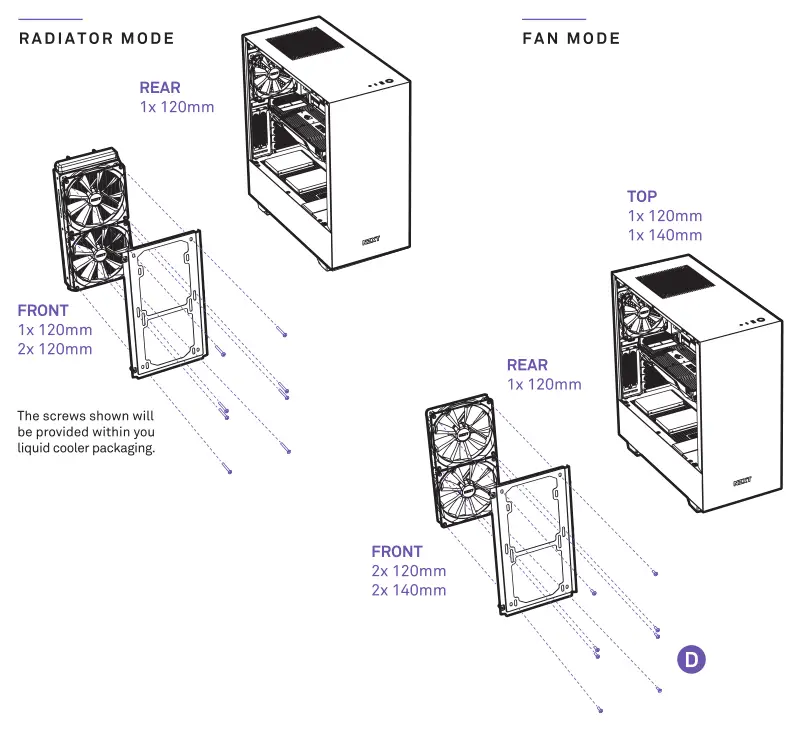

Fan & Radiator Support
![Nzxt Mini ITX Case [H510, H510i] Fan and Radiator Support](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Compact-Mid-Tower-ATX-Case-H510-H510i-User-Manual-18.png)

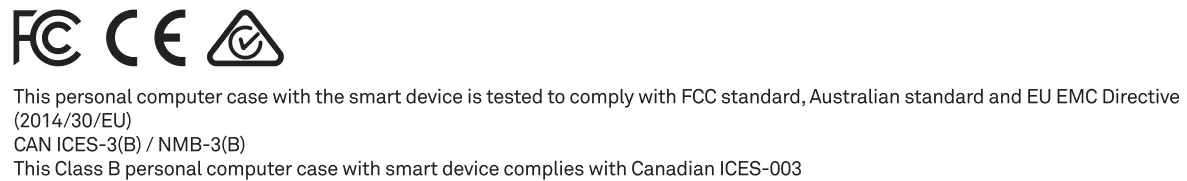

Regulations
![Nzxt Mini ITX Case [H510, H510i] Regulations](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-24.png)

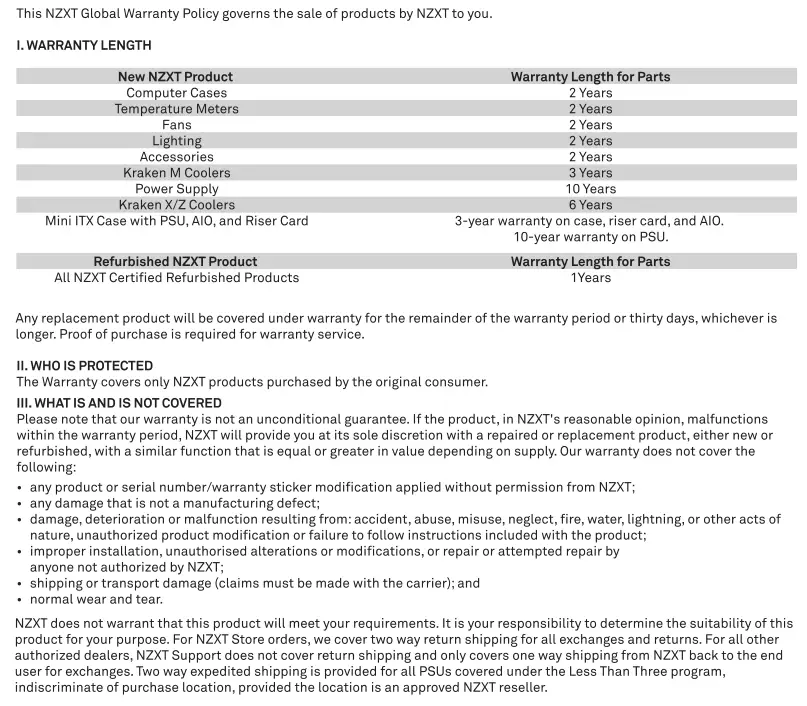

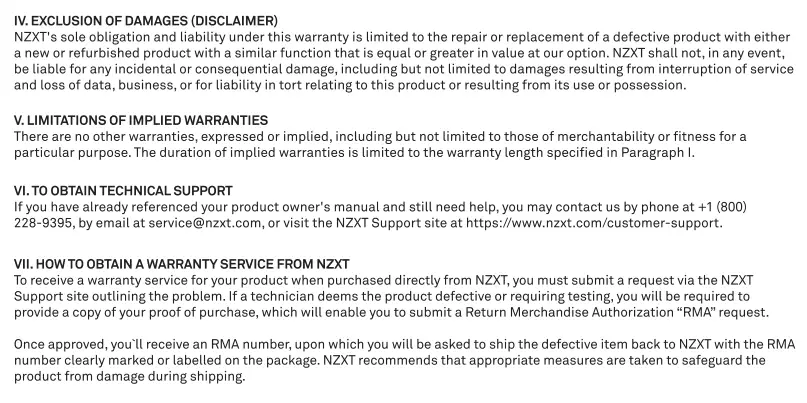

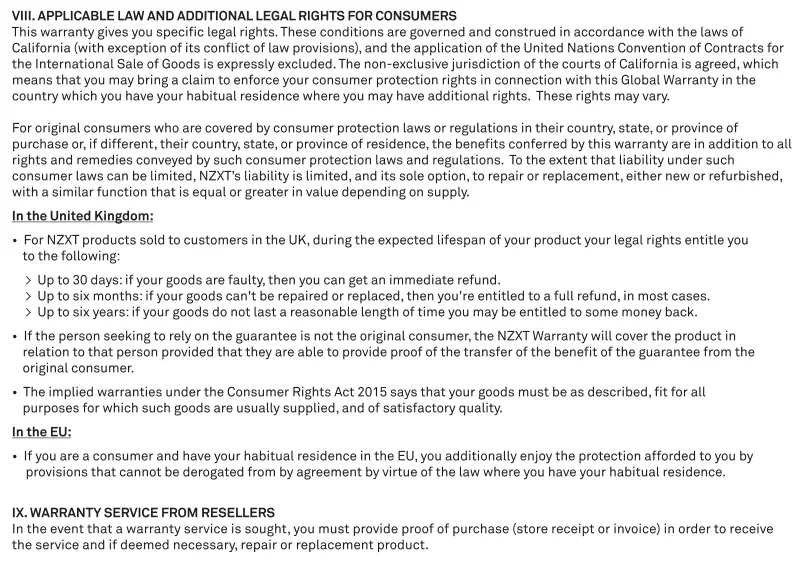

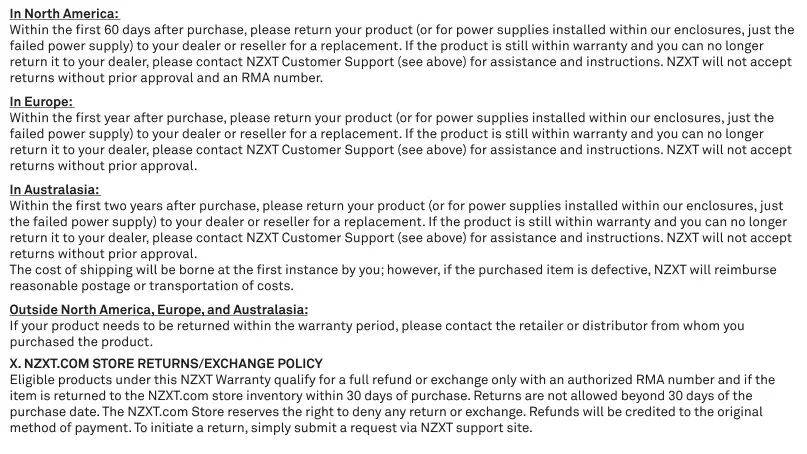

NZXT Global Warranty Policy
![Nzxt Mini ITX Case [H510, H510i] - NZXT Global Warranty Policy 1](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-25.png)
![Nzxt Mini ITX Case [H510, H510i] - NZXT Global Warranty Policy 2](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-26.png)
![Nzxt Mini ITX Case [H510, H510i] - NZXT Global Warranty Policy 3](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-27.png)
![Nzxt Mini ITX Case [H510, H510i] - NZXT Global Warranty Policy 4](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-28.png)

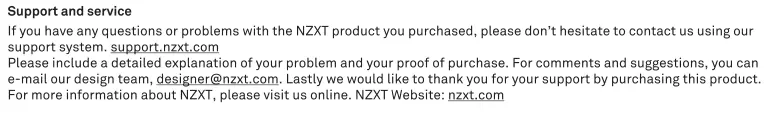

Support and Service
![Nzxt Compact Mid-Tower ATX Case [H510, H510i] Support and Service](https://static-data1.manualsee.com/1/img/78/17013/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-29.png)
Visit nzxt.com/warranty and support.nzxt.com for information
on warranty coverage and service.
Email Design Team: [email protected] or Visit nzxt.com
Email for Service: [email protected] or Visit nzxt.com
