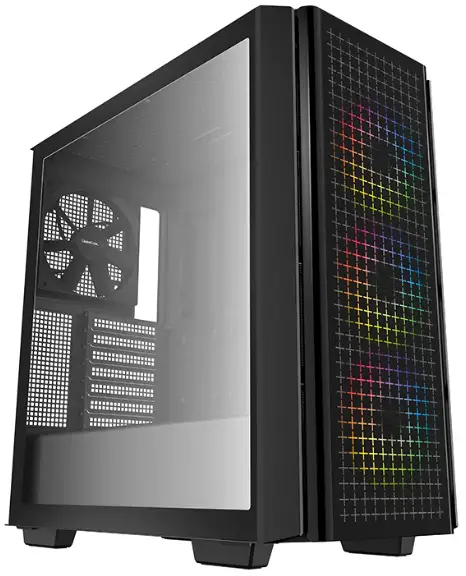

DEEPCOOL CG540 Series Mid Tower ATX Case

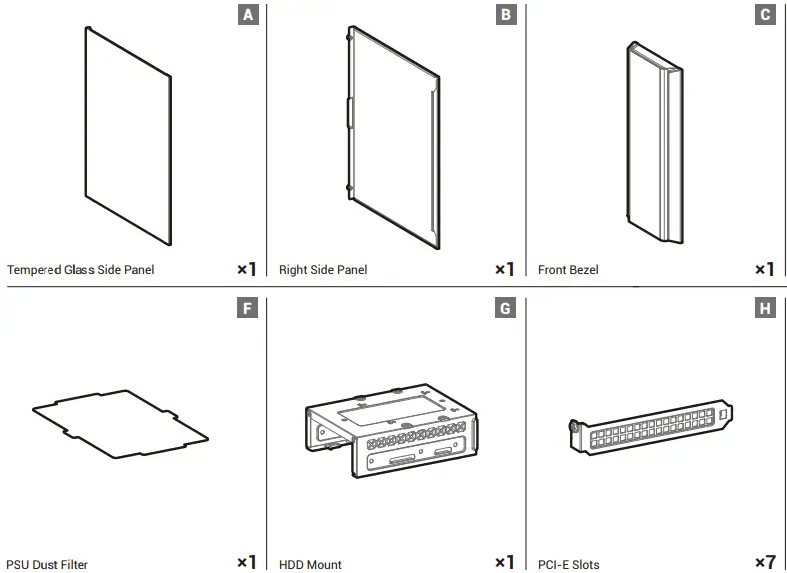

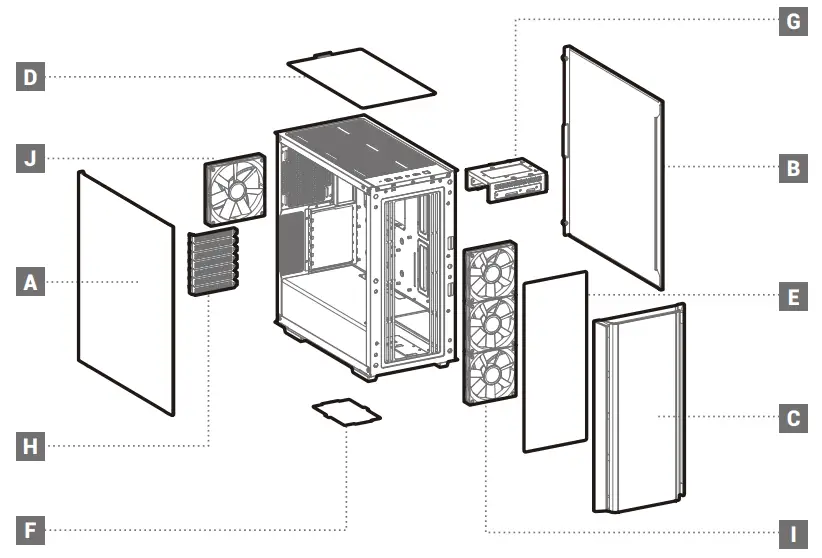

Case Features

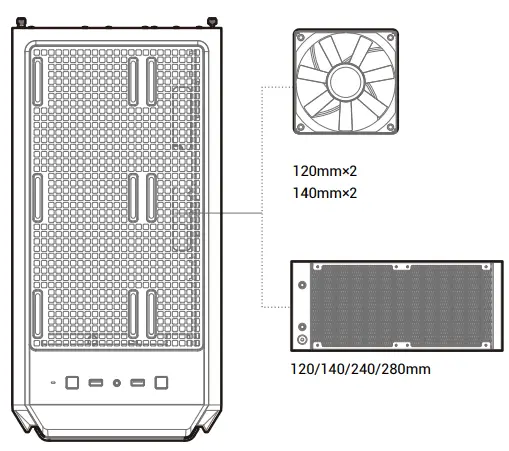

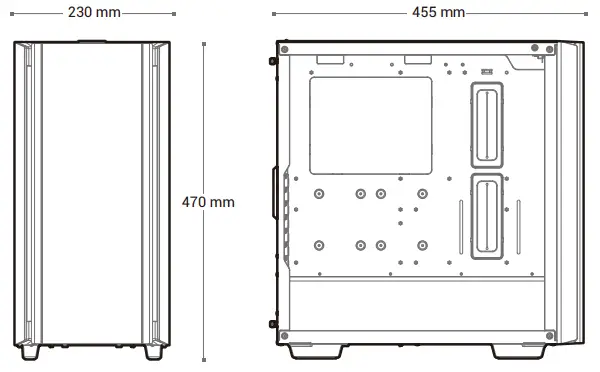

Case Specifications

• Length：455mm
• Width：230mm
• Height：470mm
• Maximum GPU length：380mm
• Maximum PSU length： 160mm
• Maximum CPU cooler height：175mm
• Radiator compatibility：
• Front：120/140/240/280/360mm
• Top：120/140/240/280mm
• Rear：120/140mm
• Fan locations：
• Front：3×120/2x140mm
• Top：2×120/2x140mm
• Rear：1×120/1x140mm

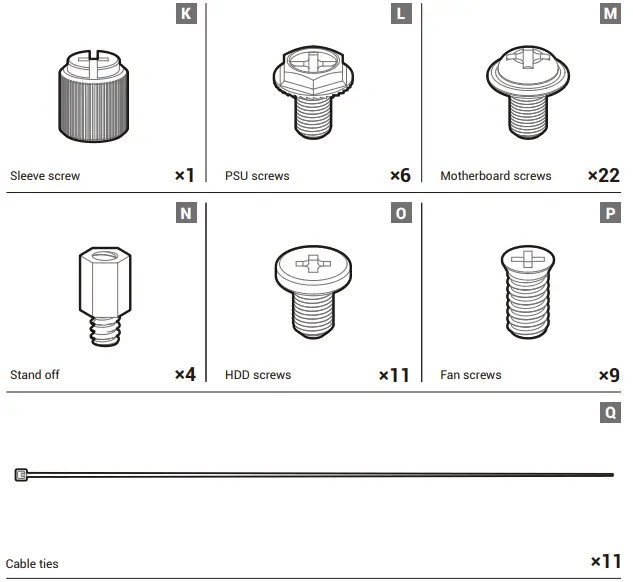

Accessory Kit Contents

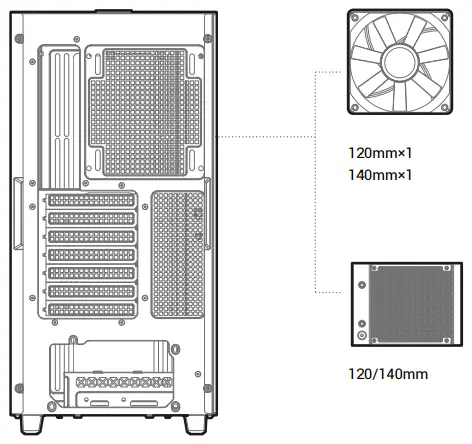

Specifications

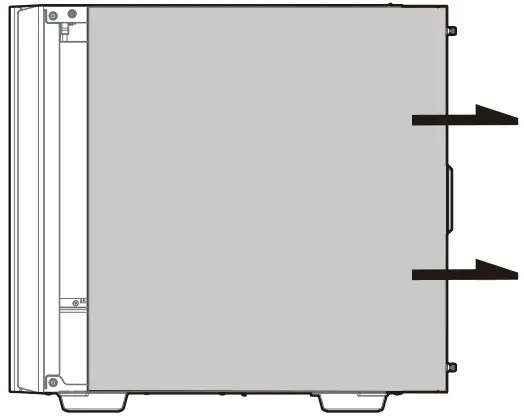

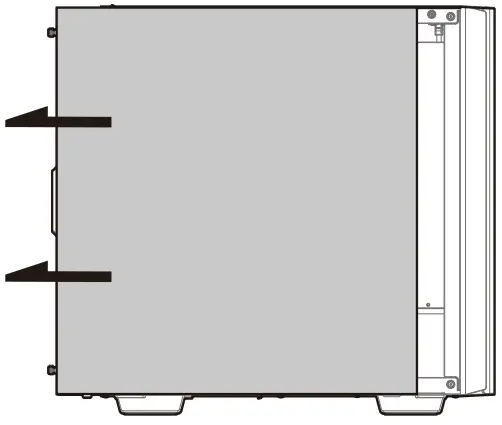

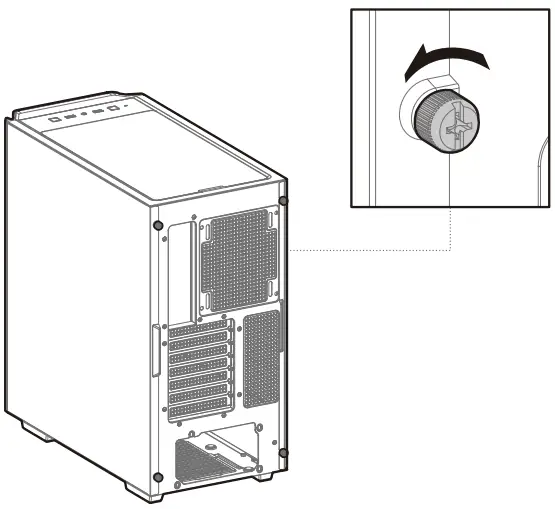

Removing the Side Panel

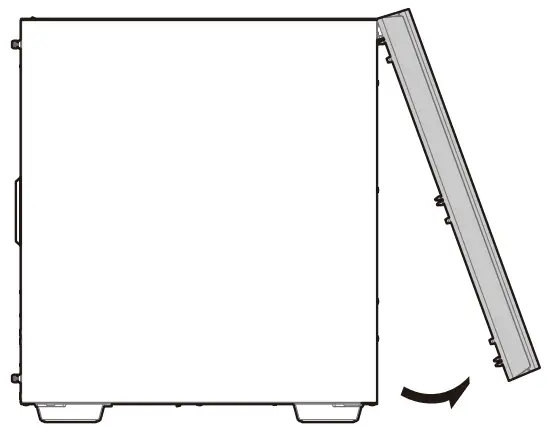

Removing the Front Panel

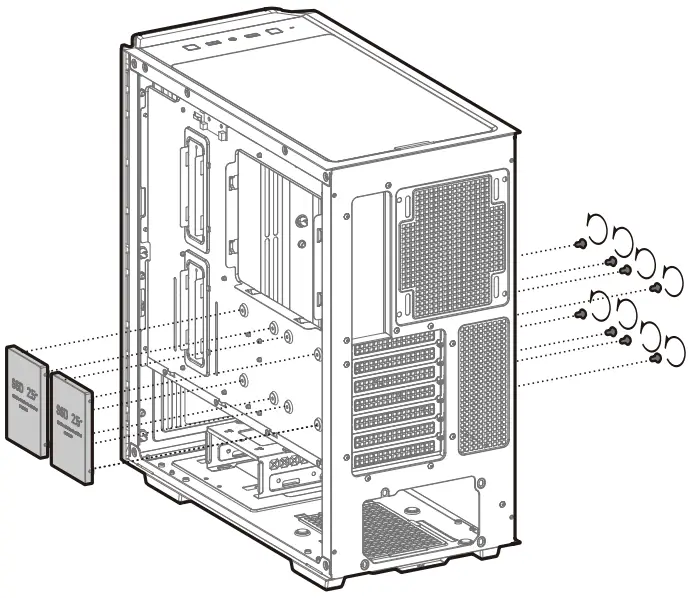

IInstalling SSDs

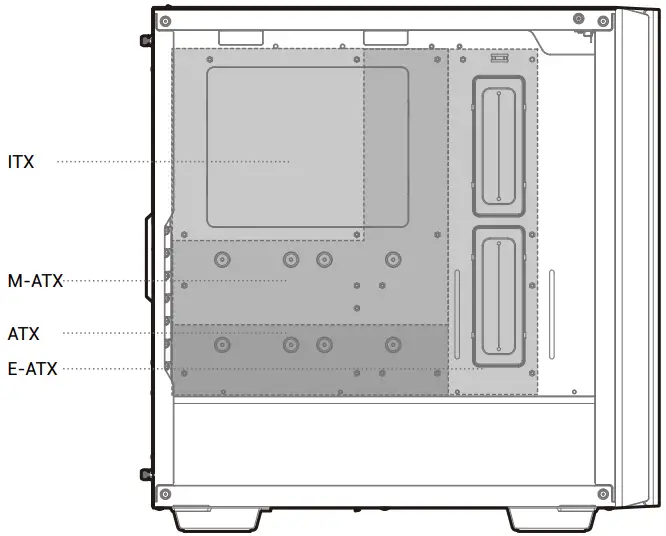

Installing the Motherboard

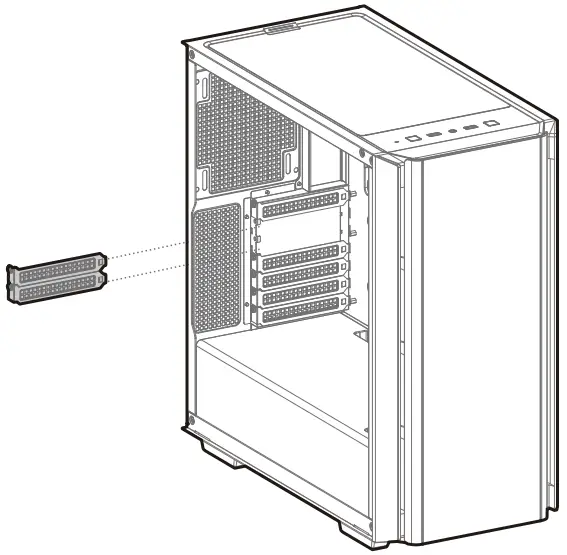

Installing the GPU

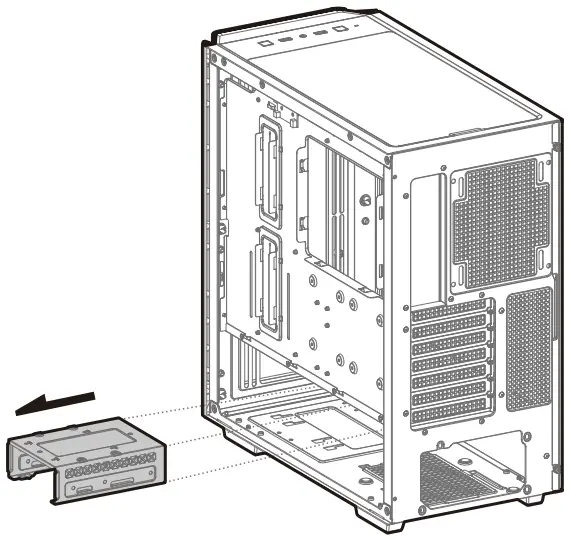

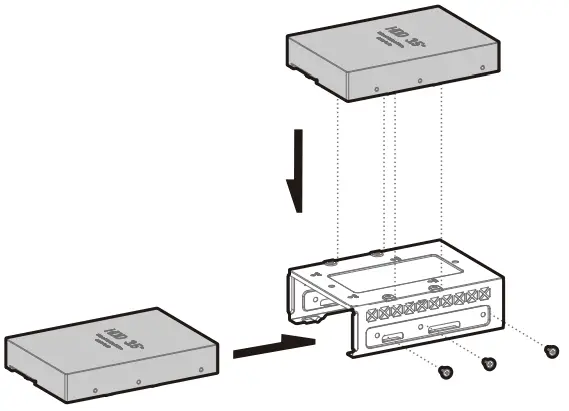

Installing HDDs

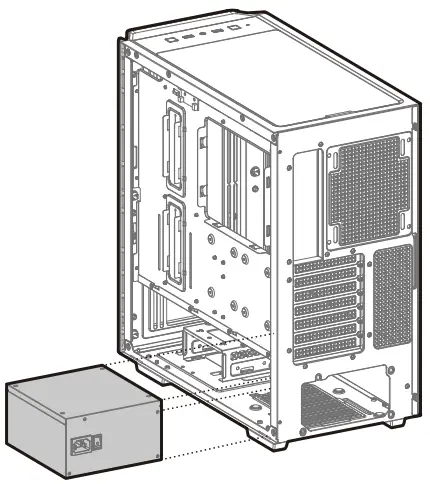

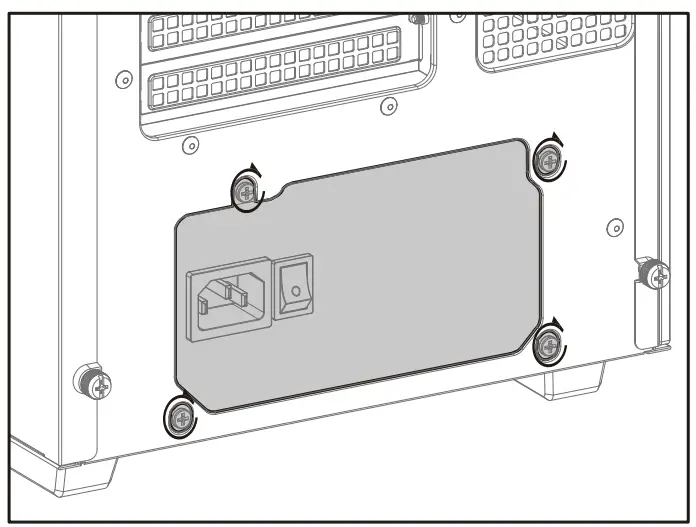

Installing the Power Supply

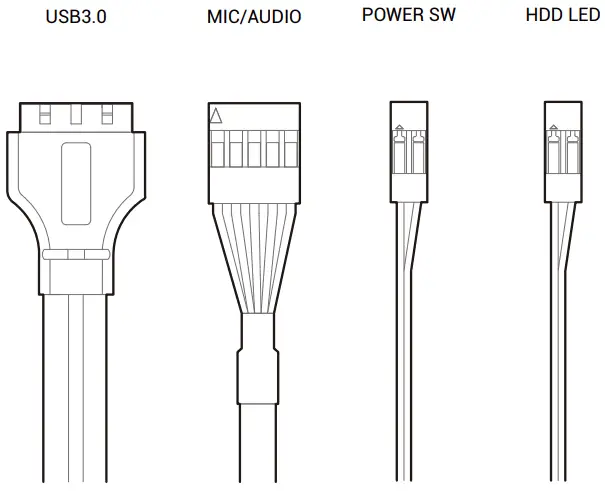

Installing the Front I/O Connectors

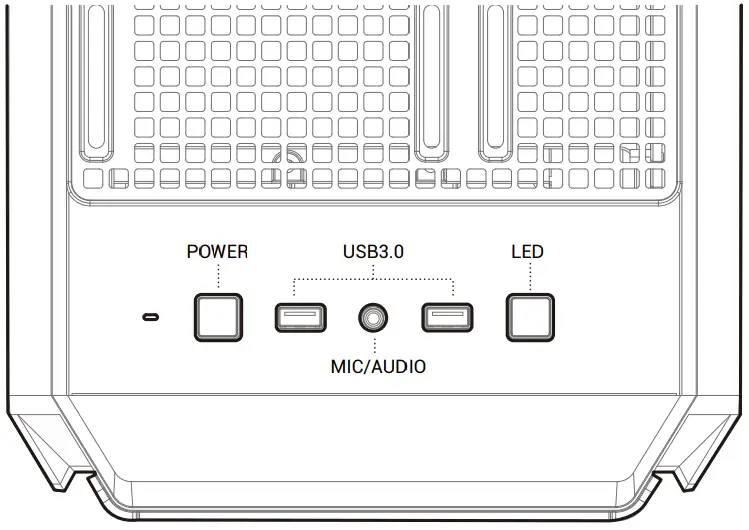

I/O Panel Introduction

For reference only, please refer to the real product.

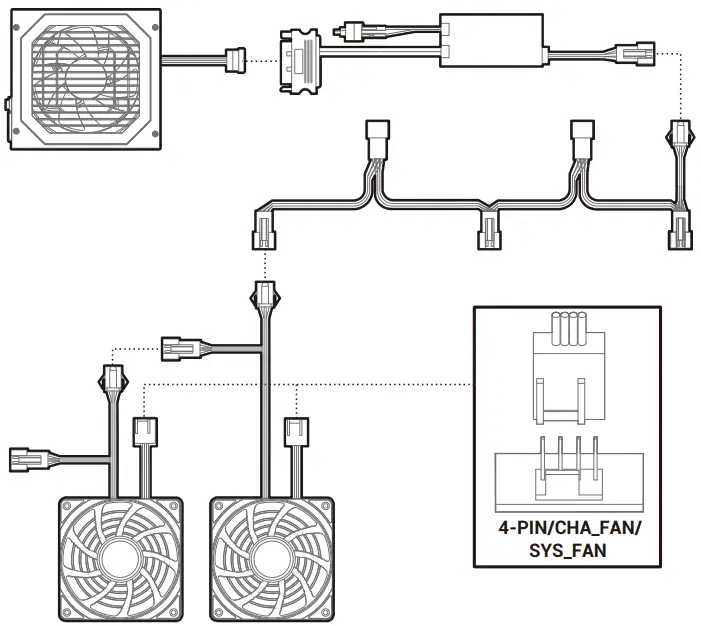

Manual RGB Wiring

Motherboard RGB Synchronization

For reference only, please refer to the real product.

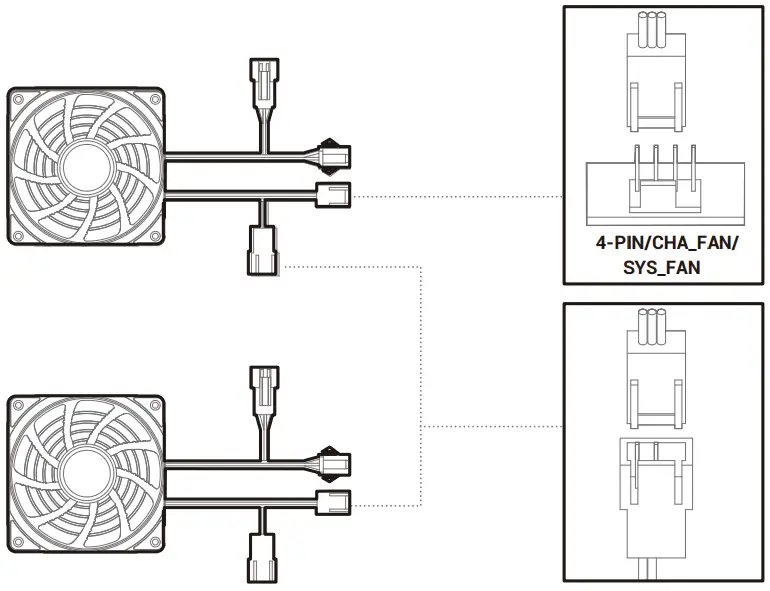

Fan Power Line Wiring

DeepCool USA Inc.
11650 Mission Park Drive Suite 108., Rancho Cucamonga, CA 91730

Beijing DeepCool Industries Co., Ltd.
Building 10, No. 9 Dijin Road, Haidian District, Beijing 100095, China

© 2021 Beijing DeepCool Industries Co., Ltd. All rights reserved.
“ ”and other commercial identities are legitimate registered trademarks and commercial identities of the trademarks owner and its affiliates in China and other countries or regions. Pictures on this package are for reference only, please refer to the actual product.

For more information, please check our website at: www.deepcool.com
