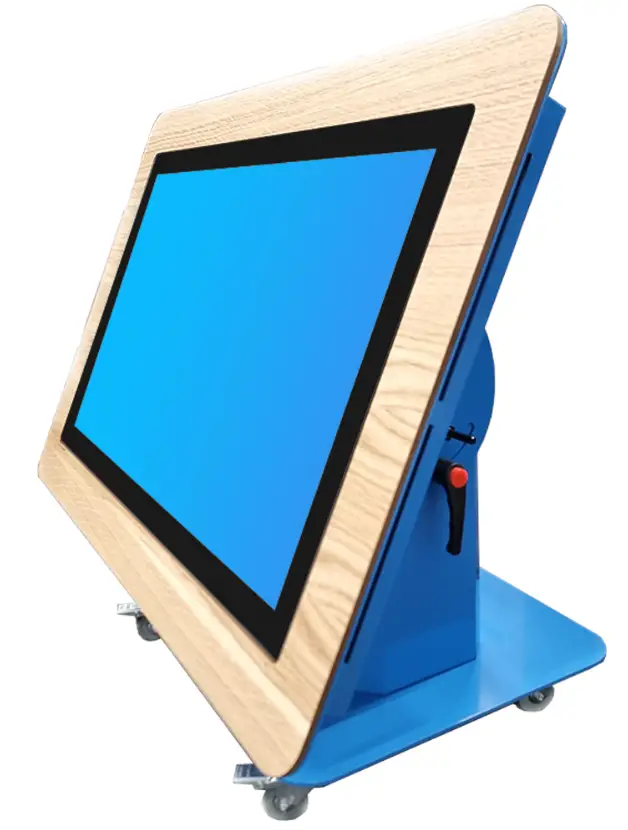

Future Visuals 32 Inch Interactive Touch Table 4K With Battery Pack

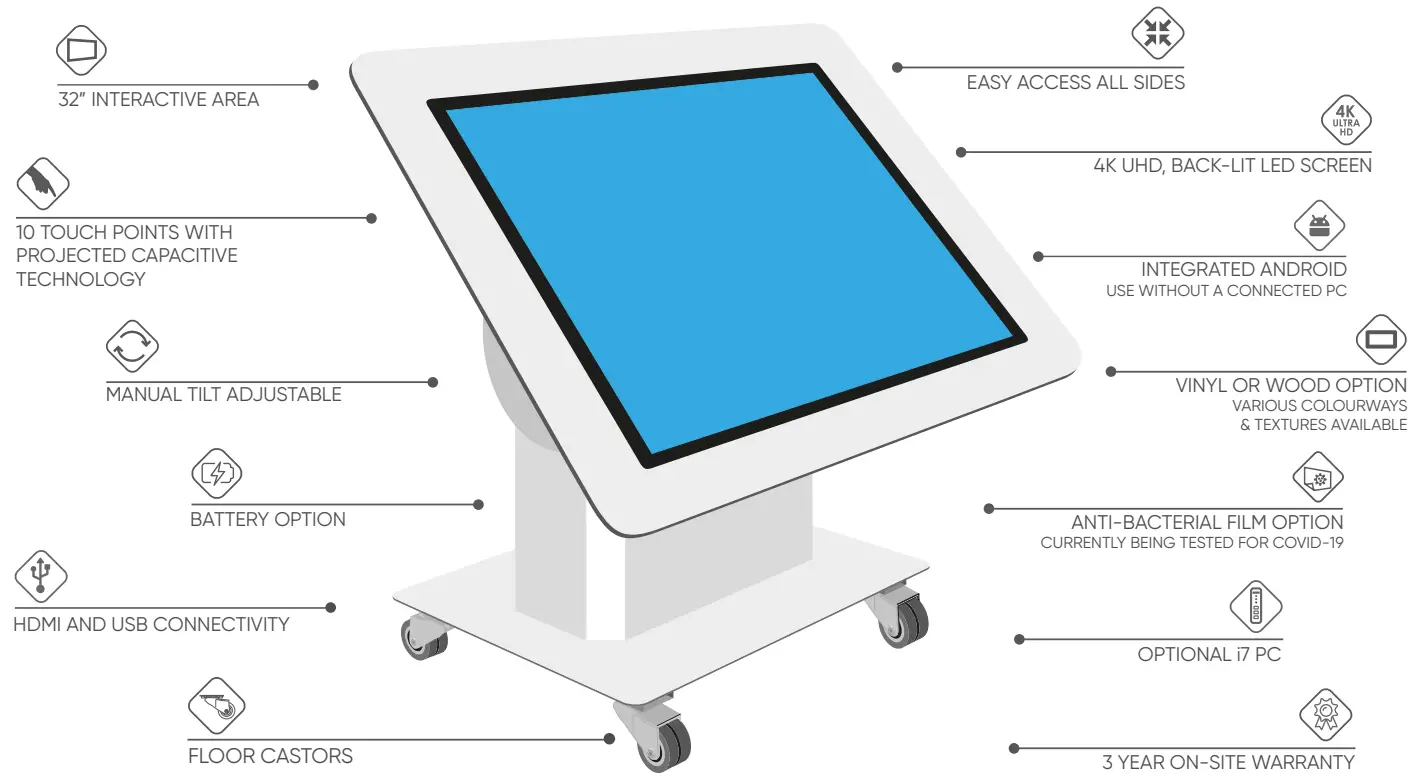

PRODUCT OVERVIEW

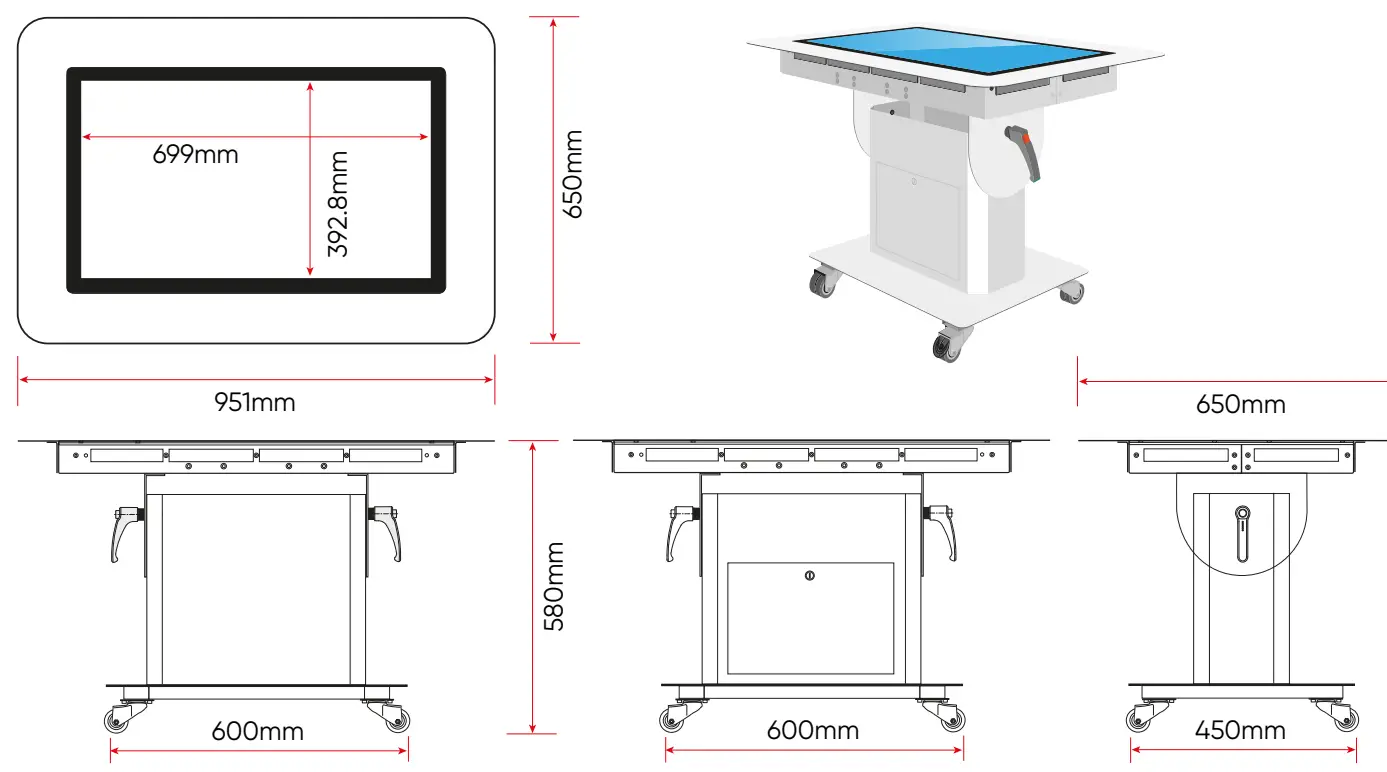

DIMENSION
Early Learning Tilt & Touch Table with Projected Capacitive Screen
| DISPLAY PANEL | |
| Screen Size | 43” TFT-LCD |
| Display area | 940mm (H) x 527mm (W) 16:9 |
| Maximum Resolution | 1920 x 1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.1845 (H) x 0.1845 (V) |
| Brightness (cd/m2) | 350cd/m2 |
| Contrast (Type) | 2000 : 1 |
| Visual angle | 178°/178° |
| Response time | 5ms |
| Life (hrs) | >60,000 (hrs) |
| TOUCH | |
| Specification | Projected Capacitive |
| Positioning | ±2mms |
| Transmittance | ≥92% |
| Hardness | 7H |
| Touch points | 10 |
| Response time | ≤10ms |
| MECHANICAL | |

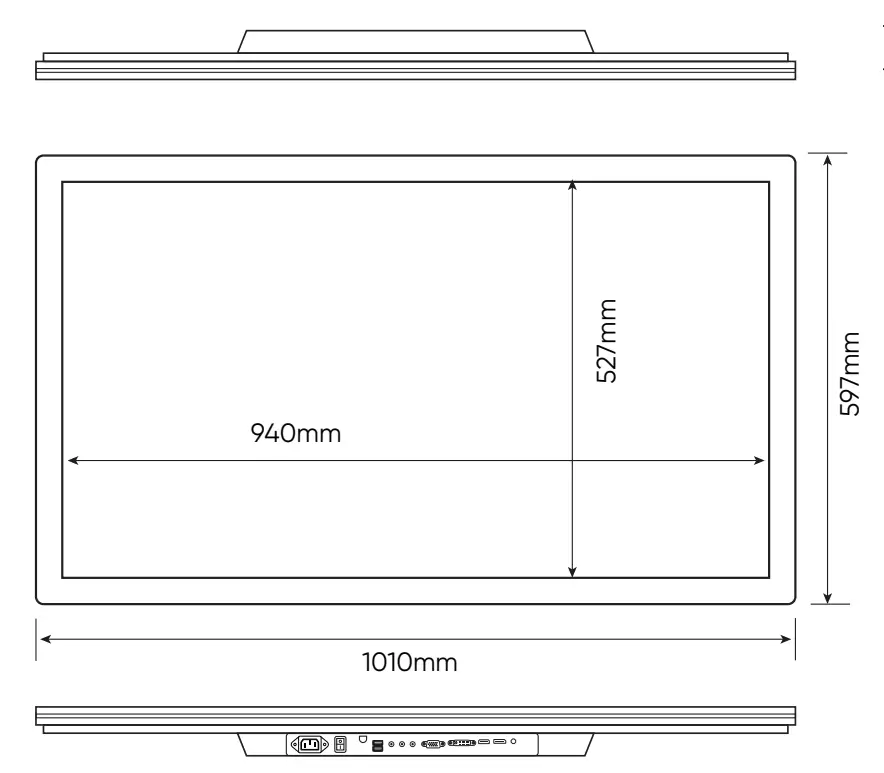

| Monitor Size | 1010mm (w) x 597mm (h) x 65mm (d) |
| Colour | Black |
| Case | Metal + Aluminium |
| CONNECTIVITY | |
| HDMI | 1 |
| USB | 2 |
| VGA | 1 |
| RJ45 | 1 |
| L/R audio input | 1 |
| L/R audio output | 1 |
| Speaker | 2×5W(8Ω) |
| POWER | |
| Input Voltage | AC100 ~ 240V 50 /60 HZ |
| Maximum power consumption | <90W |
| Standby power consumption | <5W |
| TEMPERATURE | |
| Working temperature | 0°C ~ 50°C |
| Storage temperature | -20°C ~ 60°C |
| Working humidity | 85% |
| Storage humidity | 85% |
| WARRANTY | |
| 3 year on-site warranty as standard | |
| Extended warranties and SLA’s available at an additional cost | |

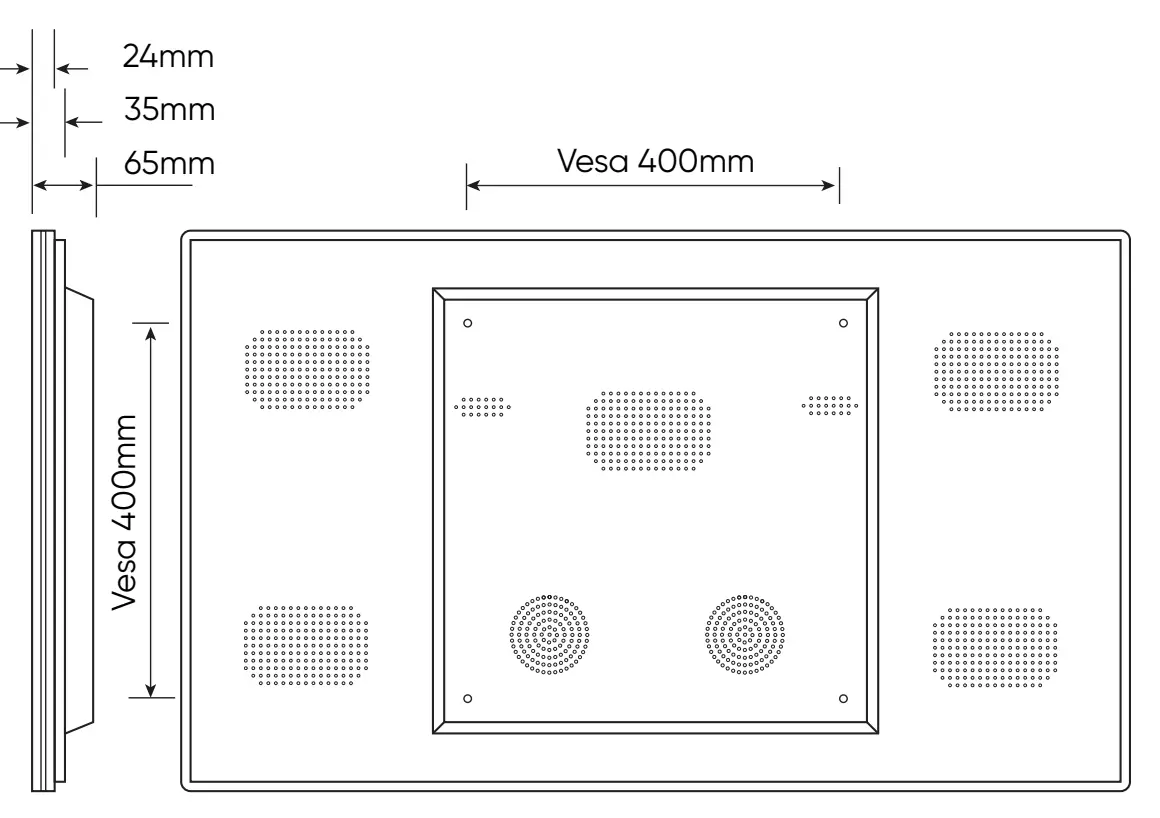

43 inch Electra Touch Screen with Projected Capacitive Technology
Connectivity
Note: Product design specifications including dimensions are subject to change without notice and may vary from those shown.
| PANEL | |
| Screen Size | 32” TFT-LCD |
| Display area | 697.7mm (H) x 392.8mm |
| Maximum Resolution | 1920 x 1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.1845 (H) x 0.1845 (V) |
| Brightness (nits) | 350 cd /m2 |
| Contrast (Type) | 2000 : 1 |
| Visual angle | 178°/178° |
| Response time | 5ms |
| Life (hrs) | >60,000 (hrs) |
| TOUCH | |
| Specification | Projected Capacitive |
| Positioning | ±2mms |
| Transmittance | ≥92% |
| Hardness | 7H |
| Touch points | 10 |
| Response time | ≤10ms |
| Life time | More than 600 million times |
| OPS PC MODULE | |
| Main chipset | Intel HM76 |
| CPU | i5-3210M 2.5GHz |
| System bus frequency | 1600\1333\1066MHz |
| Graphics card | Integrated |
| Audio card | Intel GMA HD 4000 |
| Network card | Integrated 10/100/1000M adaptive |
| Memory | 4G DDRIII |
| Hard Disk | 120G SSD |
| WIFI | Yes |
| Operation system | Windows 10 |
| APPEARANCE | |
| Colour | Black |
| Case | Metal case SPCC |
| Certificate | CE FCC |
| Quality Standard | ISO9001, CCC |
| CONNECTIVITY | |
| HDMI | 1 |
| USB | 2 |
| VGA | 1 |
| L/R audio input | 1 (RCA*2) |
| L/R audio output | 1 (RCA*2) |
| Speaker | 2×5W(8Ω) |
| POWER | |
| Power supply | AC100 ~ 240V 50 /60 HZ |
| Maximum power consumption | <90W |
| Standby power consumption | <5W |
| TEMPERATURE | |
| Working temperature | 0°C ~ 50°C |
| Storage temperature | -20°C ~ 60°C |
| Working humidity | 85% |
| Storage humidity | 85% |
| ANDROID | |
| Andriod system | Google Android 7.0 support multi-language with wifi module |
| Storage | 2G DDR3 |
| CPU | A20 dual core 1.7 Ghz/quad-core RK3288 |
| Flash | 8G |
| WARRANTY | |
| 3 year on-site warranty as standard | |
| Extended warranties and SLA’s available at an additional cost | |

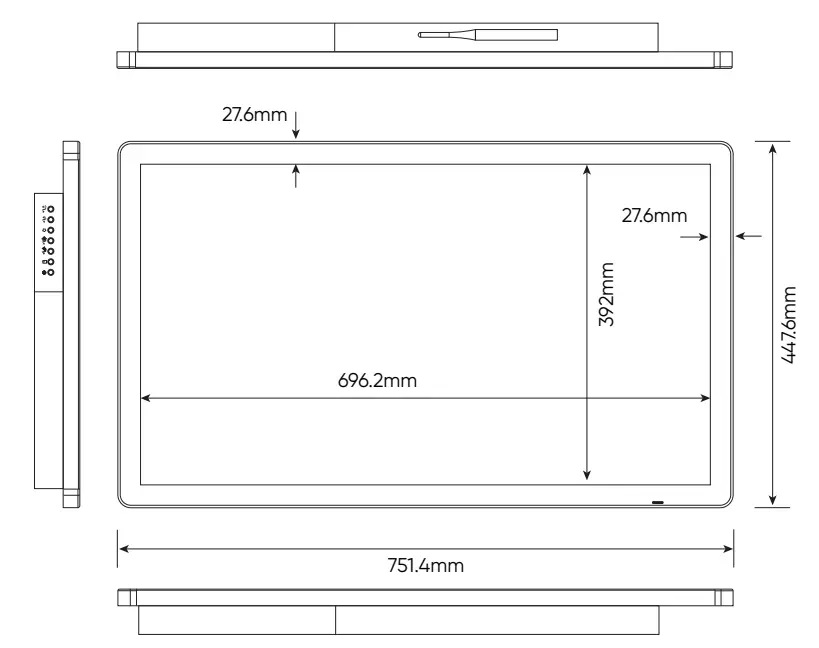

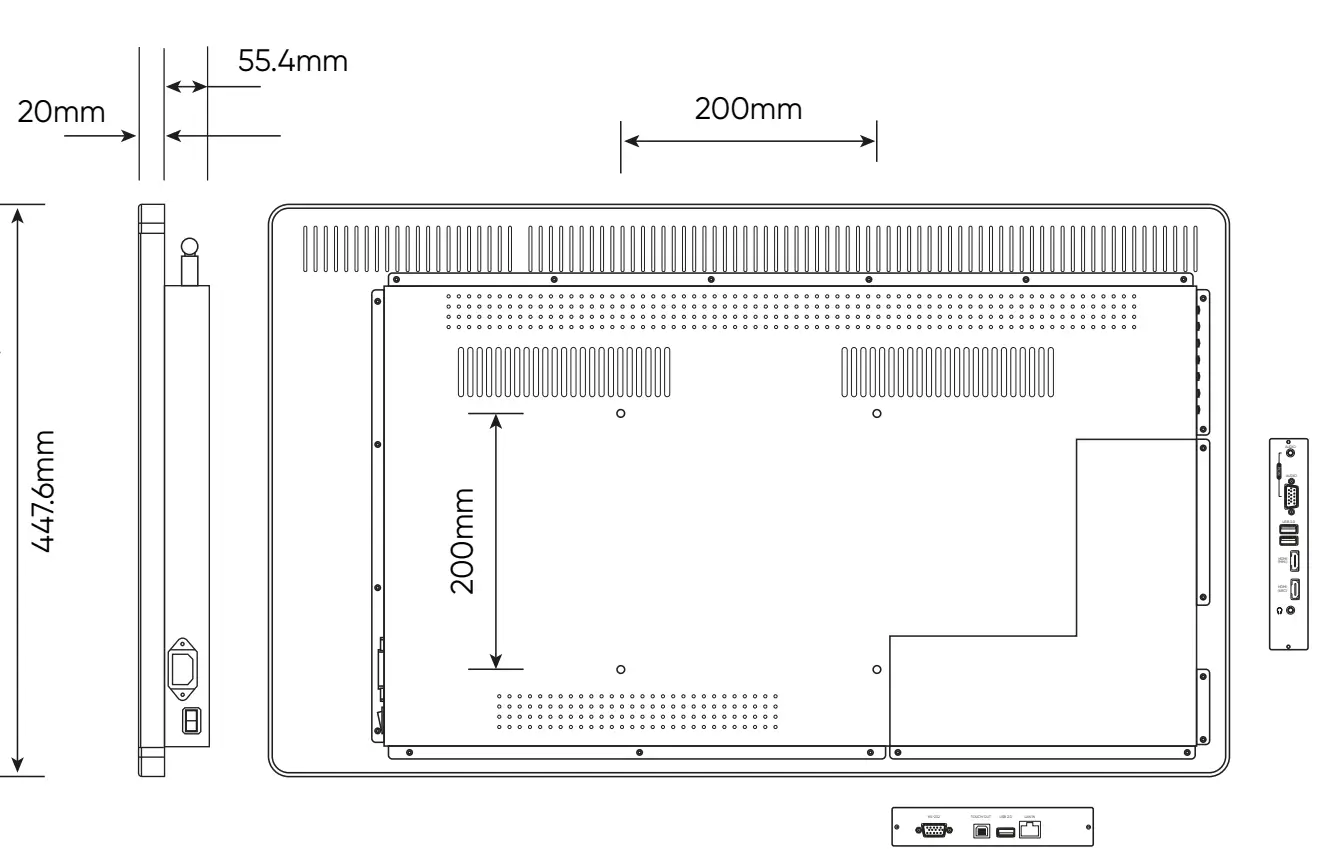

32 inch Firebolt Touch Screen with Projected Capacitive Technology

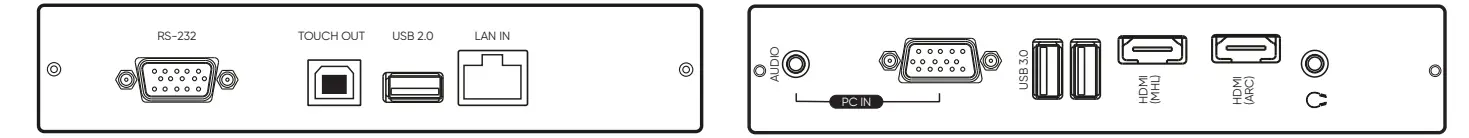

Connectivity
Note: Product design specifications including dimensions are subject to change without notice and may vary from those shown.
