D-SHIELD V2 Mid Tower Case
User Guide
Contents hide
Case Feature
Case Specifications
| Length: 438mm | Maximum GPU length: 370mm |
| Width: 210mm | Maximum PSU length: 170mm |
| Height: 478mm | Maximum CPU cooler height:165mm |

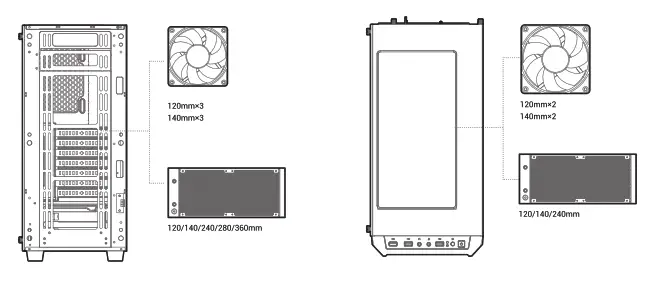

| Radiator compatibility: | Fan locations: |
| Front: 120/140/240/280/360mm _ | Front: 3×120/3x140mm |
| Top: 120/140/240mm | Top:2×120/2x140mm. |
| Rear. 120mm | Rear: 1x120mm |

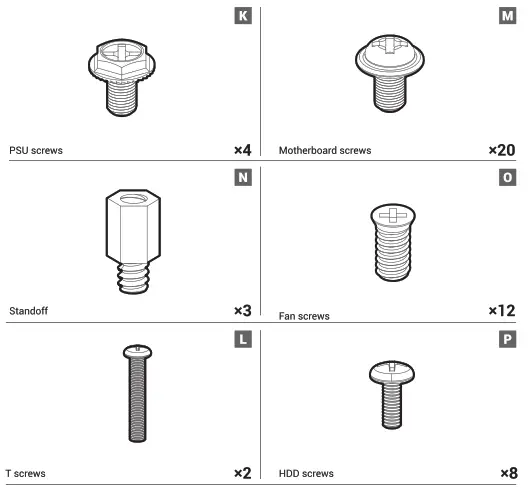

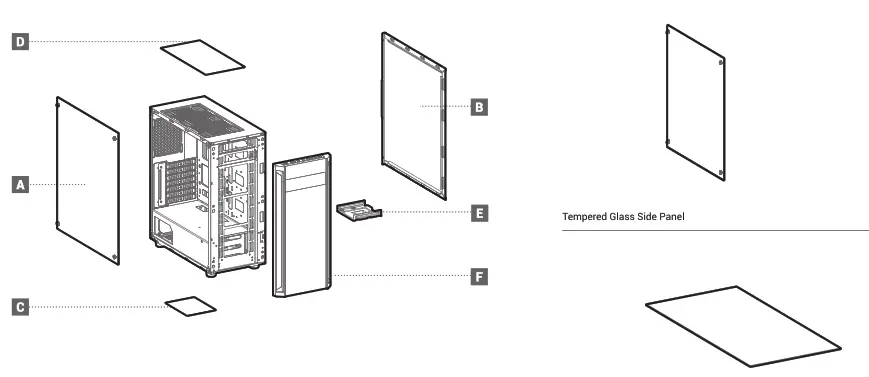

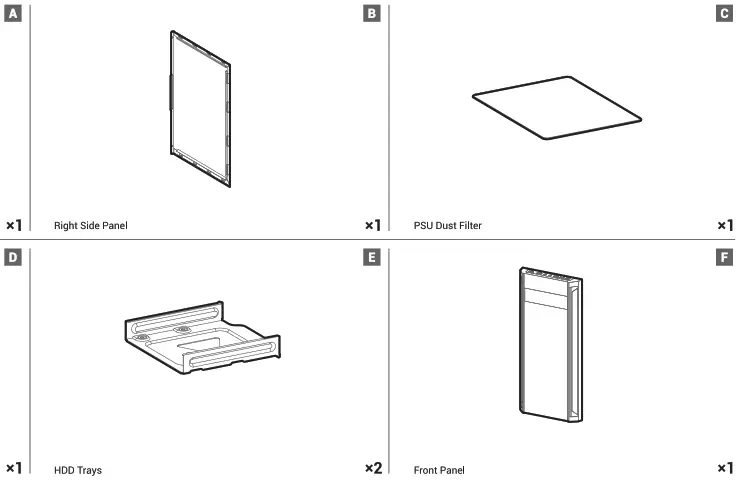

Accessory Kit Contant

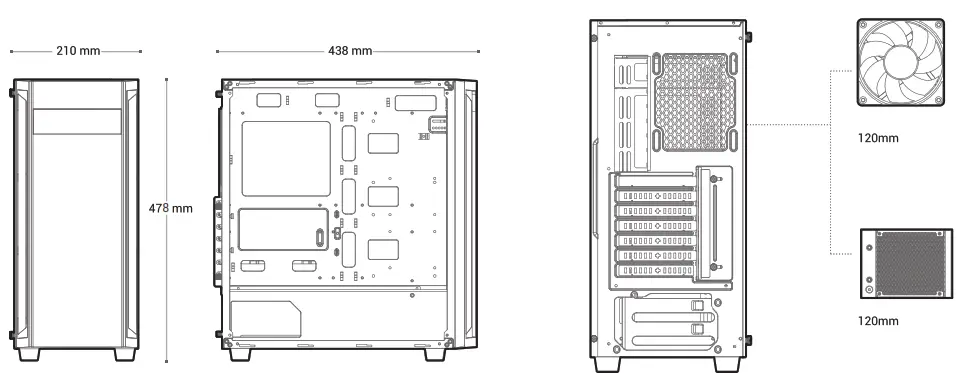

Specifications

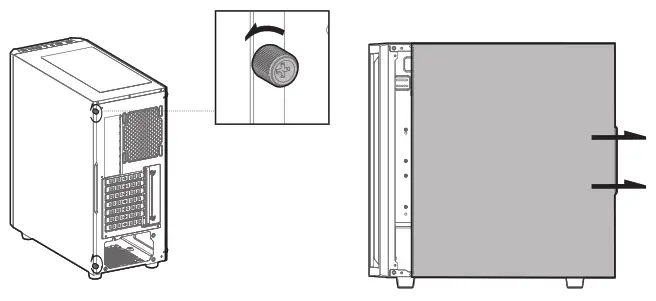

Removing the Side Panel
Removing the Front Panel
Installing the Motherboard
Installing the GPU

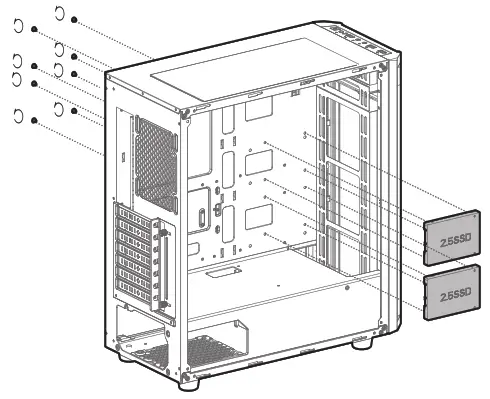

Installing SSDs

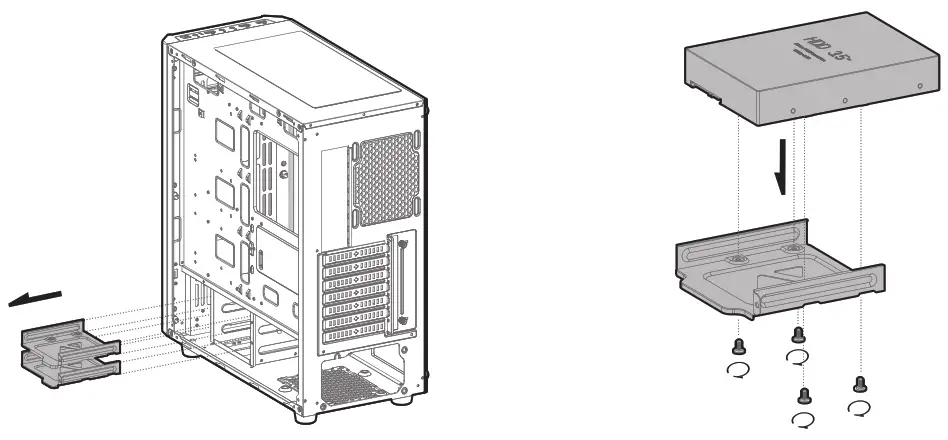

Installing HDDs

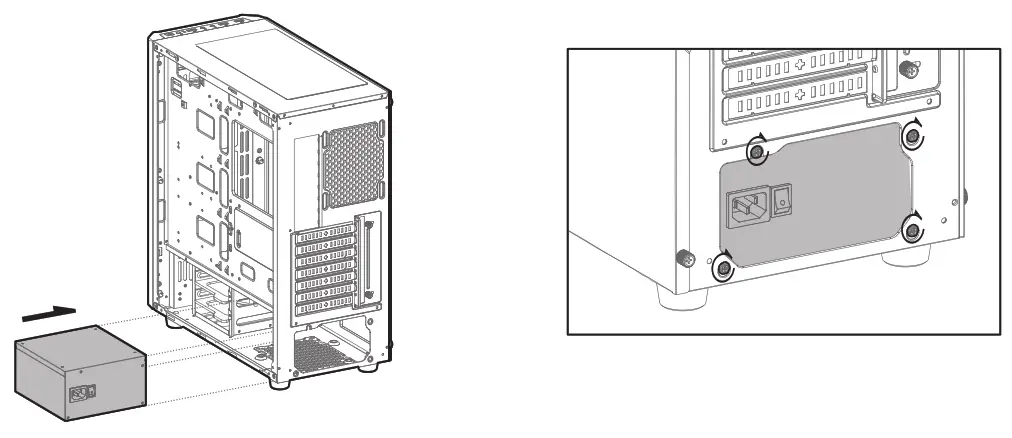

Installing the Power Supply

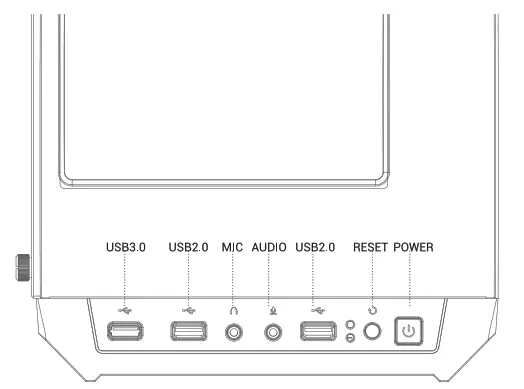

I/O Panel Introduction

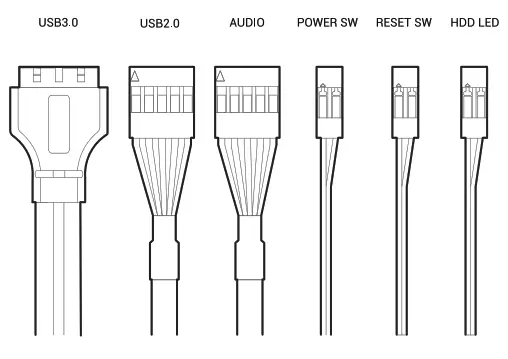

Installing the Front I/O Connectors

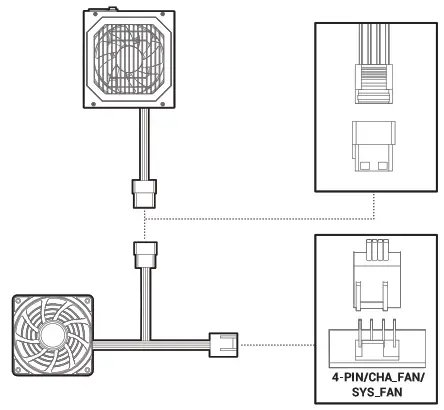

Fan Power Wiring
For reference only, please refer to the real product.
For more information, please check our website at: www.deepcool.com
Beijing DeepCool Industries Co., Ltd.
Building 10, No. 9 Dijin Road, Haidian District, Beijing 100095, China
www.deepcool.com
and other commercial identities are legitimate registered trademarks
and commercial identities of the trademarks owner and its affiliates in China and other countries or regions. Copyright
© 2021 Beijing DeepCool Industries Co., Ltd. All rights reserved.
Pictures on this package are for reference only, please refer to the actual product.
