Nzxt Mid-Tower ATX Case [H710, H710i] User Manual
![Nzxt Mid-Tower ATX Case [H710, H710i]](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual.png)
Contents hide

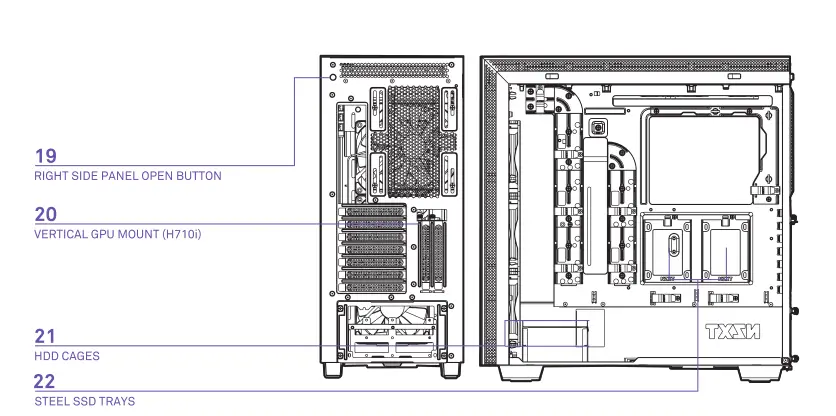

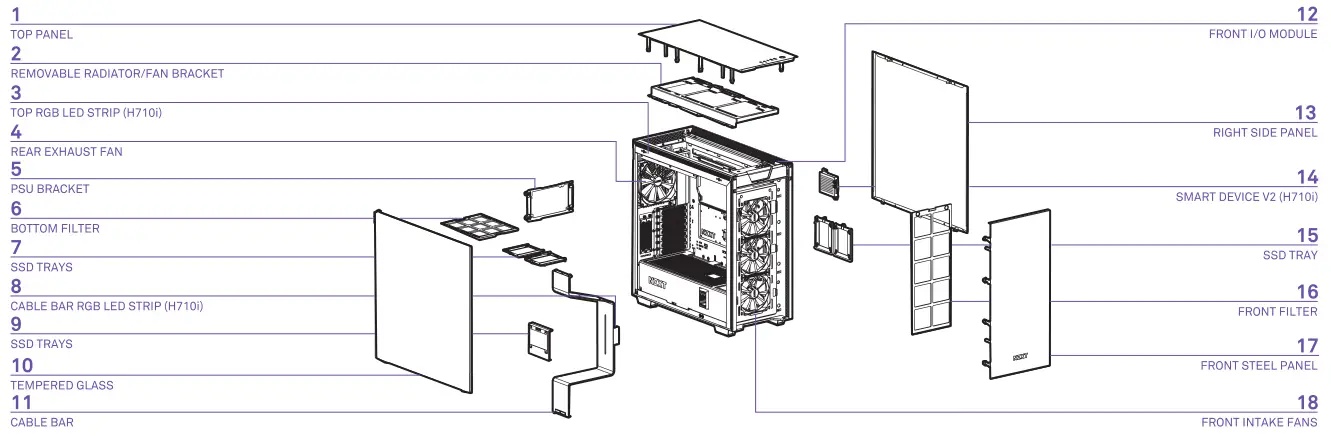

Exploded View
![Nzxt Mid-Tower ATX Case [H710, H710i] Exploded View 1](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-2.png)
![Nzxt Mid-Tower ATX Case [H710, H710i] Exploded View 2](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-3.png)
- Top Panel
- Removable Radiator/Fan Bracket
- Top RGB LED Strip (H710i)
- Rear Exhaust Fan
- PSU Bracket
- Bottom Filter
- SSD Trays
- Cable Bar RGB LED Strip (H710i)
- SSD Trays
- Tempered Glass
- Cable Bar
- Front I/O Module
- Right Side Panel
- Smart Device V2 (H710i)
- SSD Tray
- Front Filter
- Front Steel Panel
- Front Intake Fans
- Right Side Panel Open button
- Vertical GPU Mount
- HDD Cage
- Steel SSD Trays
Clearances & Specifications
![Nzxt Mid-Tower ATX Case [H710, H710i] Clearances & Specifications](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-4.png)
![Nzxt Mid-Tower ATX Case [H710, H710i] Clearances & Specifications Table](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-5.png)

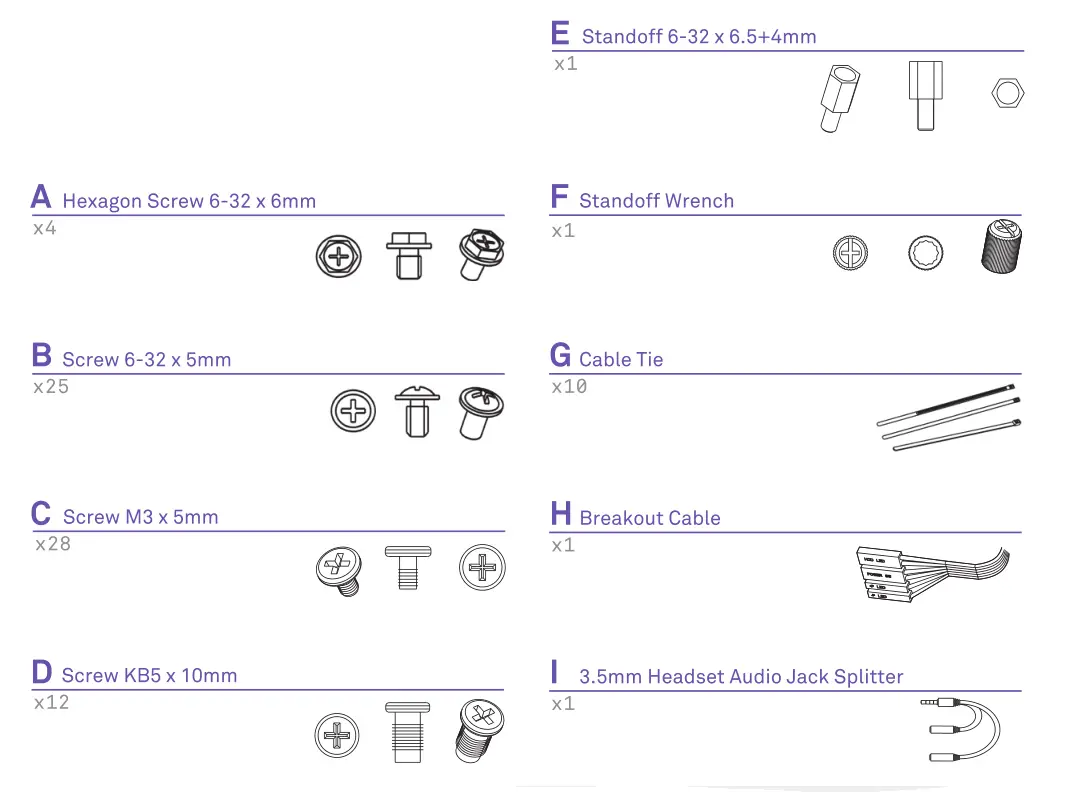

Accessory Box
![Nzxt Mid-Tower ATX Case [H710, H710i] Accessories](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-6.png)
![Nzxt Mid-Tower ATX Case [H710, H710i] Accessories Table](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-7.png)

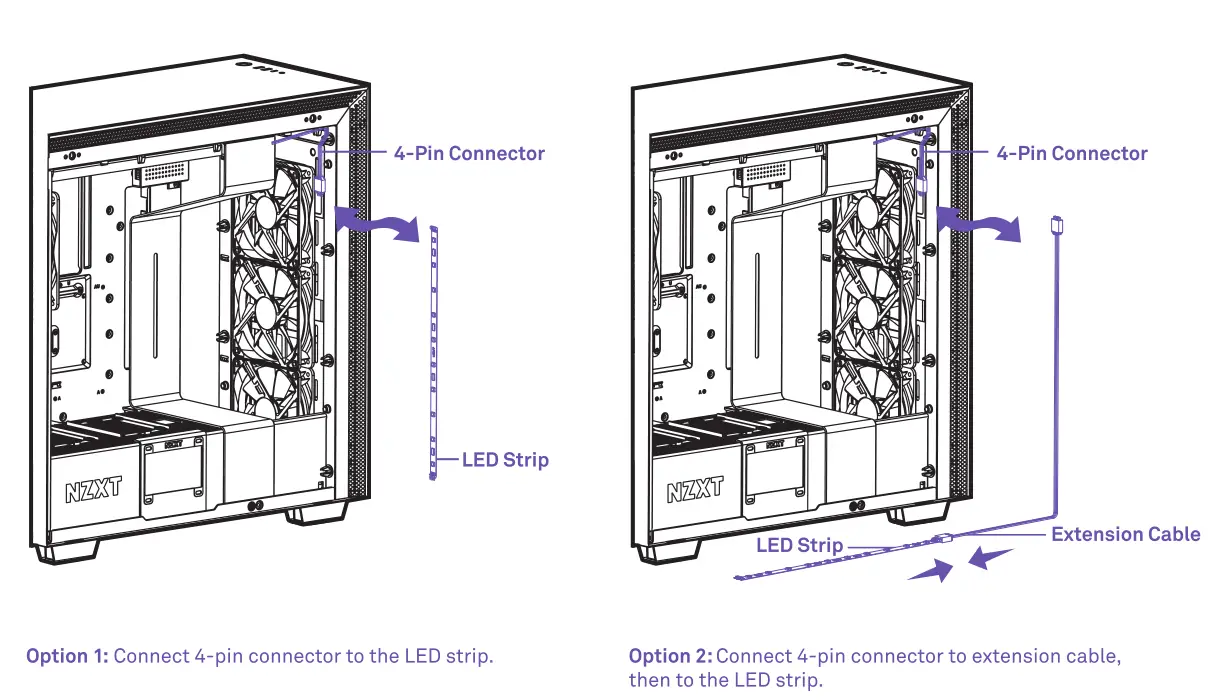

Smart Device V2 (H710i)
The Smart Device connects to your PC via a single internal USB 2.0 connector. To enable control of the Smart Device, download and install NZXT CAM from camwebapp.com.
Ports
![Nzxt Mid-Tower ATX Case [H710, H710i] Ports](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-10.png)

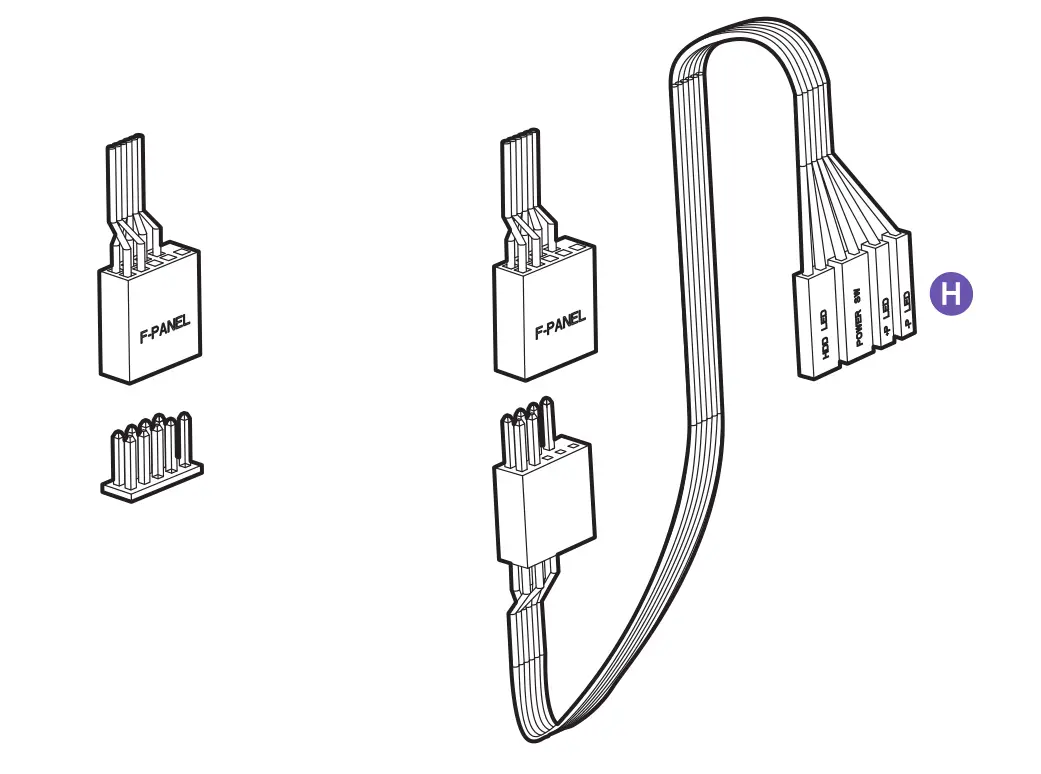

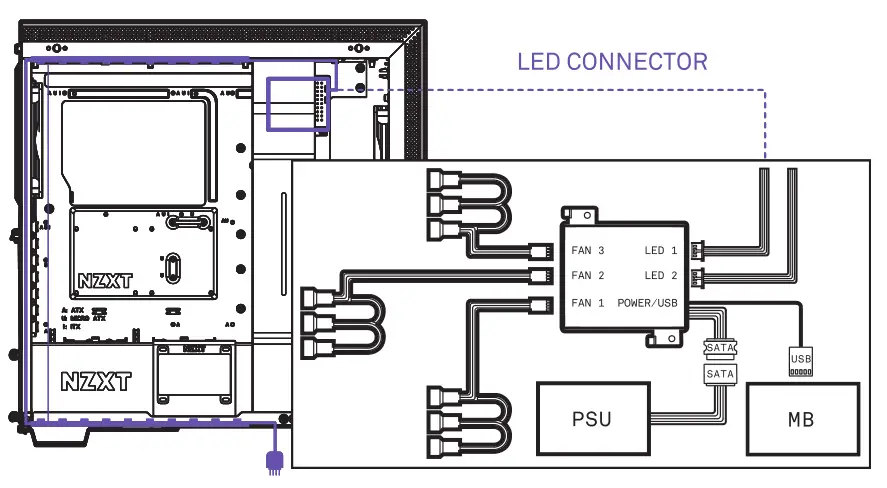

Cable Connections
![Nzxt Mid-Tower ATX Case [H710, H710i] Cable Connections figure 1](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-8.png)

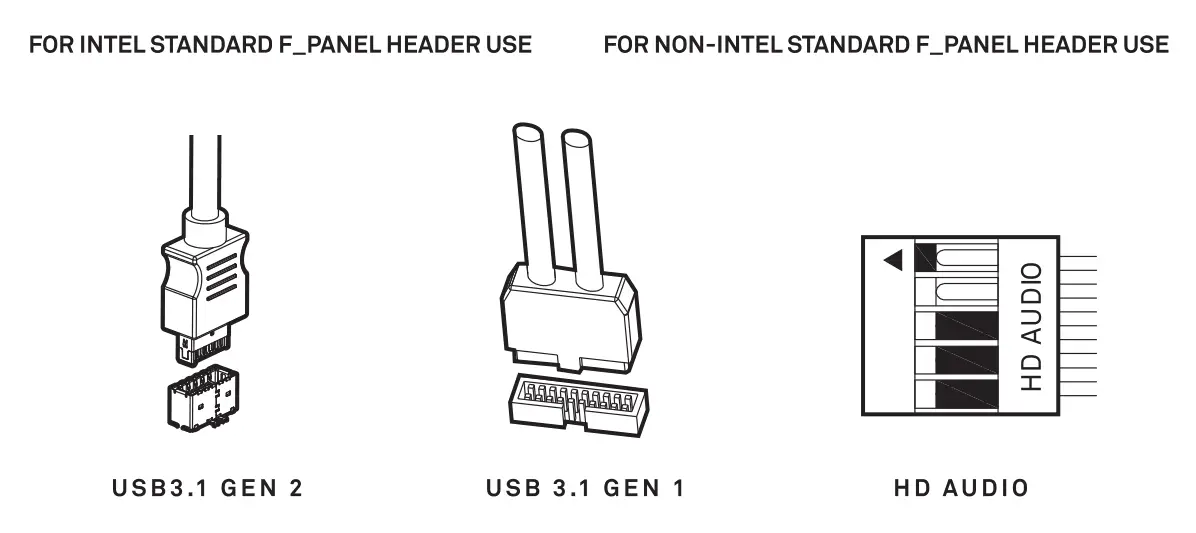

![Nzxt Mid-Tower ATX Case [H710, H710i] Cable Connections figure 2](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-9.png)

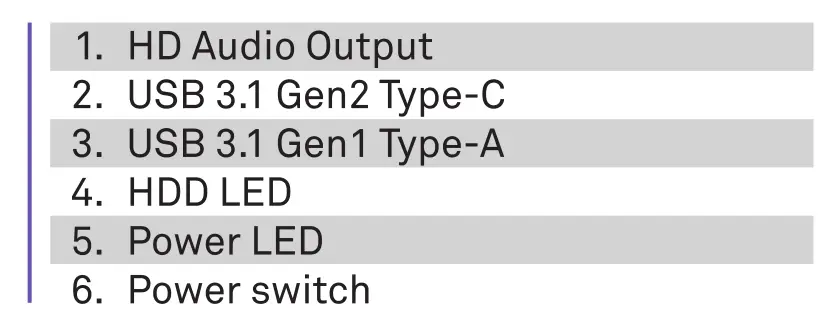

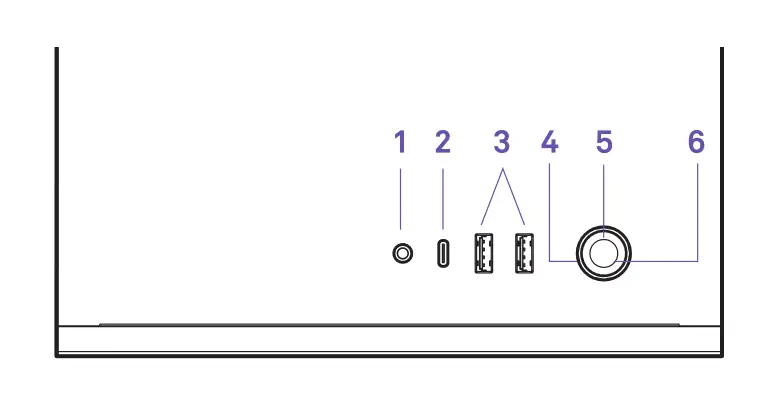

![Nzxt Mid-Tower ATX Case [H710, H710i] Buttons and I/O](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-11.png)
![Nzxt Mid-Tower ATX Case [H710, H710i] Buttons and I/O Table](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-12.png)

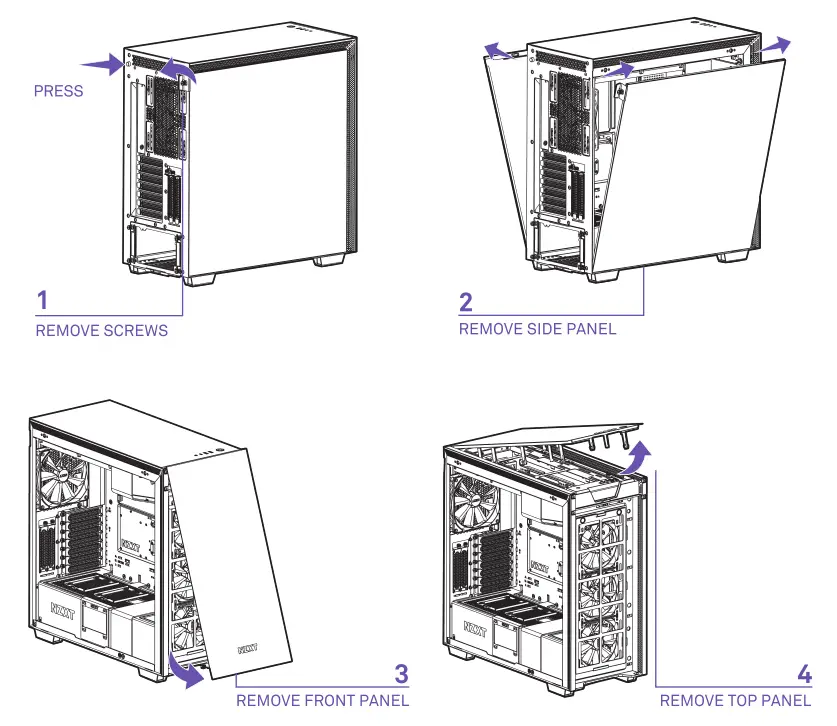

Panel Removal
![Nzxt Mid-Tower ATX Case [H710, H710i] Panel Removal](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-13.png)
Cable Bar
![Nzxt Mid-Tower ATX Case [H710, H710i] Cable Bar](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-14.png)

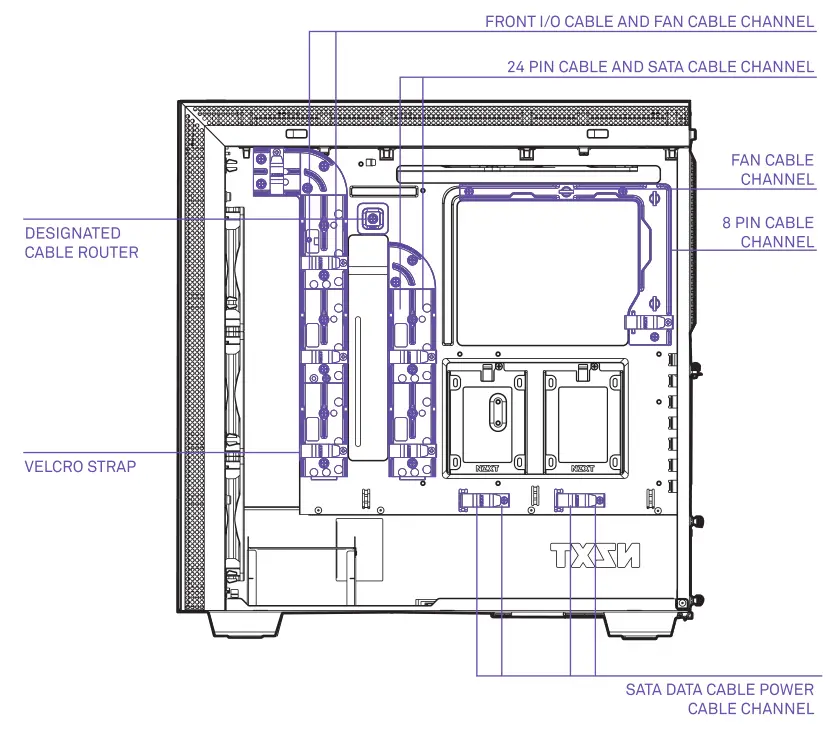

Cable Management System
![Nzxt Mid-Tower ATX Case [H710, H710i] Cable Management System](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-15.png)

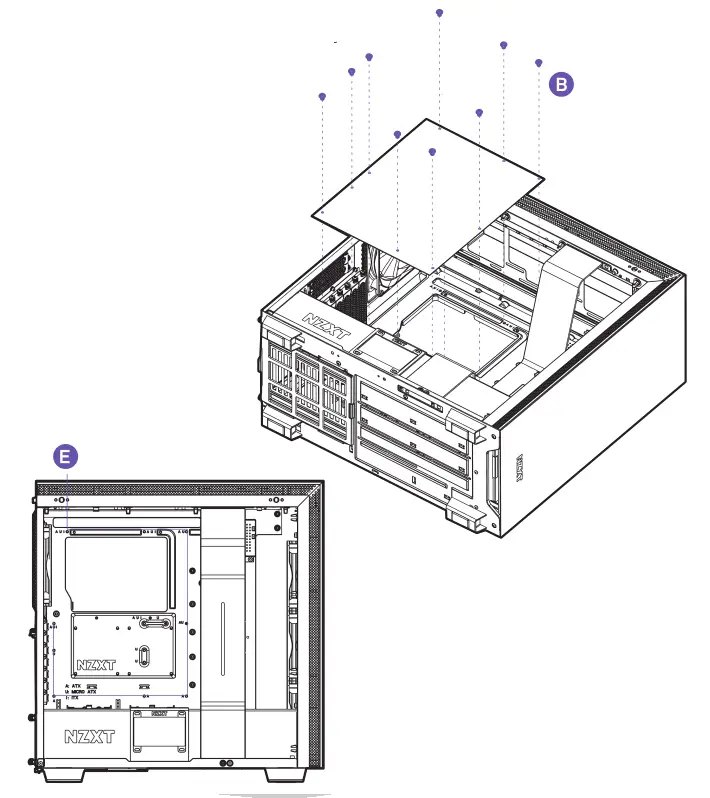

Motherboard Installation
![Nzxt Mid-Tower ATX Case [H710, H710i] Motherboard Installation](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-16.png)

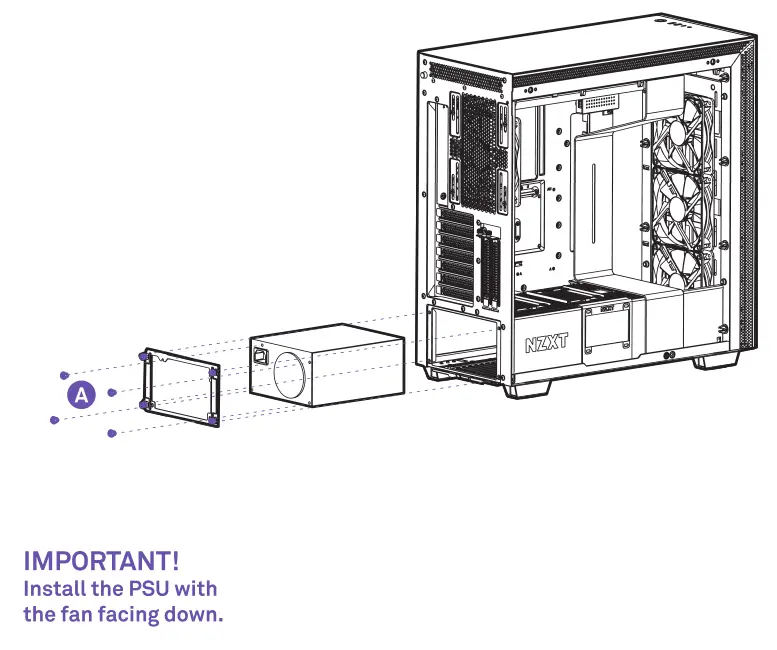

Power Supply Installation
![Nzxt Mid-Tower ATX Case [H710, H710i] Power Supply Installation](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-17.png)

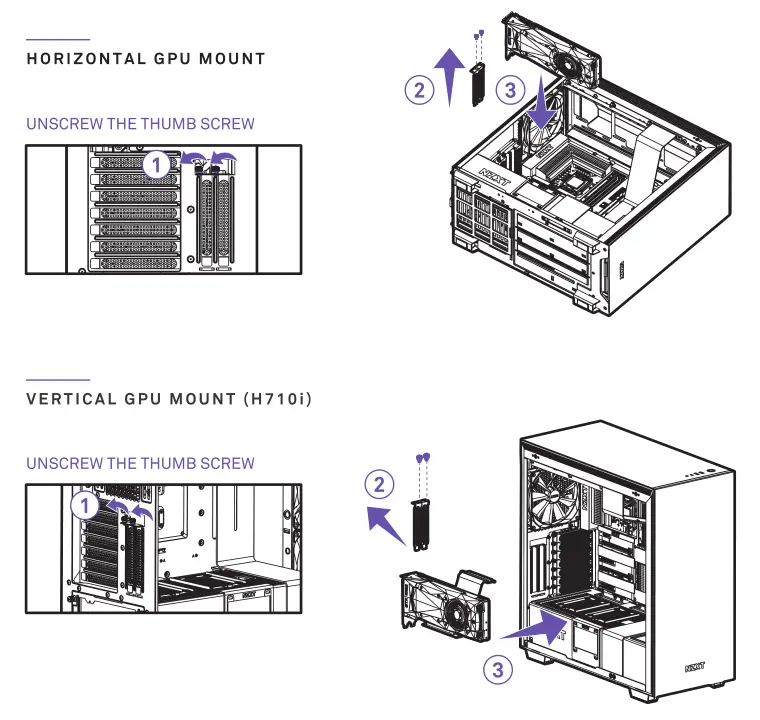

Expansion Card Installation
![Nzxt Mid-Tower ATX Case [H710, H710i] Expansion Card Installation](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-18.png)
HDD Drive Installation
![Nzxt Mid-Tower ATX Case [H710, H710i] HDD Drive Installation](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-19.png)

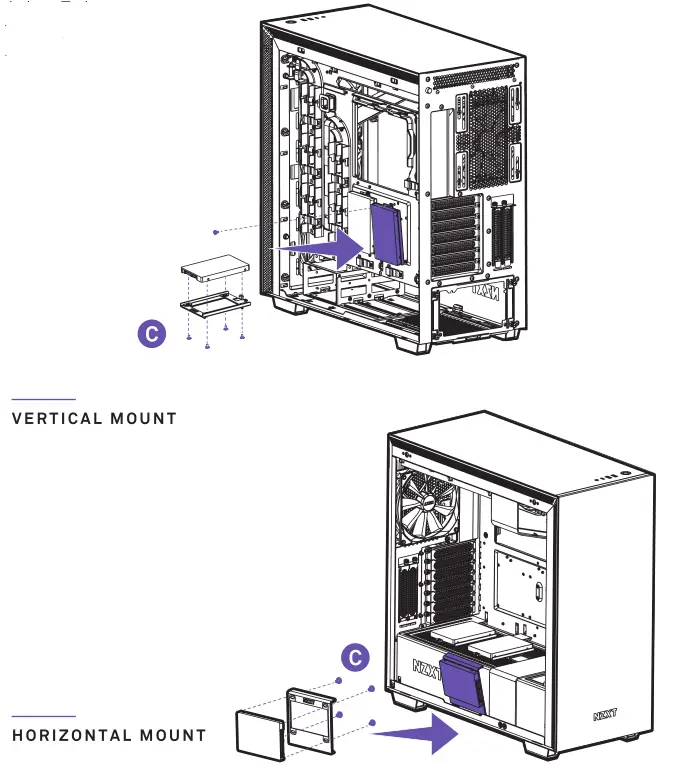

SSD Drive Installation
![Nzxt Mid-Tower ATX Case [H710, H710i] SSD Drive Installation](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-20.png)

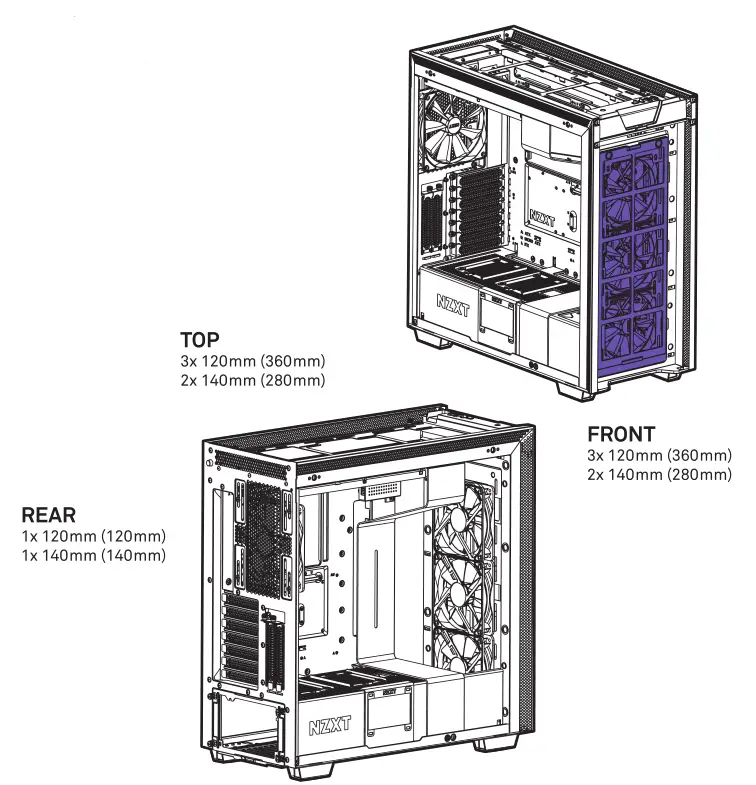

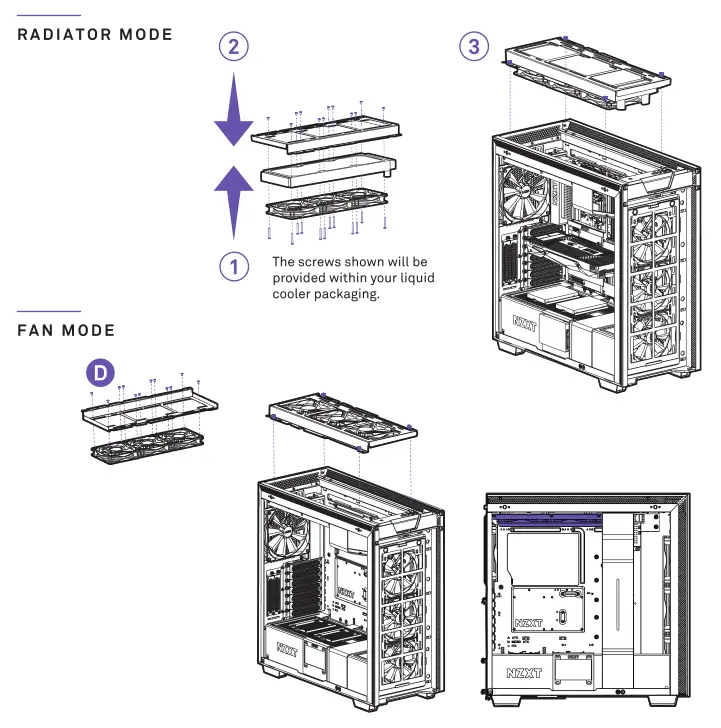

Fan & Radiator Support
![Nzxt Mid-Tower ATX Case [H710, H710i] Fan & Radiator Support](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-21.png)
![Nzxt Mid-Tower ATX Case [H710, H710i] Fan & Radiator Support 2](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mid-Tower-ATX-Case-H710-H710i-User-Manual-22.png)
Regulations
![Nzxt Mid-Tower ATX Case [H710, H710i] Regulations](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-24.png)

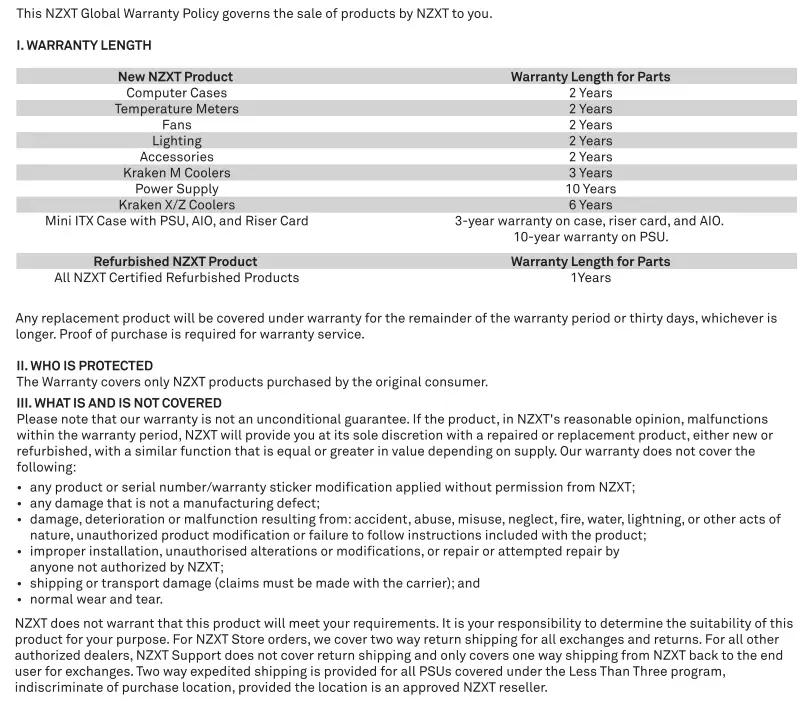

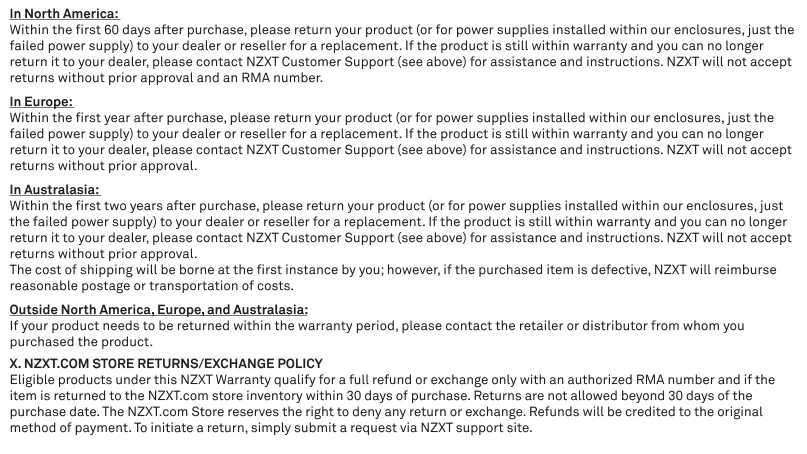

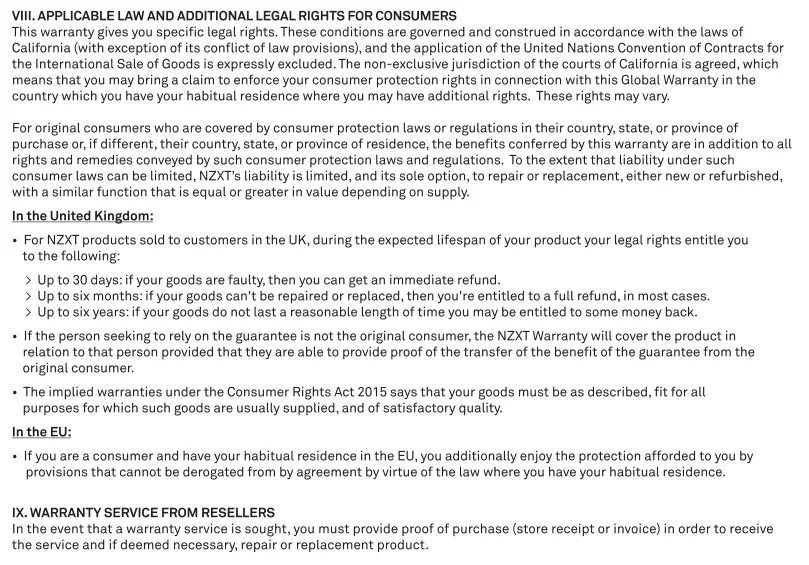

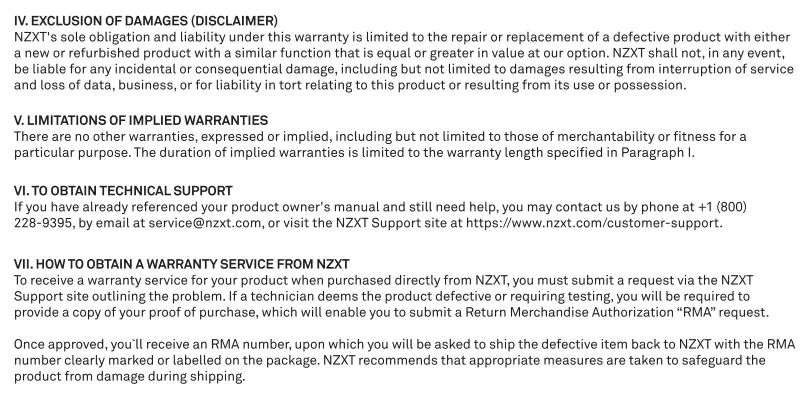

NZXT Global Warranty Policy
![Nzxt Mid-Tower ATX Case [H710, H710i]- NZXT Global Warranty Policy 1](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-25.png)
![Nzxt Mid-Tower ATX Case [H710, H710i] - NZXT Global Warranty Policy 2](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-26.png)
![Nzxt Mid-Tower ATX Case [H710, H710i] - NZXT Global Warranty Policy 3](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-27.png)
![Nzxt Mid-Tower ATX Case [H710, H710i] - NZXT Global Warranty Policy 4](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-28.png)

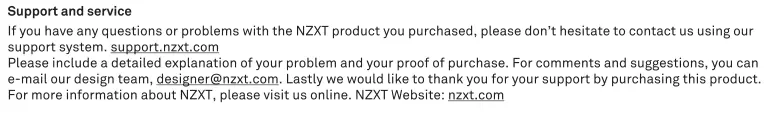

Support and Service
![Nzxt Mid-Tower ATX Case [H710, H710i] - Support and Service](https://static-data1.manualsee.com/1/img/80/17016/2020/12/Pasted-into-Nzxt-Mini-ITX-Case-H210-H210i-User-Manual-29.png)
Visit nzxt.com/warranty and support.nzxt.com for information
on warranty coverage and service.
Email Design Team: [email protected] or Visit nzxt.com
Email for Service: [email protected] or Visit nzxt.com
