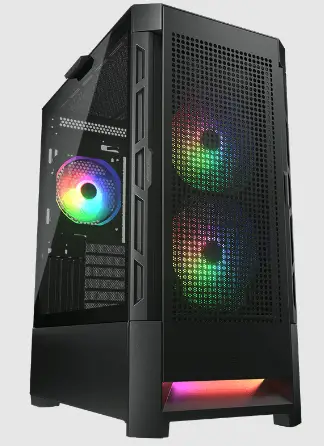

COUGAR DUOFACE PRO RGB – Mid Tower Case
FEATURES
- Two front panels for double enjoyment
- Ingenious open layout design
- Innovative quick slide dust filter
- Integrated RGB system with 5V ARGB motherboard synchronization Support for E-ATX motherboard
- Up to 390mm graphics cards
- Up to nine fans and 190mm CPU cooler

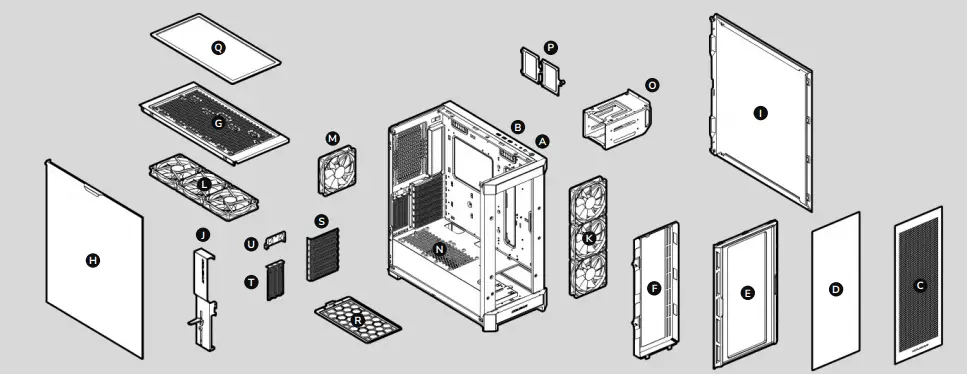

ASSEMBLY DRAWING
- A) Power button / RGB button
- B) Type C 3.1 / USB 3.0 / USB 2.0 / 4 Pole Headset Audio Jack
- C) Airflow front panel (packed separately)
- D) Tempered glass front panel (pre-installed)
- E) Quick slide dust filter
- F) Detachable fan/radiator bracket for front panel
- G) Detachable top panel
- H) Tempered glass side panel
- I) Right side panel
- J) Cable management bar with graphic card holder
- K) 3 x 120mm / 2 x 140mm fans for front panel
- L) 3 x 120mm / 2 x 140mm fans for top panel
- M) 1 x 120mm / 1 x 140mm fan for rear panel
- N) N 2 x 120mm fans for PSU cover
- O) O 3.5” HDD cage
- P) 2.5” SSD tray
- Q) Air filter for top panel
- R) Air filter for bottom panel

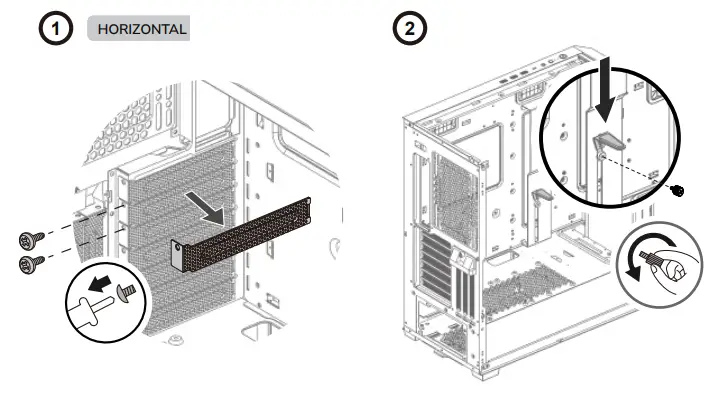

- S ) Horizontal PCI slot covers (reassembled)
- T) Vertical PCI slot covers (reassembled)
- U) Plastic cover for vertical PCI slots
SPECIFICATIONS
| Product Name | Duoface Pro RGB |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX |
| Dimension | 240(W) x 496(H) x 465(D) (mm) / 9.4(W) x 19.5(H) x 18.3(D) (in) |
| I/O Panel | Type C 3.1 x 1, USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x 1, RGB Button |
| 3.5″ Drive Bay | 2 |
| 2.5″ Drive Bay | 2 (2 SSD trays included) |
| Expansion Slots | 7+3 |
| Cooling Fan Support | Front : 120mm x 3 / 140mm x 2 |
| Top : 120mm x 3 / 140mm x 2 | |
| PSU Cover: 120mm x 2 | |
| Rear : 120mm x 1 / 140mm x 1 | |
| Maximum Number of Fans
| 9 |
|
Water Cooling Radiator Support | Front : *360mm / 280mm / 240 mm / 140 mm / 120mm |
| Top *360mm / 280mm / 240 mm / 140 mm / 120mm | |
| Rear 140 mm / 120mm | |
| Transparent Left Panel | Tempered Glass |
| Onboard Lighting System | Yes |
| RGB Sync with M/B | Yes |
| COUGAR Logo RGB Light | Yes |
| Max. Graphics Card Length | 390(mm) / 15.4(in) |
| Max. CPU Cooler Height | 190(mm) / 7.5(in) |
| Max. PSU Length | 200(mm) / 7.9(in) |
* Please choose either of front or top to install a 360mm radiator.

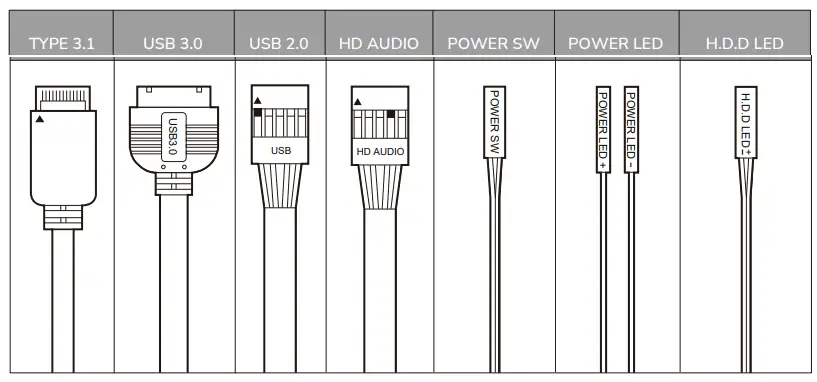

INSTALLING THE I / O CONNECTORS

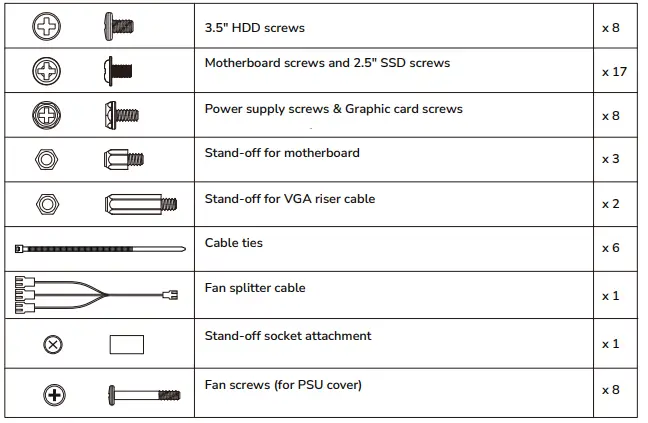

ACCESSORY KIT

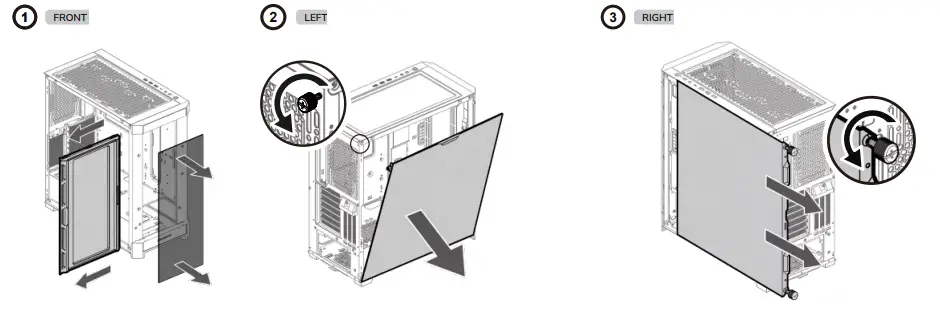

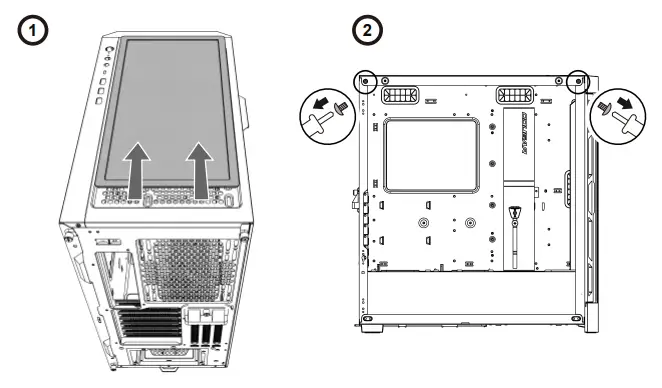

REMOVING PANELS
REMOVING PANELS

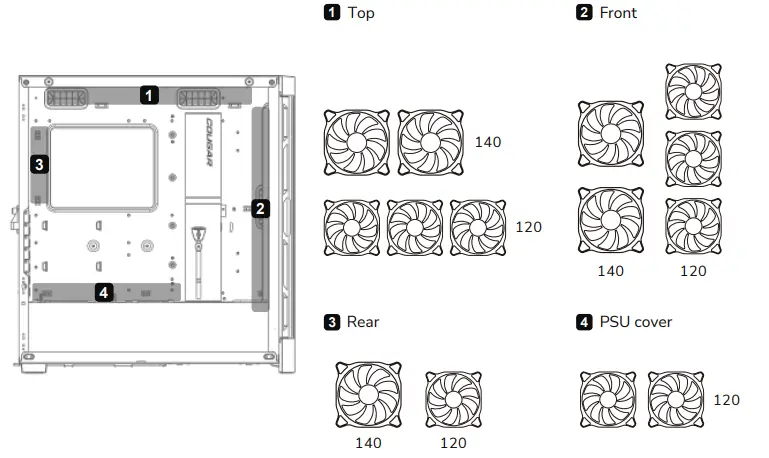

INSTALLING WATER COOLING RADIATORS & COOLING FANS

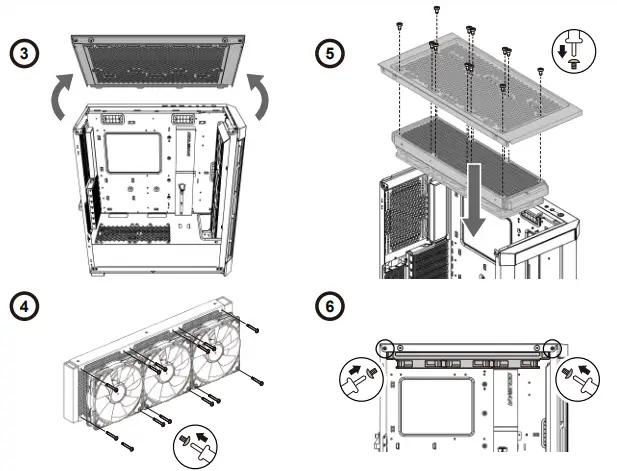

INSTALLING FANS AND RADIATOR AT THE
TOP

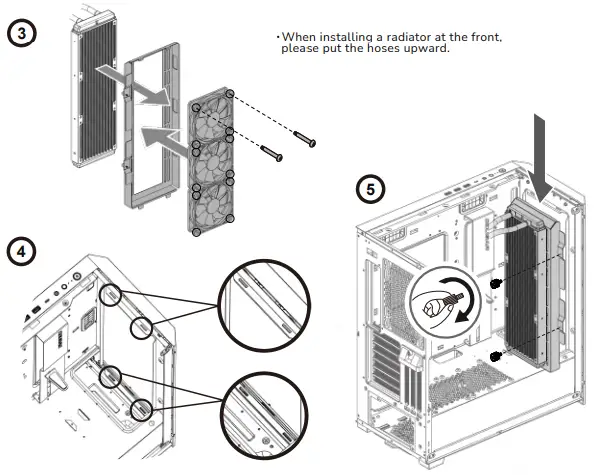

FRONT

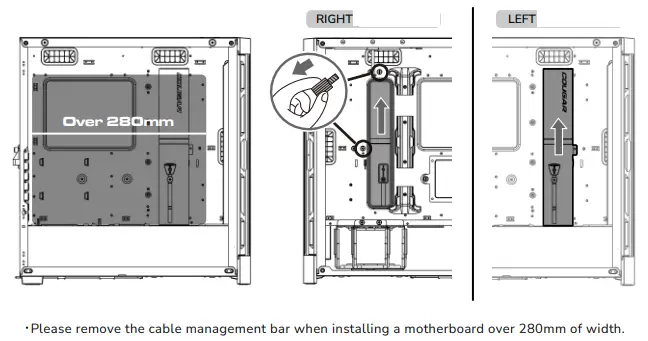

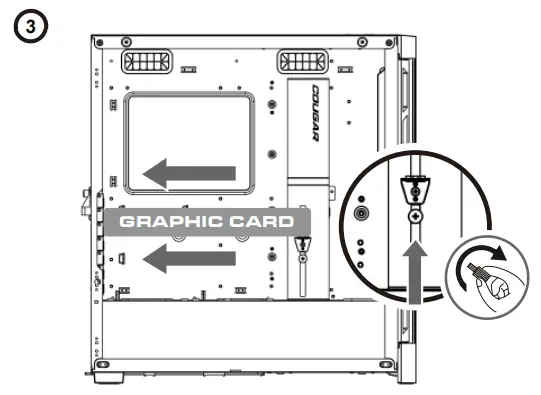

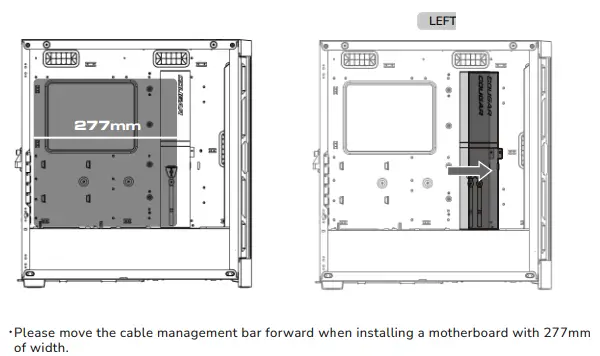

REMOVING THE CABLE MANAGEMENT BAR

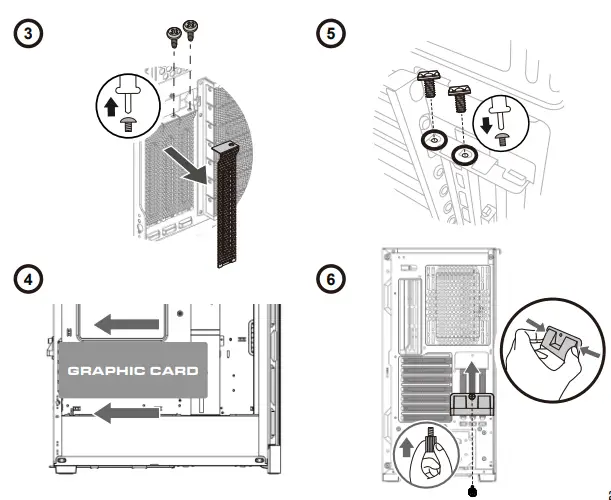

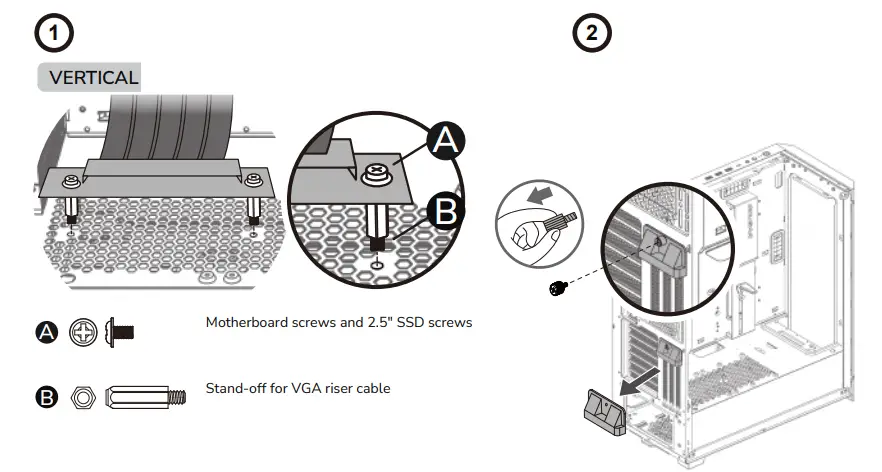

INSTALLING GRAPHIC CARD
The vertical graphic card and the PCI-E riser cable are not included in the package, please purchase separately.

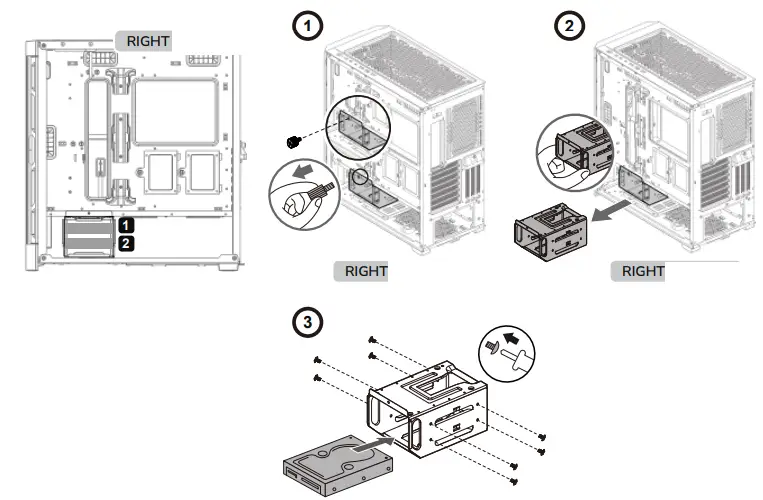

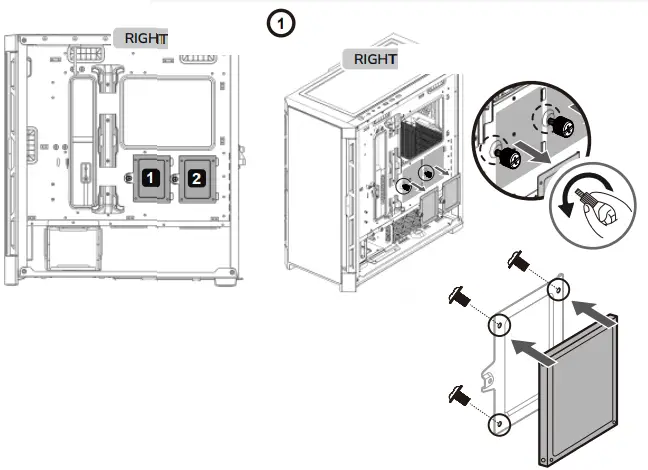

INSTALLING THE 3.5″ HDDS
The vertical graphic card and the PCI-E riser cable are not included in the package, please purchase separately.
3.5″ HDDS
2.5″ SSDS

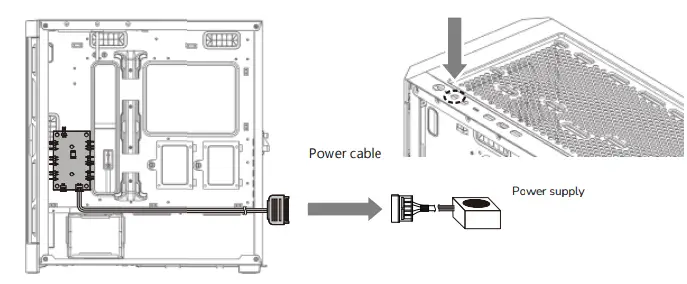

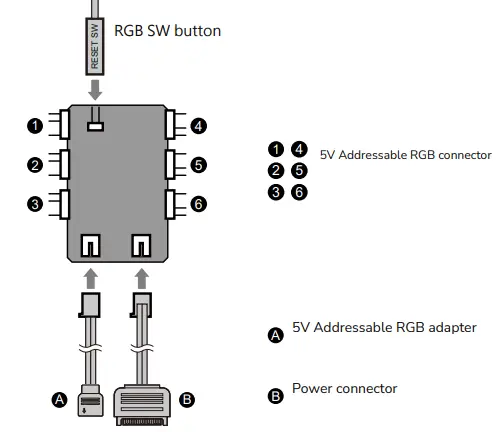

CONTROLLING LIGHTING MODES
FIRST MODE: SEVERAL LIGHTING EFFECTS
You can use the top panel’s RGB button to switch between several beautiful lighting effects we have preset for you.
SECOND MODE: MOTHERBOARD SYNCHRONIZATION

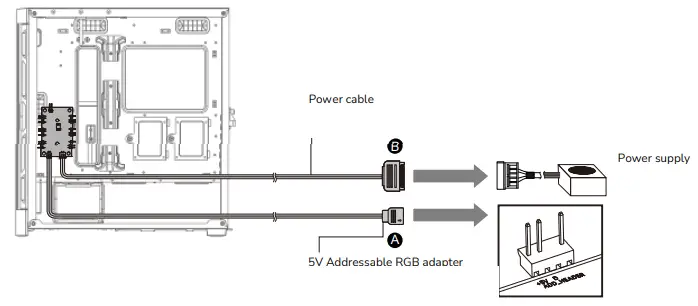

Please use the included adapter to connect to a compatible motherboard’s 3-pin 5V Addressable RGB header. Then, press and hold the RGB SW button for 3 seconds. The lights will flash in white once, it means the light signal has been changed to motherboard synchronization mode.
- SECOND MODE
Motherboard synchronization
Press and hold the RGB button for 3 seconds - BACK TO FIRST MODE
Several Lighting Effects
Press the RGB button for one second.
If you press and hold the RGB button for 6 seconds, the lights will flash in white for twice, and the lights will be turned off.
The lighting controller has memory function after REBOOTING.
However, if you press and hold for 6 seconds and return on the light again, it will only return to the first light mode of default, and it cannot memorize the light effect before it was turned off.
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR DUOFACE PRO RGB
Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.
Only for electrical component
COUGAR USA Technical Service Tel: (833) 256-3778
Mail:[email protected]
