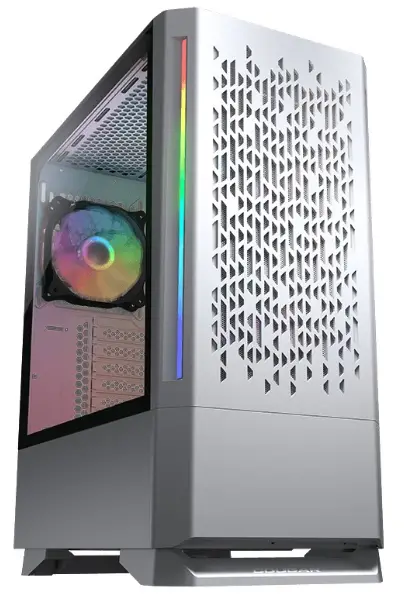

COUGAR AIRFACE Mid Tower Case
FEATURES
- Perforated design for unobstructed ventilation
- Innovative quick slide dust filter
- Support for E-ATX motherboard
- Up to 330mm graphics cards
- Up to five fans and 190mm CPU cooler

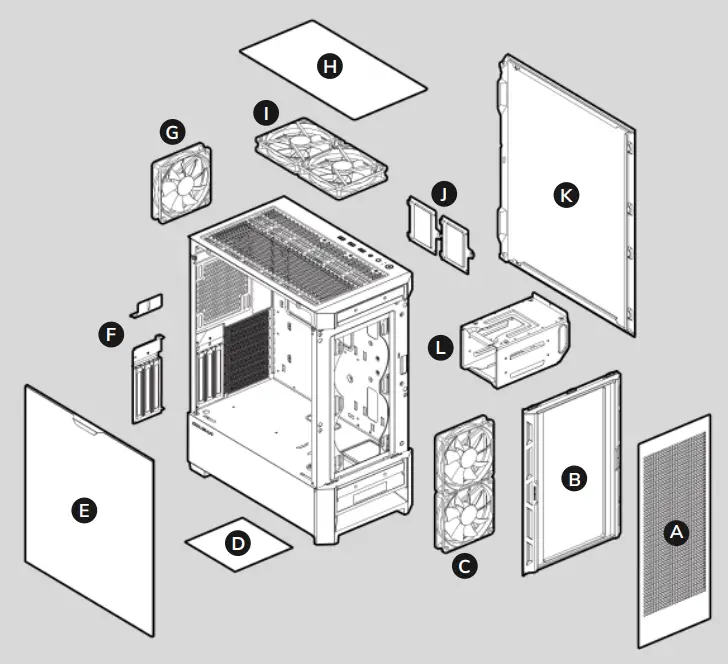

ASSEMBLY DRAWING
- Airflow front panel
- Quick slide dust filter
- 2 x 120mm / 2 x 140mm fans for front panel
- Air filter for bottom panel
- Tempered glass side panel
- Vertical slot covers
- 1 x 120mm / 1 x 140mm fan for rear panel
- (120mm Black fan x 1 pre-installed)
- Air filter for top panel
- 2 x 120mm / 2 x 140mm fans for top panel
- 2.5”SSD tray
- Right side panel
- 3.5”HDD cage
SPECIFICATIONS
| Product Name | Airface |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / *E-ATX |
| Dimension | 230(W) x 491(H) x 386(D) (mm) / 9.1(W) x 19.3(H) x 15.2(D) (in) |
| I/O Panel | USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, Reset Button |
| 3.5″ Drive Bay | 2 |
| 2.5″ Drive Bay | 3 (2 SSD trays included) |
| Expansion Slots | 7+3 |
|
Cooling Fan Support | Front / 120mm x 2 / 140mm x 2 |
| Top / 120mm x 2 / 140mm x 2 | |
| Rear / 120mm x 1 / 140mm x 1 (120mm Black fan x 1 pre-installed) | |
| Maximum Number of Fans | 5 |
|
Water Cooling Radiator Support | Front / *280mm / 240mm / 140mm / 120mm |
| Top / : *280mm / 240mm / 140mm / 120mm | |
| Rear / : 140mm / 120mm | |
| Transparent Left Panel
| 4mm Tempered Glass / 4mm |
| Max. Graphics Card Length | 330(mm) / 13(in) |
| Max. CPU Cooler Height CPU | 190(mm) / 7.5(in) |
| Max. PSU Length | 160(mm) / 6.3(in) |

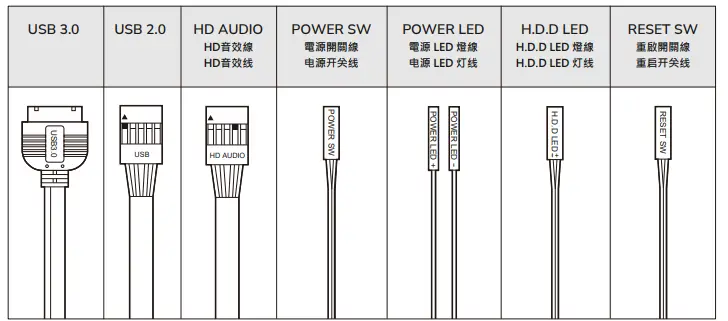

INSTALLING THE I/O CONNECTORS
REMOVING PANELS
INSTALLING

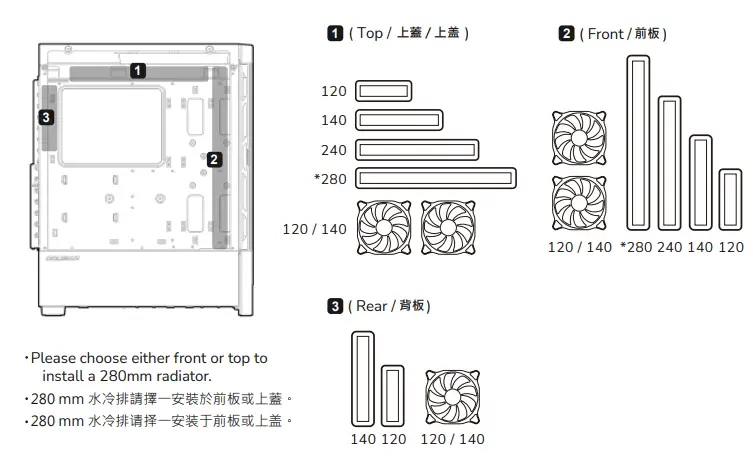

INSTALLING WATER COOLING RADIATORS & COOLING FANS

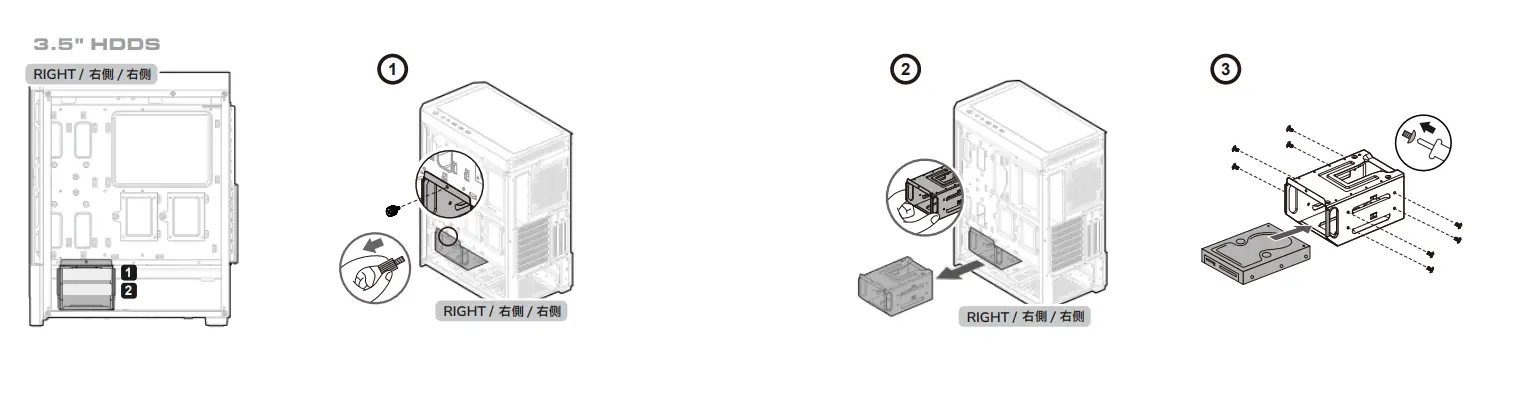

INSTALLING THE 3.5″ HDDS
INSTALLING THE 2.5″ SSDS
INSTALLING GRAPHIC CARD

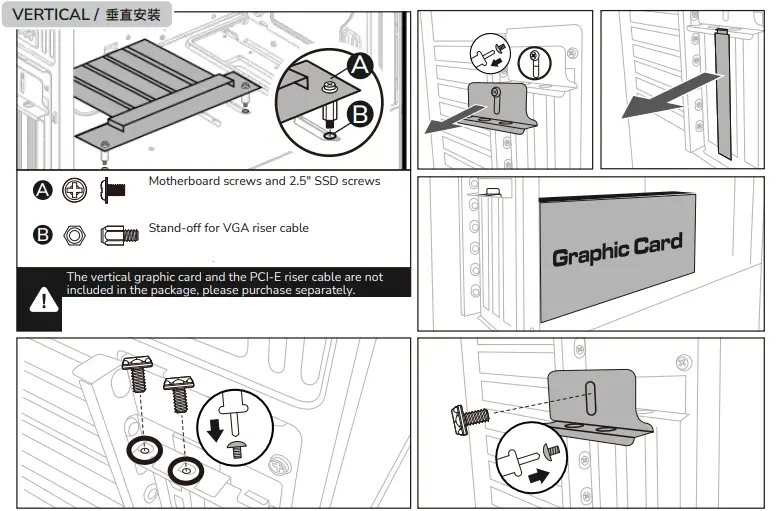

VERTICAL

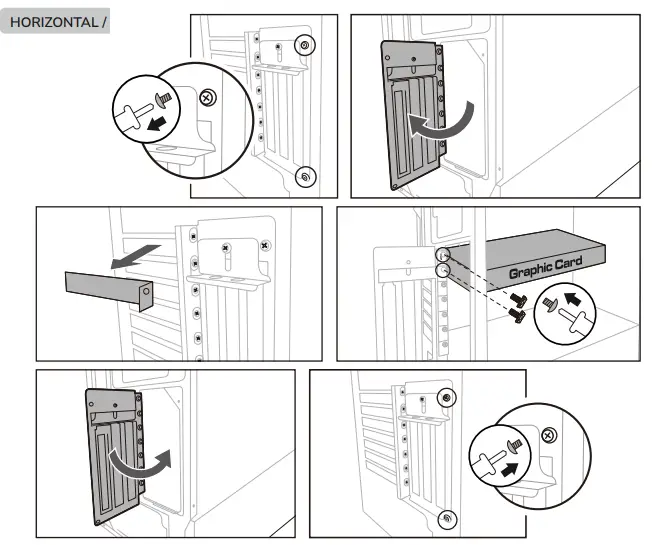

HORIZONTAL
GLOBAL WARRANTY POLICY
This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary. Only for electrical components.
NEED HELP
COUGAR USA Technical Service
Tel: (833) 256-3778
www.cougargaming.com
Mail:[email protected]
