Ds18 Pro-d1 2 Inch Titanium Voice Coil Bolt-on Compression Driver Owner's Manual

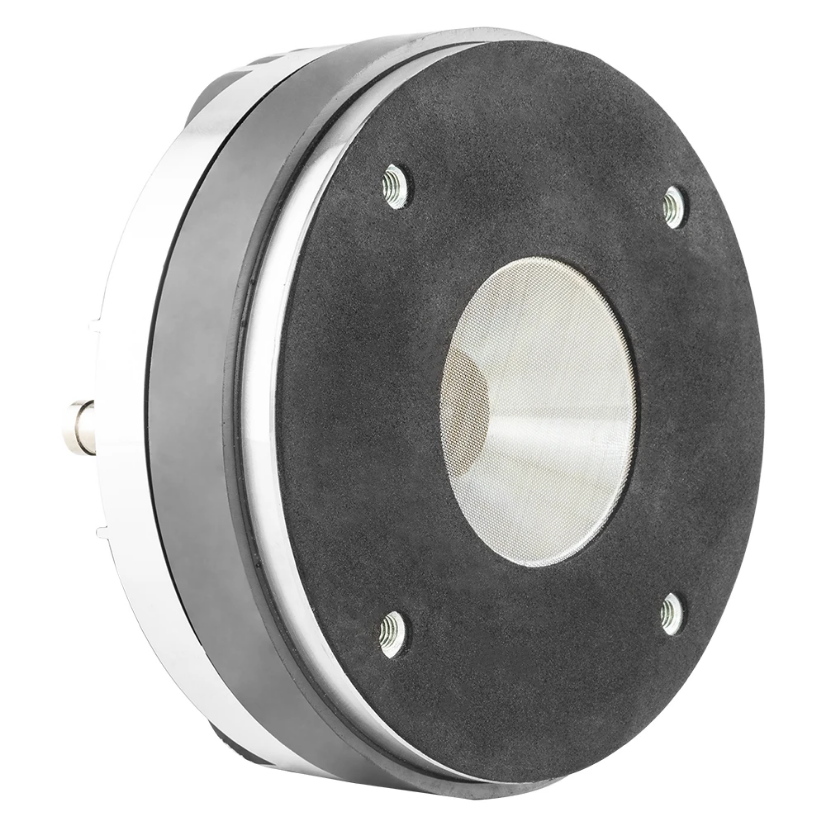

DS18 PRO-D1 2 Inch Titanium Voice Coil Bolt-On Compression Driver

PRO-D1 SPECIFICATIONS

• Throat Diameter …………………………………………2” / 50.8mm
• Installation Type  ……………………….Bolt-on / Para Atornillar
• Nominal Impedance  ………………………………………… 8 OHMS
• AES Power …………………………………………………………………….. 160W
• Program Power Handling ……………………. 320W
• Peak Power Handling …………………………………… 640W
• Sensitivity (1w/1m) ………………………………………. 108 dB

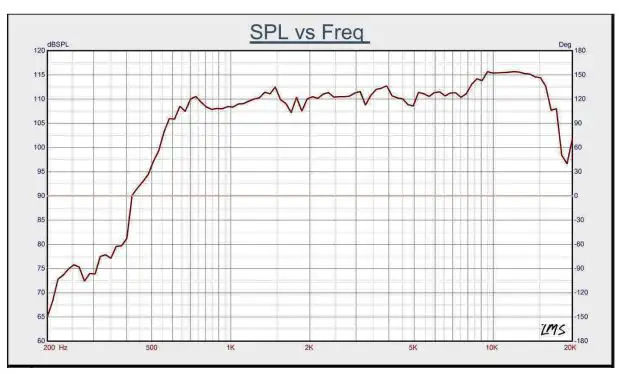

• Frequency Response…………………….. 630Hz-20KHz
• Recommended Hi Pass Crossover ……………….. 900 Hz

MOTOR / MOTOR:

• Voice Coil Diameter  ……………. 2.03″ / 51.5mm
• Voice Coil Former Material …………………… Kapton
• Winding Material ……………………………………………….. CCAW
• Diaphragm Material ……………………..Titanium / Titanio
• Magnet Material ………………………………………. Ferrite / Ferrita
• Magnet Weight ………………………………………………………………….35 oz
• Body Material …………………………….. Aluminum / Aluminio

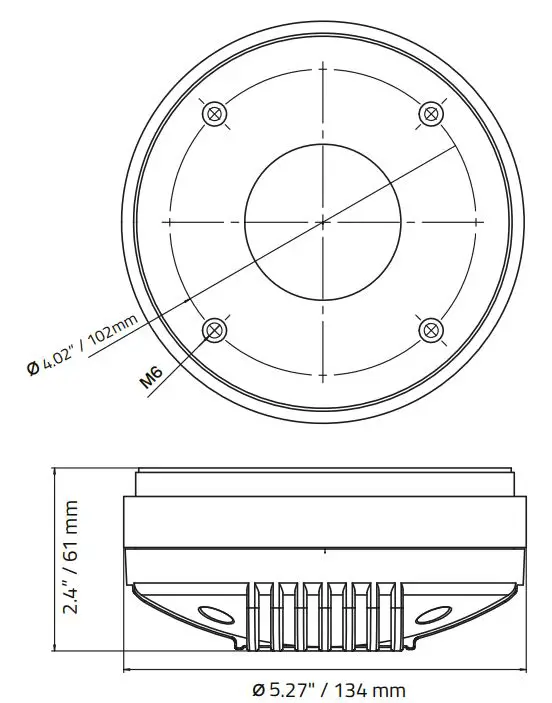

MEASUREMENTS

• Overall Diameter …………………………………………….5.27”/134 mm
• Overall Depth ………………………………………………… 2.4”/61 mm
• Bolt Pattern ……………… 4”/ 102mm x 4-M6
