OWNER’S MANUAL
3″ TITANIUM VOICE COIL BOLT-ON
COMPRESSION DRIVER WITH SPACER

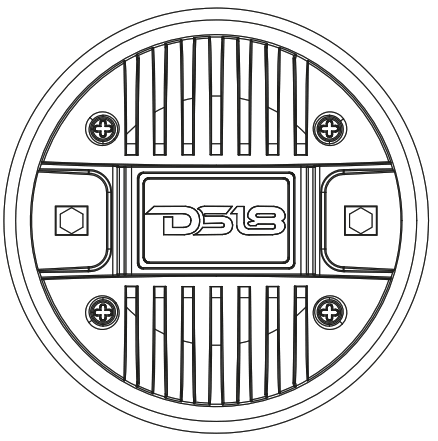

PRO-D2X 3-Inch Titanium Voice Coil Bolt-On Compression Driver
PRO-D2X
SPECIFICATIONS
Throat Diameter ………………………………………… 2” / 50.8mm
Installation Type………………………….Bolt-on
Nominal Impedance …………………………………………… 8 OHMS
AES Power Handling ……………………………………250W
Program Power Handling …………………500W
Peak Power Handling …………………………….. 1000W
Sensitivity (1w/1m)………………………………………….110 dB
Frequency Response ………………………..600Hz-18KHz
Recommended Hi Pass Crossover… ……….900 Hz
MOTOR
Voice Coil Diameter …………………… 3” / 76.2mm
Voice Coil Former Material……………..Kapton
Winding Material ……………………….. Aluminum
Diaphragm Material ………………………..Titanium
Magnet Material ……………………………………….Ferrite
Magnet Weight…………………………………………………………………..75 Oz
Body Material ………………………………….Aluminum
Color ………………………………………. Black | Machined

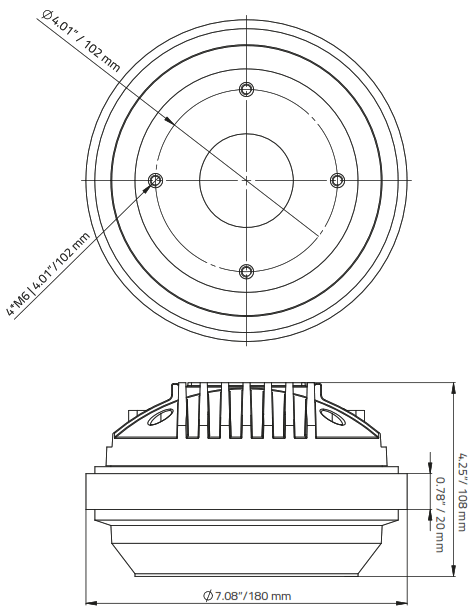

MEASUREMENTS
Overall Diameter…………………………………………………………… 7.08”/180 mm
Overall Depth ……………………………………………………………. 4.25”/ 108 mm
Bolt Pattern | Type …………………….4*M6 | 4.01”/102 mm

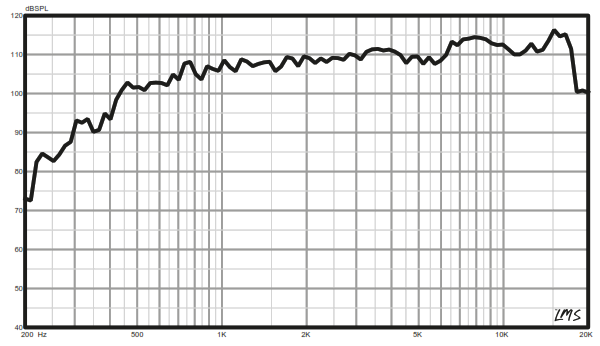

SPL vs Freq
