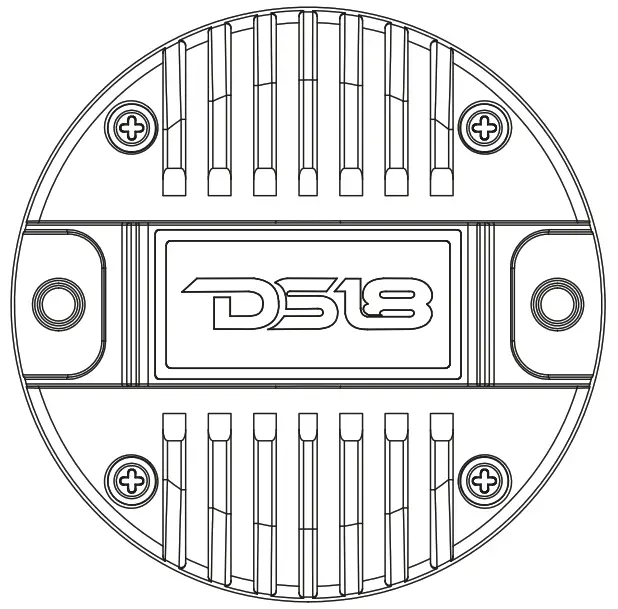

Ds18 Pro-drn2 3-inch Titanium Voice Coil Bolt-on Compression Driver With Neodymium Magnet Owner's Manual

OWNER’S MANUAL
MANUAL DE USUARIO
PRO-DRN2
3” TITANIUM VOICE COIL
BOLT-ON COMPRESSION DRIVER
WITH NEODYMIUM MAGNET

PRO-DRN2

SPECIFICATIONS

Throat Diameter ……………………………………………….. 2″ / 50.8 mm
Installation Type  ………………………………………………………………. Bolt-on
Nominal Impedance   ………………………………………………………… 8 ohm
AES Power Handling  …………………………………………………. 200W
Program Power Handling  ……………………………………… 400W
Peak Power Handling  ………………………………………………… 800W
Sensitivity (1w/1m) ………………………………………………………….. 110dB
Frequency Response  …………………………………….. 500Hz-18KHz
Recommended Hi-Pass Crossover 800 Hz

MOTOR

Voice Coil Diameter ……………………………………. 3″ / 76.2 mm
VC Former Material ………………………………………… Kapton
Winding Material …………………………………………..Aluminum
Diaphragm Material  ……………………………………….. Titanium
Magnet Material…………………………………………….Neodymium
Magnet Weight  …………………………………………………………………………12 oz
Body Material  …………………………………………….Aluminum
Body Color ……….Black

MEASUREMENTS
Overall Diameter ……………………………………………………….. 5.15″ / 131mm
Overall Depth ………………………………………………………… 2.11″ / 53.8mm
Bolt Pattern ………………………………………………………….4*M6
Mounting Depth ……………………………………………… 2.11″ / 53.8mm

FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
We LIKE IT LOUD
