OWNER’S MANUAL
MANUAL DEL USUARIO

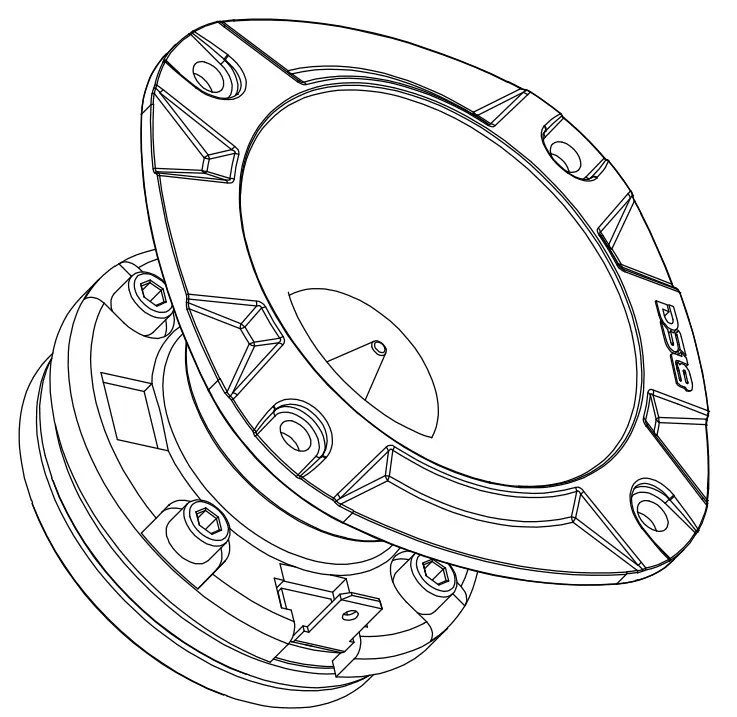

PRO-TWN2
3″ HIGH COMPRESSION SUPER
BULLET TWEETER WITH 1″
POLYIMIDE VOICE COIL AND
NEODYMIUM MAGNET
PRO-TWN2 3 Inch High Compression Super Bullet Tweeter with 1 Inch Polyimide Voice Coil and Neodymium Magnet
PRO-TWN2
SPECIFICATIONS
Nominal Diameter. ……………………………………….3″
Nominal Impedance …………………………………….4 OHMS
AES Power Handling …………………………………………..50W
Program Power Handling ……………………………………100W
Peak Power Handling ………………………………….200W
Sensitivity (1w/1m) ) …………………………………………….108dB
Frequency Response……………………………… 1KHz-20KHz
Recommended Hi Pass Crossover ……………………………….. 2KHz
Pair or Single …………………………………………………..Single
MOTOR
Voice Coil Diameter …………………………….1” / 25.4mm
Voice Coil Former Material ……………Kapton
Winding Material ………………………………………..CCAW
Diaphragm Material ………………….. Composite Polyimide
Magnet Material …………………………………. Neodymium
Magnet Size………………………………………2.2×0.15″ / 56x4mm
Magnet Weight ………………………………………………………..1.86 Oz
Body Material ………………………………..Aluminum

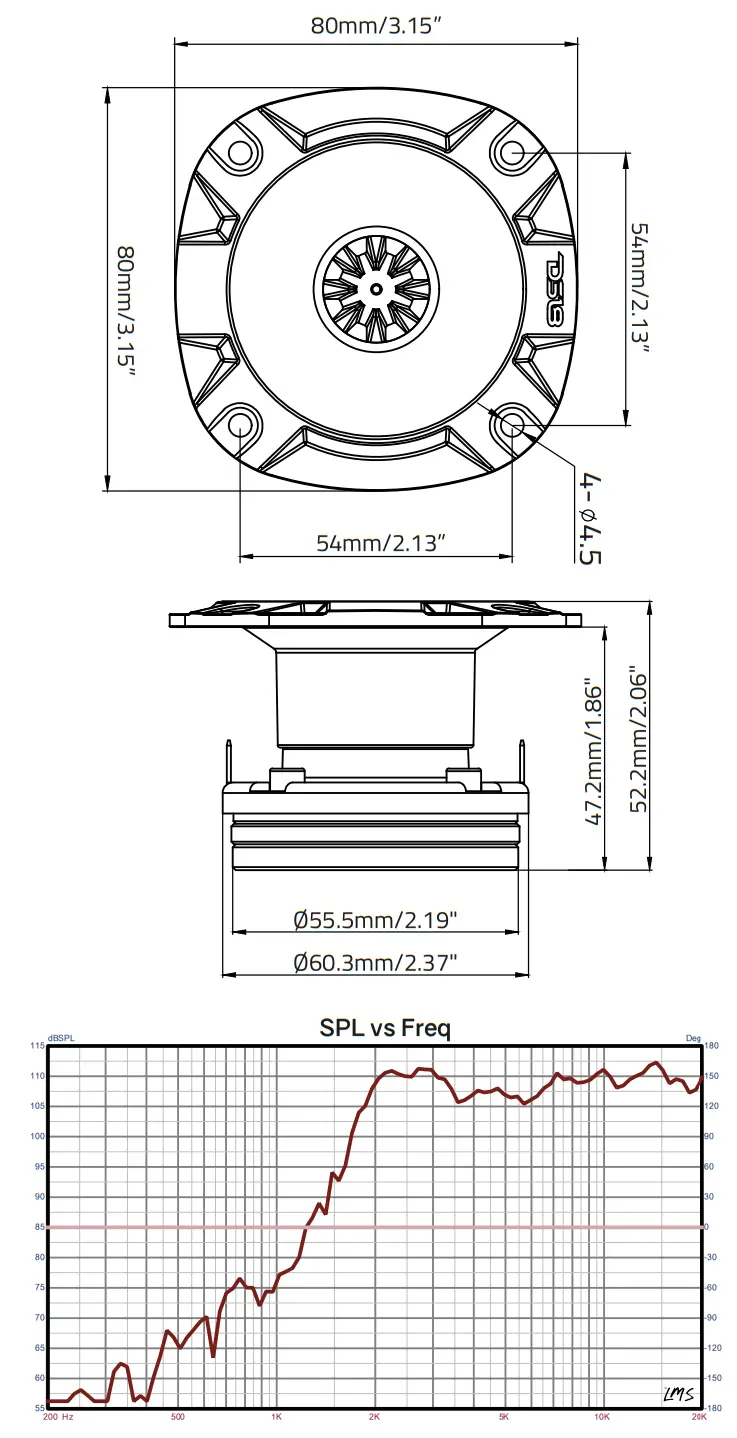

MEASUREMENTS
Overall Diameter ……………………………………………..3.15″/80mm
Overall Depth ……………………………………………………….2.06″/52.2mm
Front Mount Baffle Cutout …………………….. 2.4″/61mm
Mounting Depth …………………………………………….1.86″/47.2mm
We LIKE IT LOUD
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
