DS18 PRO-TWN1 3 Inch Super Bullet Tweeter with 1 Inch Titanium Voice Coil

OWNER’S MANUAL

3″ SUPER BULLET TWEETER WITH 1″ TITANIUM VOICE COIL AND NEODYMIUM MAGNET

PRO-TWN1

SPECIFICATIONS

• Nominal Diameter.. …………………………………………………………………………………………………….3″
• Nominal Impedance …………………………………………………………………………………….4 OHMS
• Peak Power Handling ……………………………………………………………………..240W
• Program Power Handling ……………………………………………………….120W
• AES Power Handling …………………………………………………………………………………..60W
• Sensitivity (1w/1m) ……………………………………………………………………………………104dB
• Frequency Response …………………………………………………………………3Khz-20 KHz
• Recommended Hi Pass Crossover ………………………………………………. 3 KHz

MOTOR

• Voice Coil Diameter ……………………………………………………………..1”/25.4 mm
• Voice Coil Former Material ……………………………………………………………NSV
• Winding Material ………………………………………………Pure Aluminum Round Wire
• Diaphragm Material …………………………………………………………..Titanium
• Magnet Material ……………………………………………………………….. Neodymium
• Magnet Size ………………………………………………………………………………………. 0.96″ x 0.27″
• Body Material ………………………………………………………………………..Aluminum
• Bullet Material ………………………………………………………..CNC Aluminum

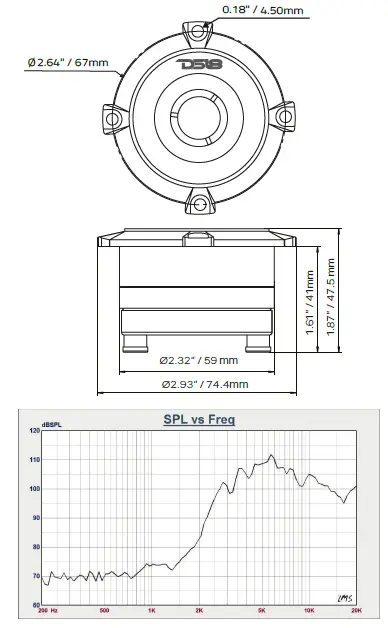

MEASUREMENTS

• Overall Diameter ……………………………………………………………………………… 2.93″ / 74.4 mm
• Overall Depth…………………………………………………………………………………. 1.87″ / 47.5 mm
• Front Mount Baffle Cutout………………………………………………. 2.32″ / 59 mm
• Mounting Depth ……………………………………………………………………… 1.61” / 41 mm

FOR MORE INFORMATION PLEASE VISIT DS18.COM
