PRO-TWX3Ti
3.8″ SUPER BULLET COMPRESSION TWEETER
WITH 1.5″ TITANIUM VOICE COIL
SPECIFICATIONS
Nominal Diameter……………………………………………………………….. 3.8″ / 96.5 mm
Nominal Impedance………………………………………………………………..4 OHMS
AES Power Handling………………………………………………………………. 125 Watts
Program Power Handling………………………………………………….. 250 Watts
Peak Power Handling………………………………………………………………….. 500 Watts
Sensitivity (1w/1m)………………………………………………………………………… 108 dB

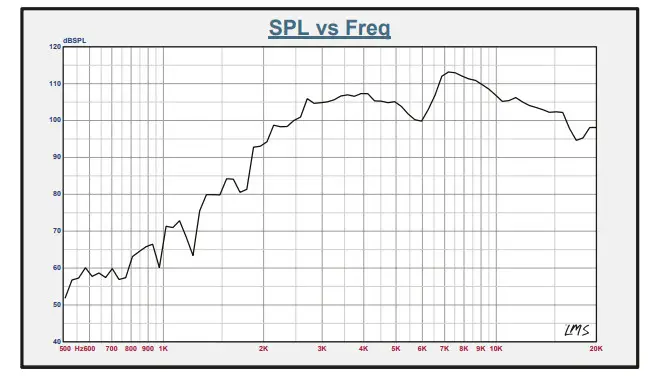

Frequency Response………………………………………………………………1.6KHz-20KHz
Recommended HI Pass Crossover…………………………………………..2.5KHz
Sold as Pair or Single…………………………………………………………………. Single / Unidad
BODY/FEATURES
Filter (Bass Blocker)…………………………………..4.7uf/50v (Included )
Body Material……………………………………………………………..Aluminum
Body Color | Finish……………………………………………………….Black/Negro
Faceplate Color | Finish…………………………………………….Black Machined
Bullet Material………………………………………………………..Aluminum
MOTOR
Voice Coil Diameter………………………………………………… 1.5″ / 38.1 mm
Voice Coil Former Material………………………………………………. Kapton
Winding Material…………………………………………………………………………. CCAW
Diaphragm Material……………………………………………………………….. Titanium
Magnet Material…………………………………………………………………………….Ferrite
Magnet Weight………………………………………………………………………………….15 Oz

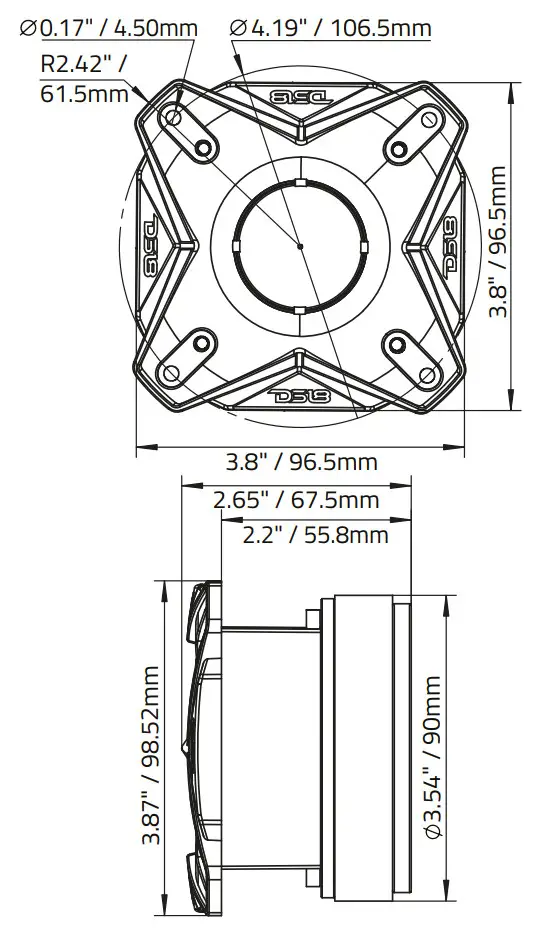

MEASUREMENT
Overall Diameter……………………………………………………………………. 3.8″ / 96.5 mm
Overall Depth………………………………………………………………………..2.65″ / 67.5 mm
Front Mount Baffle Cutout……………………………………………….. 3.62″ / 92 mm
Mounting Depth………………………………………………………………………… 2.2″ / 55.8 mm
MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice. Images may or may not include optional equipment.
