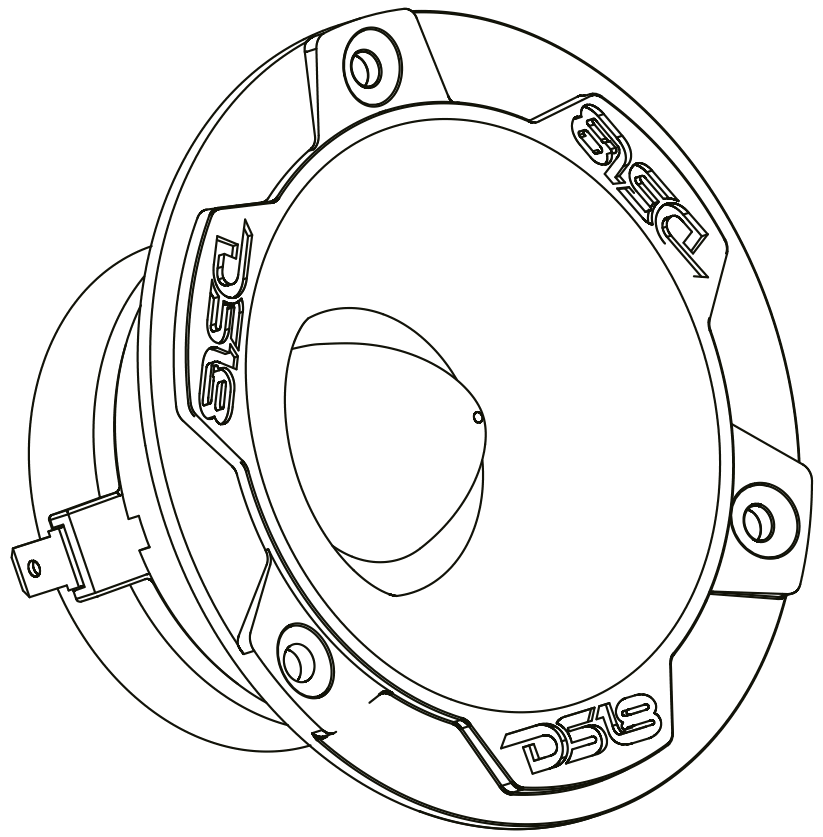

PRO-TWN6.8
4″ NEODYMIUM SUPER BULLET
TWEETER WITH 1.25″ POLYIMIDE VOICE COIL
OWNER’S MANUAL
SPECIFICATIONS
| Nominal Diameter | 4″ / 100mm |
| Nominal Impedanc | 8 Ohms |
| AES Power Handling | 75 Watts |
| Program Power Handling | 150 Watts |
| Peak Power Handling | 300 Watts |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 2K-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
BODY
| Pair or Single | Single |
| Body Material | Alumium |
| Body Color & Finish | Black / Machined |
| Bullet Material | Alumium |
MOTOR
| Voice Coil Diameter | 1.25″/ (32mm) |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAR |
| Diaphragm Material | Polyimide |
| Magnet Material | Neodymium |
| Magnet Weight | 1.05 oz |
MEASUREMENTS
| Overall Diameter | 3.93″ / 100mm |
| Overall Depth | 1.96″ / 50mm |
| Front Mount Baffle Cutout | 3.22″/ 82mm |
| Mounting Depth | 1.77″/ 45mm |

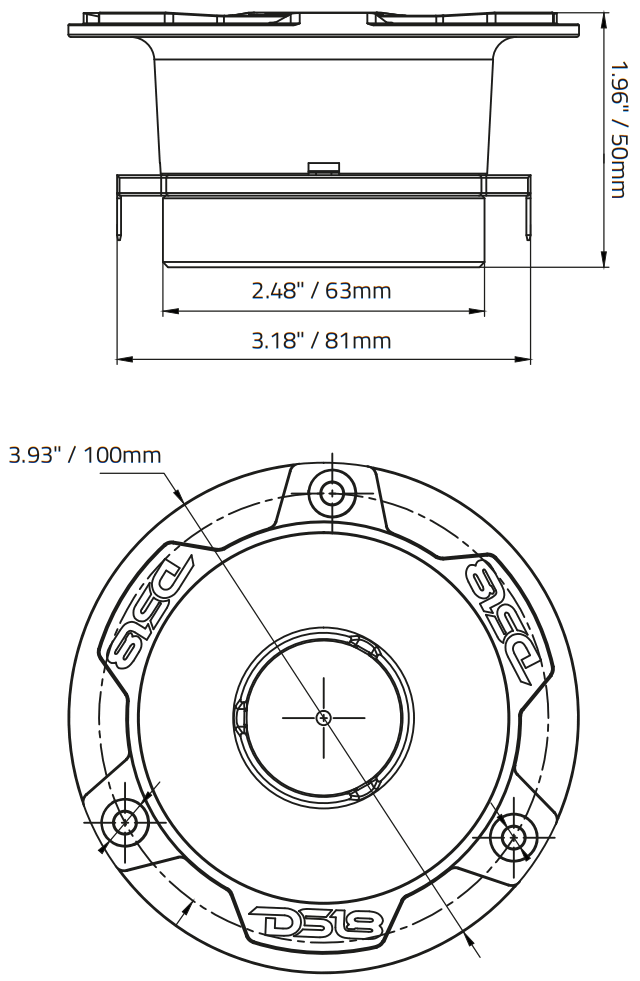

MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice. Images may or may not included optional equipment.
FOR MORE INFORMATION
PLEASE VISIT DS18.COM
