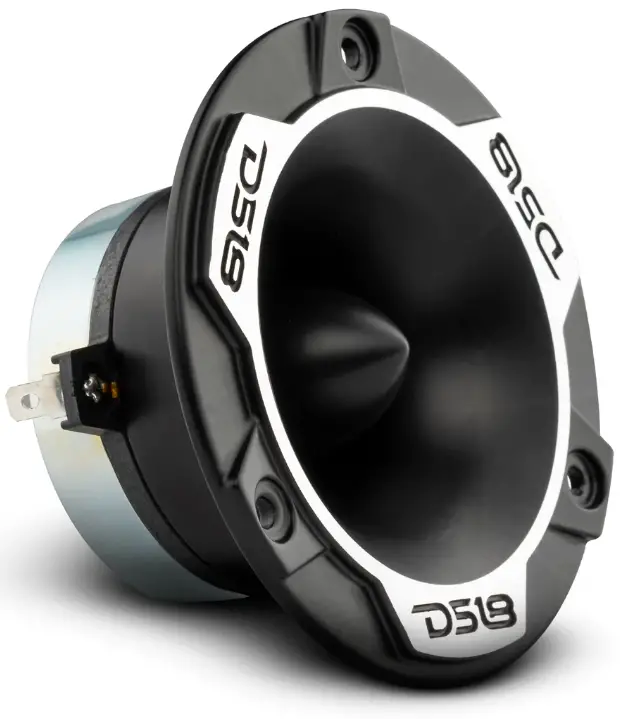

DS18 PRO-TWN6.4 4 Inch Neodymium Super Bullet Tweeter With 1.25 Inch Polyimide Voice Coil Owner’s Manual
SPECIFICATIONS
Nominal Diameter: 4″ / 100mm
Nominal Impedance: 4 Ohms
AES Power Handling: 75 Watts
Program Power Handling: 150 Watts
Peak Power Handling: 300 Watts
Sensitivity (1w/1m): 109 dB
Frequency Response: 2K-20KHz
Recommended Hi Pass Crossover: 3KHz
BODY
Pair or Single: Single
Body Material: Alumium
Body Color & Finish: Black
Bullet Material: Alumium
MOTOR
Voice Coil Diameter: 1.25″/ (32mm)
Voice Coil Former Material: Kapton
Winding Material: CCAR
Diaphragm Material: Polyimide
Magnet Material: Neodymium
Magnet Weight: 1.05 oz

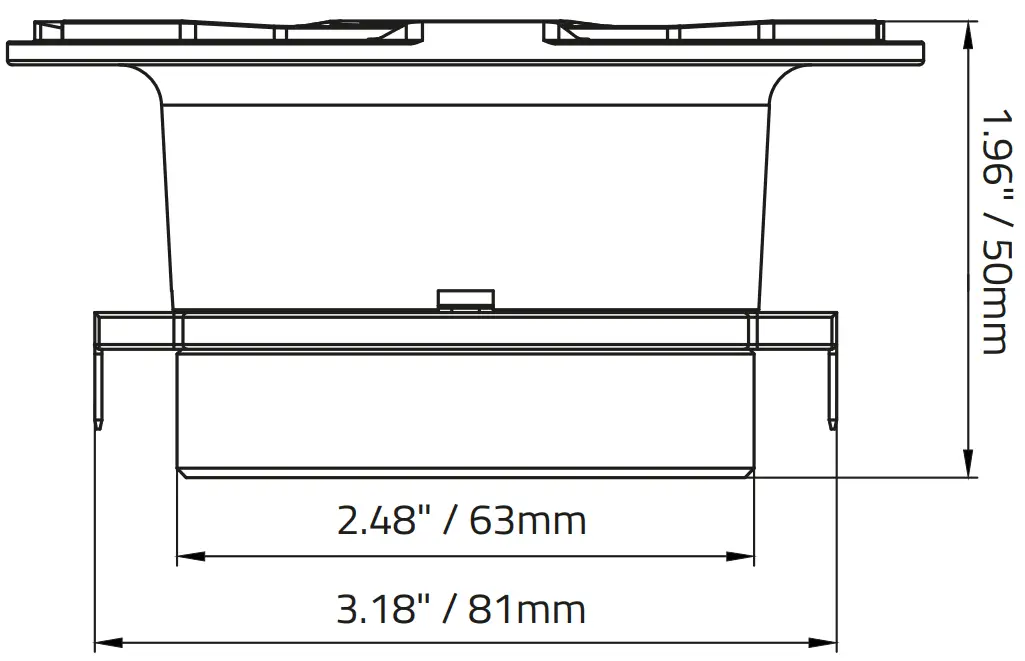

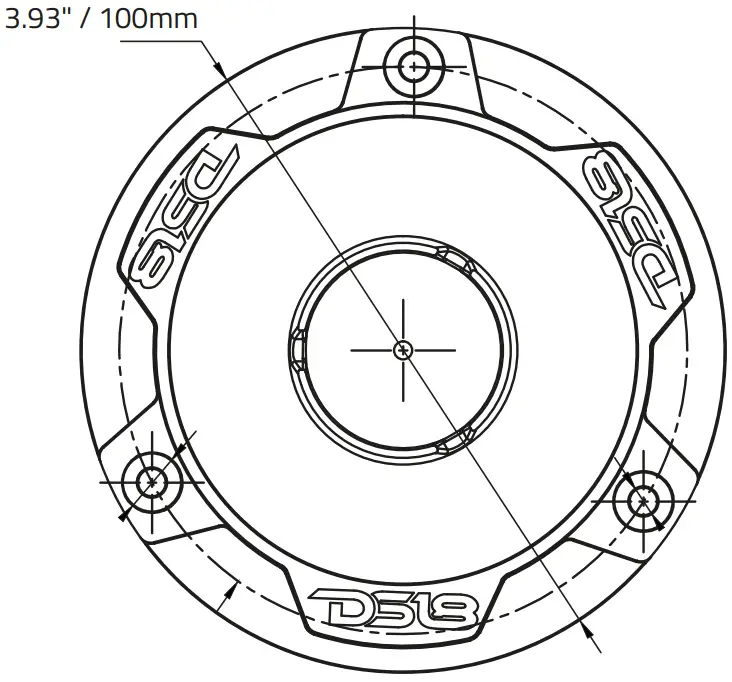

MEASUREMENTS
Overall Diameter: 3.93″ / 100mm
Overall Depth: 1.96″ / 50mm
Front Mount Baffle Cutout: 3.22″/ 82mm
Mounting Depth: 1.77″/ 45mm
WE LIKE IT LOUD
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice.
Images may or may not included optional equipment.
