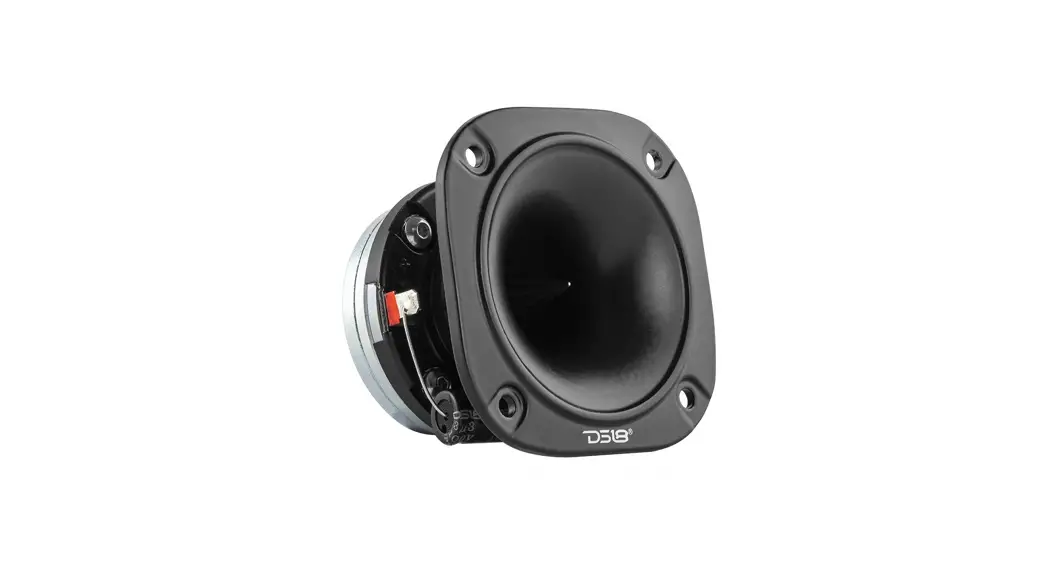

PRO-TWN2
3″ HIGH COMPRESSION SUPER
BULLET TWEETER WITH 1″
POLYIMIDE VOICE COIL AND NEODYMIUM MAGNET
OWNER’S MANUAL
 |  |
SPECIFICATIONS
Nominal Diameter .. …………………………………………………………………………………………………….3″
Nominal Impedance…………………………………………………………………………………………….4 OHMS
AES Power Handling …………………………………………………………………………………………50W
Program Power Handling ……………………………………………………………………………………100W
Peak Power Handling …………………………………………………………………………………….200W
Sensitivity (1w/1m) ………………………………………………………………………………………108dB

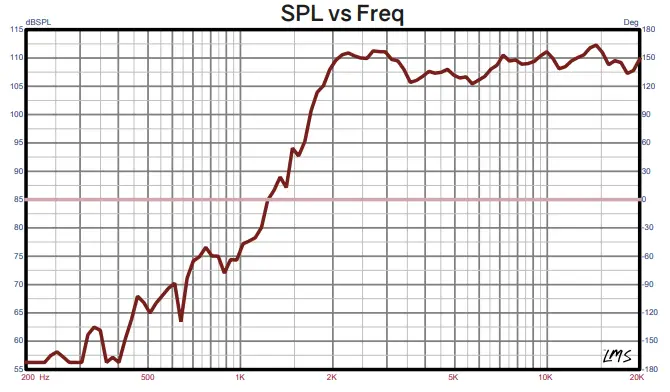

Frequency Response………………………………………………………………………………………. 1KHz-20KHz
Recommended Hi Pass Crossover………………………………………………………………. 2KHz
Pair or Single…………………………………………………………………………………………………Single
MOTOR
Voice Coil Diameter…………………………………………………………………………….1” / 25.4mm
Voice Coil Former Material ……………………………………………………………….Kapton
Winding Material………………………………………………………………………………..CCAW
Diaphragm Material ………………………………………………………………………… Composite Polyimide
Magnet Material………………………………………………………………………………….. Neodymium
Magnet Size………………………………………………………………………………….. 2.2×0.15″ / 56x4mm
Magnet Weight …………………………………………………………………………………..1.86 Oz
Body Material………………………………………………………………………………….Aluminum

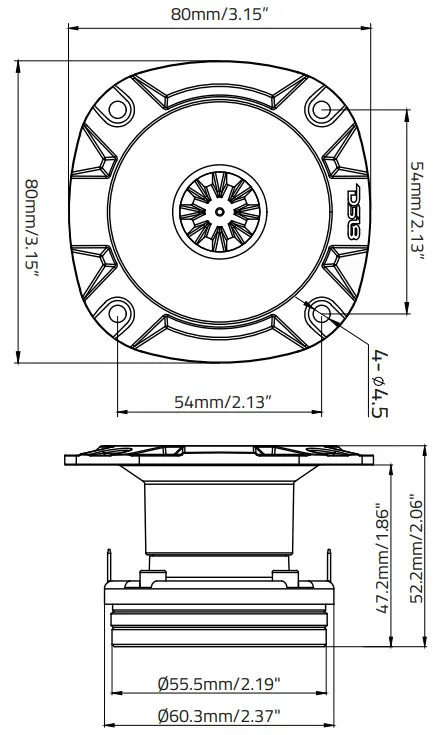

MEASUREMENTS
Overall Diameter …………………………………………………………………………..3.15″/80mm
Overall Depth ………………………………………………………………………………2.06″/52.2mm
Front Mount Baffle Cutout………………………………………………………. 2.4″/61mm
Mounting Depth…………………………………………………………………………1.86″/47.2mm
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
