ALUMINUM SUPER TWEETER WITH BULLET
Owner’s Manual
4 Ω
PRO-TW120
1” VC ALUMINUM SUPER TWEETER WITH BULLET
SUPER TWEETER DE ALUMINIO CON BALA Y BOBINA DE 1”
SPECIFICATIONS
| Nominal Diameter | 3″ |
| Nominal Impedance | 4 OHMS |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 103dB |
| Frequency Response | 2Khz-20 KHz |
| Recommended Hi Pass Crossover | 3 KHz |
MOTOR
| Voice Coil Diameter | 1”/25.4 mm |
| Voice Coil Former Material | CCAW |
| Winding Material | Aluminum |
| Diaphragm Material | Aluminum |
| Magnet Material. | Ferrite |
| Magnet Weight | .6.5 Oz |
| Body Material | Aluminum |

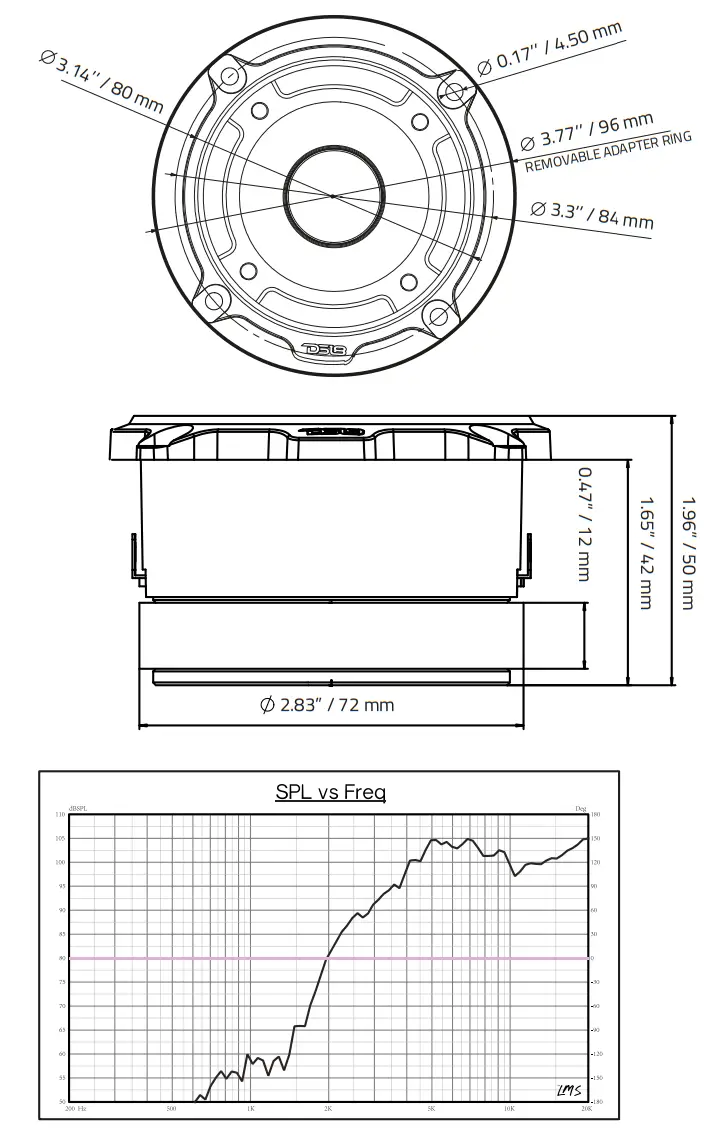

MEASUREMENTS
| Overall Width | 3.14″ / 80 mm |
| Overall Depth | 1.96″ / 50 mm |
| Cutout Diameter | 2.83″ / 72 mm |
| Mounting Depth | 1.65″ / 42 mm |
| Adapter Ring Overall Width | 3.77″ / 96 mm |
| Mounting Depth with Adapter Ring | 1.37″ / 35 mm |
