OWNER’S MANUAL
PRO-TW720L
1.6″ NEODYMIUM SUPER BULLET
TWEETER SHORT WITH 1″ PEEK
VOICE COIL AND RGB LED LIGHTS

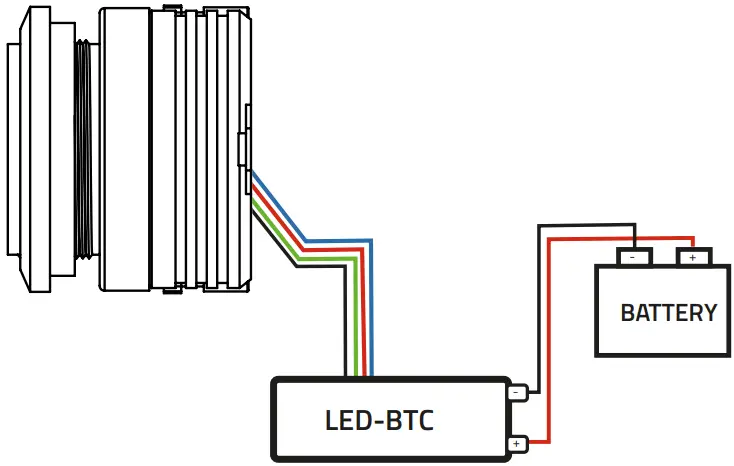

INSTALLATION & CONNECTION OPTIONS
1
Blue LED (-)
Red LED (-)
Green LED (-)
12V DC (+)
2
To connect without LED Control Module (LED-BTC), Connect as Shown in the Following Diagram:
Black wire “BK” Connected to Battery Positive (+) 12V
White Color Light “R” ; “B” and “G” Connected to Battery Negative (-)
Green Color Light “G” Connected to Battery Negative (-)
Red Color Light “R” Connected to Battery Negative(-)
Blue Color Light “B” Connected to Battery Negative (-)
Purple Color Light “R” and “B” Connected to Battery Negative(-)
Yellow Color Light “R” and “G” Connected to Battery Negative (-)
Cyan Color Light ”B” and “G” Connected to Battery Negative (-)
Blue LED (-) Red LED (-) Green LED (-) 12V DC (+)
SPECIFICATIONS
Nominal Diameter ………………………………… 1.6″ / 42mm
Nominal Impedance ……………………………… 4 Ohms
AES Power Handling ……………………………. 70W
Program Power Handling ……………………… 140W
Peak Power Handling ……………………………. 280W
Sensitivity (1w/1m) ………………………………. 103 dB

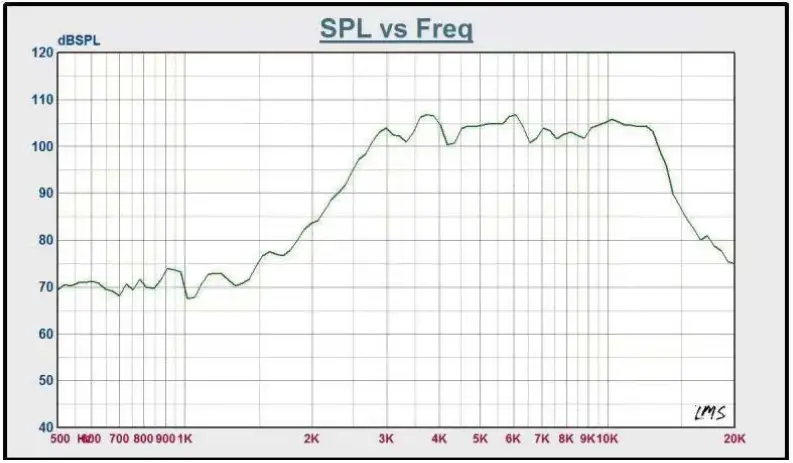

Frequency Response …………………………….. 2K-20KHz
Recommended Hi Pass Crossover ………… 3KHz
BODY FEATURES
Pair or Single ……………………….. Single
Body Material ………………………. Alumium
Body Color / Finish ……………. Black
Bullet Material …………………….. Translucid ABS with RGB LED
Rubber Gaskets …………………… Yes, 1 x 5mm + 1 x 1.9mm (thickness)
Locknut ring ………………………… Yes, 2 x Aluminum 4.7mm (thickness)
RGB Wire ……………………………. Yes, with fast connector
MOTOR
Voice Coil Diameter ……………………. 1″/ 25.4mm
Voice Coil Former Material …………. KSV
Winding Material …………………………. Aluminum Round Wire
Diaphragm Material …………………….. Polyether Ether Ketone (PEEK)
Magnet Material …………………………… Neodymium
Magnet Size …………………………………. 0.96″x0.27″x0.27″ / 24.5x7x7mm

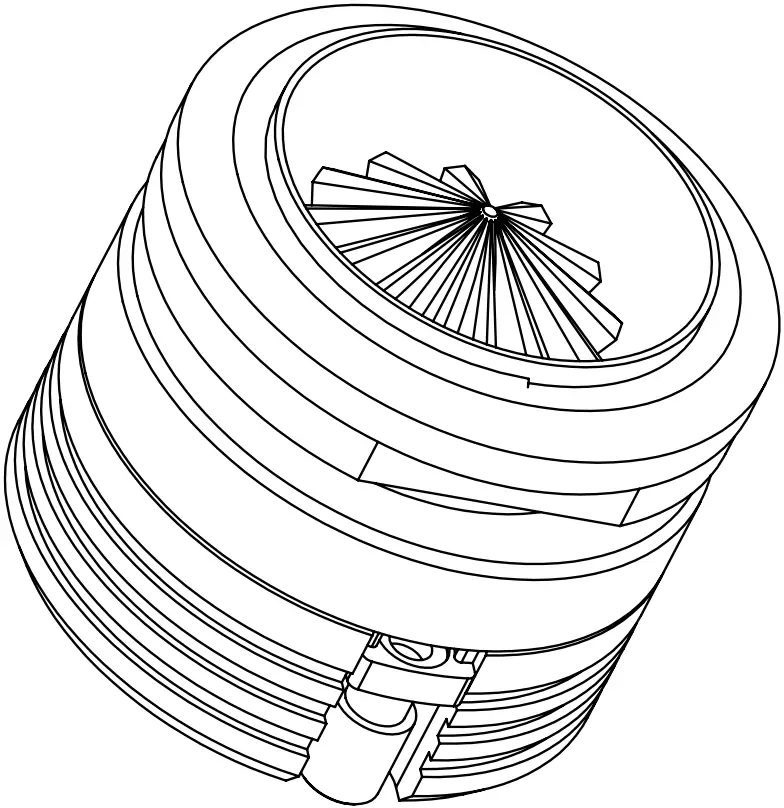

MEASUREMENTS

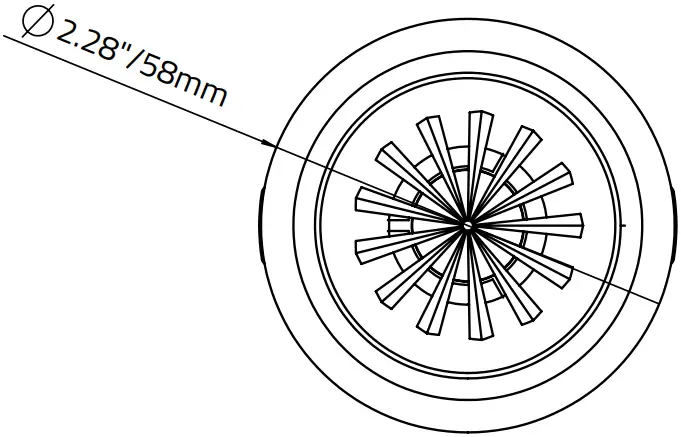

Overall Diameter …………………………….. 2.28″ / 58mm
Overall Depth …………………………………. 1.93″ / 49mm
Front Mount Baffle Cutout …………….. 1.73″ / 44mm
Mounting Depth …………………………….. 1.77″~1.26″ / 45~32mm
MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice. Images may or may not included optional equipment.
