DS18 PRO-TWN3 2.5 Inch Super Bullet Tweeter Owner’s Manual
PRO-TWN3
SPECIFICATIONS
Nominal Diameter 2.5” / 63 mm
Nominal Impedance .4 OHMS
AES Power Handling 50W
Program Power Handling 100W
Peak Power Handling 200W
Sensitivity (1w/1m) (1w / 1m) 107 dB

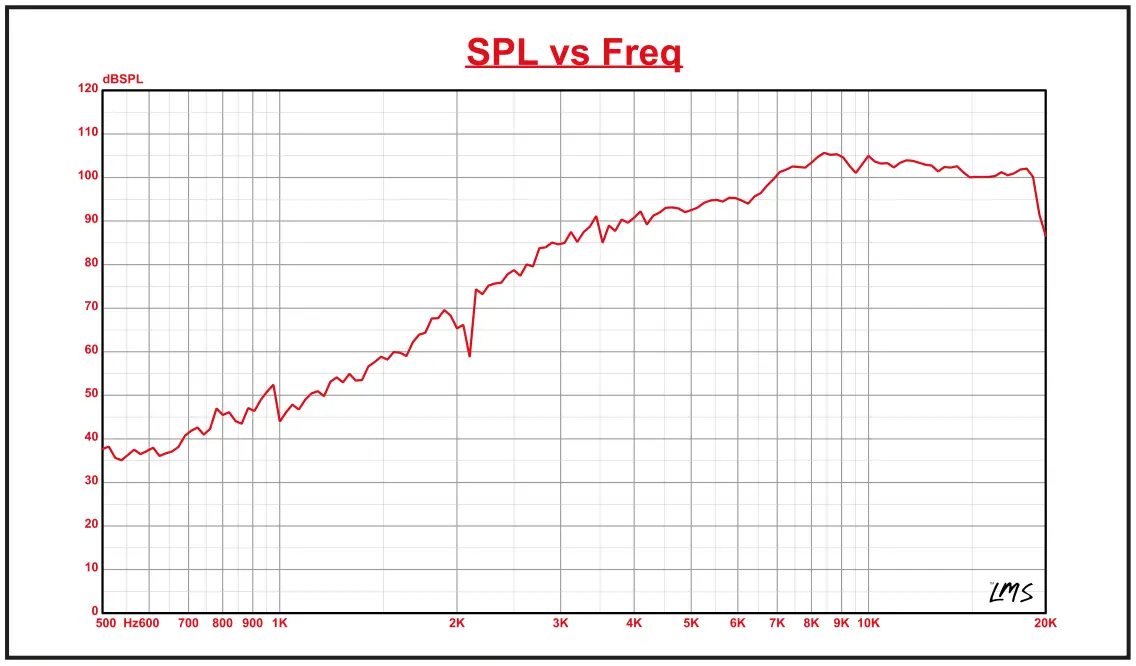

Frequency Response 1.6 KHz – 20 KHz
Recommended Hi Pass Crossover 2 KHz
Pair or Single / Par o Individual Single
Filter Included / Filtro Incluido Yes 2.2 uf
MOTOR
Voice Coil Diameter 1″/25.4mm
Voice Coil Former Material Kapton
Winding Material CCAW
Diaphragm Material PEN
Magnet Material Neodymium
Magnet Weight 0.57 oz
Body Material PC

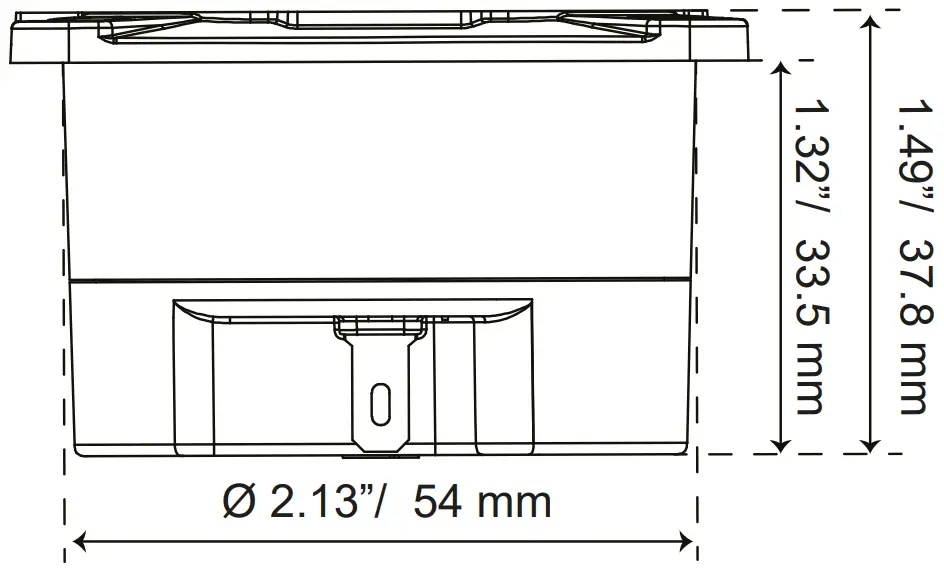

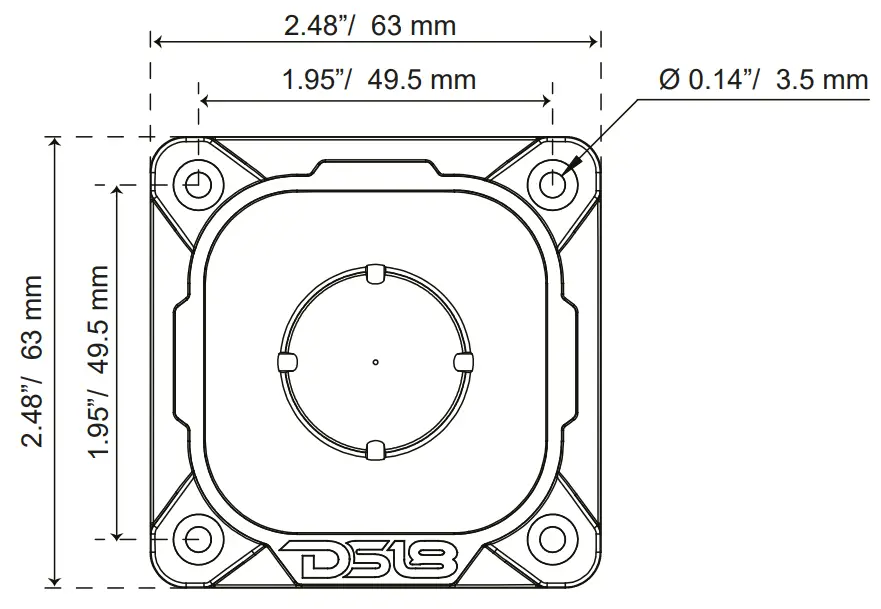

MEASUREMENTS
Overall Diameter 2.48 X 2.48” / 63 x 63 mm
Overall Depth 1.49” / 32.8 mm
Front Mount Baffle Cutout 2.12” / 54 mm
Mounting Depth 1.32” / 33.5 mm
FOR MORE INFORMATION PLEASE VISIT DS18.COM
