ZXI-T1 1.7 Inch Pei Dome Tweeter
Owner’s Manual

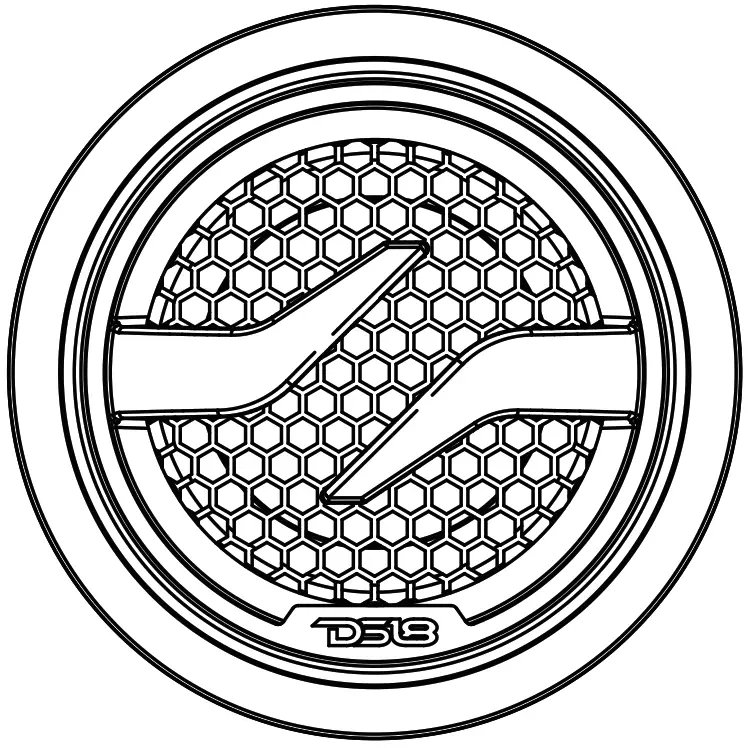

1.7 Inch Pei Dome Tweeter
MODE 1

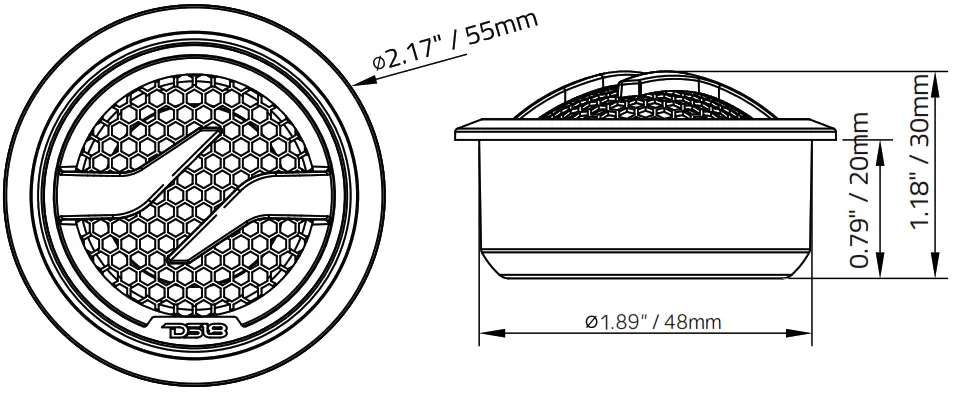

Surface Angle Mount
MODE 2

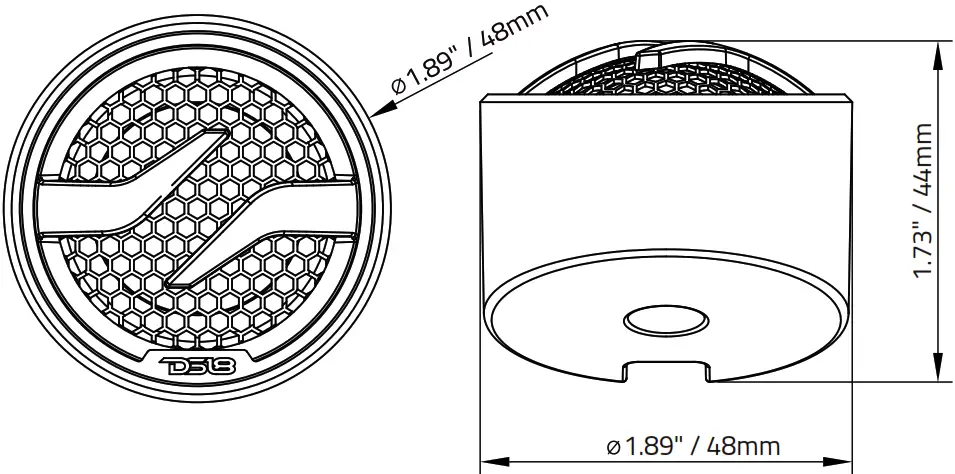

Flush Mount
SPECIFICATIONS
Nominal Diameter. …………………………………………………………………………………… 1.7” / 43mm
Nominal Impedance ………………………………………………………………………………… 4 OHMS
AES Power Handling ………………………………………………………………………………… 25W
Program Power Handling ……………………………………………………………………………. 50W
Peak Power Handling …………………………………………………………………………………… 100W
Sensitivity (1w/1m) ……………………………………………………………………………………….. 92dB

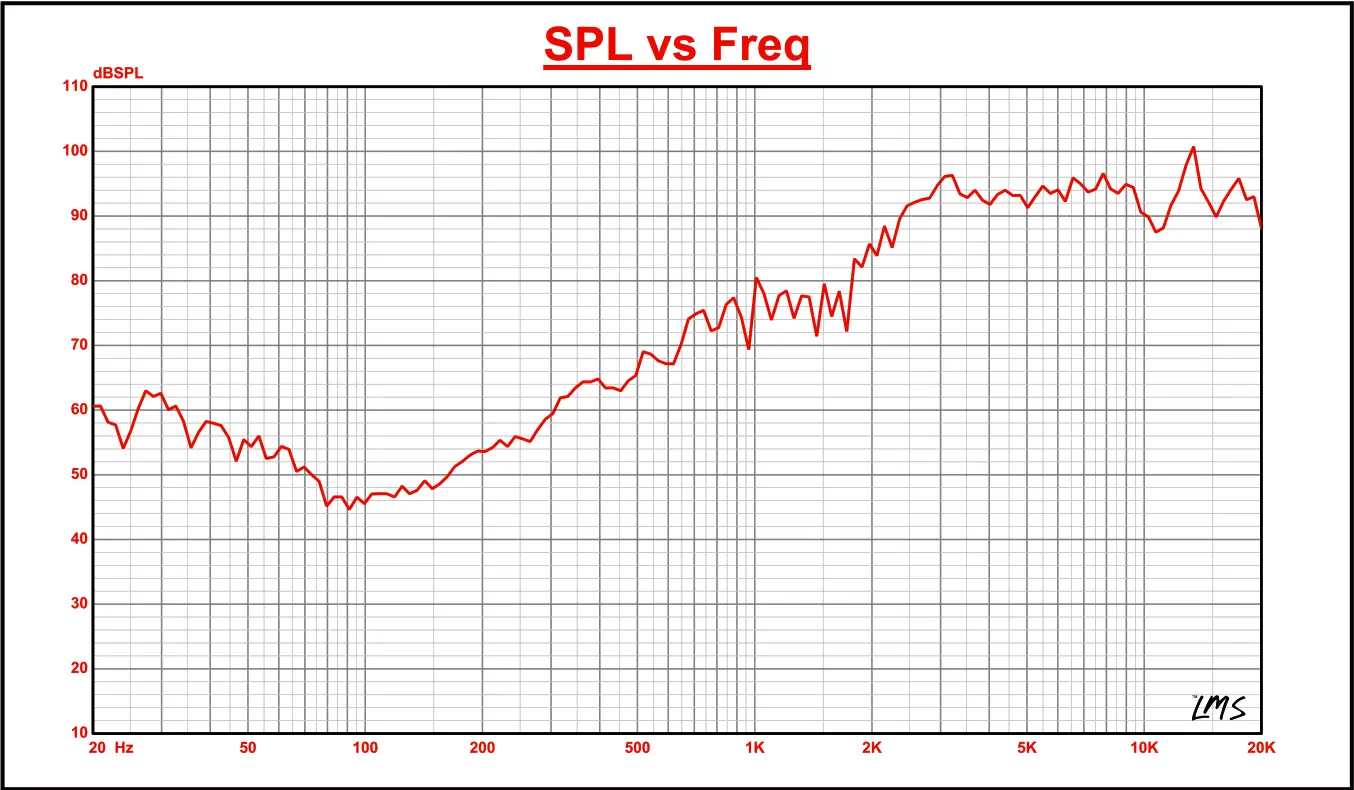

Frequency Response ………………………………………………………………………………………. 1KHz-20KHz
Recommended Hi Pass Crossover ………………………………………………………………….. 3.5KHz
Pair …………………………………………………………………………………………………………………… Yes
Body Color & Material ………………………………………………………………………………………. Black ABS
MOTOR
Voice Coil Diameter ………………………………………………………………… 1”/25.4 mm
Voice Coil Former Material ……………………………………………………… Aluminum
Winding Material ………………………………………………………………………. SV
Diaphragm Material ………………………………………………………………….. PEI
Magnet Material …………………………………………………………………….. Neodymium
Magnet Weith ………………………………………………………………………………. 13 g
MEASUREMENTS
WITH ANGLE SURFACE MOUNT ADAPTOR
Overall Diameter ……………………………………………………………………………………….. 1.89″ / 48 mm
Overall Height ……………………………………………………………………………………………. 1.73″ / 44 mm
WITH A FLUSH MOUNT ADAPTOR
Overall Diameter ……………………………………………………………………………………….. 2.16″ / 55 mm
Overall Depth …………………………………………………………………………………………….. 1.18″ / 30 mm
Front Mount Baffle Cutout …………………………………………………………………………. 1.89″ / 48 mm
Mounting Depth …………………………………………………………………………………………… 0.78” / 20 mm
TWEETER WITHOUT ADAPTER
Overall Diameter ……………………………………………………………………………………. 1.71″ / 43.5 mm
Overall Height ………………………………………………………………………………………… 1″ / 27.5 mm
