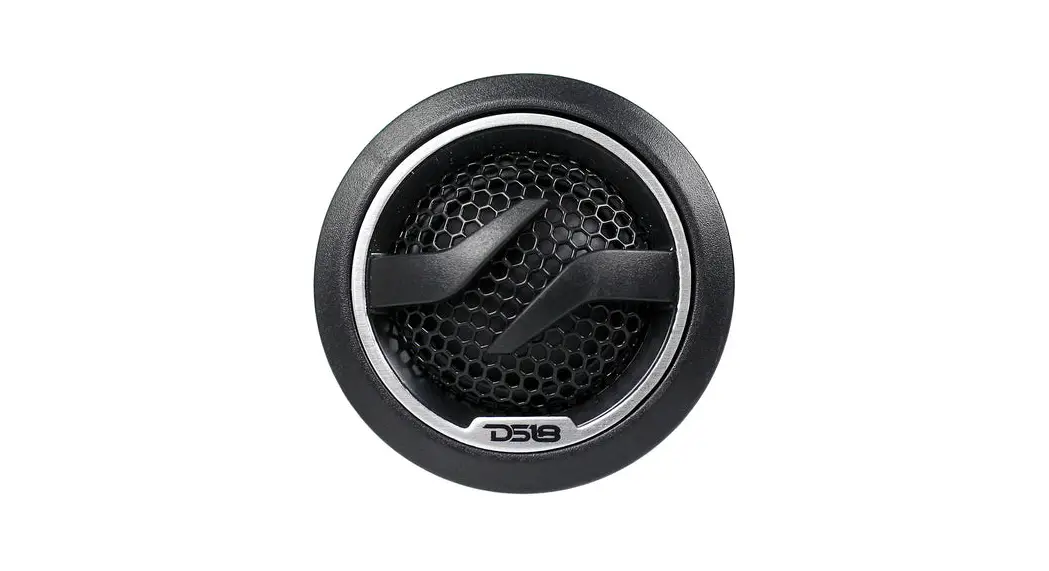

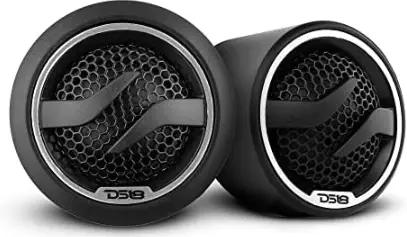

Ds18 Zxi-t1 1.7 Inch Pei Dome Tweeter With 1inch Aluminum Voice Coil 100 Watts Max Instruction Manual

DS18 ZXI-T1 1.7 Inch PEI Dome Tweeter With 1Inch Aluminum Voice Coil 100 Watts Max

Surface Angle Mount

MODE 1

Flush Mount

MODE 2

SPECIFICATIONS

• Nominal Diameter: 1.7” / 43mm
• Nominal Impedance: 4 OHMS
• AES Power Handling: 25W
• Program Power Handling: 50W
• Peak Power Handling: 100W
• Sensitivity (1w/1m): 92dB
• Frequency Response: 1KHz-20KHz
• Recommended Hi Pass Crossover: 3.5KHz
• Pair: Yes
• Body Color & Material: Black ABS

MOTOR

• Voice Coil Diameter: 1”/25.4 mm
• Voice Coil Former Material: Aluminum
• Winding Material: SV
• Diaphragm Material: PEI
• Magnet Material: Neodymium
• Magnet Weith: 13 g

MEASUREMENTS

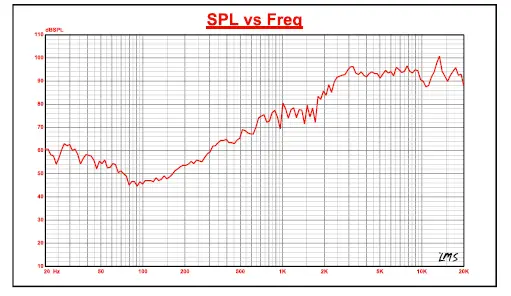

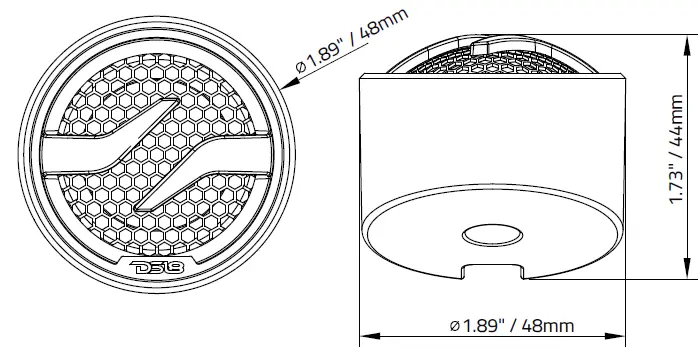

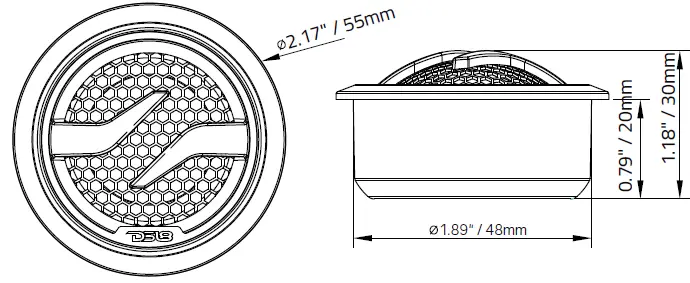

WITH ANGLE SURFACE MOUNT ADAPTOR

• Overall Diameter: 1.89″ / 48 mm
• Overall Height: 1.73″ / 44 mm

WITH FLUSH MOUNT ADAPTOR

• Overall Diameter: 2.16″ / 55 mm
• Overall Depth: 1.18″ / 30 mm
• Front Mount Baffle Cutout: 1.89″ / 48 mm
• Mounting Depth:  0.78” / 20 mm

TWEETER WITHOUT ADAPTER

• Overall Diameter: 1.71″ / 43.5 mm
• Overall Height: 1″ / 27.5 mm

FOR MORE INFORMATION
PLEASE VISIT DS18.COM
