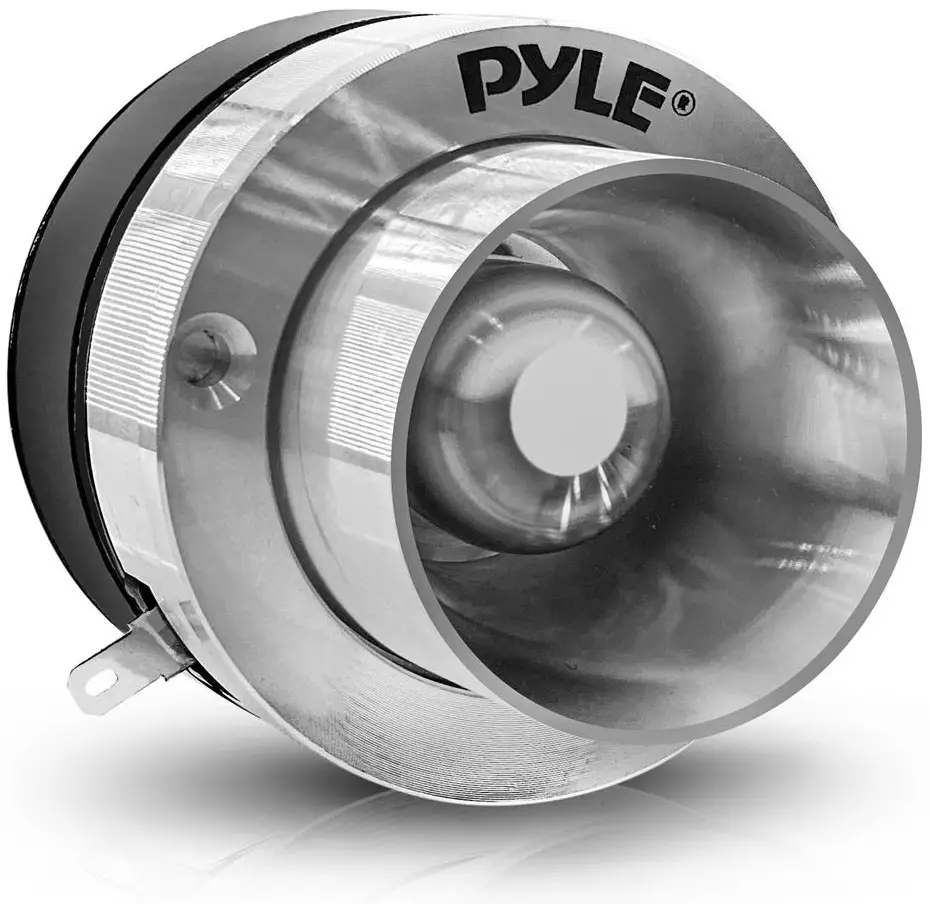

PYLE PDBT30 1.0 Inch Voice Coil Titanium Dome Tweeter User Guide

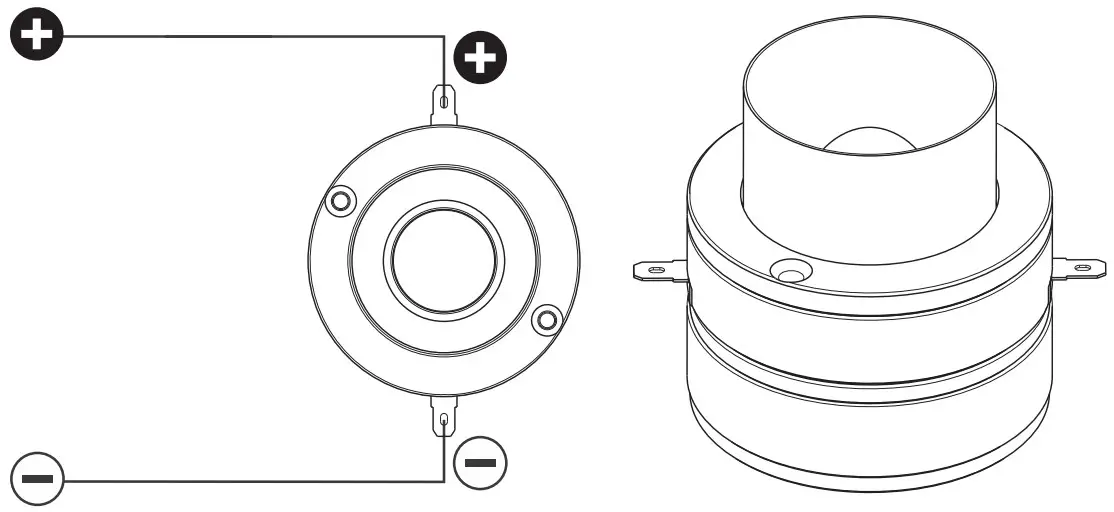

WIRING CONNECTION
Connect the power amplifier to the positive and negative terminals accordingly as shown.
Features
- Die-Cast Aluminum Frame
- 2.5 Inches Full Range Car Speakers
- Enhance Sound System for Car Bass, Crossover Tweeter for Car Component Stereo
- Enhance Lower Frequency Music Note
- Aluminum Housings
- 3 Mounting Options: Flush / Swivel / Surface or Angle Mount

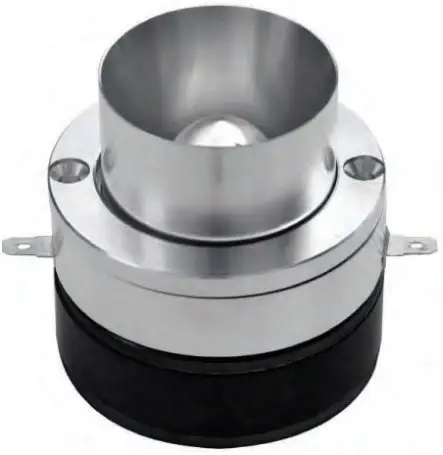

What’s in the Box
- Tweeter
- Wires
- Screws
Technical Specs
- Cone Type: Titanium Dome
- Voice Coil Diameter: 1.0”
- Magnet Type: Ferrite Magnet
- Power Supply: 100 Watts MAX, 50 Watts RMS
- Voice Coil: 1.0”
- Impedance: 4 Ohm
- Sensitivity: 105 dB 1W/1M
- Response: 2.0K Hz-20K Hz
- Magnet: 8 Oz

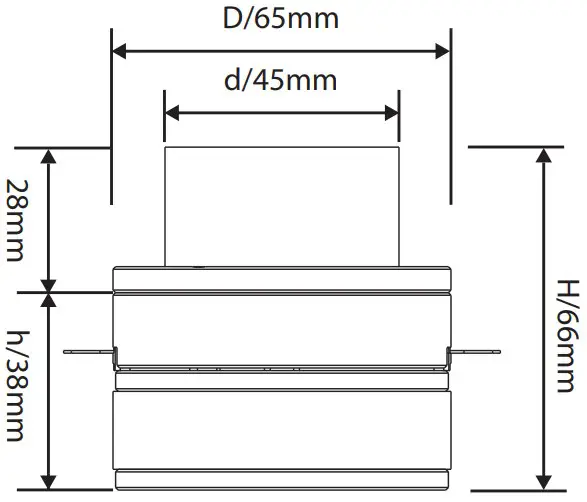

- Product Dimensions: 2.6” x 2.6” x 2.6” –inches
- Cutout Size: 1.78” –inches
- Mounting Depth: 1.5” –inches
Support
California Prop 65 Warning
WARNING:
This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest. For more info go to: www.P65warnings.ca.gov
Questions? Issues?
We are here to help! Phone: (1) 718-535-1800
Email: [email protected]
www.PyleUSA.com
