Pyle Pdbt33 1.75 Inch Voice Coil Titanium Dome Tweeter User Guide

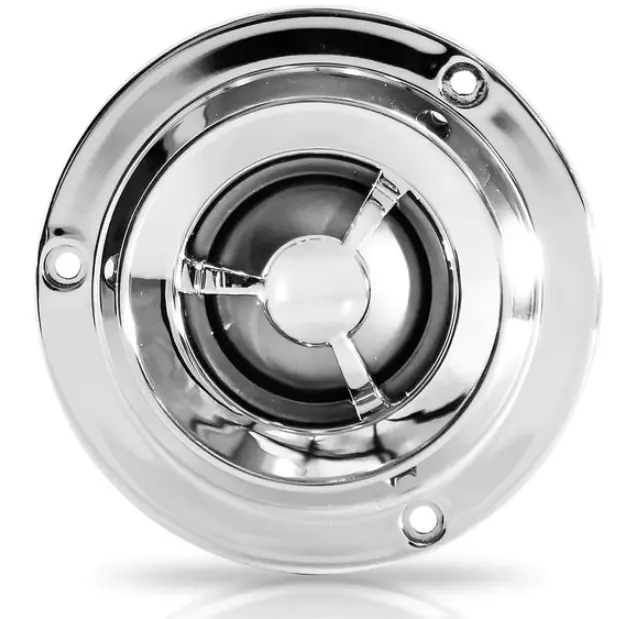

PYLE PDBT33 1.75 Inch Voice Coil Titanium Dome Tweeter

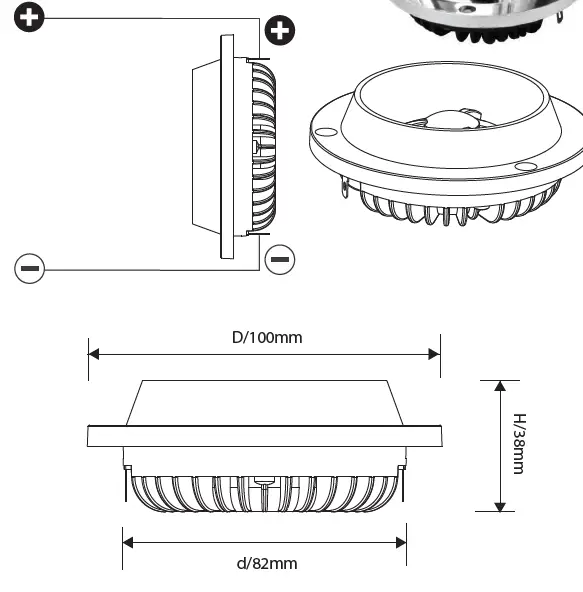

WIRING CONNECTION

Connect the power amplifier to the positive and negative terminals accordingly as shown.

Features

•  4” Pro Car Audio Tweeter
• Ferro Fluid Enhanced Voice Coil
• 4” Titanium Super Tweeter
•  Diamond Chrome Cutting Finish
• High Strength Engineering Plastic Frame
• Enhance Sound System for Car Bass, Crossover Tweeter for Car Component Stereo
• Enhance Lower Frequency Music Note
• 3 Mounting Options: Flush / Swivel / Surface or Angle Mount
• Wide Range

What’s in the Box

Technical Specs

• Cone Type: Titanium Dome
• Voice Coil Diameter: 1.75”
• Magnet Type: NdFeb Magnet, 43*5mm
• Power Supply: 200 Watts MAX, 100 Watts RMS
• Voice Coil: 1.75”
• Impedance: 4 Ohm
• Sensitivity: 105 dB 1W/1M
• Response: 2.0K Hz-20K Hz
• Product Dimensions: 3.9 ” x 3.9” x 1.5” -inches
• Cutout Size: 3.2” –inches
