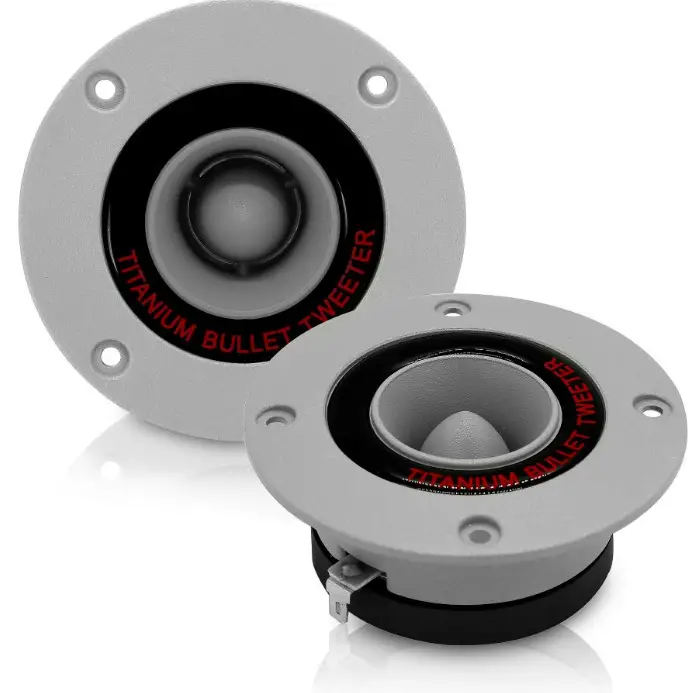

PYLE T18 300 Watt Alumiuum Die-Cast Super Titanium Tweeter
INSTALLATION INSTRUCTIONS

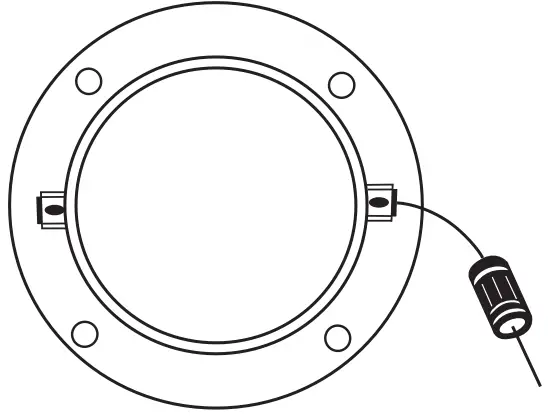

If you purchase a Crossover Network for your Woofer Midrange/Tweeter system you do not need to connect condenser. If your system does not include a Crossover Network, you must connect condenser as follows:
- Connect either end of condenser to the positive terminal (+) of speaker.
- Connect other end of condenser to the speaker wire harness. Be certain to connect to Positive side of harness, which is the radio out put (+) side.
- It is recommended that you solder each connection for best results.
- Secure condenser to speaker frame with glue.
Features
- 3.25” Aluminum Bullet Horn w/1” Super Tweeter
- 20 oz. Magnet Structure
- 300 Watts Rated Power
- Ferro Fluid Enhanced
- Frequency Response: 2k-25kHz
- SPL: 96dB
- 4/8 Ohms Impedance
- Complete to Any Woofer Enclosure
- Complete Pair w/Capacitor Crossover Network and Hardware

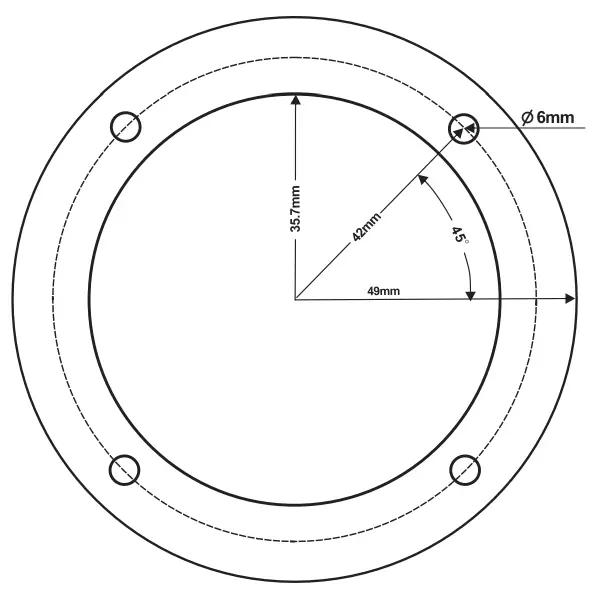

TEMPLATE
