Ds18 Tx1 1.38-inch 200 Watts Max Pei Dome Ferrite Tweeters Owner's Manual

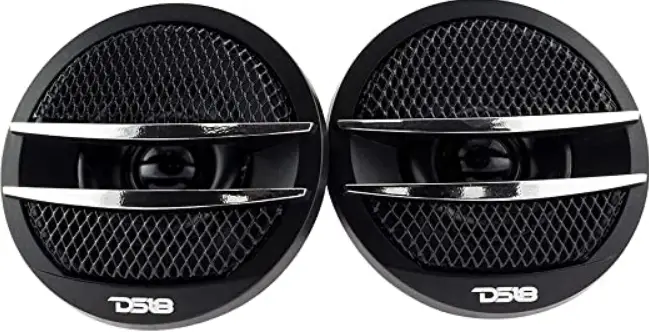

DS18 TX1 1.38-inch 200 Watts Max Pei Dome Ferrite Tweeters

TX1

Specifications

• Nominal Diameter …………………………………………………………..2″
• Nominal Impedance …………………………………………….. 4 ohms
• AES Power Handling  ……………………………………… 25 Watts
• Program Power Handling ……………………. 50 Watts
• Peak Power Handling ………………………………….. 200 Watts
• Sensitivity (1w/1m)  ……………………………………………….. 88dB
• Frequency Response …………………………….. 2KHz-20KHz
• Recommended Hi Pass Crossover…….. 3KHz

Motor

• VC Diameter  ………………………………………………….. 0.5″
• VC Former Material ……………………………………. KSV
• Diaphragm Material ………………………. PEI Dome
• Magnet Material ………………………………………………. Ferrite
• Body Material ……………………………………………. Plastic

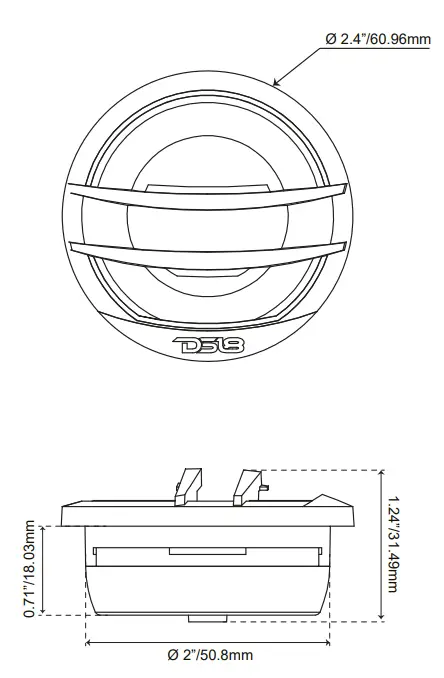

Measurements

• Overall Diameter ……………………………………………… 2.4”/60.96mm
• Overall Depth ……………………………………………… 1.24”/31.49mm
• Front Mount Baffle Cutout …………………….. 2”/50.8mm
• Mouting Depth …………………………………. 0.71”/18.03mm

FOR MORE INFORMATION

PLEASE VISIT: DS18.COM
