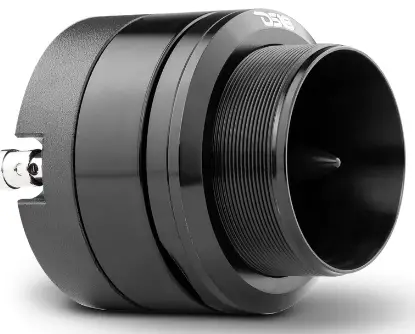

DS18 PRO-TW920 2.7 Inch Super Bullet Tweeter with 1.4 Inch Titanium Voice Coil and Neodymium Magnet

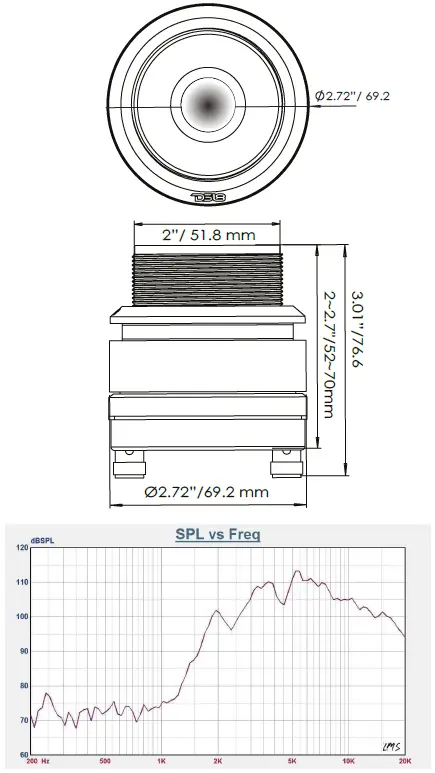

DIMENSIONS

SPECIFICATIONS

• Nominal Diameter ………………………………………………………….2.7”
• Nominal Impedance ……………………………………………4 OHMS
• Peak Power Handling  ………………………………..320W
• Program Power Handling …………………160W
• AES Power Handling  ………………………………………….80W
• Sensitivity (1w/1m)  ………………………………………….106 dB
• Frequency Response ………………………..2KHz – 20KHz
• Recommended Hi Pass Crossover ……….3 KHz

MOTOR

• Voice Coil Diameter  …………………1.4″ / 35.5mm
• Voice Coil Former Material  …………………KSV
• Winding Material  …………………………………………………..CCAR
• Diaphragm Material  ……………………….Titanium
• Magnet Material  …………………………..Neodymium
• Magnet Size  ……………………………………………………..1.38″ x 0.27″
• Body Material  ………………………………….Aluminum
• Bullet Material  ………………….CNC Aluminum

MEASUREMENTS

• Overall Diameter ……………………………………………..2.72″ / 69.2mm
• Overall Depth  ………………………………………………3.01″ / 76.6mm
• Front Mount Baffle Cutout …………….2″ / 51.8mm
• Mounting Depth  ………………………..2~2.7″ / 52~70mm

FOR MORE INFORMATION PLEASE VISIT DS18.COM
