OWNER’S MANUAL
PRO-TW320
4″ SUPER BULLET TWEETER WITH
1.5″ ALUMINUM VOICE COIL
4Ω
SPECIFICATIONS
Nominal Diameter………………………………………………….4″ / 102mm
Nominal Impedance…………………………………………………4ohms
AES Power Handling ………………………………………………………120W
Program Power Handling………………………………………….240W
Peak Power Handling …………………………………………………………480W
Sensitivity (1w/1m) ………………………………………………..107db

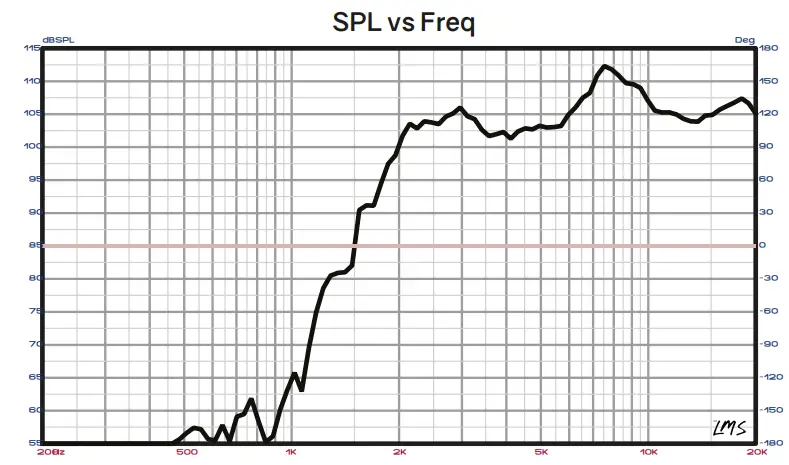

Frequency Response……………………………………….1.6K-20KHz
Recommended Hi Pass Crossover ………………………………2KHz
MOTOR
Voice Coil Diameter…………………………………….1.5″ / 38mm
Voice Coil Former Material ……………………………………. Kapton
Winding Material ……………………………………………….. CCAR
Diaphragm Material…………………… Aluminum
Magnet Material ………………………………..Ferrite
Magnet Weight………………………………………………………….14.3oz
Body Material ……………………………………….. Aluminum
Body Color …………………………… Sandblasted Black
Bullet Material ……………………………………………………….. Aluminum

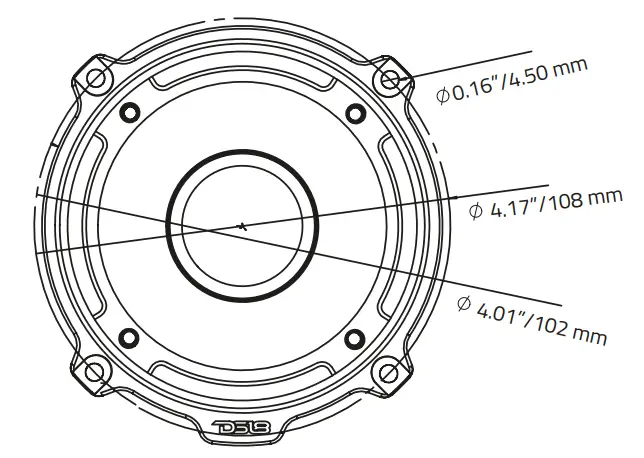

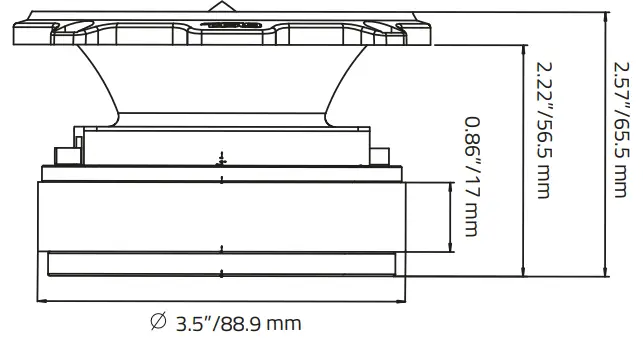

MEASUREMENT
Overall Diameter……………….4.01” / 102 mm
Overall Depth …………………………..2.57” / 65.5 mm
Front Mount Baffle Cutout ……………………3.54” / 90 mm
Mounting Depth ………………………….2.22” / 56.5 mm
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
WE LIKE IT LOUD
