Ds18 Pro-twx5 4x5.35 Inch Super Bullet Tweeter With 1.5 Inch Aluminum Voice Coil Owner's Manual

OWNER’S MANUAL
MANUAL DEL USUARIO

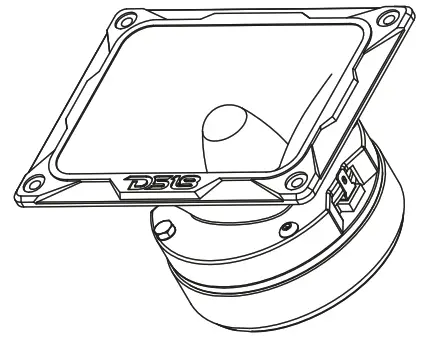

4X5.35″ SUPER BULLET TWEETER
WITH 1.5″ ALUMINUM VOICE COIL
SUPER TWEETER BALA DE 4X5.35” CON BOBINA
DE VOZ DE 1.5” Y ALUMINIO

PRO-TWX5

SPECIFICATIONS

Nominal Diameter ……………………………………………..4″ x 5.35”
Nominal Impedance …………………………………………4 OHMS
AES Power Handling ………………………………………125W
Program Power Handling ……………….250W
Peak Power Handling ………………………………500W
Sensitivity (1w/1m) ………………………………………..107 dB
Frequency Response  ……………………….3KHz – 20KHz
Recommended Hi Pass Crossover ………..3 KHz

MOTOR

Voice Coil Diameter  …………………………………..1.5”
Voice Coil Former Material …………………….KAPTON
Winding Material ……………………………………………KCCAW
Diaphragm Material ……………..Aluminum
Magnet Material ……………………………………….Ferrite
Magnet Weight……………………………………………………………….14 oz
Body Material ……………………………..Aluminum
Bullet Material ………………………………..Aluminum

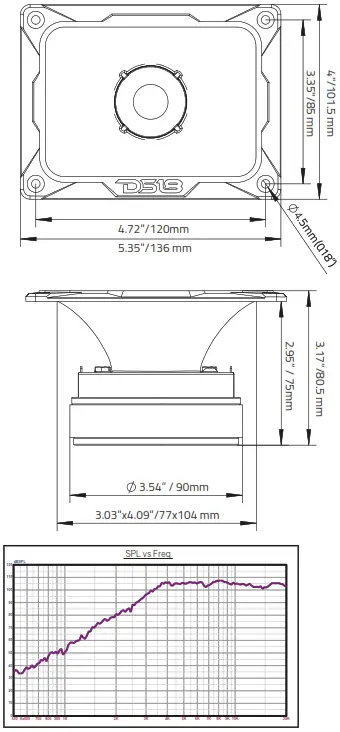

MEASUREMENTS

Overall Diameter ……………………….4“ x 5.35” / 101.5×136 mm
Overall Depth …………………………………………….3.17″/80.5 mm
Front Mount Baffle Cutout
Corte del Orificio de Montaje………………………………………..3.03″x4.09″/77×104 mm
Mounting Depth ………………………………2.95” / 75mm

FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
WE LIKE IT LOUD
