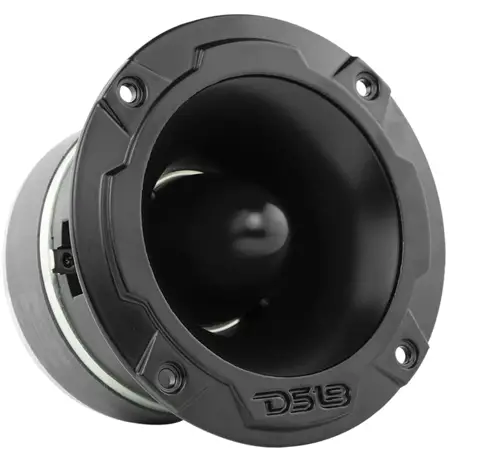

Ds18 Pro-twx2 3.78-inch Super Bullet Tweeter With 1-inch Aluminum Voice Coil Owner's Manual

OWNER’S MANUAL
PRO-TWX2
3.78″ SUPER BULLET TWEETER
WITH 1″ ALUMINUM VOICE COIL
4Ω

PRO-TWX2

SPECIFICATIONS

Nominal Diameter ……………………………….3.78” / 96mm
Nominal Impedance……………………4 OHMS
AES Power Handling ……………………….60W
Program Power Handling ………….120W
Peak Power Handling ……………………….240W
Sensitivity (1w/1m) …………………..103.5 dB
Frequency Response ……….3.5-20KHz
Recommended Hi Pass Crossover …..3.5KHz
Pair or Single ……………………………………………Pair / Par

MOTOR
Voice Coil Diameter ………………1” / 25.4mm
Voice Coil Former Material ………..KAPTON
Winding Material …………CCAW
Diaphragm Material ………Aluminum
Magnet Material……………………………..Ferrite
Magnet Weight………………………8 oz
Body Material ………………Aluminum
Bullet Material……………Aluminum

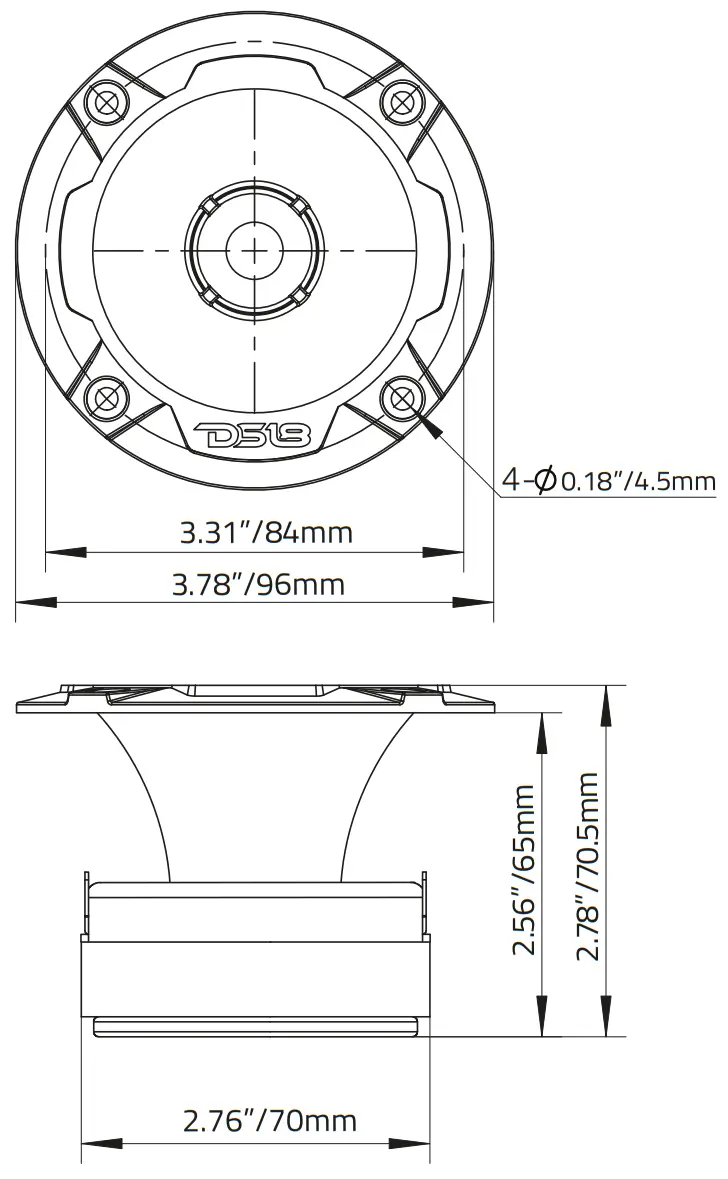

MEASUREMENTS
Overall Diameter ………….3.78” / 96mm
Overall Depth………………………2.78“ / 70.5mm
Front Mount Baffle Cutout ……..2.83” / 72mm
Mounting Depth ………………….2.56” / 65mm
Motor Diameter ………………………….2.76” / 70mm

WE LIKE IT LOUD

FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
