DS18 PRO-TWX5 Aluminum Super Bullet Tweeter Owner’s Manual

Product Description

SPECIFICATIONS

Nominal Diameter :4″ x 5.35”
Nominal Impedance:  4 OHMS
AES Power Handling:   125W
Program Power Handling: 250W
Peak Power Handling: 500W
Sensitivity (1w/1m): 107 dB

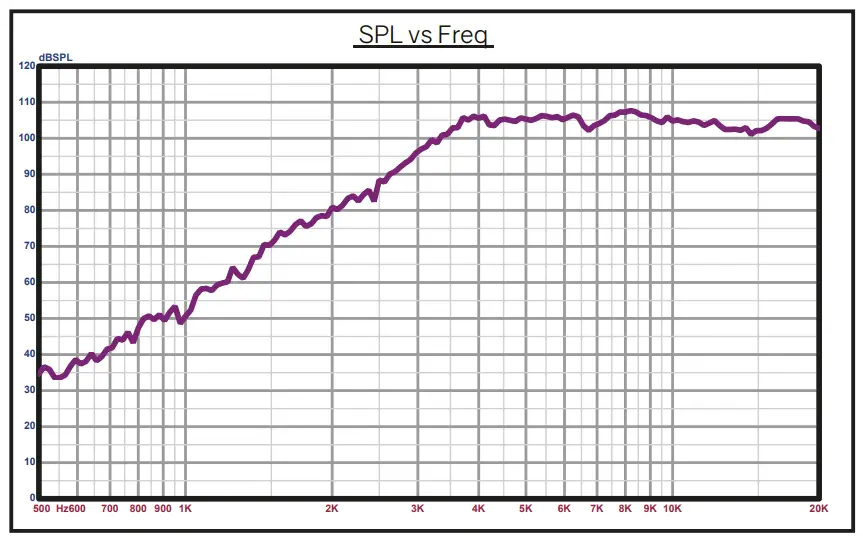

Frequency Response: 3KHz – 20KHz
Recommended Hi Pass Crossover: 3 KHz

MOTOR

Voice Coil Diameter: 1.5”
Voice Coil Former Material: KAPTON
Winding Material: KCCAW
Diaphragm Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 14 oz
Body Material: Aluminum
Bullet Material: Aluminum

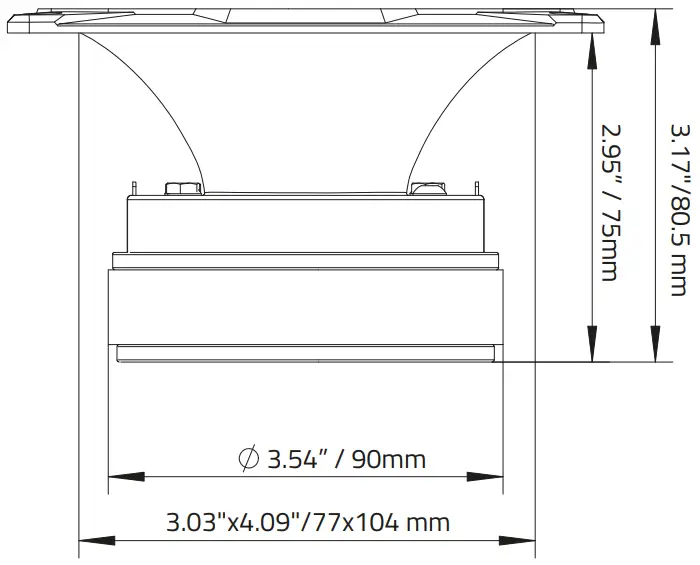

MEASUREMENTS

Overall Diameter:  4“ x 5.35” / 101.5×136 mm
Overall Depth: 3.17″/80.5 mm
Front Mount Baffle Cutout
Corte del: 3.03″x4.09″/77×104 mm
Mounting Depth: 2.95” / 75mm

FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
