DS18 GTX1XL 1.3 Inch VC Aluminum Super Bullet Tweeter Owner’s Manual
GTX1XL Descriptions
SPECIFICATIONS
- Nominal Diameter: 3.75” / 95mm
- Nominal Impedance: 4 OHMS
- AES Power Handling: 80W
- Program Power Handling: 160W
- Peak Power Handling: 320W
- Sensitivity (1w/1m): 100 dB

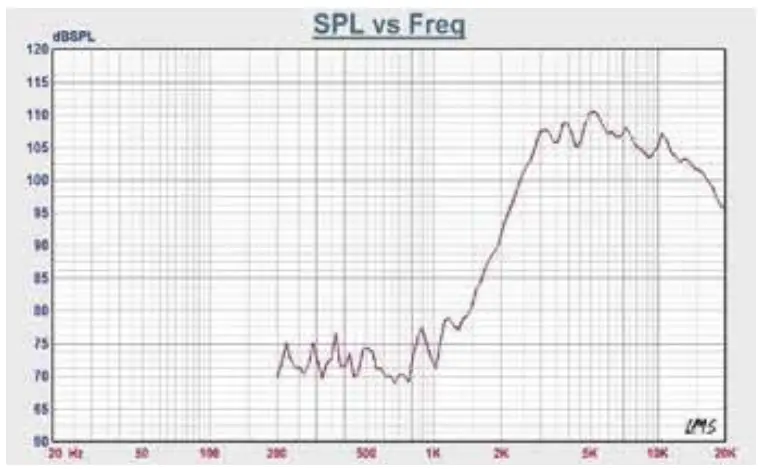

- Frequency Response: 2.5KHz – 20KHz
- Recommended Hi Pass Crossover: 2.5KHz
- Pair or Single: Single
MOTOR
- Voice Coil Diameter: 1.3” / 33.5mm
- Voice Coil Former Material: KSV
- Winding Material: CCAW
- Diaphragm Material: Aluminum
- Magnet Material: Neodymium
- Magnet Weight: 1.45 oz
- Body Material: Aluminum
- Body Color: Black with Red

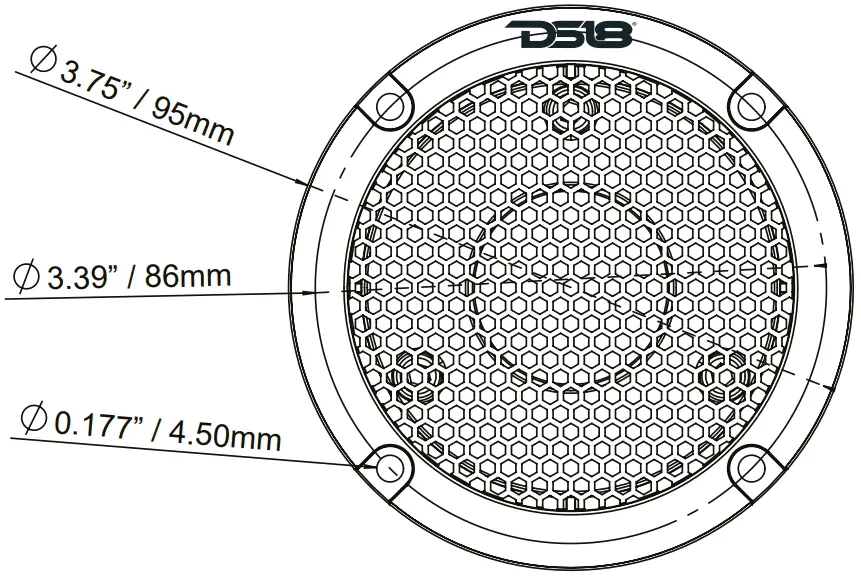

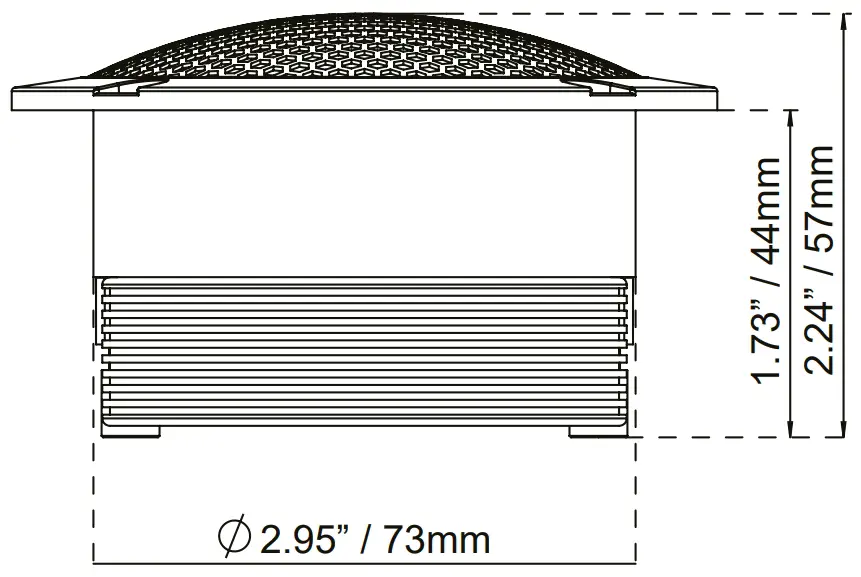

MEASUREMENTS
- Overall Diameter: 3.75″ / 95mm
- Overall Depth: 2.24″ / 57mm
- Front Mount Baffle Cutout: 2.95″ / 73mm
- Mounting Depth: 1.73″ / 44mm
FOR MORE INFORMATION PLEASE VISIT
DS18.COM
We LIKE IT LOUD
